Chinese DBG/DBH disk brake supplier sell air brake,pneumatic air brake system

Product Overview

Description

Chinese DBG/DBH disk brake supplier sell air brake,pneumatic air brake system

Factory Directly Produce Air Disc Brake,Pneumatic Disc Brake(Pneumatic Applied/Sprig Release Brake)

Pneumatically Applied Brakes are best suited for light to medium stopping duties and for tensioning applications where a high degree of control is required.Pneumatic Disc Brakes are widely used for speed reducing, stopping/braking of the low or medium torque driving mechanism. The brakes can also be applied as tension brake on winding machineries, such as: paper-web tension control, news paper publishing tension control, steel unwind control, wire and cable reel unwind tension etc.



Features for Pneumatic Applied Brakes Include:

Compact structure and small size, light. It is easy to control and operate.

Normally-closed type: spring applied and pneumatically released; Normally-opened type, air pressure applied and spring opened, brake force can be adjusted by varying air pressure.

The pneumatic actuator is made in Taiwan with high reliability and quality.

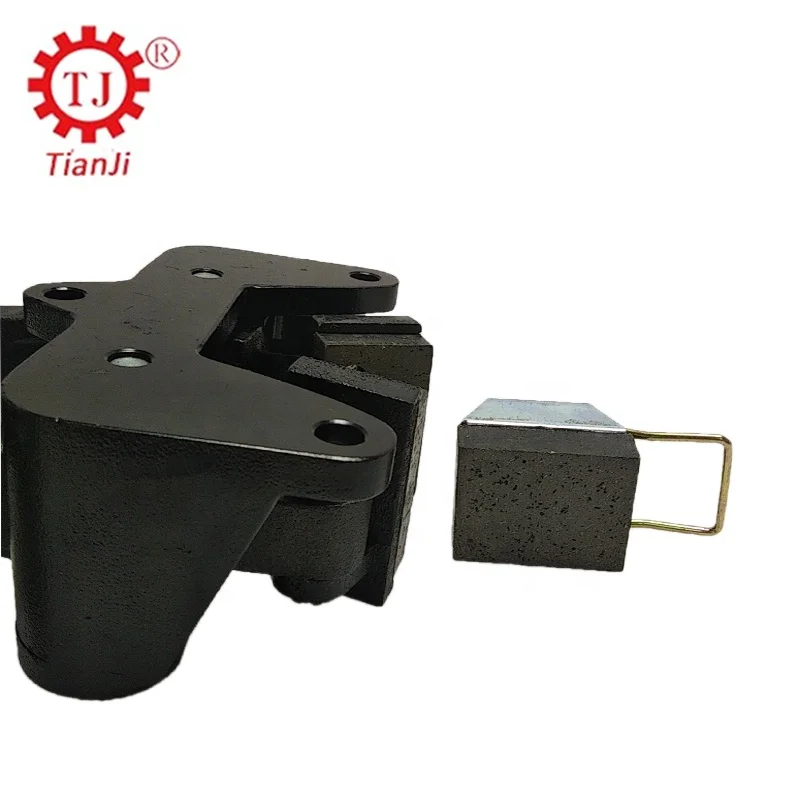

The linings are of inserting installation style and non-asbestos. It can be easy replaced.

When it is not possible to apply a disc with a required diameter, it is enough to apply more than one clamp.

This type of brake is also very suitable in case that work involves a constant pull on the material, but a pressure regulator is required.The assembly of these brakes does not require any particular attention thanks to the new self-aligning system with orthogonal sliding which allows an automatic brake-disc alignment.



Caliper brakes can have two operating modalities:

POSITIVE: when the control produces the braking effect.

NEGATIVE (Spring Applied): the braking effect is obtained when the control is absent. These clamp brakes are mainly used as safety and parking brakes.



The specifications of the three models as following:

1.TJ-DBG



2.TJ-DBH



3.TJ-DBH-F



We also have these types air disc brakes.

TJ-DBK DBK Air Brakes(Type Of Cooling And Fan)	TJ-DBK\\10DBK20.2\\DBK20.4 Air -actuated Disc Brakes	TJ-DBM DBM oil hydraualic disc brake	TJ-DBF DBF Air disc brake	TJ-DBC DBC Air Disc Brakes
