Complete Fruit Juice Production Line With Hot Filling Machine
- Category: Packaging Machines >>>
- Supplier: Zhangjiagang Sheenstar Technology Co. Ltd.
Share on (1251910274):
Product Overview
Description
Complete Fruit Juice Production Line With Hot Filling Machine
This machine is for filling juice into plastic bottle.

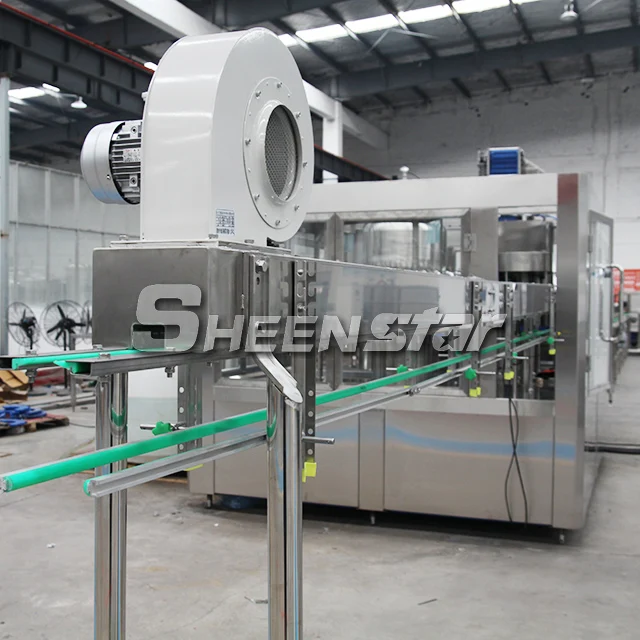

Air conveyor:The bottles come from bottle blowing machine to juice filling machine by air conveyor

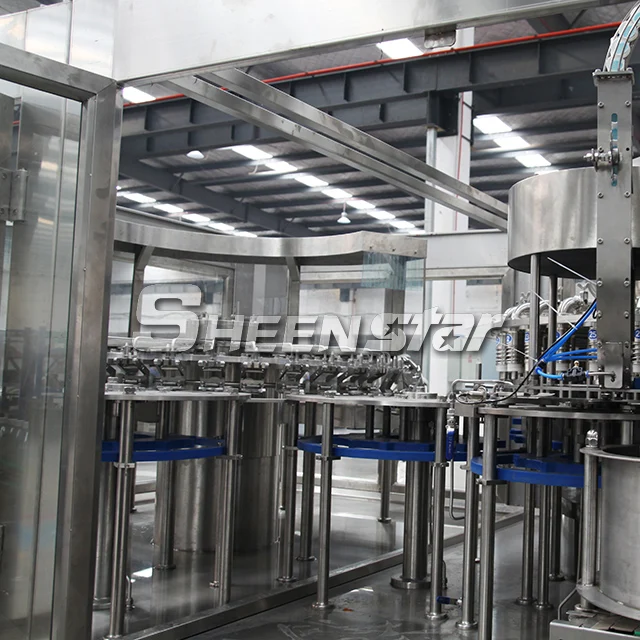

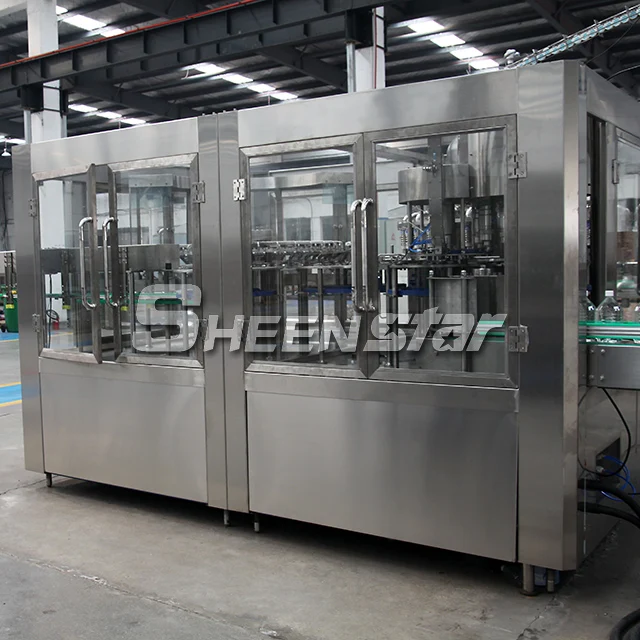

Washing filling capping 3 in 1 machine

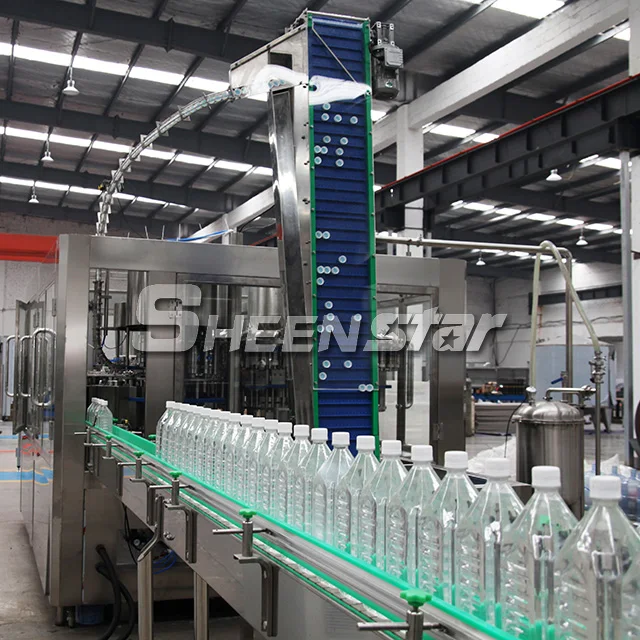

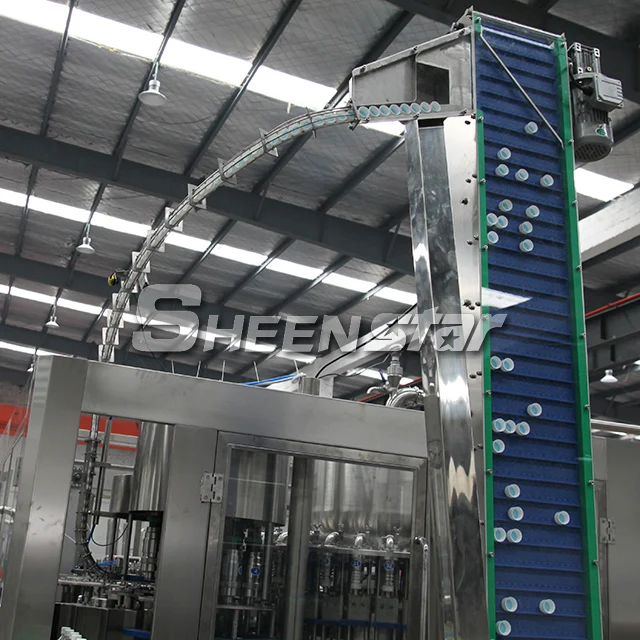

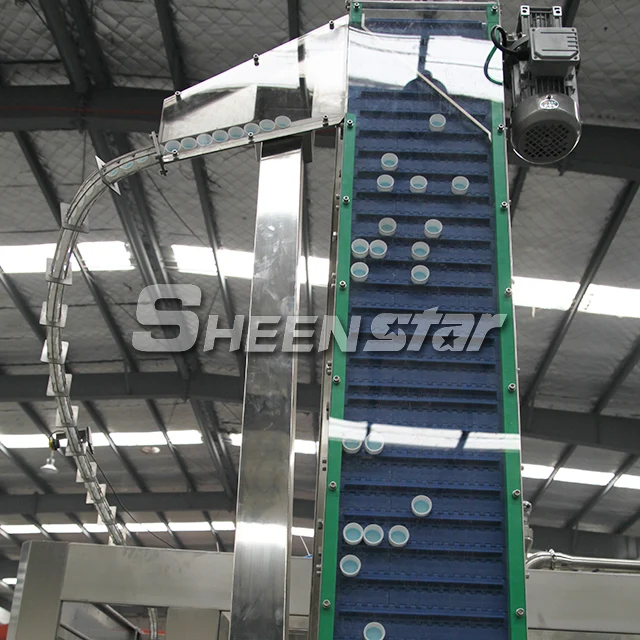

The cap elevator :the caps come to the capping part by the cap elevator.

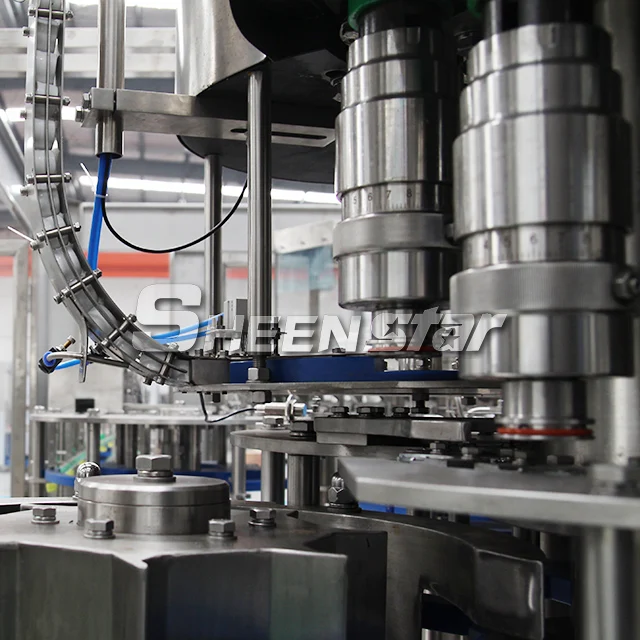

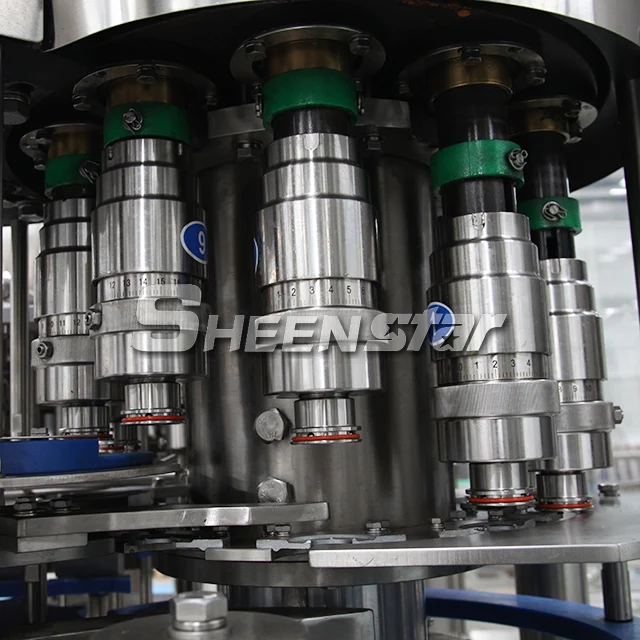

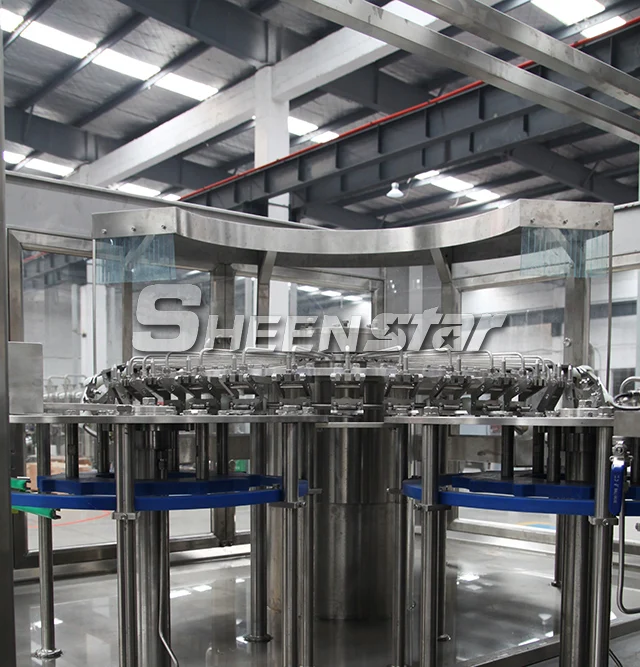

Capping part

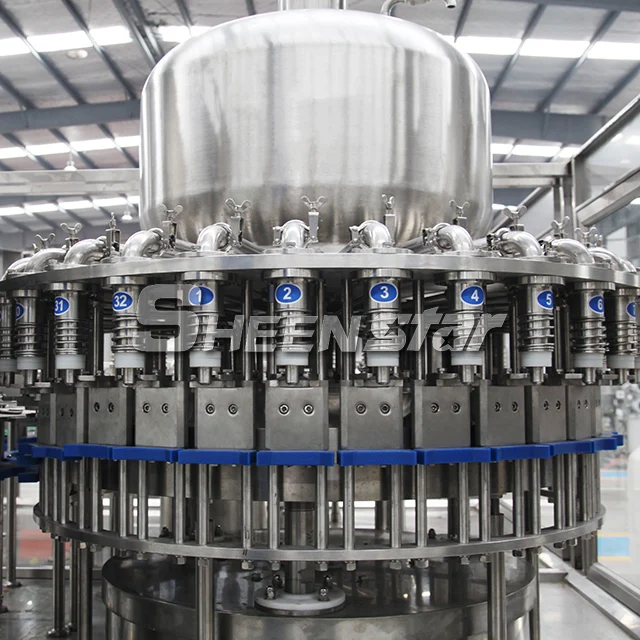

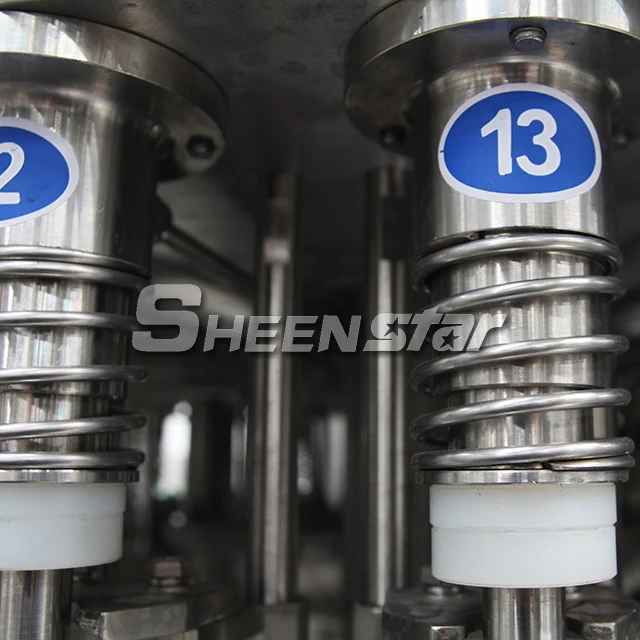

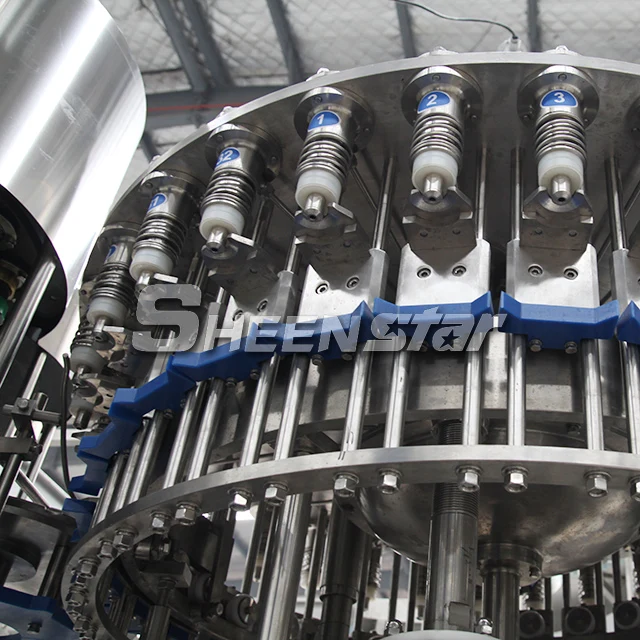

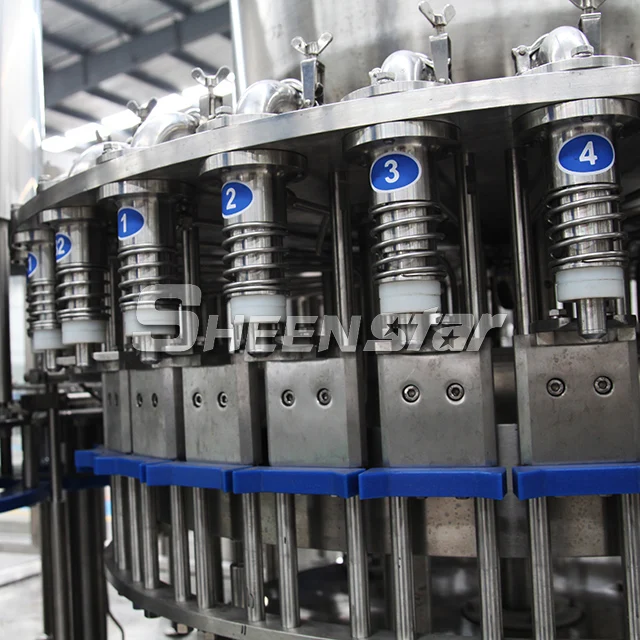

Filling part
Complete Fruit Juice Production Line
1,The machine is mainly used in the beverage filling operations.
2,The three functions of bottle wash, fill and seal are composed in one body of the machine.
3,The whole process is automatic.
4,The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics.
5,The machine can also be used in hot filling if being installed with temperature controlling device.
6,The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
7,The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted.
8,There the output and benefit of the machine is higher than the machines of the same specifications.
9,The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.
10,It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, 12,On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.
Complete Fruit Juice Production Line Technical data
| Model | RXGF8-8-3 | RXGF12-12-5 | RXGF16-12-6 | RXGF-16-16-6 |
| Production capacity (500ml)(b/h) | 1500-2000 | 2000-2500 | 3000-4000 | 4000-6000 |
| Filling precision | ±2mm(Liquid Level) | |||
| Polyester bottle standard(mm) | (Bottle Diameter):Φ50-Φ100(Height):150-310 | |||
| Suitable cap shape | Plastic Screw Cap | |||
| Water pressure of washing bottle(MPa) | 0.2-0.25(Mpa) | |||
| Wash bottle consumption water (kg/h) | 600 | 700 | 800 | 1200 |
| Spraying position | 5 | 5 | 5 | 5 |
| Dripping bottle position | 3 | 3 | 3 | 3 |
| Gas source pressure(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption(M3/min) | 0.1 | 0.1 | 0.1 | 0.1 |
| Power(kw) | 2.2 | 2.2 | 4.4 | 4.4 |
| Weight(kg) | 2000 | 2100 | 2200 | 2800 |
| Dimensions(L×W×H)(mm) | 2000*1600*2200 | 2100*1650*2200 | 2230*1630*2250 | 2360*1830*2250 |
| Model | RXGF-16-16-6 | RXGF24-24-8 | RXGF32-32-10 | RXGF40-40-12 |
| Production capacity (500ml)(b/h) | 4000-6000 | 6000-10000 | 10000-15000 | 15000-20000 |
| Filling precision | ±2mm(Liquid Level) | |||
| Polyester bottle standard(mm) | (Bottle Diameter):Φ50-Φ100(Height):150-310 | |||
| Suitable cap shape | Plastic Screw Cap | |||
| Water pressure of washing bottle(MPa) | 0.2-0.25(Mpa) | |||
| Wash bottle consumption water (kg/h) | 1200 | 1800 | 2400 | 3000 |
| Spraying position | 5 | 8 | 12 | 16 |
| Dripping bottle position | 3 | 4 | 7 | 9 |
| Gas source pressure(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption(M3/min) | 0.1 | 0.4 | 0.5 | 0.5 |
| Power(kw) | 4.4 | 5.2 | 6.2 | 7.8 |
| Weight(kg) | 2800 | 4500 | 6000 | 7000 |
| Dimensions(L×W×H)(mm) | 2360*1830*2250 | 2900*2200*2250 | 3880*2200*2250 | 3700*3000*2350 |
Company Information
- Zhangjiagang sheenstar Technology Co., Ltd. has been in beverage packing machinery industry for many years.The company has got the ISO9001,CE,SGS certification.
- sheenstar provides complete beverage production solutions, such as bottled drinking water,5 gallon barreled water, fruit juice, gas drinks, soy milk, wine and other complete production lines, including of water treatment, beverage pre-treatment system, injection molding machine, Filling machine, labeling machine, shrink packing machine, and other machines which are suitable for plastic bottles, glass bottles,cans etc.
- sheenstar provides suitable machine according to customer's requirement.And has rich experience in Southeast Asia, the Middle East, Africa, Europe, America and Oceania.
- Welcome to SHEENSTAR,Leyu town,Zhangjiagang City, China
- Let us share development and success.
working
Certifications
FAQ
Q: Are you a factory or a trading company?
A: We are a manufacture,our factory is at Leyu Town,Zhangjiagang city which is near shanghai and wuxi.
Q: Does your company and products Through the authentication?
A: Yes,we have through famouse certification,ISO,CE,SGS,BV
Q: How long I can get the machine?
A: Accoring to the machine,usually less than 40 days
Q: How can i give you the money?
A: Up to you,T/T,L/C,western union and others will be ok
Q: How can i use the machine
A: The engineer will install the machine for you,and train your employee,also We will give you the user's guide
