Полностью автоматический ПЭТ листа экструдер для переработки 100% хлопья
- Category: Plastic Extruders >>>
- Supplier: Guangdong Jinxin Machinery Co. Ltd.
Share on (1270247241):
Product Overview
Description

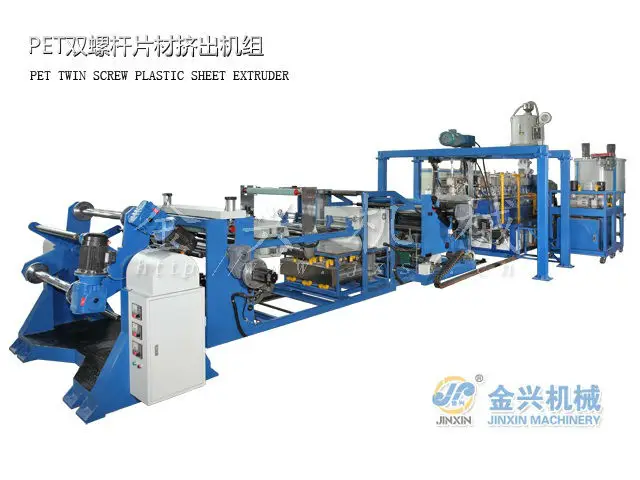

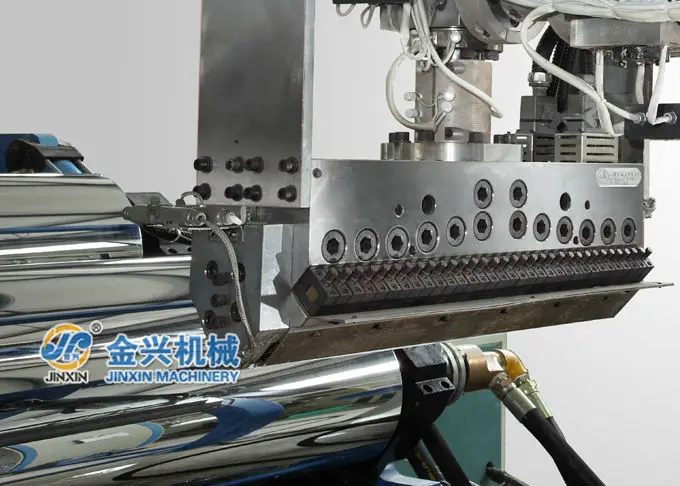

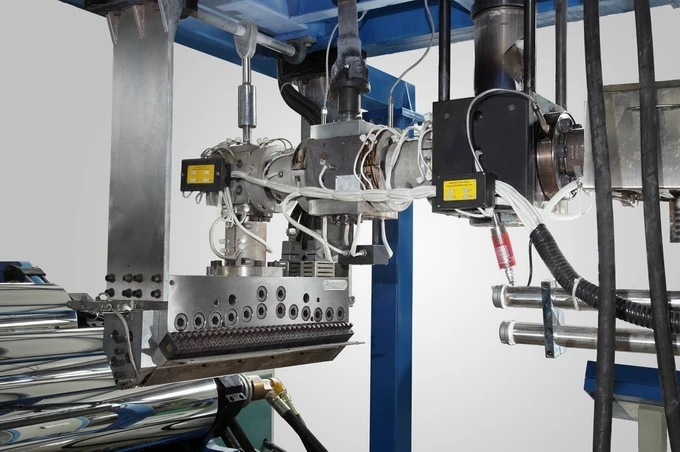

PET Twin Screw Plastic Sheet Extruder
Sheet Extruder
Parameter
Mode No. | PET72/72-1000 |
Available material | PET,PLA |
Diameter of screw(mm) | φ72X2 |
Ratio of screw L/D | 1:40 |
Max. sheet width(mm) | ≤750 |
Sheet thickness (mm) | 0.2-1.6 |
Capacity (kg) | 300 |
Power of the whole machine(kw) | 220 |
Dimension(mm) | 23000x4000x3000 |

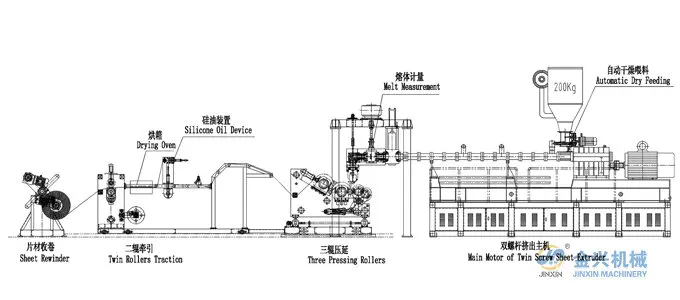

Layout
Some samples

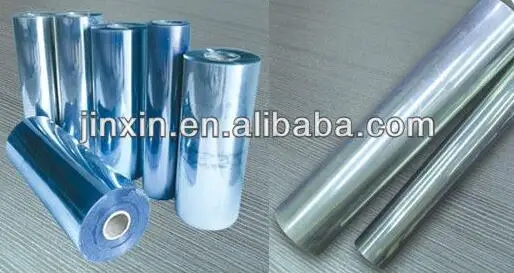

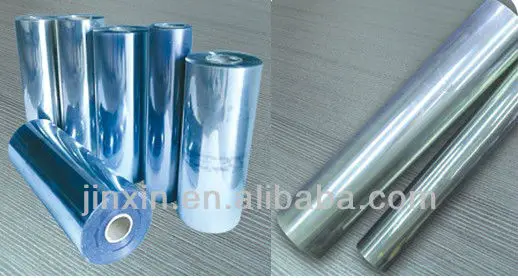

End Products
Machine Parts
Number | Name | Number | Name |
| 1 | frame | 9 | Compound distributor |
| 2 | Drive motor | 10 | Hanger die |

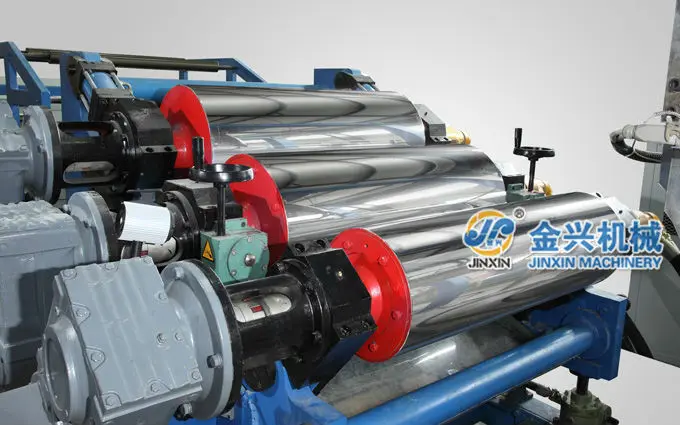

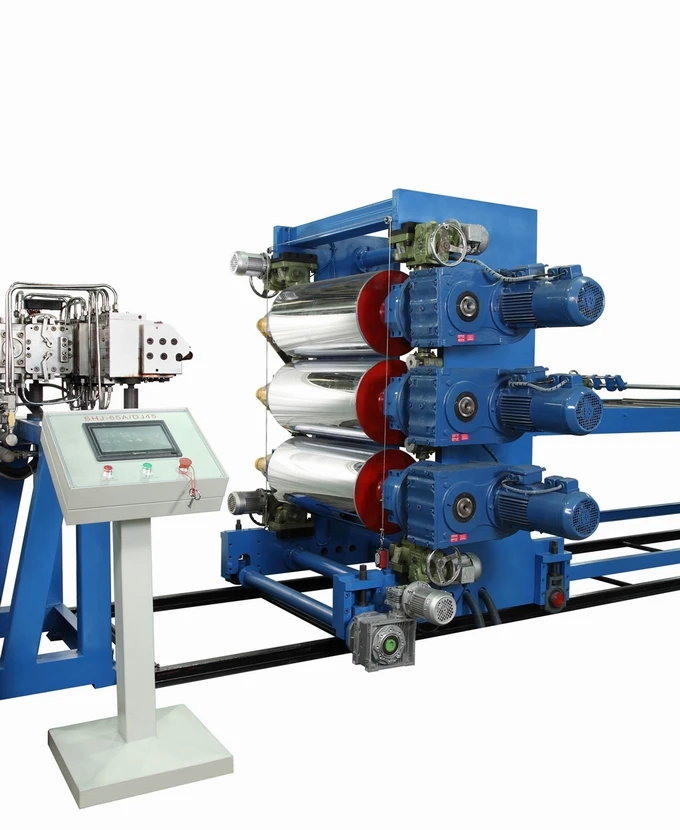

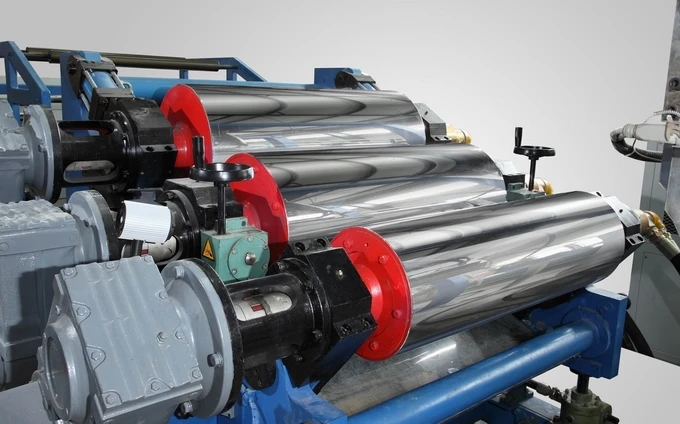

| 3 | Reducer | 11 | Vertical calendering three roller mechanism |
| 4 | Hopper | 12 | Towing frame |
| 5 | Main extruder screw | 13 | Trimming device |
| 6 | Auxiliary extruder screw | 14 | Two rollers traction |
| 7 | Hydraulic screen change | 15 | Waste edge winder |
| 8 | Melt pump | 16 | Double stations winder |
Function
1. Available material: PET, PLA.
2. Extruder is designed with double vacuum system to vent water very fast.
3. Close-circuit control ans servo-rolls contron system.
4. Integration of machinery, PLC control, parameter setting, alarm feedback and automatic control.
5. Convenient operation & excellent function.
Main Fittings
1. Inverter from Taiwan DELTA
2. PLC from OMRON
3. Air swith from Korean LG
4. Relay, contactor, button from Germany SCHNEIDER
5. Temperature controller from Japna YAMATAKE
6. Servo motors from Japan YASKAWA
Company Information
Production Process
Production Equipment
Packaging & Shipping
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:What certificate do you have?
A:We have ISO and CE certificate.
3.Q:How does your factory do regarding quality control?
A:We have a special QC department in charge of products' quality.
4.Q:How long is the warranty period?
A:All of your products have one year warranty.
5.Q:What's the main market of your company?
A:We have customers all over the world.
6.Q:How much production capacity of your company one year?
A:This depends on your needs.
7.Q:Can we visit your machine operation in your factory?
A:We have own plastic making company, you can see the machine operation.
8.Q:Where is your factory located? How can we visit there?
A:Our factory is located in Shantou City, Guangdong Province, China, about 45 minutes from Guangzhou by air. We offer transportation service.
