plywood hot press machine/ the Philippines woodwroking machinery

Product Overview

Description

                     Plywood Hot Press Machine-400-800T 4*8ft 8-20 layers

 (1)Advantages:



1.Hot platen: It is drilled from excellent carbon solid steel and it is high  precision, high strength and durable. It is manufactured on special worktable, so as to keep the hot platen easy to operate.
2.Heating system: It is heated by electrical oil heater.

3.Hydraulic system: It has excellent oil pump and electric motor. So it work smoothly. The pressure is adjustable.
4.Cylinder: It uses high quality oil envelop so as to avoid of oil leaking.



(2)Function:



1).The plywood hot press machine for multipurpose and wide application in wood-based panel industry,specially for plywood manufacture.
2). The automatic electric apparatus is easy and reliable in operation,and the automatic temperature and time control ensures the quality of products.

3). The hydraulic circuit is composed of integrated blocks and compact in structure,ensuring accurate and reliable action of the system.
4).The steam system is designed as a "double entering and double exiting"arrangement to ensure even temperature distribution in hot platens.
5). Low motor power nd quick, power-free falling of hot platens save power consumption and decrease pr-oduction cost.
6) . The foundation is simple, with low investment.







(3)Specification:





No. of layers	15layers
Nominal Pressure	400Ton
No. of cylinders	2 pcs
Diameter of cylinders	320mm(alloyed material )
Stroke of cylinders	1050mm
Origin of cylinder	Wuxi, China
hydraulic system	Full-automatic controlled
Pressure of hydraulic system	25Mpa
The flow of main oil pump	250ml/rev
Pressor oil pump	10ml/rev plunger oil pump
Main generator	11KW
Pressor generator	5.5KW
Time of no-load closing	About 27seconds
General  dimensions	3560*1370*4000mm
Height of top crossbeam	800mm
Height of nether crossbeam	800mm
Thickness of steal board	352212mm
Dimension of active crossbeam	2700*1370*400mm
Thickness of steal board in active crossbeam	22mm

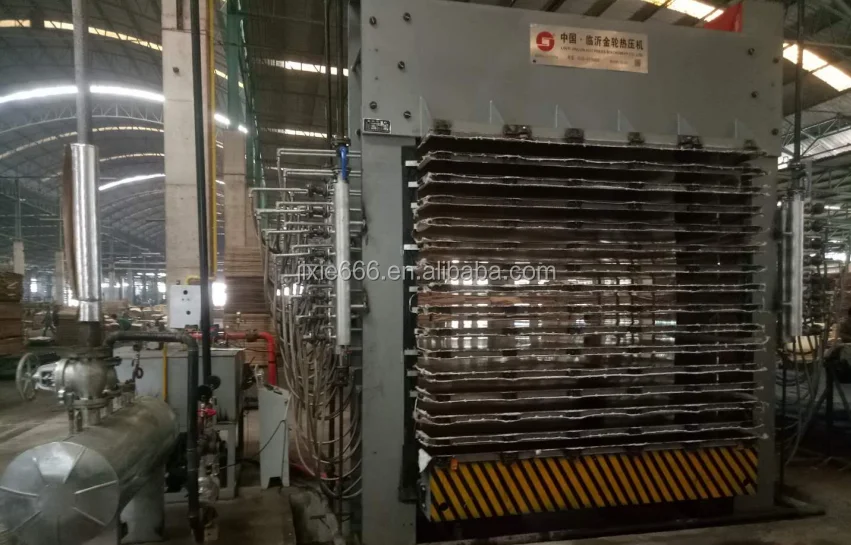

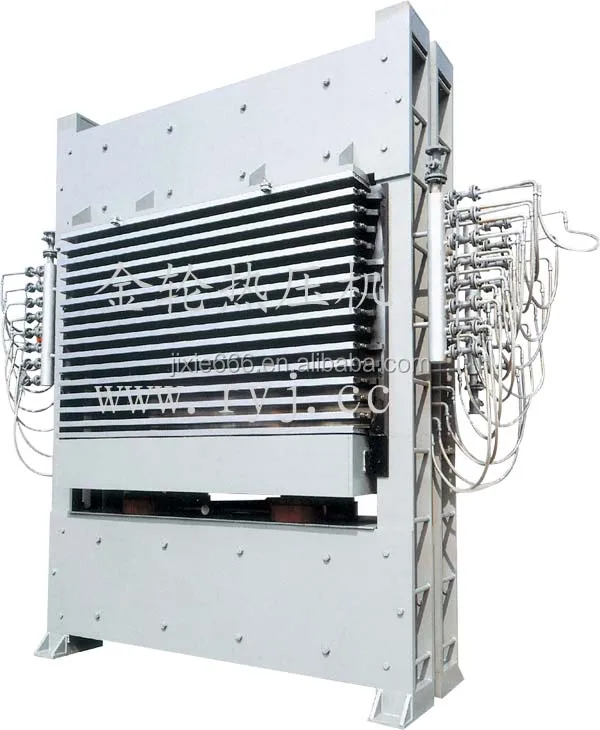

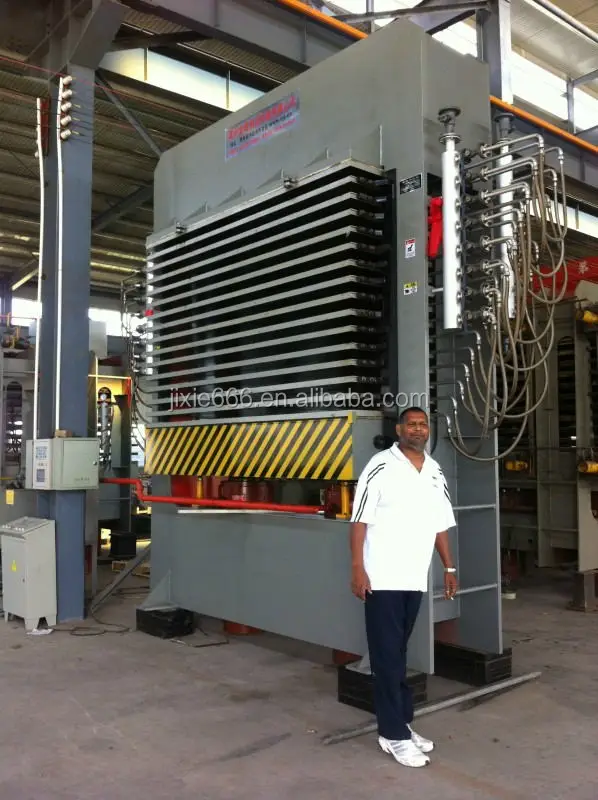

(4)Details Of Machine Photos:
