Product Overview
Description
MAIN FEATURES
This aluminum flexible duct pipe making machine is specially for producing aluminum flexible ducts with aluminum foil or metalized PET film with steel wire reinforced for ventilation purpose.
MACHINE DESCRIPTION
1. Automatic cutting
2. Multi-function, finished product could be aluminum duct, PVC lamination aluminum duct, double-layer aluminum duct
3. Fast feeding speed, max. feeding speed could be 2.5m/s

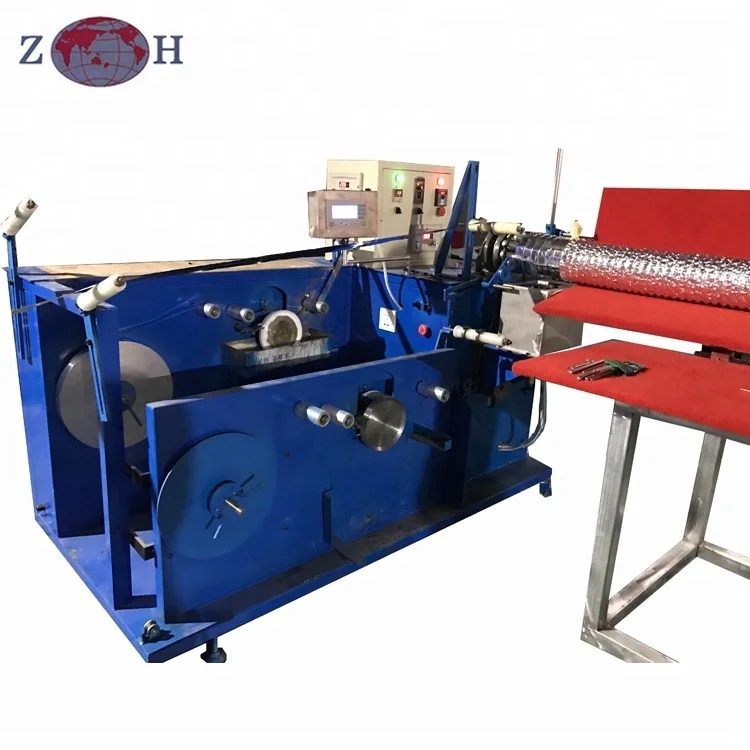

Machine frame

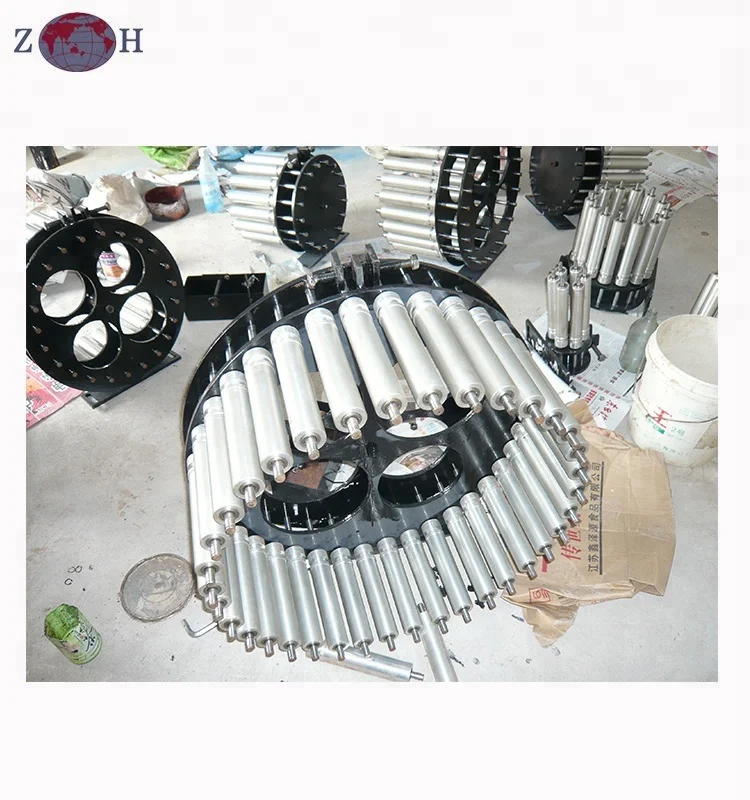

Mold
Cutting station
MACHINE SPECIFICATION
No. | Item | Technical data |
1 | Diameter range | 60-600mm |
2 | Length of aluminum tube | 1-10m |
3 | Raw material | metalized PET film, 0.023mm, width 40-60mm, Steel wire 0.8-1.4mm dia. |

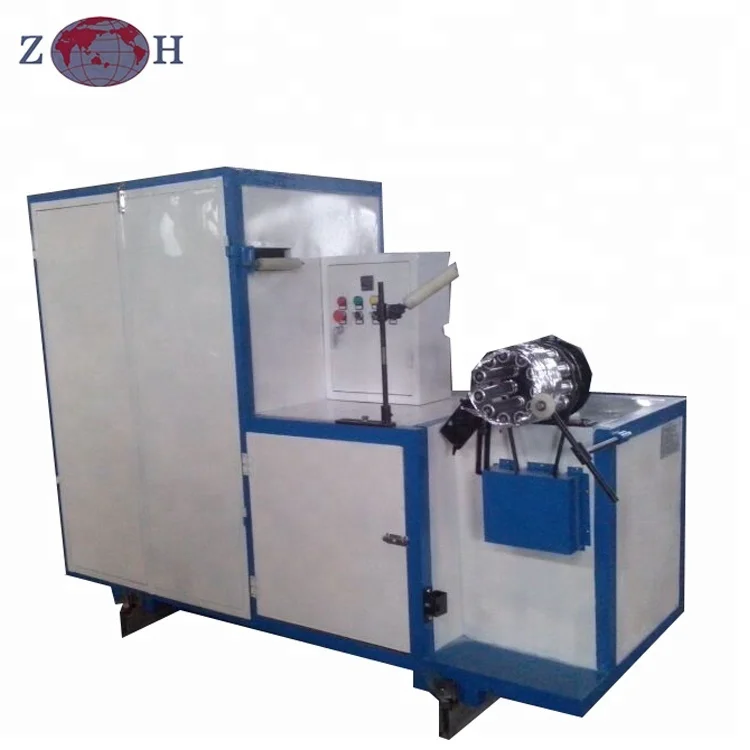

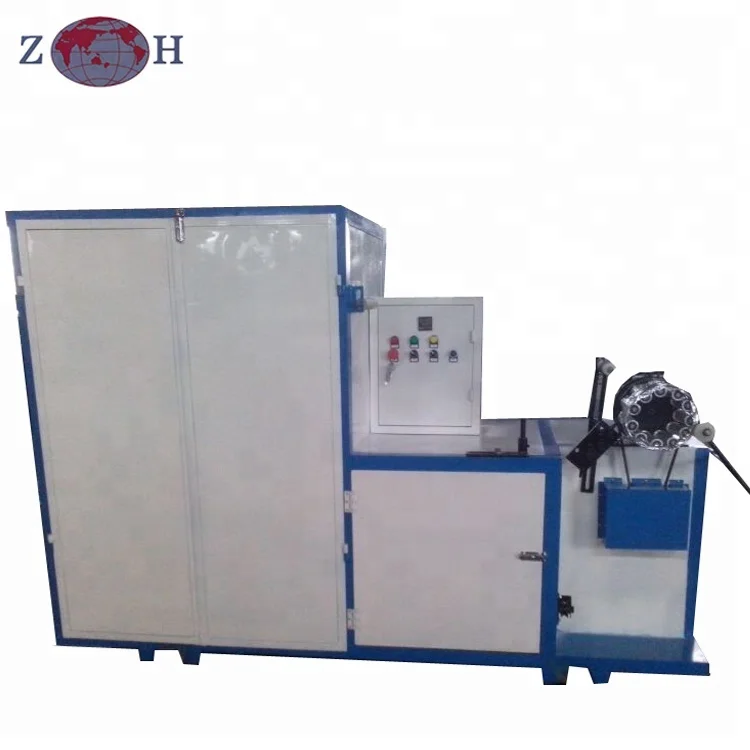

4 | Dimension (L x W x H) | Main machine: 1900 x 1000 x 1400mm Heating oven: 1600 x 1100 x 1650mm |
5 | Weight | About 950kg |
6 | Main motor power | 1.5kW |
7 | Temperature | 40~120º |
8 | Electric heating power | 2.4kW |
9 | Working speed | 1~35m/min |
10 | Feature of finished ducts | Temperature resistance: -30°C-140°C Max. air flux: 30m/s Max. working pressure: 2500Pa Pitch between corrugations: 20mm |
