High Precision U Shaped Brushless 1590N Coreless Linear Motor
US $528.00-$1020
1500W 10NM AC Servo Motor for industrial sewing machine ac servo motor
- Category: AC Motor >>>
- Supplier: Shenzhen Guanhong Automation Co. Ltd.
Share on (1280914739):
Product Overview
Description

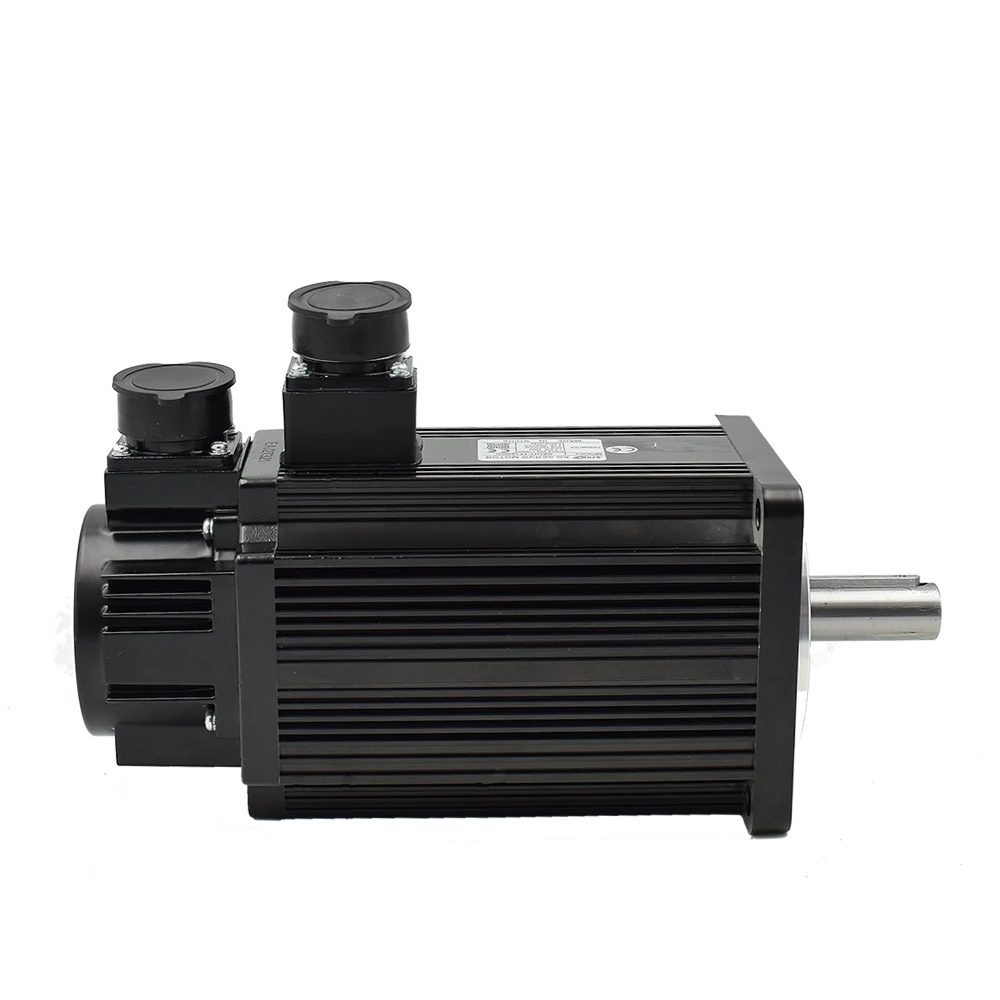

1500W 10NM AC Servo Motor for Sewing Machine
Product Description
13150AC is 1500W servo motor with high performance, and low cost. It is stable and compatible with other servo driver. Specially, it is high inertia servo and 10NM torque, can be available to large load and precision equipment.
Specification:
Rated Power (W): 1500 W
Continuous Torque:10Nm
Peak Torque: 25Nm
Rated Rotation speed (r/min): 1500 RPM
Encoder Resolution (PPR): 2500
Continuous Torque:10Nm
Peak Torque: 25Nm
Rated Rotation speed (r/min): 1500 RPM
Encoder Resolution (PPR): 2500
Rated Voltage (V): 220
Rated Current (A): 6.0
Rotor Inertia (kg.m2x10-4): 19.4
Application Environment:
Work temperature: 0°C~ 40°C
Relative Humidity: < 90% RH
Altitude : < 1000 m
Non corrosive ,non flammable gas and dust and oil-mist

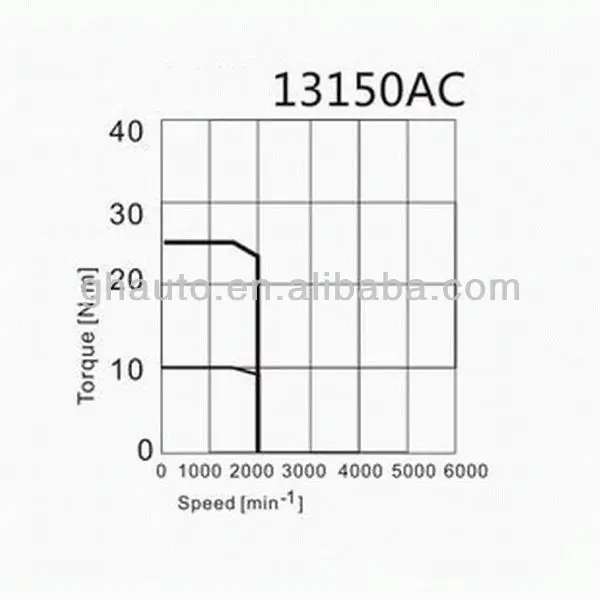

Torque-Frequency picture:

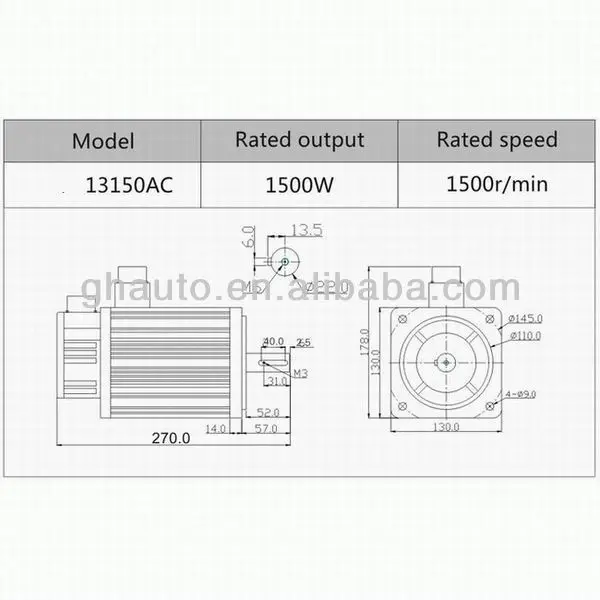

Product Dimension :

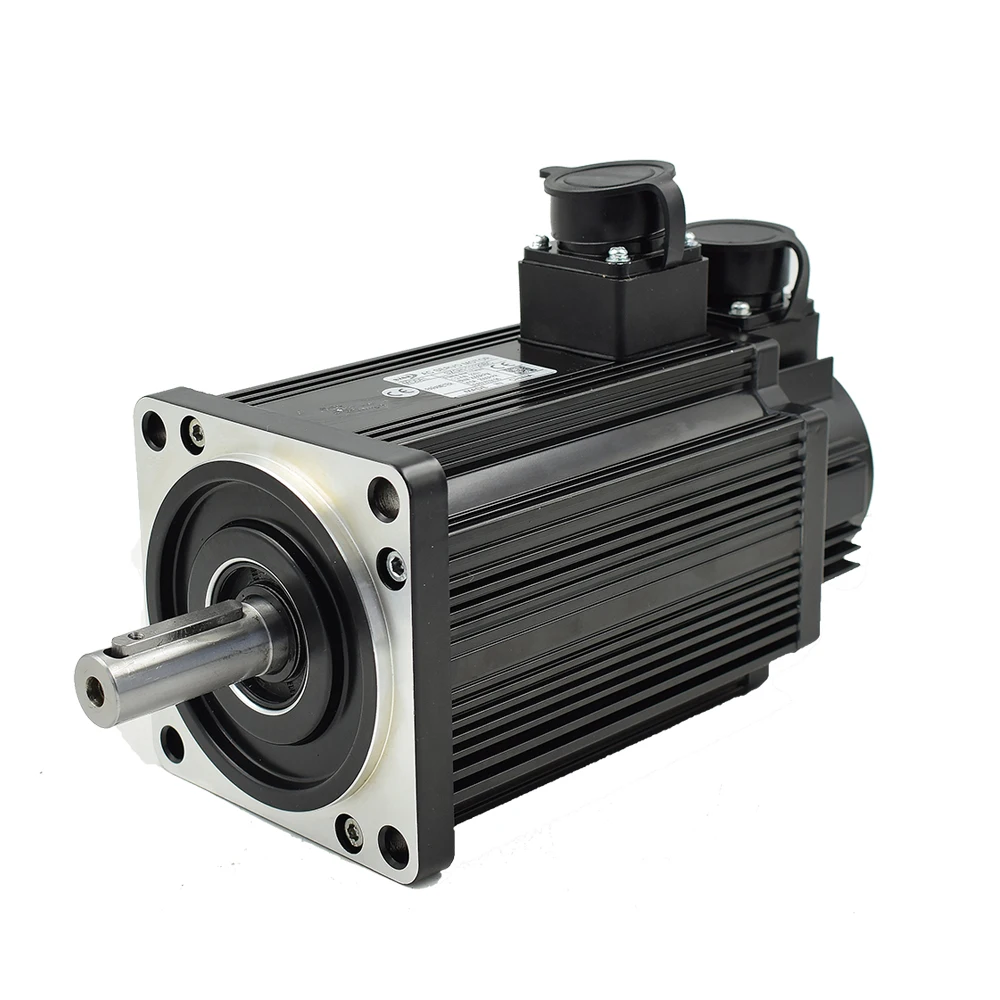

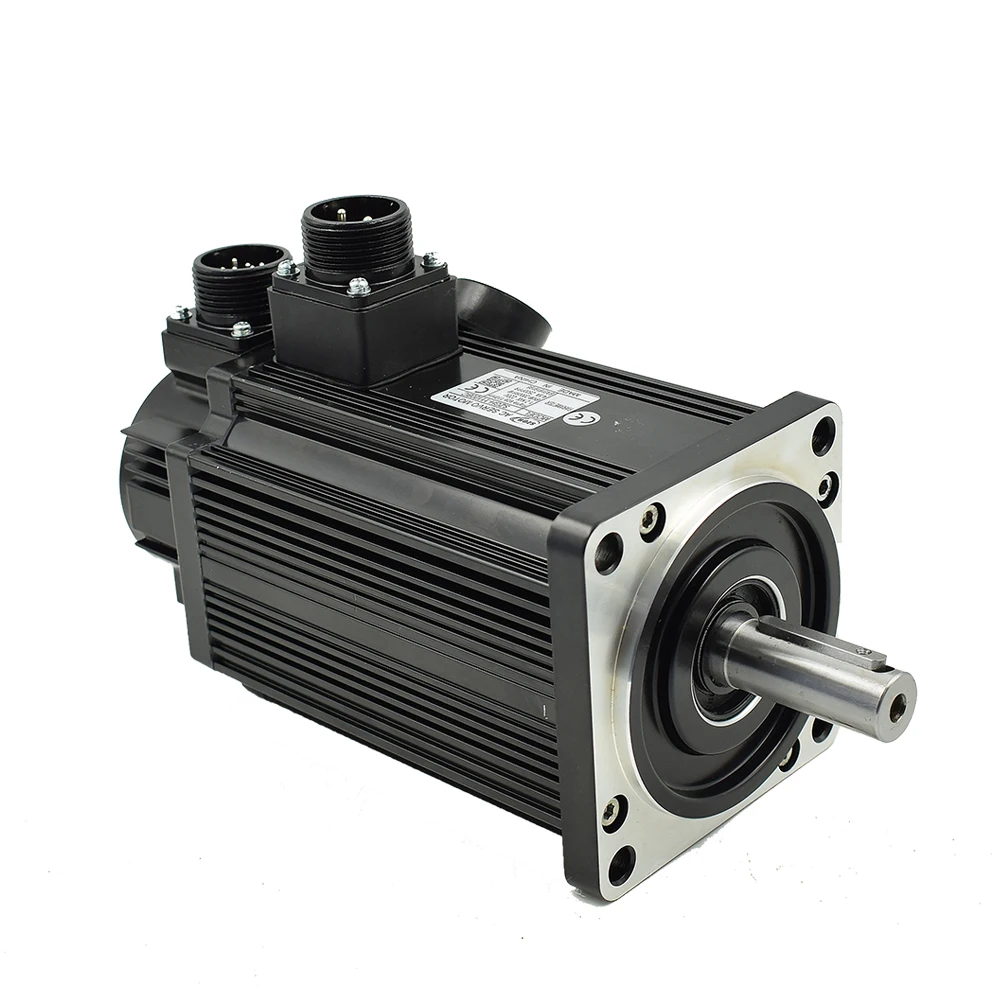

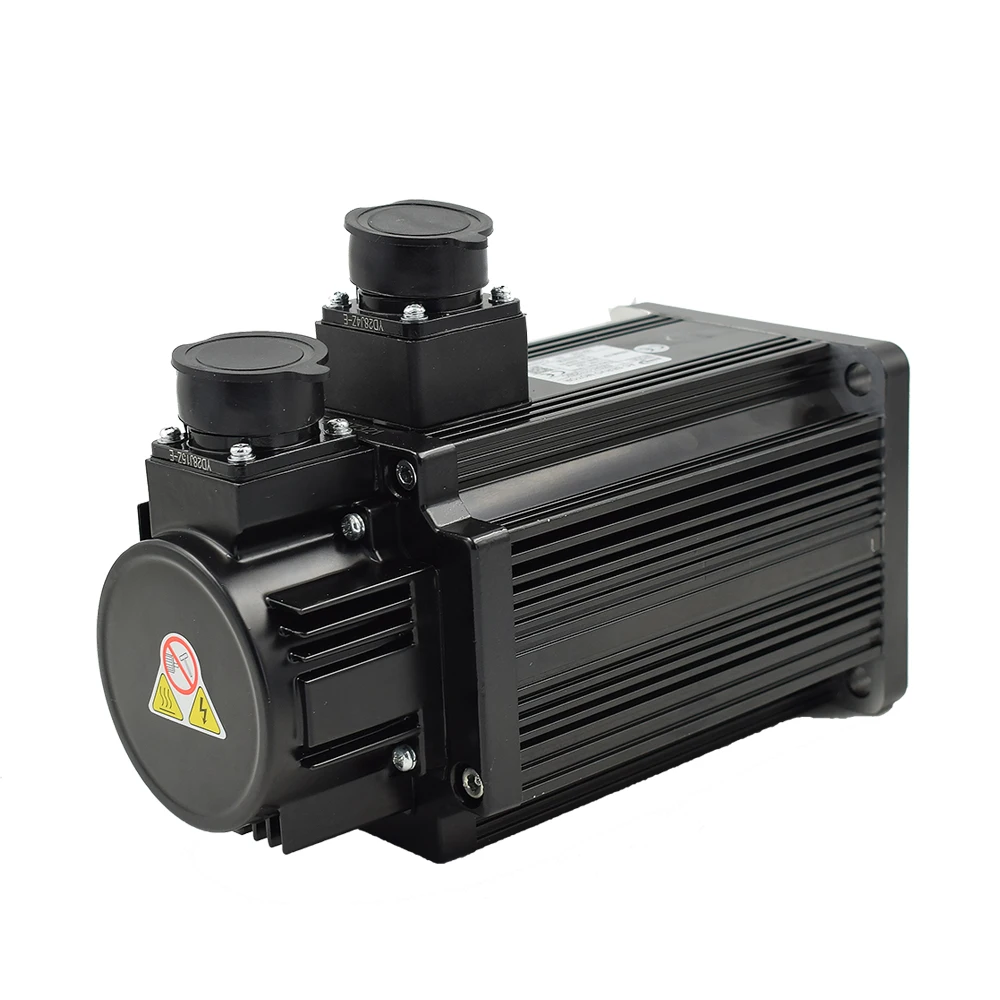

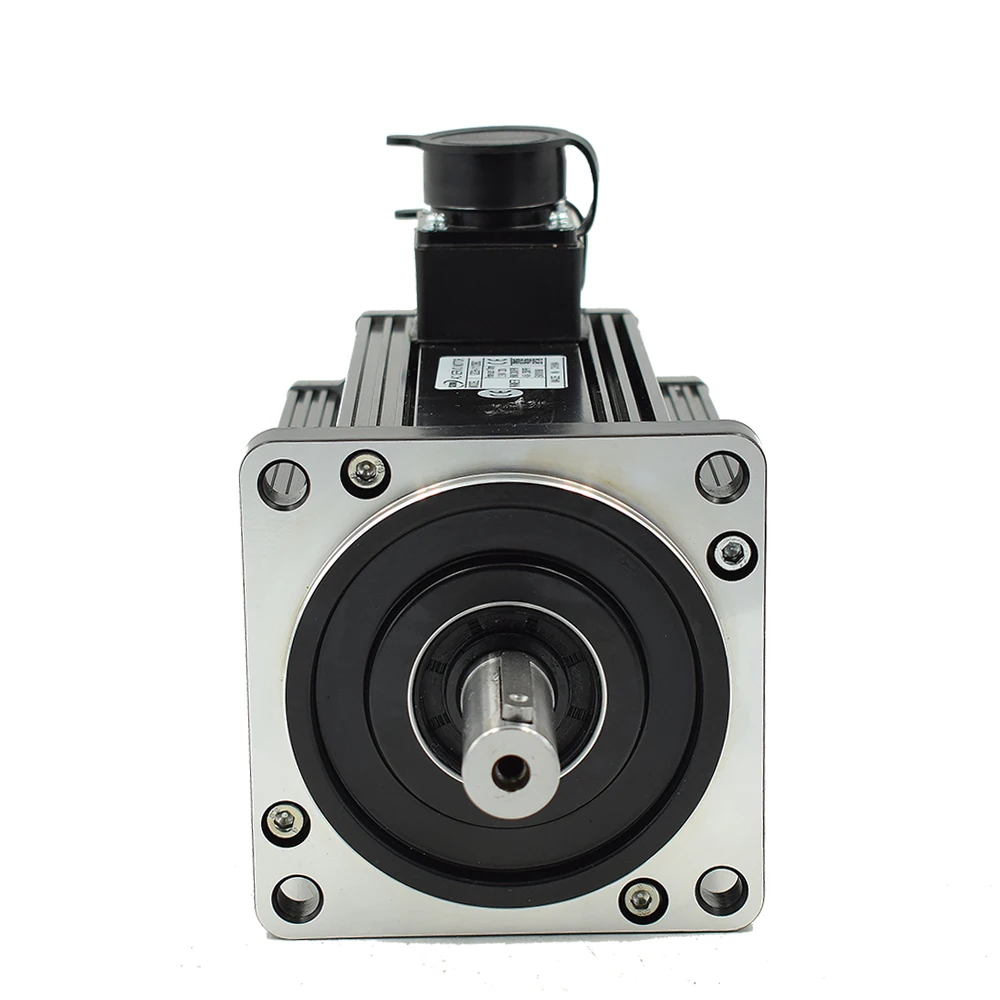

Product Picture
Packaging & Shipping
1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets
2.Commercial packing: plastic bag+ foam boxes + carton
3.As the clients’ requirement
Delivery Detail: Normally ready goods and stock within 2-5days
