Энергосберегающий двигатель PMSM для 24FT большого потолочного вентилятора

Share on:


Price:1 069,00 $ - 1 247,00 $
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


Permanent magnet motor for big fan

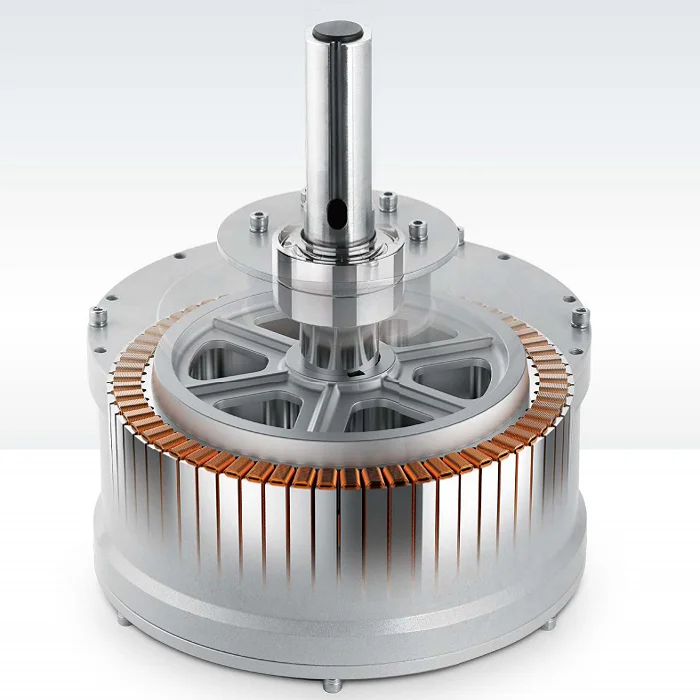

The new self-developed external rotor motor with large torque and permanent magnet synchronization replaces the traditional
motor+gearbox reducer, achieving a high degree of integration and improving reliability and transmission efficiency.
At the same time, the permanent magnet synchronous external rotor motor is adopted, with its own IMU configuration, to achieve the
ESC active control strategy+coordinated regenerative braking strategy, driven by the motor directly; Any torque recovery or
auxili-ary braking within the peak torque can be satisfied.
Aluminium alloy material is adopted in many parts to realize the lightweight design.


Product Paramenters


Model
HDSM-7.3
HDSM-5
HDSM-3
Weight
45KG
25kg
18kg
Voltage
115V/215V
115v/215v
115v/215v
Power
1.1KW
0.75kw
0.37kw
Air volume
13000m³/min
10000m³/min
4000m³/min
Rotating speed
50rpm
80rpm
120rpm
Noise
38db
38db
38db
Matching fan
diameter 7.3m & 6.3m
diameter 5m & 4m
diameter 3m


Our Advantages


1) Energy saving.
2) Maintenande free, no need to change seals , add oils.
3)Without noise, only 38db, can also be used in the office , the mall, hall besides the workshop and warehouse.
4) Small size and light weight.
5) 5 years warranty.
6) 20 years service life .
7) Voltage of the motor can be 115V/215V. The Use power can be 200-240V,50/60hz, single phase; 200-240v,50/60hz, three phases or 360-480v,50/60hz,three phases.


Details Images




Product packaging


Model
HDSM-7.3
Net weight
45kgs
Gross weight
60kgs
Packing material
Plywood case
Packing size
80*80*45cm


Certifications

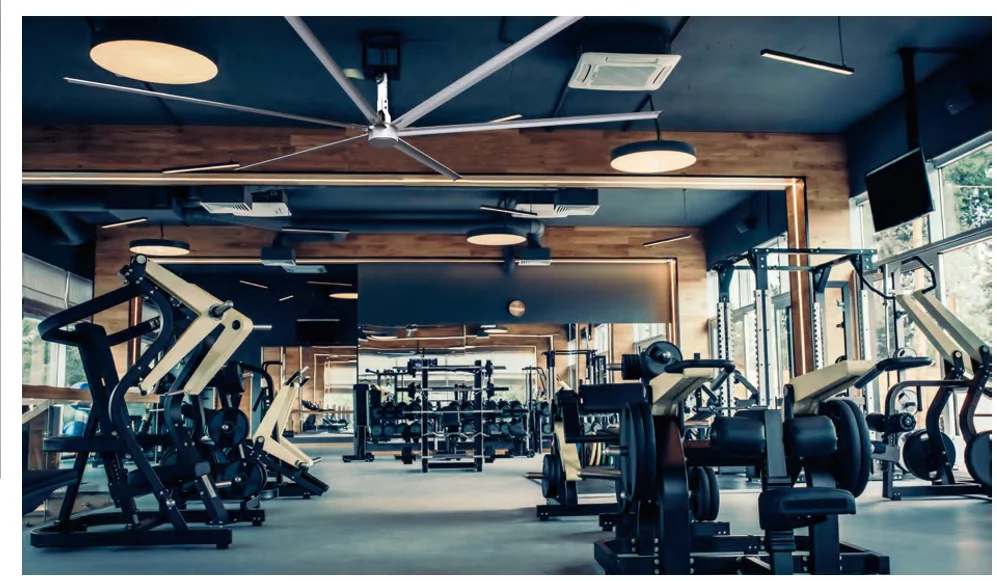

Application




Company Profile


Our factory
For more than ten years, the company focuses on the research, development and production of the high-temperature motor,high-temperature fan and permanent magnet variable frequency ceiling fan, Strict control of production technology, to create quality.
The company has passed the standard acceptance of safety standardization; ISO9001:2008 quality management system certification,ISO14001:2015 environmental quality system certification. It has obtained the national production license for industrial products and the pollution discharge certificate of Fujian province. Products through CCSAus certificate, CCC certification, European CE certificate, fire safety certificate, best-selling national and overseas markets.
The company has owned 16 utility model patents and appearance patents. It was awarded"2017 China agricultural machinery industry annual parts quality award".
