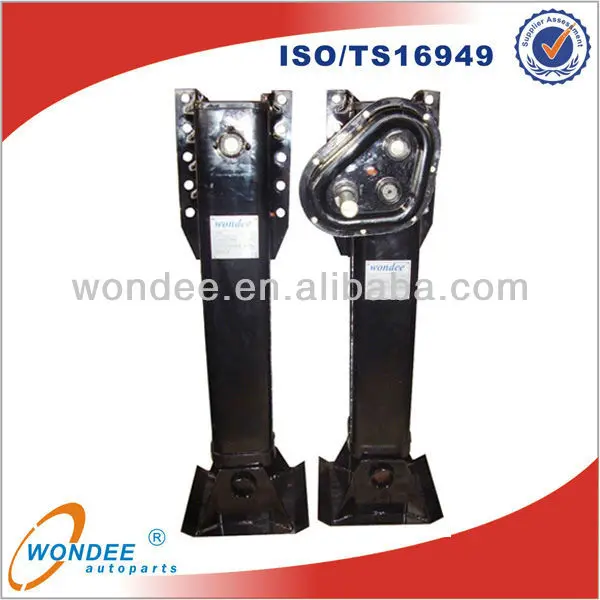

FUWA 28 Ton Trailer Landing Gear for semi trailer parts

Product Overview

Description





28 Ton Trailer Landing Gear Suppliers Information:



Dimention of LGH28-A0101T:

1.Capacity: 28T

2.Static Load: 80T

3.Speed: Higher 3.5, Lower 0.42

4.Lift/Height: 430/794; 480/844



Many type of landing gear and landing gear parts can be production by Wondee Autoparts:

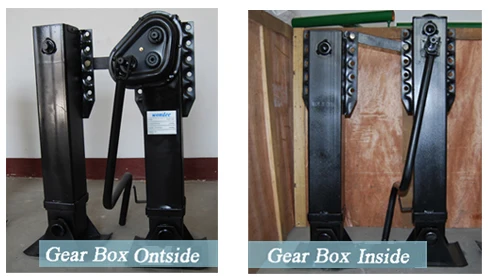

1.Gear Box: Inside & Outside



2.Operation: Single side & Double side



3.Lifting Capacity: 25 ton ~ 35 ton.



4.Static Load: 50 ton ~ 90ton

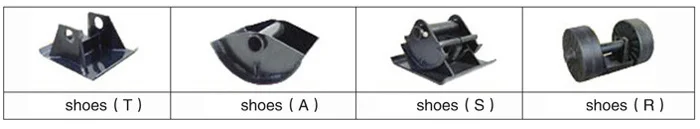

5.Gear Food Type: T, A, S, G, R



6.Out put: 80,000 pairs yearly



Landing Gear Dimension:



Number	Capacity	Static Load	Speed		Lift	Height
	kg	kg	Higher	Lower	mm	mm
LGH28-A0101T	28000	80000	3.5	0.42	430	794
LGH28-A0102T	28000	80000	3.5	0.42	480	844





Landing gear Specifications ( Just for Reference ):

• Reliable, high-quality seal keeps water out and extends life


• Unique tapered backplate for enhanced durability


• Gearbox with low-temperature premium lube provides easy cranking and reduces component wear; protection from -65ºF to 225ºF


• Low Speed Gear - 38.6 turns per inch


• High Speed Gear - 4.5 turns per inch


• Massive, 5-inch upper housing with 80,000 psi minimum yield and retractable tube; maintains strength while saving weight. Lower leg is 12% larger than standard-duty landing gear


• Three-gear train gearbox with exclusive Man-Saver gear ratios handles normal loads with 40% less effort


• Exceeds all AAR M-931 and all TTMA RP-4 performance specifications.


• Includes an industry leading 5-year warranty

Landing Gear Function & Attention ( Just for Reference ) :



1.The device is use for semi-trailer and special trailers.

2.It lift and support trailer when it is separated from tractor.

3.It's also in use for all sorts of trucks that they are secured to work as jack.

4.The quality is up to the standard of American ABS specification.

5.Landing Gear has slow and fast two speed. Please use slow speed when loading. It is easy to operate. Do not use fast speed. It is possible to injure landing gear.

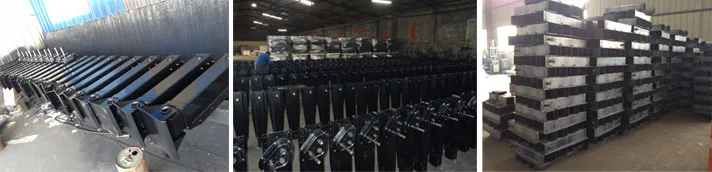

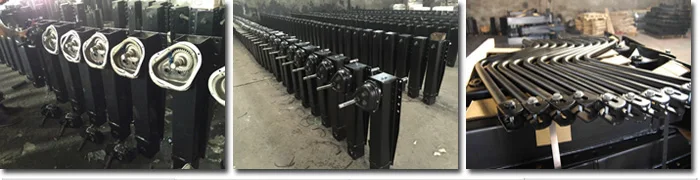

The Detail Photos about Landing Gear:

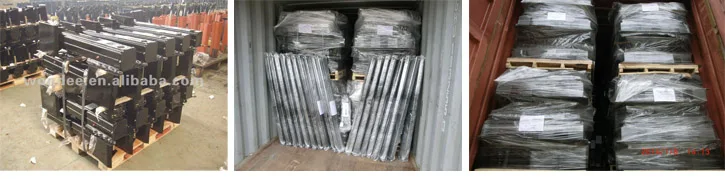

 The Package Photos about:



Advantage for you to choose us:

  1.High Quality and compatition price

  2.Our  factory have advanced equipment

  3.We can product many type of landing gear

  4.Small order or sample order can be accepted





About us:

WONDEE AUTOPARTS, located in Xiamen city,Fujian Province of China,has been supplying

a wide variety of trailers , semi-trailers , trucks and their chassis components since 1999 . From

2009,WONDEE has expanded the business to special steel , agricultural machinery parts &

wheel rim production line.

In 2003, we are certified to the standards of the ISO9001:2000 system, and in 2006, we are

certified to the ISO/TS16949 international system.
