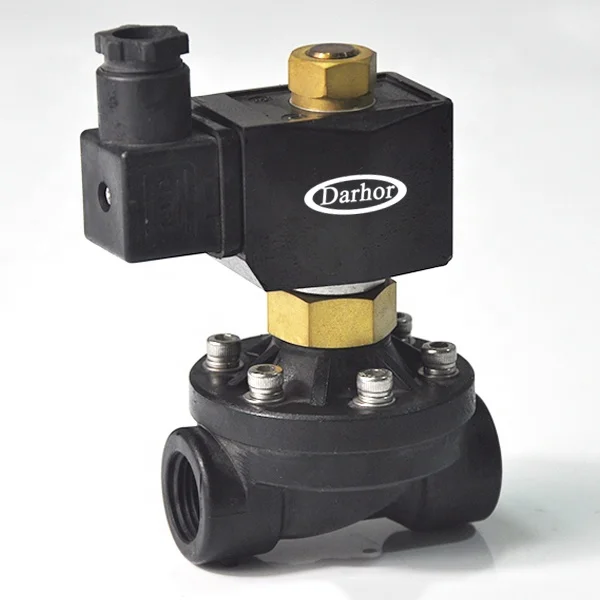

Нормально Закрытая Магнитная диафрагма DN25, 220 В, 1 дюйм, пластиковый водяной электромагнитный клапан 12 В, 24 В
- Category: Solenoid Valves >>>
- Supplier: Hangzhou Darhor Technology Co. Limited
Share on (1282362920):
Product Overview
Description
Product Description

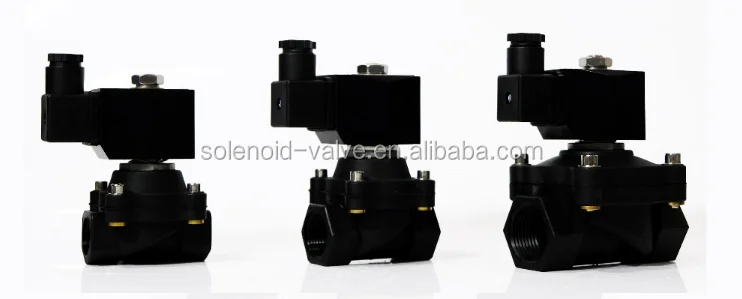

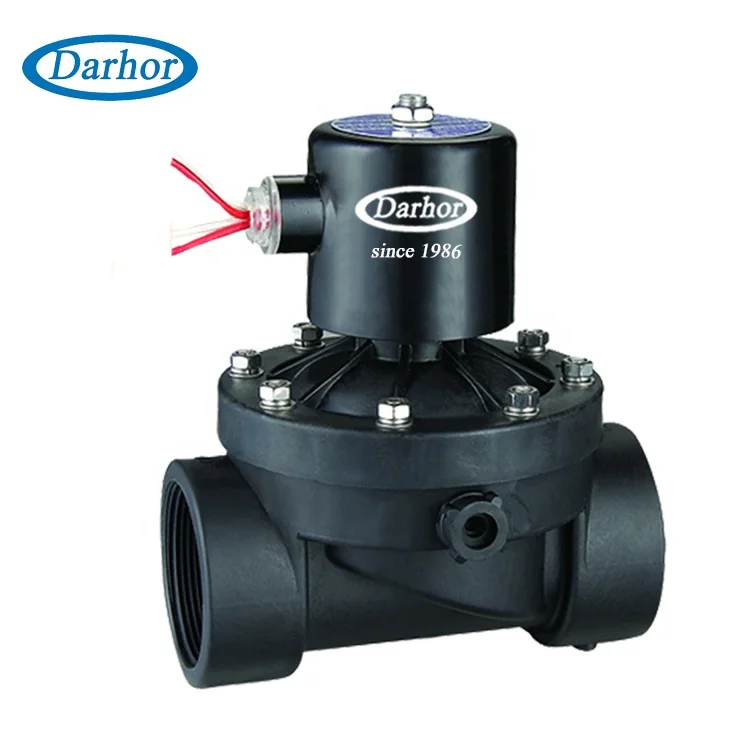

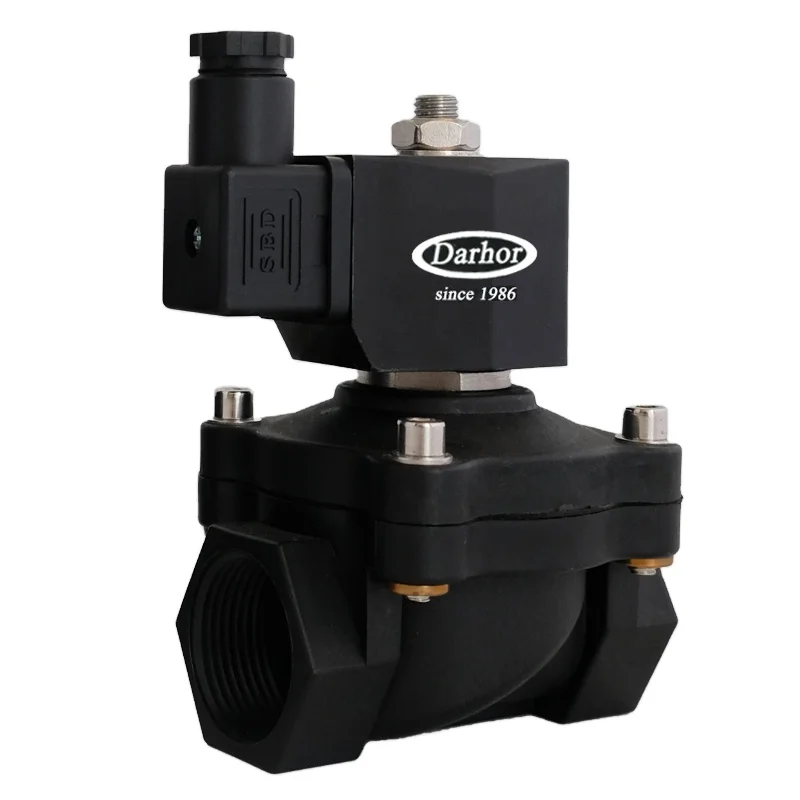

220V 24V 1" DN25 Normally Closed magnetic diaphragm 1 inch Plastic Water Solenoid Valve
Characteristic:
1.Direct lifting diaphragm construction;
2.Open from zero bar for low pressure system use;
3.High frequency of flying lead coil.
Material:

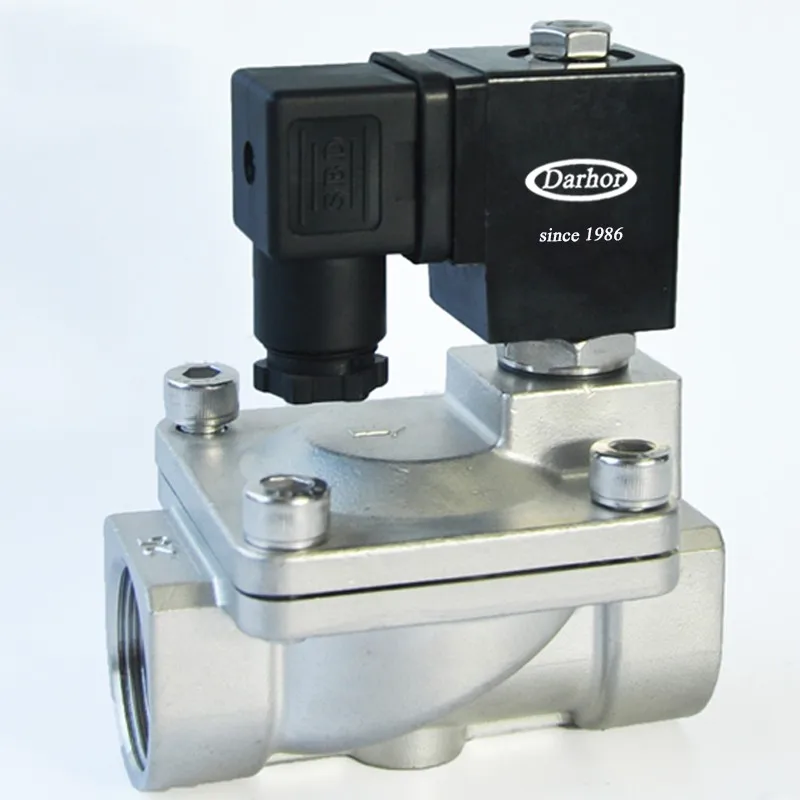

Body-Brass,Stainless steel
Seal- NBR, EPDM or VITON
Armature Tube-Stainless Steel 304
Plunger- Stainless Steel 430F
Stop- Stainless Steel 430F
Springs- Ss304
Shading Rings- Copper
Medium: | Air, Gas, Water, Light oil, etc. |
Temperature: | NBR Seal:-10℃ to 80℃ VITON Seal: -10℃ to 120℃ EPDM Seal: -10℃ to 120℃ |
Pressure: | 0-1.0 MPa |
Port Size: | 1/2''~2'' |
Port Thread: | G, BSP, NPT |
Orifice(mm): | 15, 20, 25, 32, 40, 50 |
Voltage: | DC12V,24V AC 24V,120V,240V/60Hz 110V, 22V/50Hz Tolerance:+/-10% |
Coils: | 410,26VA(AC),18W(DC),IP65,100%ED |
Related Products
Specifications
2W51 Normally Closed, with Coil 410,DIN | ||||||||||||||||
Valve Body | Port Size | Orifice | Cv | Min Pressure (MPa) | Max Pressure(MPa) | Seals Material | Body Material | |||||||||
AC(22VA) | DC(17W) | |||||||||||||||
2W5115XXX | 1/2'' | 15 | 4.8 | 0 | 7 | 6 | NBR | PA66 (Nylon) | ||||||||
2W5120XXX | 3/4'' | 20 | 7.6 | 0 | 7 | 6 | ||||||||||
2W5125XXX | 1'' | 25 | 12 | 0 | 7 | 6 | ||||||||||
2W5132XXX | 1 1/4" | 32 | 22 | 0 | 6 | 5 | NBR | PA66 (Nylon) | ||||||||
2W5140XXX | 1 1/2" | 40 | 30 | 0 | 6 | 5 | ||||||||||
2W5150XXX | 2" | 50 | 48 | 0 | 6 | 5 | ||||||||||
\t\t\t\t\t\t\t\t\tCertifications \t\t\t\t\t\t\t
Our Company
Each Darhor Valve pass 10 testings to ensure high quality!
Valve testing: Coil testing:
high pressure test low pressure test
leak detection water hammer test lifecycle test
resistance test current test
power test temperature test noise test
Packing & Delivery
Shockproof Bag to protect valve
Strong Cartons
1.English neutral packaging
2.with Darhor logo
3.with your logo (Charged)
membrane outside protect rain
Package more than 40kgs,use
Fumigated wooden case or pallet.
We will compensate to the damage!pls contact within 3 days when you receive.
