dedust high speed/quality turbo pulverizer mill with CE













Principal:

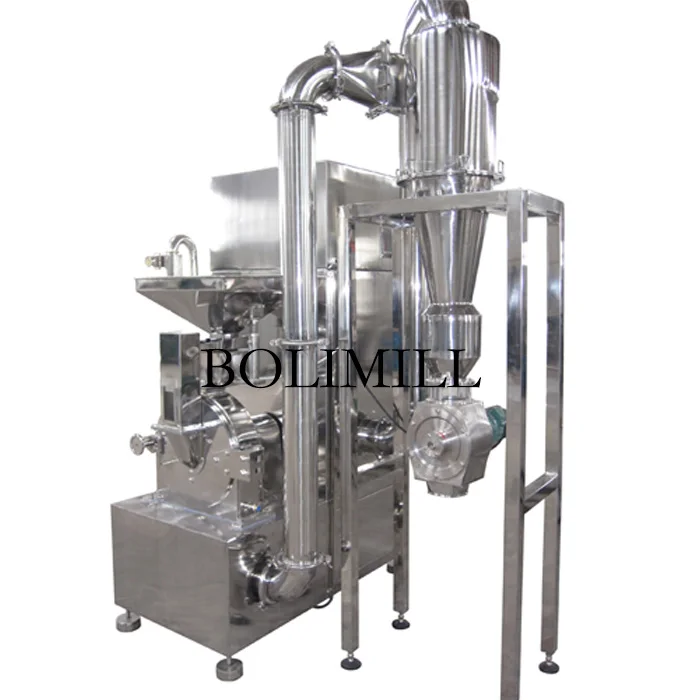

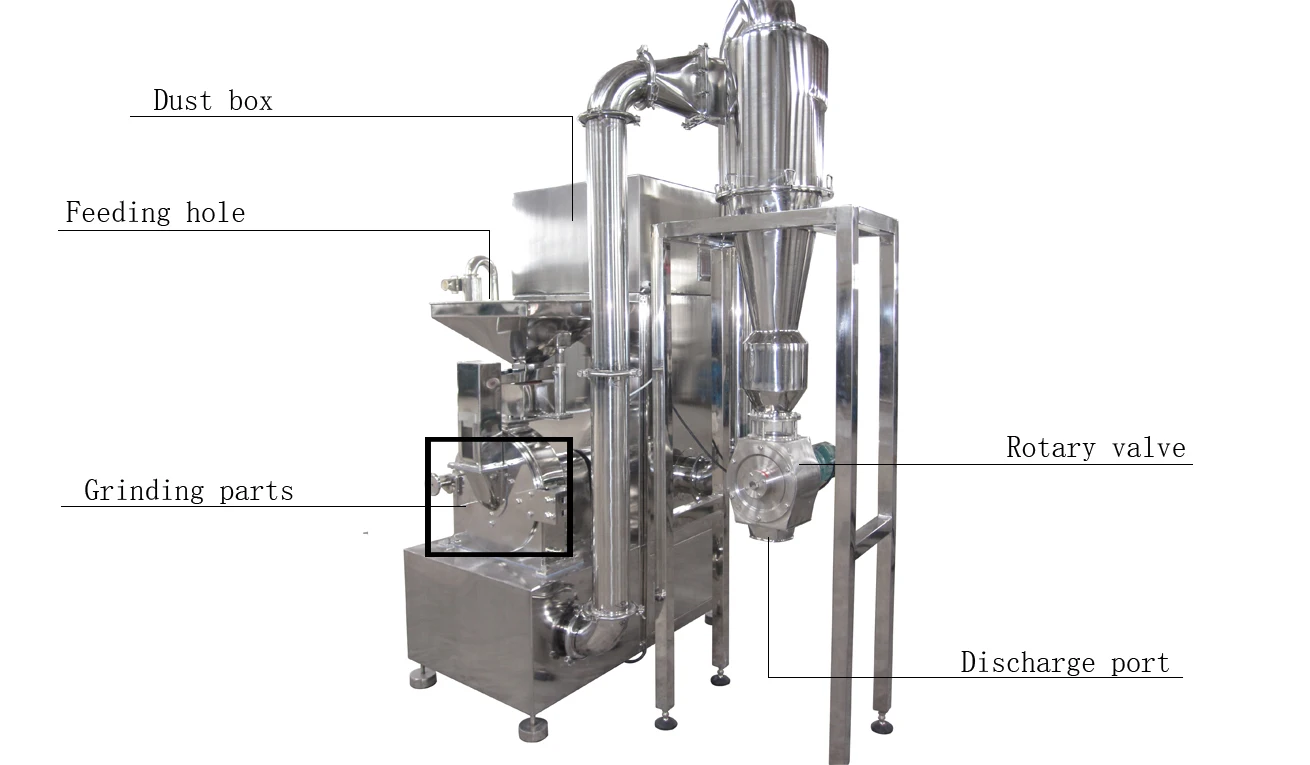

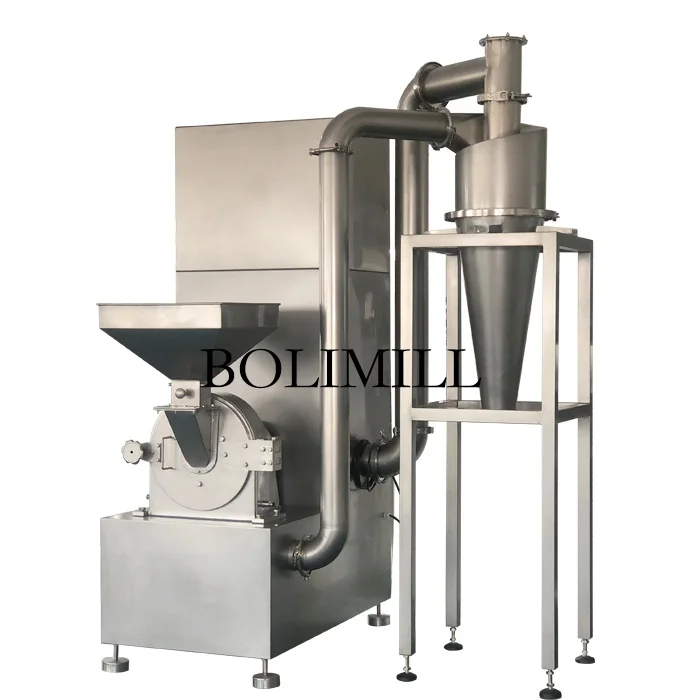

This machine is made up of crusher, cyclone separator, pulse dustevacuator box and induced fan etc, material is fed into the chamber through a hopper ,and crusher by high speed rotating hammers.

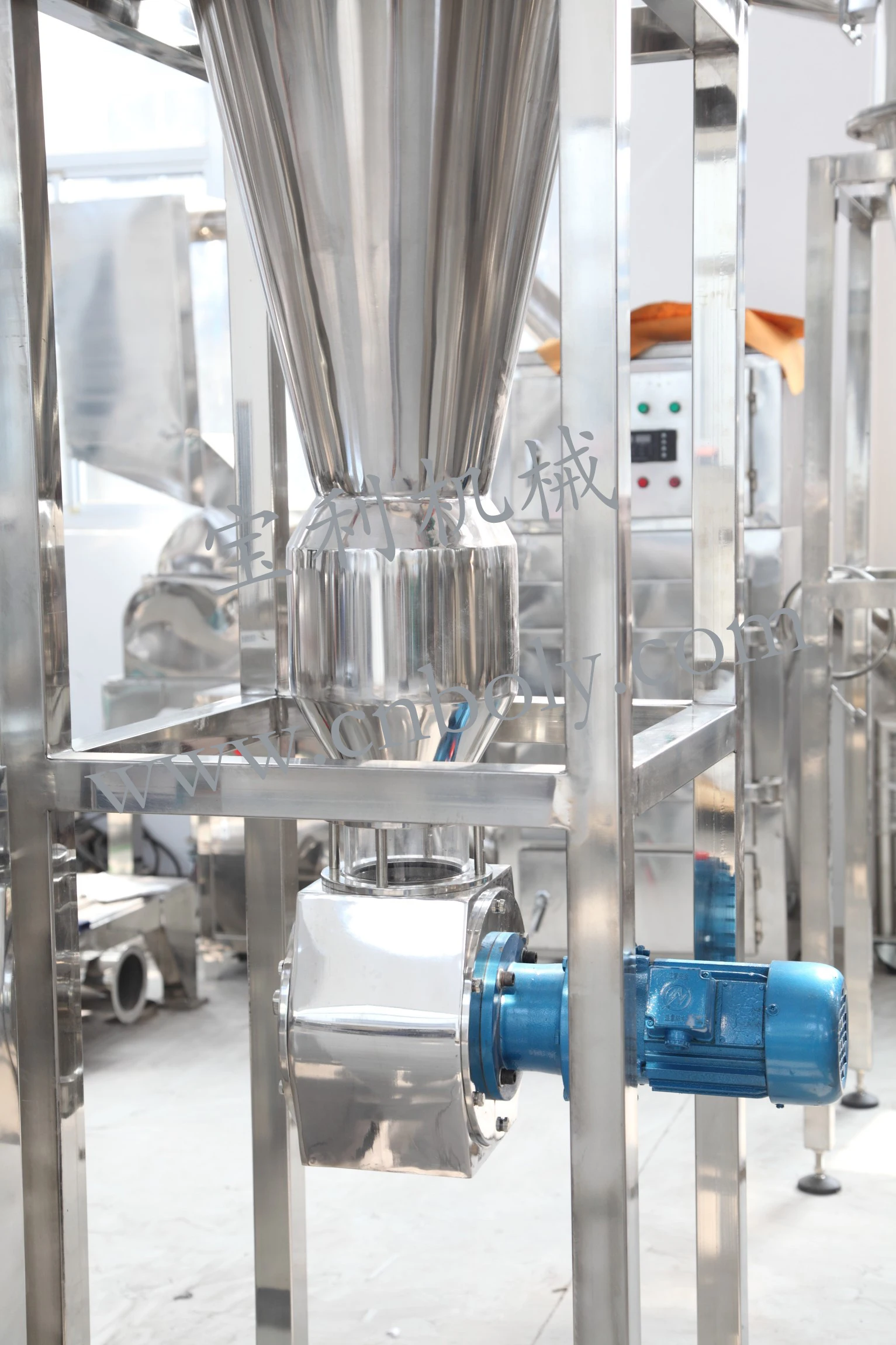

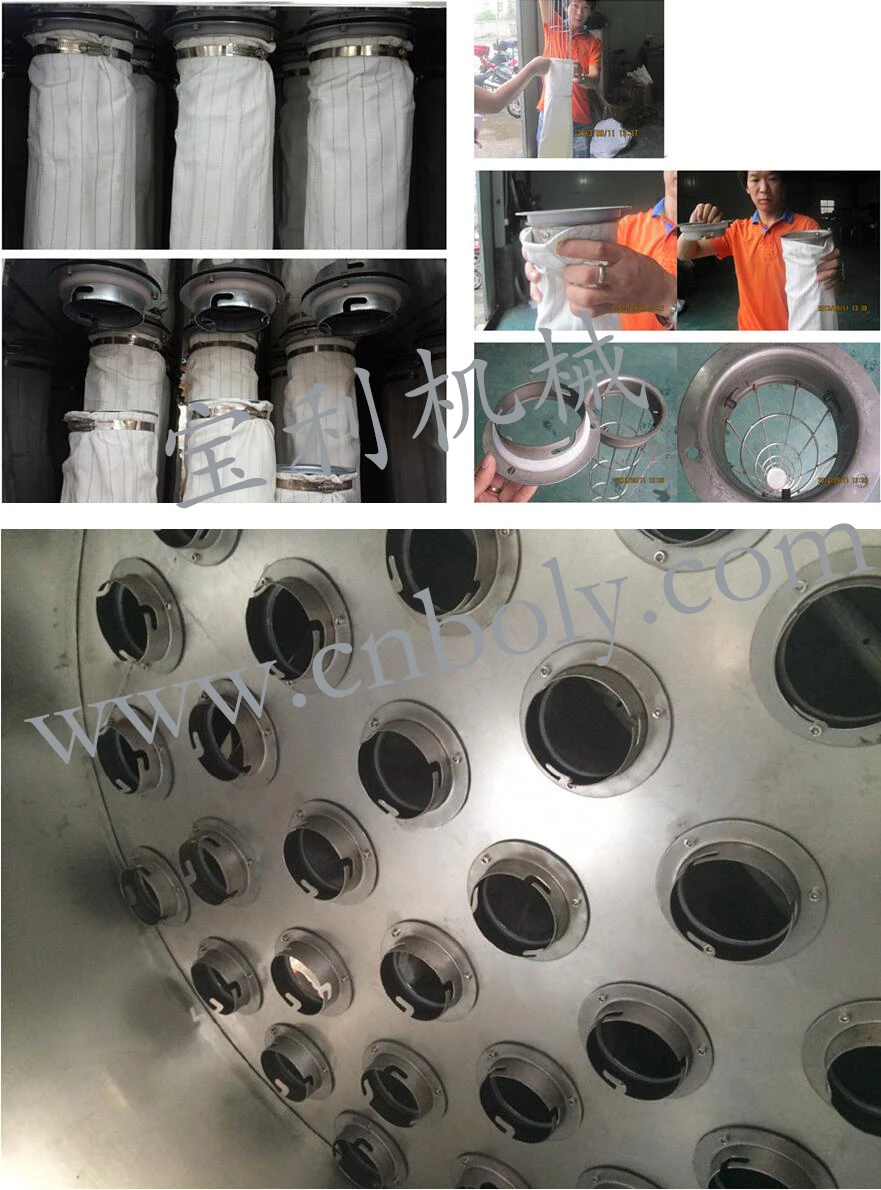

The crushed material flows into the cyclone separator by the induced fan and rotating centrifugal force, the discharges through gate blower. dust comes into the pulse dustcollecting box, filtrated and recycled by the filter cylinder the crushing size can be adjusted by the screen designed by the standard of GMP the whole machine is made of stainless steel

There is no flying dust during the process of production.



Technical Date:

Model  Main Structural Dimensions(mm) Capacity

Input

Particle

Size

Output

Particle

Siza

Machine

Weight

 Speed

Total

Power
L W1 W2 H1 H2 H3 Kg/H mm mesh Kg rpm KW
JB-20 1200 600 1600 2320 1250 650 20-100 <10 20-120 400 4600 6.25
JB-30 1250 600 1700 2540 1460 650 50-300 <10 20-120 600 3800 10.45
JB-40 1600 700 1850 2800 1600 650 100-400 <10 20-120 850 3400 14.75



.jpg



If you want to send inquriy to me about our JB high speed turbo pulverizer, could you please tell me?



1)  What material you want to grind, is it dry? what is the size of feed material ?

2)  What capacity you expect by one JB spice mill ? (kg/h)

3)  What mesh or mm or micron(size) of the powder you want?

4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...

     (We only provide 3P, because our machines are all for industrial use,not for family.)

5)  Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.



Then our communication will be more efficient.
