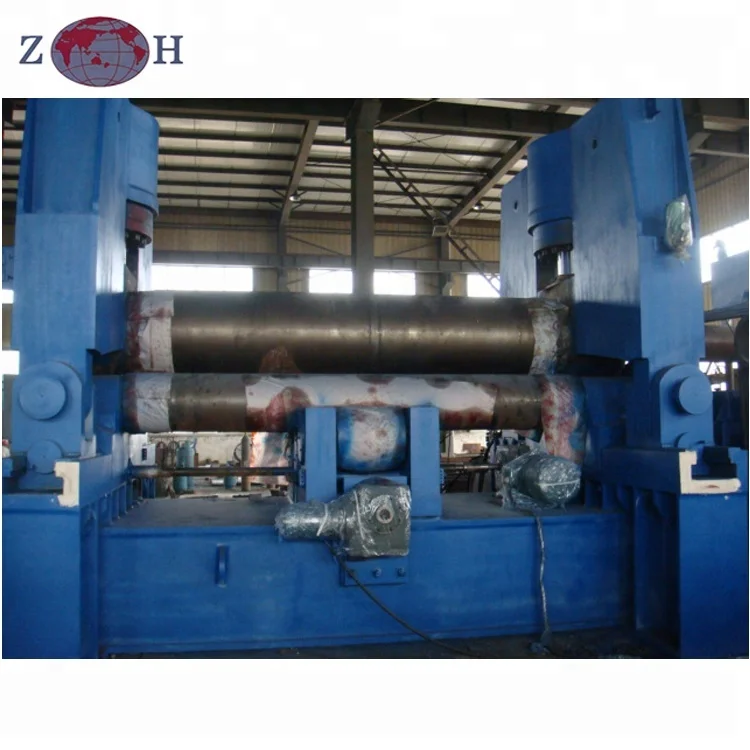

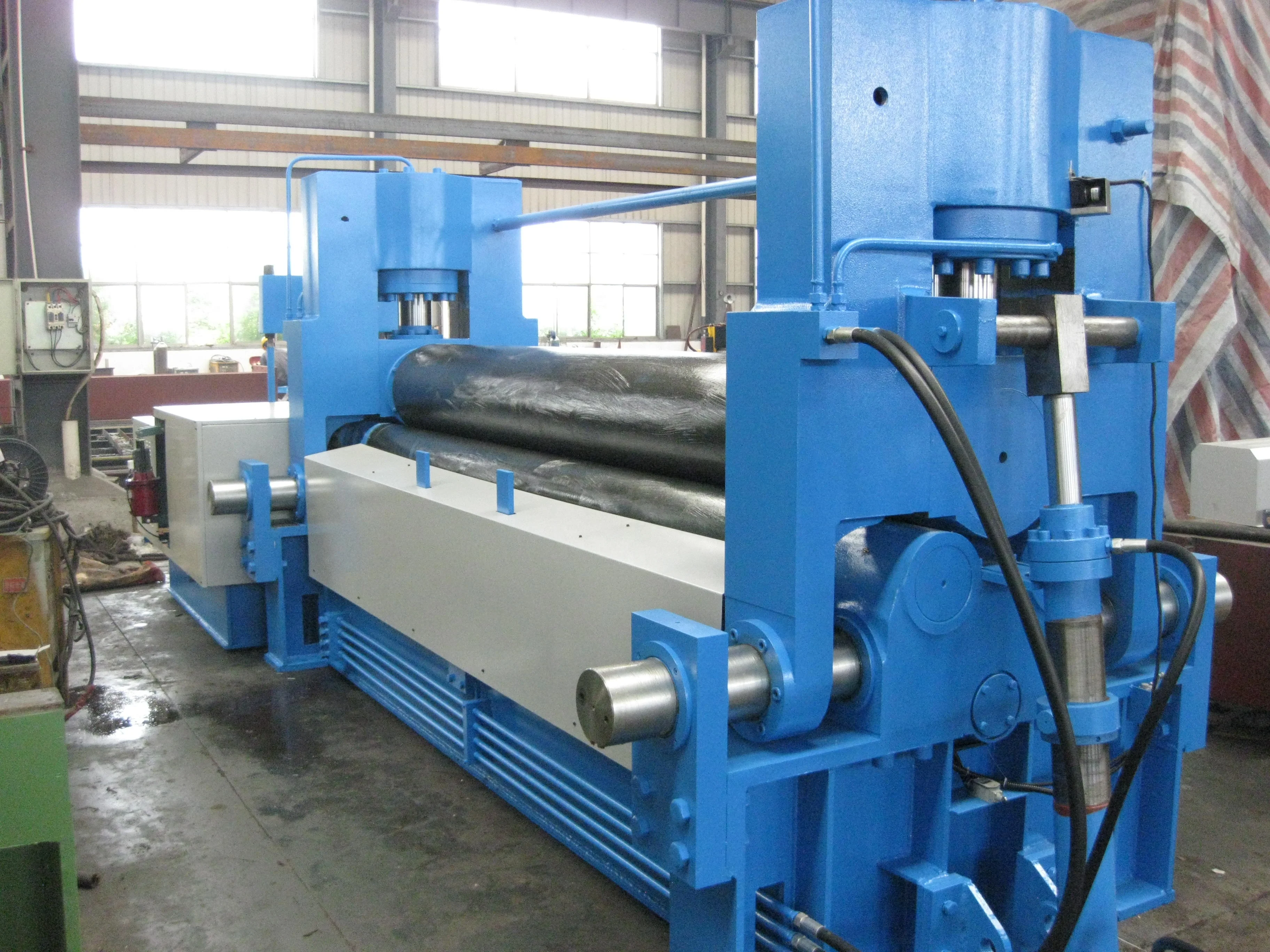

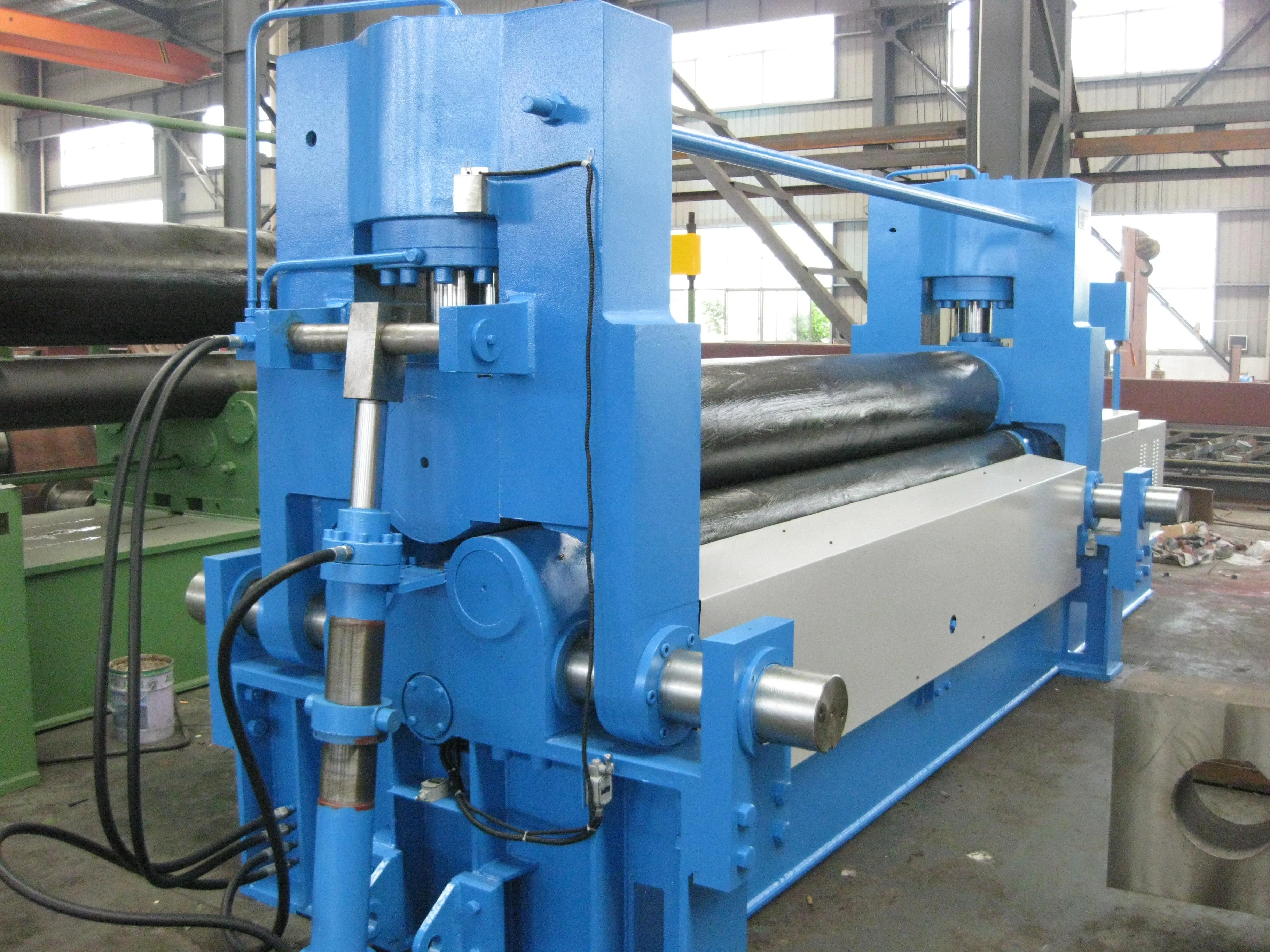

sheet metal bending rolling machine
- Category: Plate Bending Rolls >>>
- Supplier: Nantong Zhenhuan Trade Co. Ltd.
Share on (1290949543):
Product Overview
Description
MACHINE DESCRIPTION
This sheet metal bending rolling machine used to shape steel and rolled them into cones, can roll the metal material It is widely used in petroleum、boiler、shipbuilding、water and electricity and machine building etc.
MAIN FEATURES
1.Special bending techniques, high-accurate end pre-bend, numerical control
2.Man-machine conversation, bending auto-compensation
3.PLC control, one worker operation, high efficient
4.Can bend several shapes by moving top roller vertically and horizontally: O-circle, U-shape, multi radius shape, etc.
MACHINE SPECIFICATION
Item | unit | W11S-10X3000 |
Type | Digital display NC system (touch screen) | |
Cylinder pressure | T | 75 |
Max. rolling plate | mm | 3000 |
Length of the roll working surface | mm | 3100 |
Maximum rolling end thickness on plate | mm | T10 (σs≤245MPa) |
Maximum rolling middle thickness on plate | mm | T8 (σs≤245MPa) |
Top roll diameter | mm | Φ250mm |
Lower rolls diameter | Φ150mm | |
Center distance of two low rollers | mm | 245mm |
Rolling speed | M/min | Approx. 3.2 |
Pressing speed of upper roller | Mm/min | Approx. 90 |
Supporting rack | Pc | 4pcs/one set |
Main motor power | Kw | 7.5 |
Hydraulic motor power | Kw | 4 |
Move motor power | kw | 1.5 |
