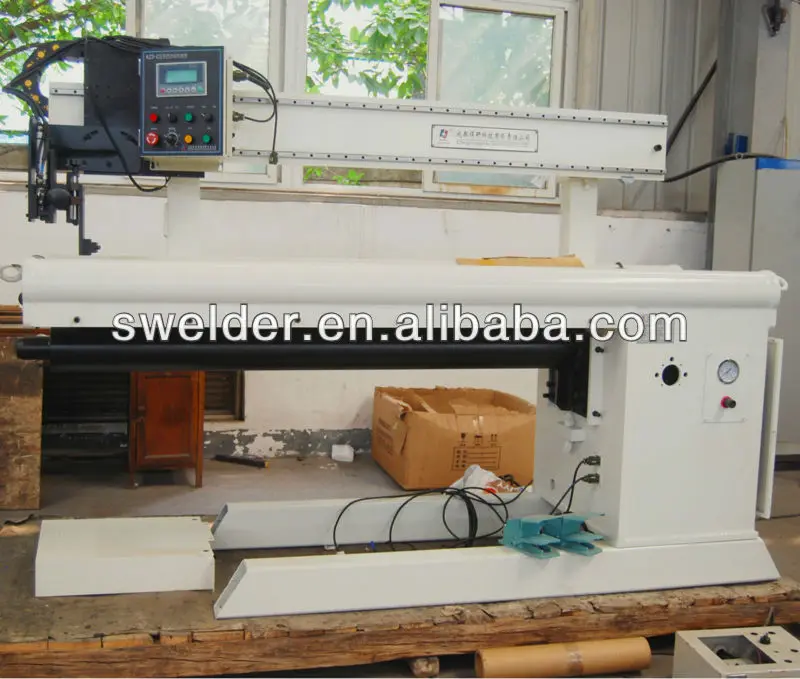

Intelligent High Precise Galvanized Steel Tubes Cylinder Metal Lathe Welding Machine ZF 1500 Automatic Longitudinal Seam Welder

Product Overview

Description

1. Introduction

 Application:

    ZF Series is our standard product for longitudinal seam welding. Compact finger clamps ensure clamping steadily and cooling welded seam quickly, thus minimize distortion and over welding, moreover, one-side welding with back formation is achieved.

 Weldable material: stainless steel, carbon steel, aluminum alloy, heat resisting alloy, titanium alloy and others.

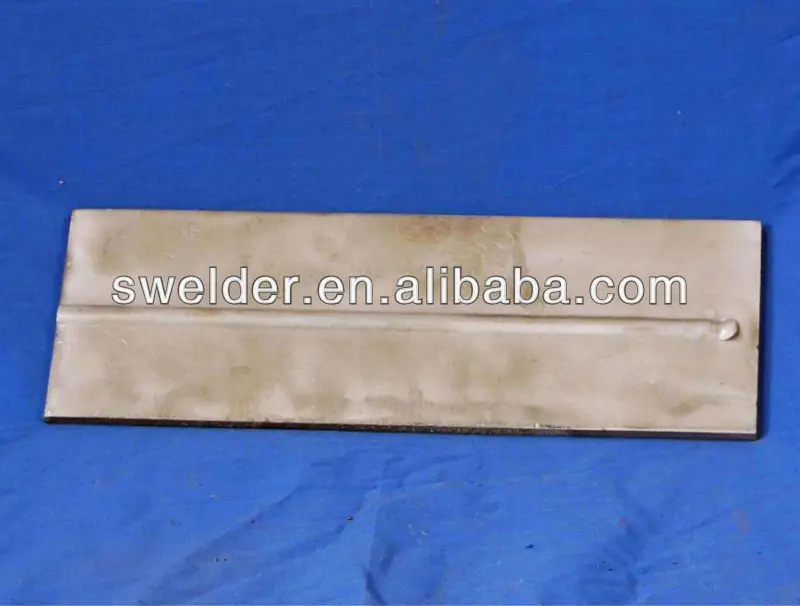

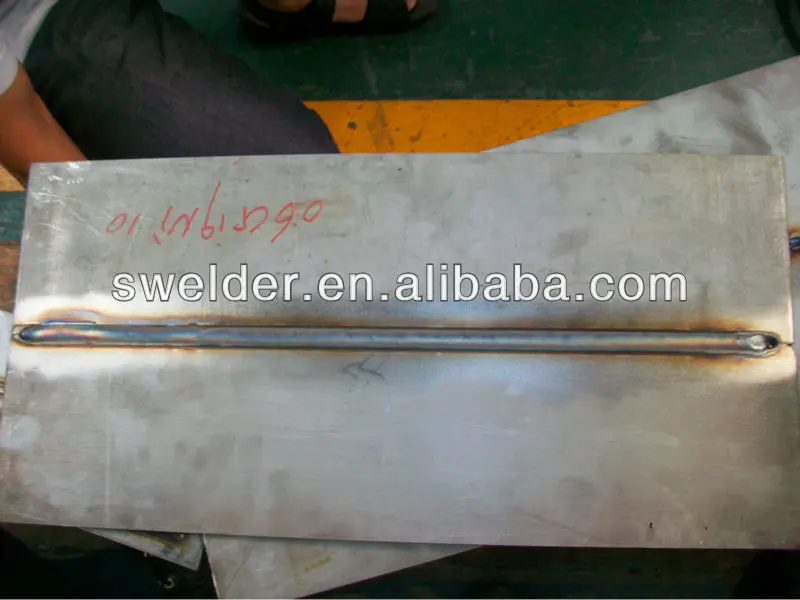

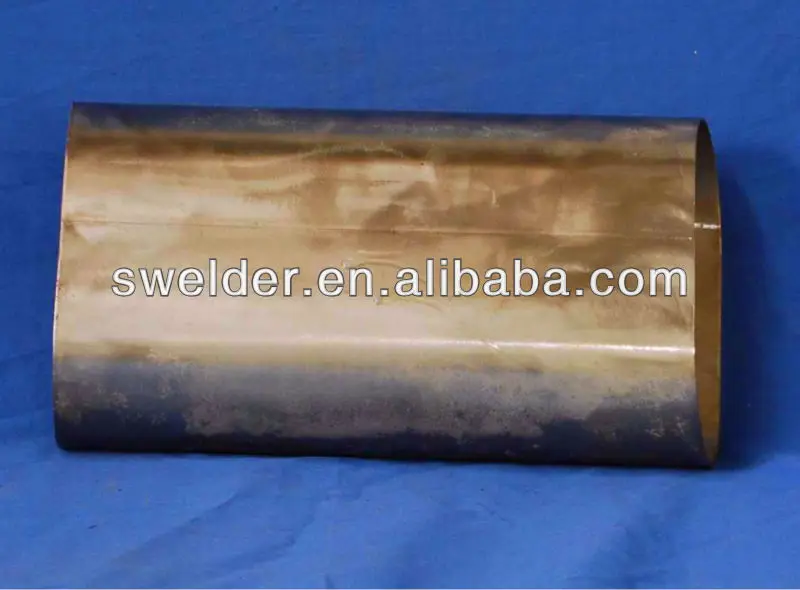

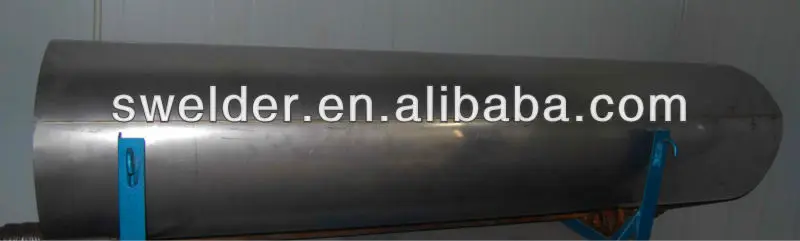

 Form of workpiece: tubes, flat sheets, cylinders, cones, sinks, tank shells, open ended boxes etc.

Components:

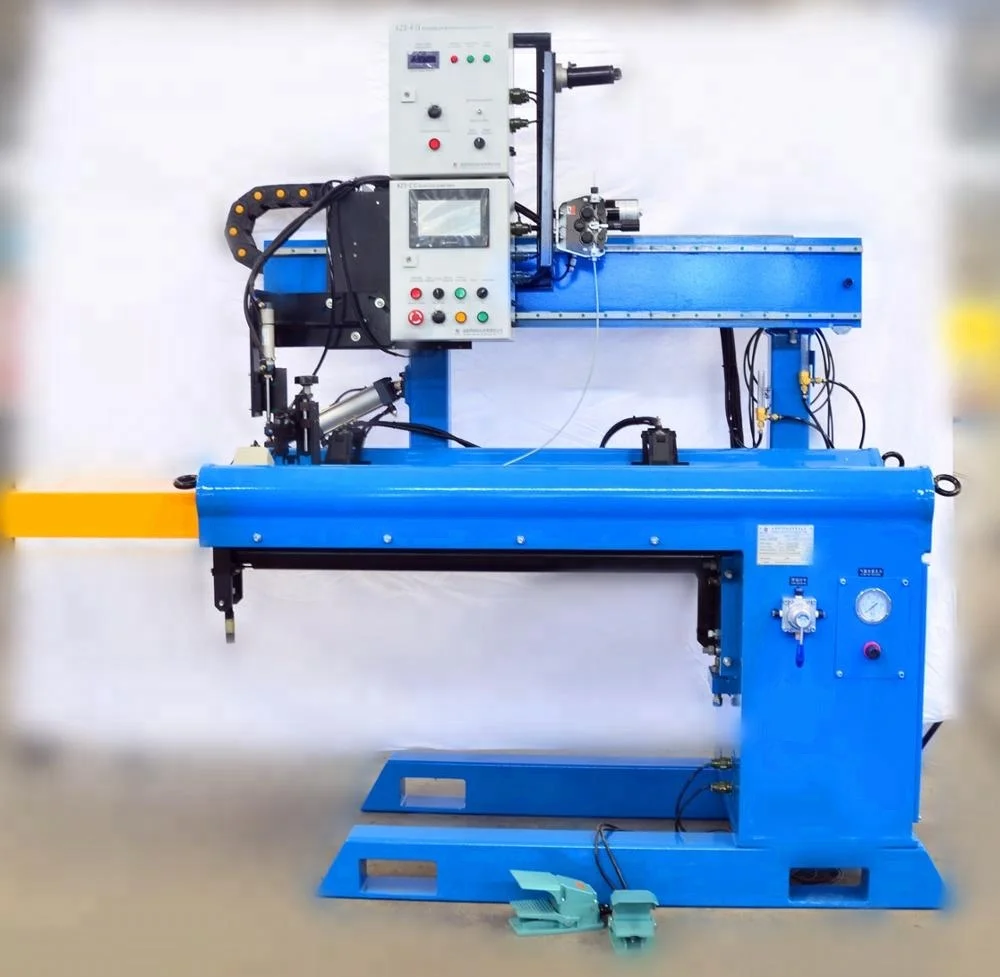

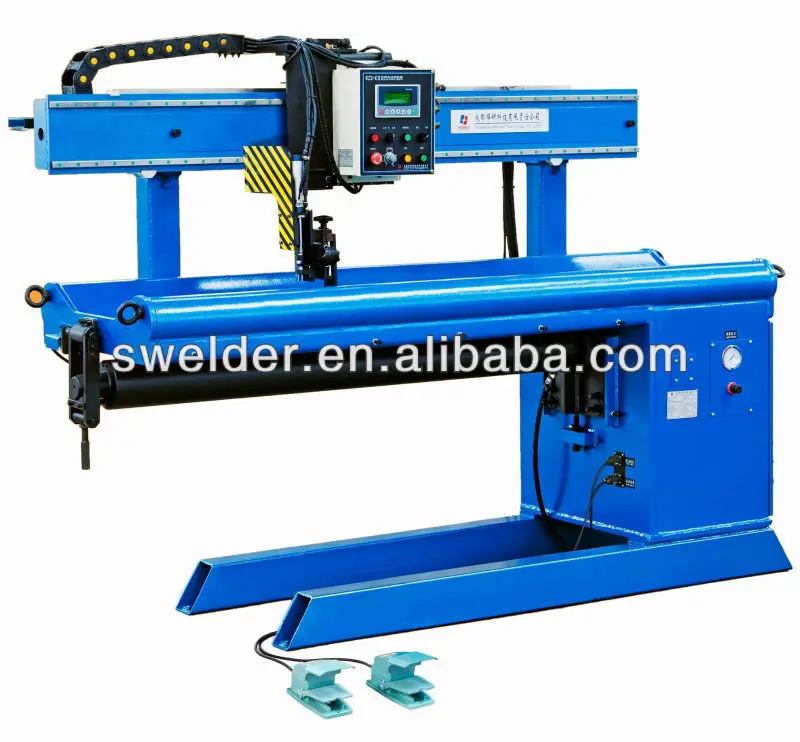

    It's a cantilevered structure, main components include lathe bed, pneumatic finger clamps, guiding beam, mandrel, electric carriage, pneumatic lifter, torch 2-D adjustable device, pneumatic system and electrical control system etc. pneumatic finger clamps and red copper backing bar evenly distribute the stress for workpiece, 2-D adjustable device is used to adjust torch's initial welding position.

Applicable Objects:

    As universal welding equipment, can constitute an automatic welding system with TIG/MIG/MAG/PAW/SAW or other welding source and torch for different welding needs.



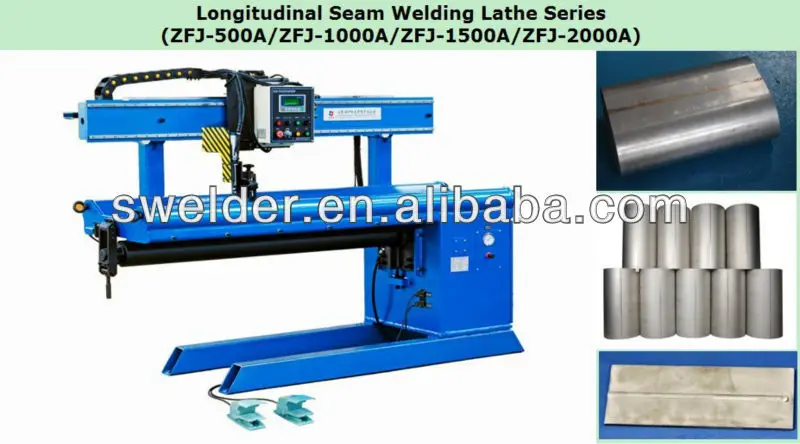

2. Technical Parameters



Model	Welding length(mm)	Welding thickness(mm)	Applicable diameter(mm)	Dimension(mm)			Weight (Kg)
				Length	Width	Height
ZF-500	525	0.5-4.0	75-750	1020	680	1480	360
ZF-1000	1050	0.5-8.0	115-730	1900	1100	1800	1150
ZF-1500	1575	0.5-8.0	150-730	2475	1100	1850	1550
ZF-2000	2025	0.5-8.0	180-850	2980	1100	1850	2050
ZF-2500	2550	0.5-6.0	200-850	3455	1100	1950	2450
ZF-3000	3075	0.5-8.0	270-850	4340	1100	1950	3050







     Addition: all the above are just standard welding equipments, If your workpiece is out of the range, we can provide customized service, like add "heightening part" to enlarge "diameter" range; lengthening machine bed and related parts to meet  more longer workpiece.





    WE CAN ENGINEER ANY MODEL TO AUTOMATE YOUR CUSTOM APPLICATION, AND SPECIALIZED IN PROVIDING A CUSTOMER DRIVEN SOLUTION TO YOUR AUTOMATED WELDING NEEDS!



Company information:

Based on: China Electric Welding Machine Research Institute(since 1956)
Staff: 400-500
Subsidiary: 3
Business Unit: 4
Department: 5
Certification: CE/CCC/ISO9001:2008
Business Scope: Auto parts; Household appliance; Strip; Engineering machinery; Aerospace; Shipbuilding etc.
Products: Standard welding equipment; Seam welder; Customized welding solution; Robot workstation; Welding positioner; Turning rolls;Manipulator; SAW welding tractor; Oscillator; Seam tracker; Arc length tracker; Wire feeder and other Welding accessories.
