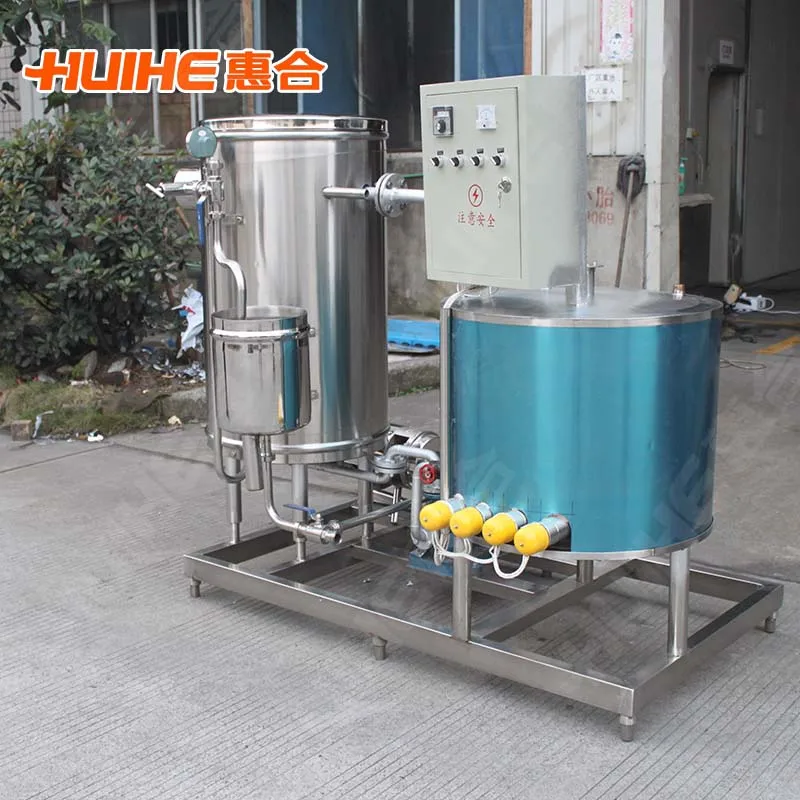

Electric heating super temperature instant sterilizer (UHT)

Product Overview

Description

Electric heating super temperature instant sterilizer (UHT)



Electric heating super temperature instant sterilizer (UHT) characteristic

1. Continuous production, sterilization time is very short.
2. Due to the shorter time for heating can obtain high quality products.
3. With ultra high temperature sterilization, the sterilization efficiency is very high.
4. With centrifugal pump series or high pressure homogenizer is used, the application range is very wide, suitable for high viscosity material sterilization.
5. With cold and hot material is used on due to the design of heat exchange equipment of waste heat utilization economic effect, so the steam consumption is small.

Electric heating super temperature instant sterilizer (UHT) technical parameters



Product style No	RP6L10	RP6L20	RP6L40	RP6L60
Processing power	0.5-1T/H	1.5-2T/H	3-4T/H	5-6T/H
Sterilization temperature	115-135°C	115-135°C	115-135°C	115-135°C
Use of steam pressure	<0.4MPa	<0.4MPa	<0.7MPa	<0.78MPa
High temperature heating time	4-6S	4-6S	4-6S	4-6S
Discharge temperature	<65°C	<65°C	<65°C	<65°C
Motor power	2.2KW	2.2KW	4KW	5.5KW
Overall dimensions	920*920*1400	1100*1100*1700	1200*1200*1800	1400*1400*2000
Equipment net weight	280KG	380KG	550KG	700KG
