XTJP 4 6 оптический объектив Полировочная машина

Product Overview

Description

XTJP-4-6 Polishing Machine

Specifications	1) Processing diameter: φ10~φ80mm 2) Processing curvature: R20~∝ 3) Main shaft transition jointer: M20 4) Main shaft distance: 200mm 5) Main shaft speed: 0~840rpm. 0~1400rpm 6) Swing frame speed: 45rpm 7) Angle range of main shaft: -10°~+40° 8) Pressure of swing arm: 2~25kgf 9) Adjustment range of eccentric wheel: 19mm 10)Dimension: L1900XW990XH1570mm 11) Net weight: 700kg 12)Power supply: 4kw
Features	XTJP-6 Polishing Machine is a new type equipment of optical cold processing which the main shaft can be inclined in a certain range. Single lens or multi-lens can be processed by the equipment. XTJP-6s main shaft and swing shaft are controlled by the main shaft. Two kinds of speed are applied to the main shaft: 0~840rpm or 0~1400rpm.

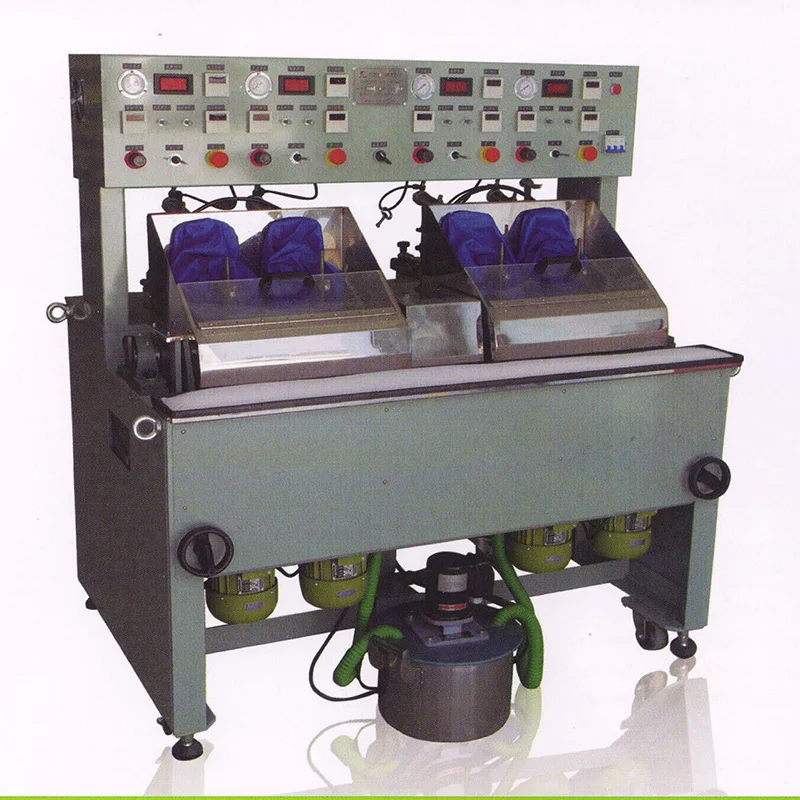

Profile of the Machine

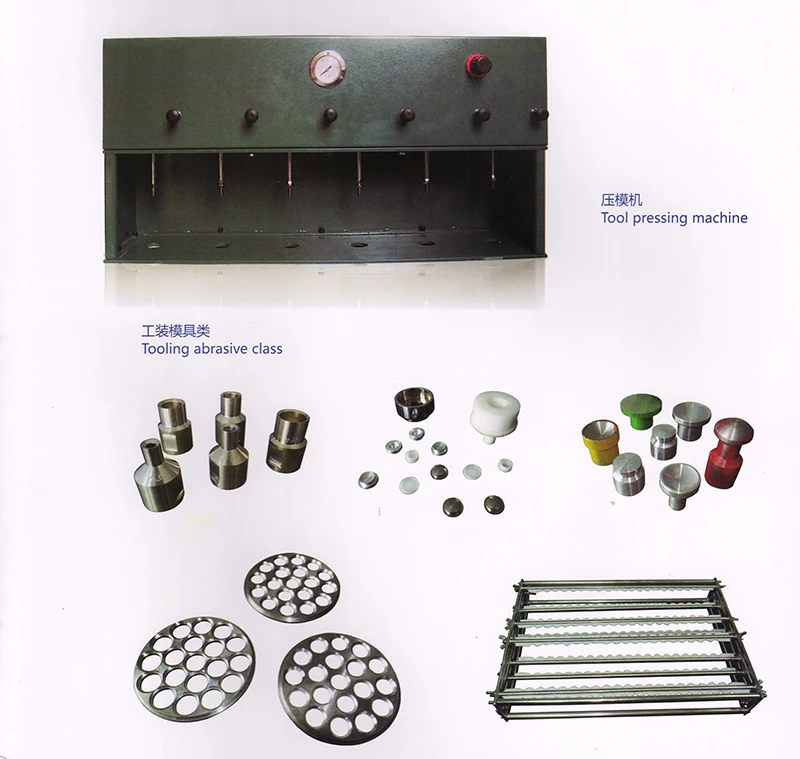

Toolings

Why choose us:

1. Factory with 20 years and 9 years exporting experience

2. Located in the largest optical base of China, more professional
3. OEM / ODM available
4. Strict quality control department
5. Professional sales team to provide perfect service6. Provide high quality products and the best price
7. Perfect optical processing program
