Full sets small scale alluvial gold mining equipment
- Category: Mineral Separator >>>
- Supplier: Ganzhou Gelin Mining Machinery Co. Ltd.
Share on (1339748040):
Product Overview
Description
Products Description
Full sets small scale alluvial gold mining equipment Factory From China
Our factory is specialized in manufacturing different types of mining equipments: Gold washing trommel screen, Rotary scrubber, Vibrating screen, Jig machine, Centrifugal concentrator, Shaking table, Magnetic separator, Electrostatic separator,Crushers,furnace and other type mining equipments,which full meet various of mining projects.

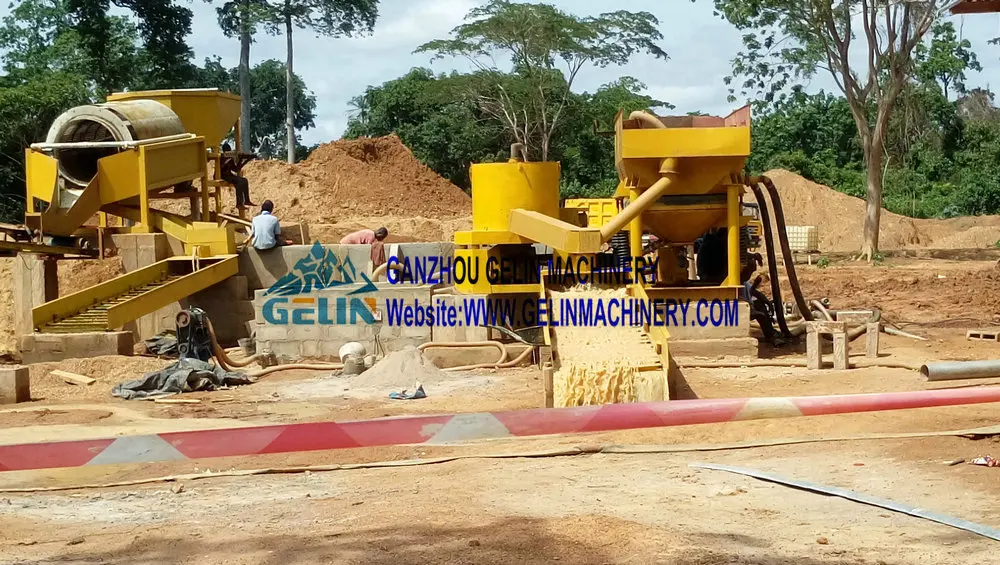

100 Tons Per Hour Gold Mining Process Plant:
Plant Application：
1) Diamond mining&washing
2) Alluvial gold, placer gold, gold sand
3) Alluvial gold with clay, River dirt gold & diamond with clay
4) Desert sand, gold tailing...
5). Dirty stones
6). Washing and classification and separation of other types of mineral materials.
2) Alluvial gold, placer gold, gold sand
3) Alluvial gold with clay, River dirt gold & diamond with clay
4) Desert sand, gold tailing...
5). Dirty stones
6). Washing and classification and separation of other types of mineral materials.
The Equipment Above Involved

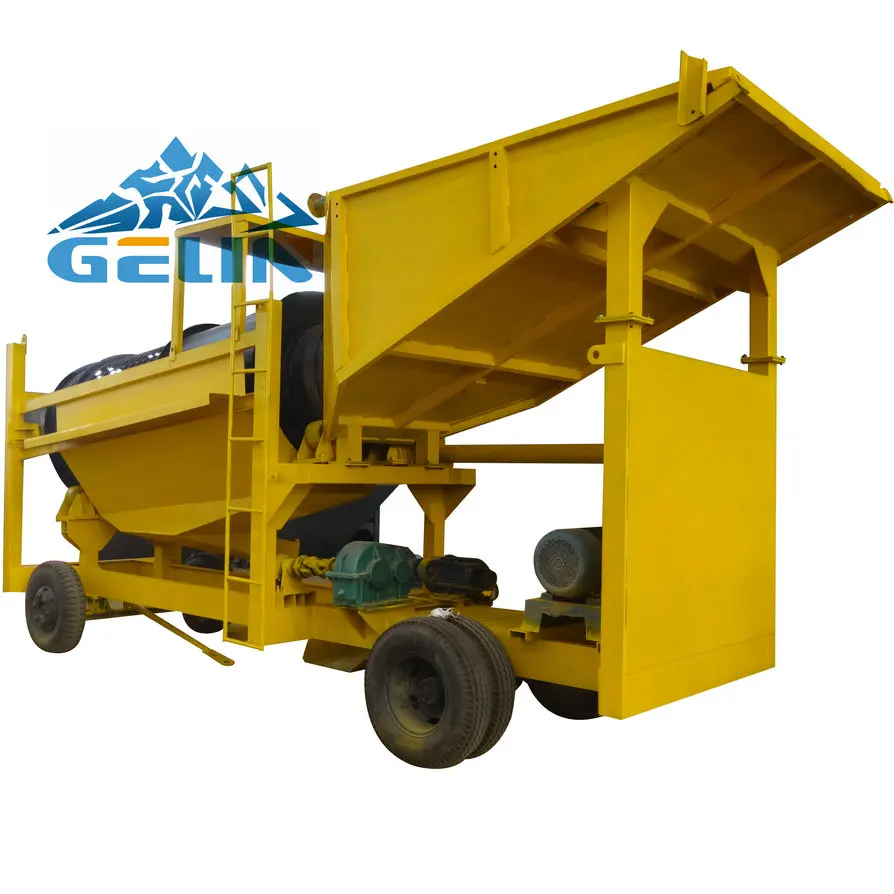

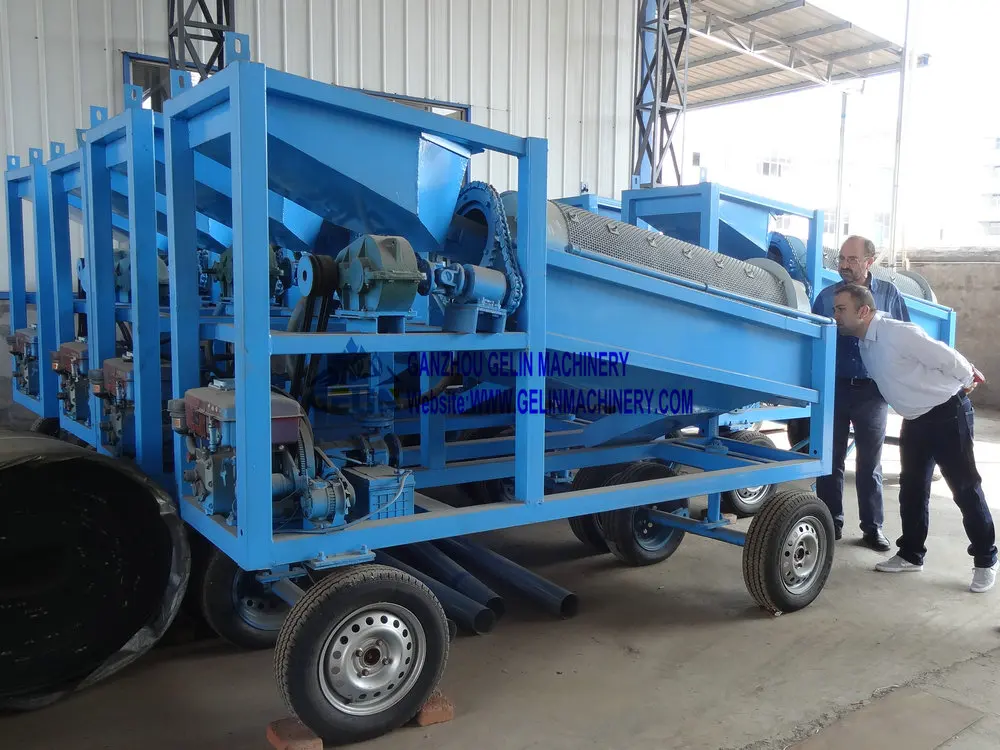

Trommel Screen:
Trommel screens provide a simple efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.
Features:
Includes water pump, water pipe, diesel engine / electric motor, wheel, can be easy movable.Mobile with wheels, can free
transport/move to other lace when finish the job. It is suit to small scale / large mine processing.
1. Diesel engine / electric motor, can work in no power field.
2. Bigger hopper,single / double layer screen designed.
3. Water pump with water pipe release high pressure water.
4. It is popular in African, Asian, South American due to its easy to move and easy to operate.
5. It is low cost, miner just cost a little budget to buy one. Many miner came to our factory to buy it for their alluvial gold,
river sand mineral, diamond mining.
transport/move to other lace when finish the job. It is suit to small scale / large mine processing.
1. Diesel engine / electric motor, can work in no power field.
2. Bigger hopper,single / double layer screen designed.
3. Water pump with water pipe release high pressure water.
4. It is popular in African, Asian, South American due to its easy to move and easy to operate.
5. It is low cost, miner just cost a little budget to buy one. Many miner came to our factory to buy it for their alluvial gold,
river sand mineral, diamond mining.
Working Principle:
Material feed into the hopper by excavator,high pressure water released and wash the mineral,then,mineral by forward into the drum.It is lifted up by the rotation and aerated as it fall back down.This finer material passes through the screen openings while the large material tumbles towards its eventually exit at the real of the drum.After that,the final mineral and water go through the sluice bow which is consist with gold grass mat.The no use mineral are washed out and the gold are catched by the gold grass mat.
Technical Data:
Model | Capacity (t/h) | Wheel | Water pump | Diesel engine/Electric Motor | Drum Dia. (mm) | Drum Length. (mm) | Screen size (mm) | Weight |
GL510 | 5-15 | 4 | include | Alternative | 500 | 1300 | <3-20 | 1200 |
GL615 | 10-20 | 4 | include | Alternative | 600 | 1500 | <3-20 | 1500 |
GL715 | 20-30 | 4 | include | Alternative | 600 | 1500 | <3-20 | 1500 |
GL815 | 30-40 | 4 | include | Alternative | 600 | 1500 | <3-20 | 1500 |
GL1020 | 40-100 | 4 | include | Alternative | 1000 | 2000 | <3-20 | 2300 |
GL1225 | 100-160 | 4 | include | Alternative | 1200 | 2500 | <3-20 | 3000 |
GL1530 | 150-200 | 4-6 | include | Alternative | 1500 | 3000 | <3-20 | 4000 |
GL1545 | 200-300 | 4-6 | include | Alternative | 1500 | 4500 | <3-20 | 4500 |
GL1848 | 300-450 | 4-6 | include | Alternative | 1800 | 4800 | <3-20 | 6000 |
GL2055 | 400-500 | 4-6 | include | Alternative | 2000 | 5500 | <2-20 | 9000 |
GL2265 | 500-700 | 4-6 | include | Alternative | 2200 | 6500 | <2-20 | 12000 |

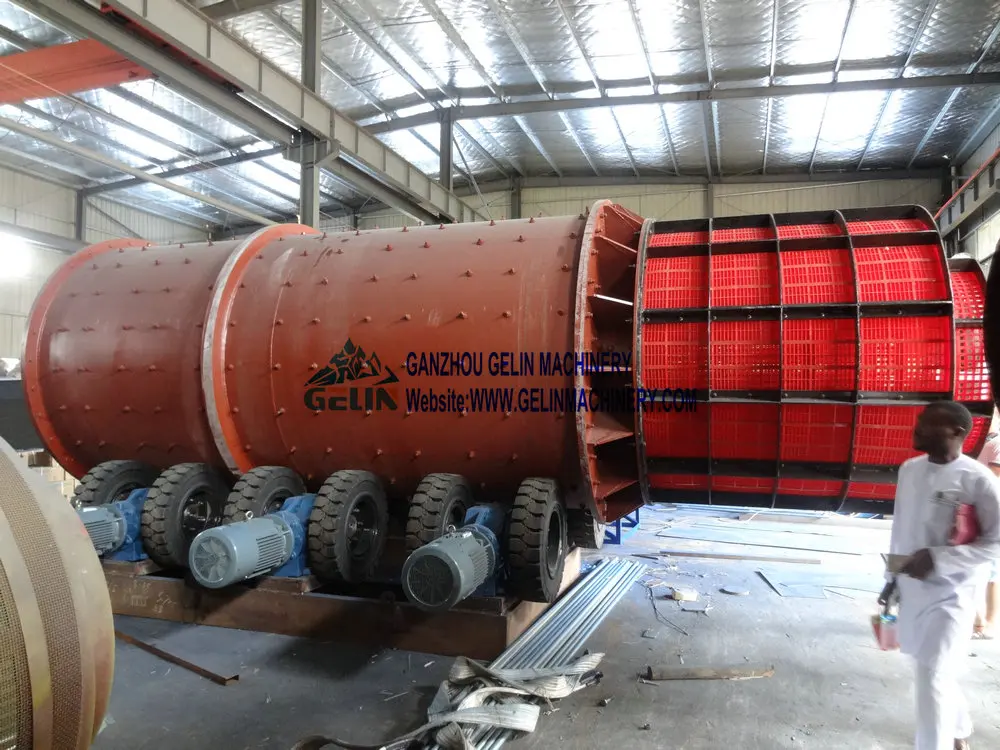

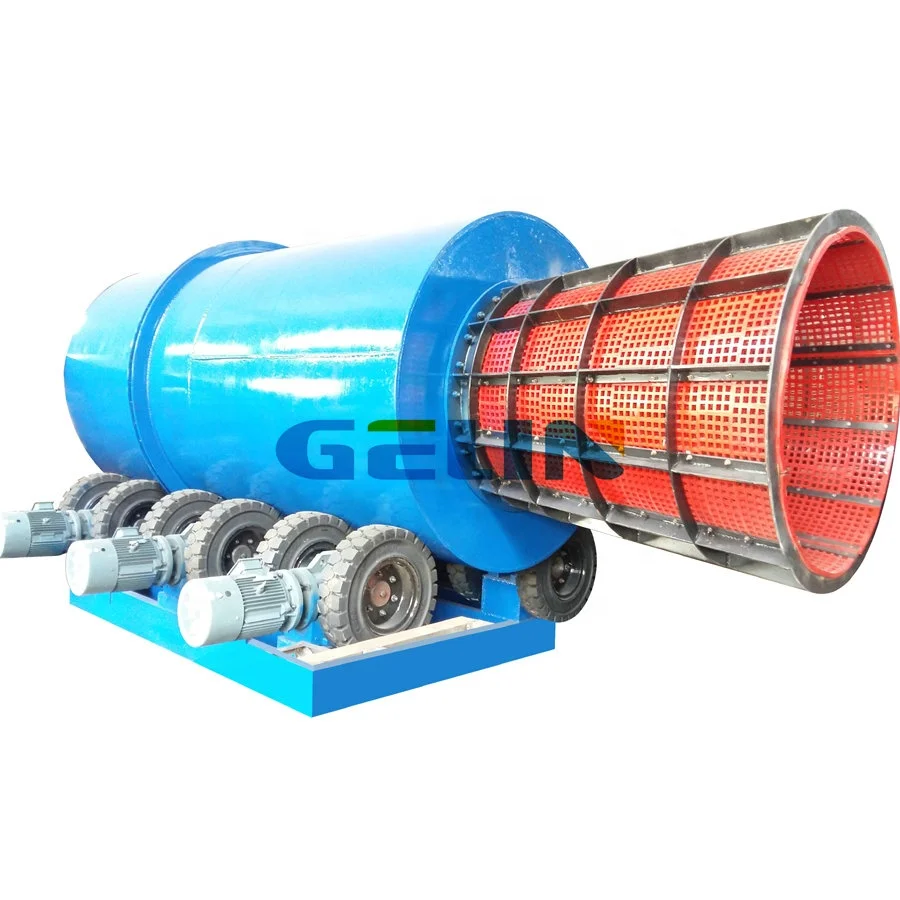

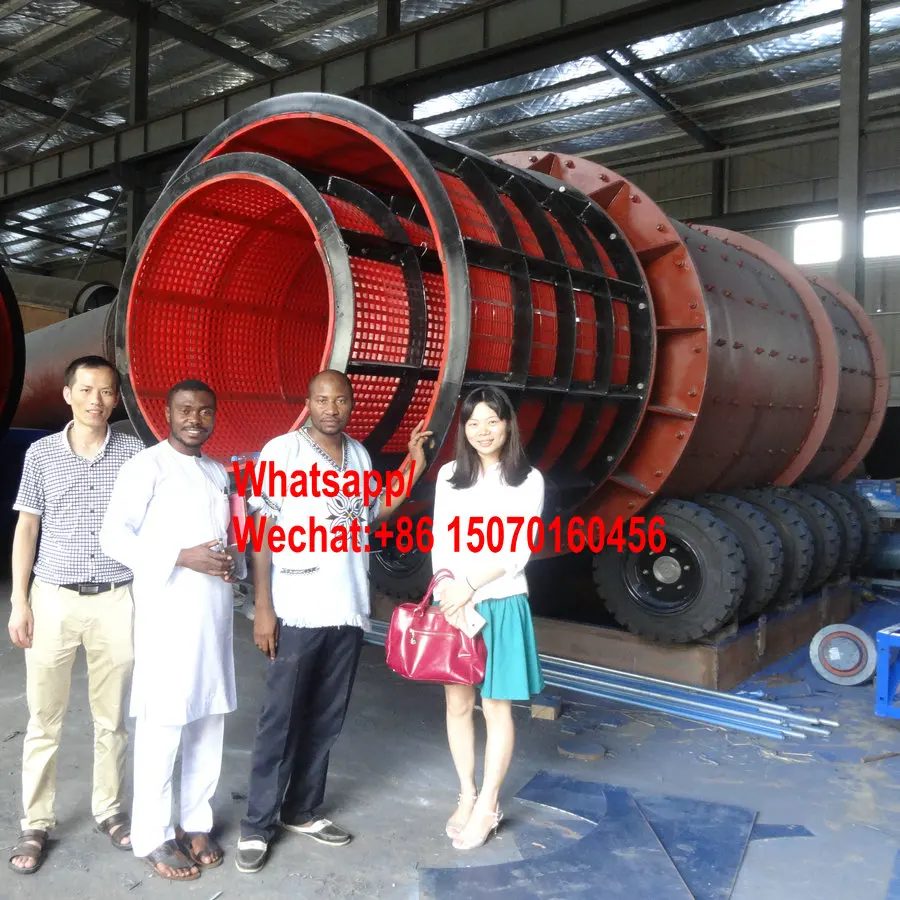

Rotary Scrubber
Rotary scrubber(namely as drum ore scrubber, cylinder stone scrubber or rotary scrubbing machine) is a special washing equipment for cleaning large and difficult-to-wash materials. Rotary scrubber has three functions: scrubbing, cleaning and screening The maximum feed size can reach 230 mm. It mainly carries out preliminary cleaning for raw ore. The equipment has a large processing capacity,which solves the cleaning of raw ore with high impurity content and mud, and creates favorable conditions for subsequent separation operations.
Features:
1.customization available:The length diameter of the drum, screen mesh, mesh layer, liner plate, portable or stationary etc can be customized.
2.High capacity (from 1t/h to 250t/h).
3.Easy operation,Low operating costs, easy maintenance, and low noise.
4.Large particle size of ore washing (up to 200-300mm) and suitable for all kinds of ore and stones.
4.Large particle size of ore washing (up to 200-300mm) and suitable for all kinds of ore and stones.
Working Principle:
The rotary scrubber is installed horizontally or inclined 3-6 degree. The material is slurried and scrubbed in the cylinder so that the ore and mud are completely separated. polyurethane liner is installed the cylinder to protect the cylinder from corrosion and abrasion. After full cleaning the ore or stone is discharged through spiral discharge liners.
Technical Data:
Model | Drum Size (mm) | Screen size (mm) | Rotation speed (r/min) | Feeding size (mm) | Water consumption (m³/h) | Gradient (°) | Capacity (T/h) | Power (Kw) | Weight (t) |
G1030 | Φ1000×3000 | 0.5-20 | 25-28 | ≤100 | 1.5-4 | 0.5-10 | 30-50 | 15 | 4.8 |
G1136 | Φ1100×3600 | 0.5-30 | 25-28 | ≤100 | 1.5-4 | 0.5-10 | 40-60 | 15 | 5.2 |
G1230 | Φ1200×3000 | 0.5-30 | 23-25 | ≤100 | 1.5-4 | 0.5-10 | 50-70 | 18.5 | 5.8 |
G1430 | Φ1400×3000 | 0.5-30 | 20-23 | ≤150 | 1.5-4 | 0.5-10 | 60-80 | 22 | 6.2 |
G1545 | Φ1500×4500 | 0.5-30 | 18-22 | ≤150 | 1.5-4 | 0.5-10 | 70-120 | 30 | 6.9 |
G1560 | Φ1500×6000 | 0.5-30 | 18-22 | ≤150 | 1.5-4 | 0.5-10 | 80-130 | 37 | 8.3 |
G1845 | Φ1800×4500 | 0.5-30 | 20-21 | ≤170 | 1.5-4 | 0.5-10 | 90-130 | 45 | 11.8 |
G1860 | Φ1800×6000 | 0.5-30 | 20-21 | ≤170 | 1.5-4 | 0.5-10 | 100-140 | 45 | 12.8 |
G2060 | Φ2000×6000 | 0.5-30 | 19-20 | ≤210 | 1.5-4 | 0.5-10 | 120-160 | 55 | 14.8 |
G2265 | Φ2200×6500 | 0.5-30 | 19-20 | ≤230 | 1.5-4 | 0.5-10 | 160-180 | 55 | 16.5 |

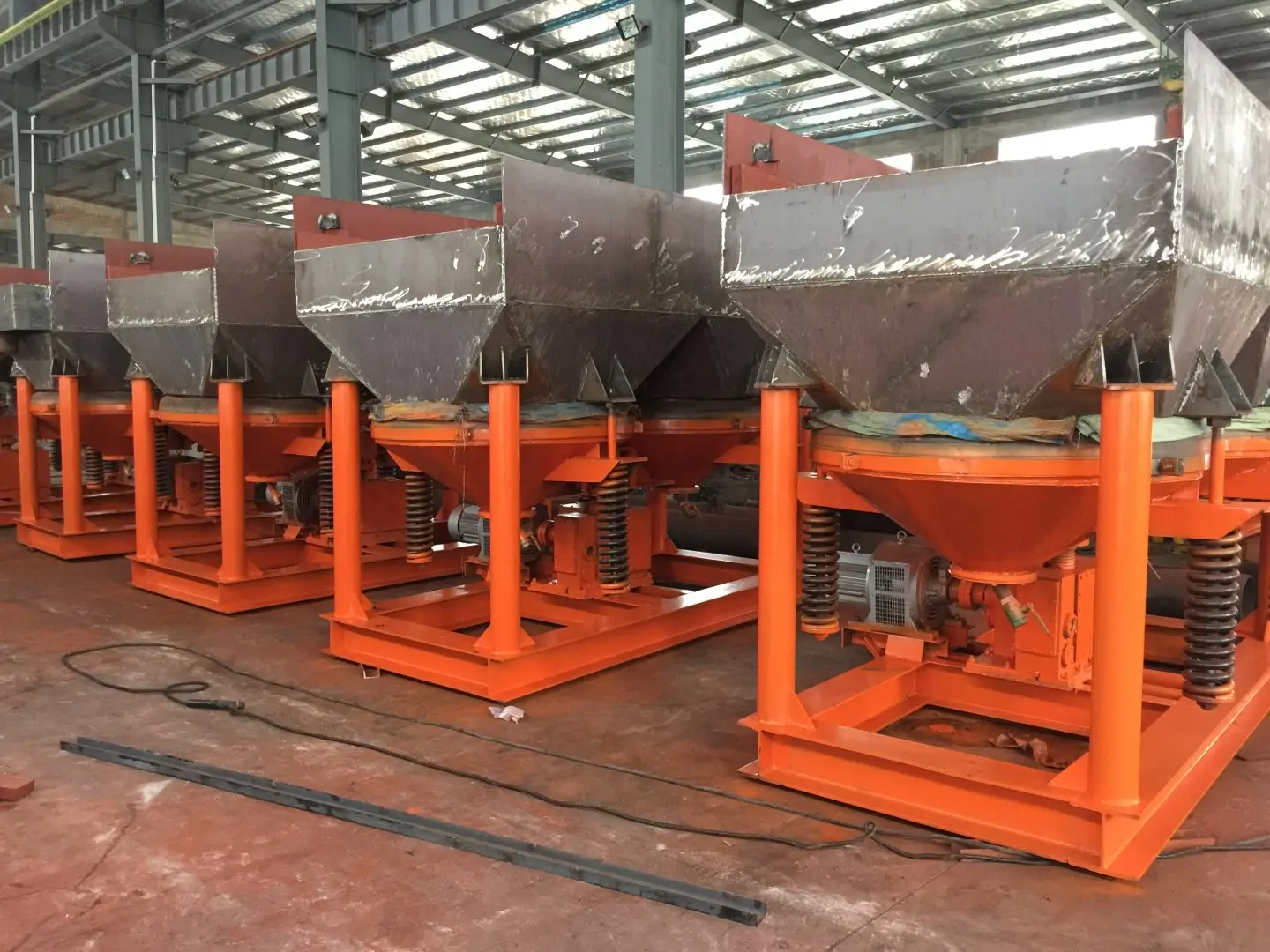

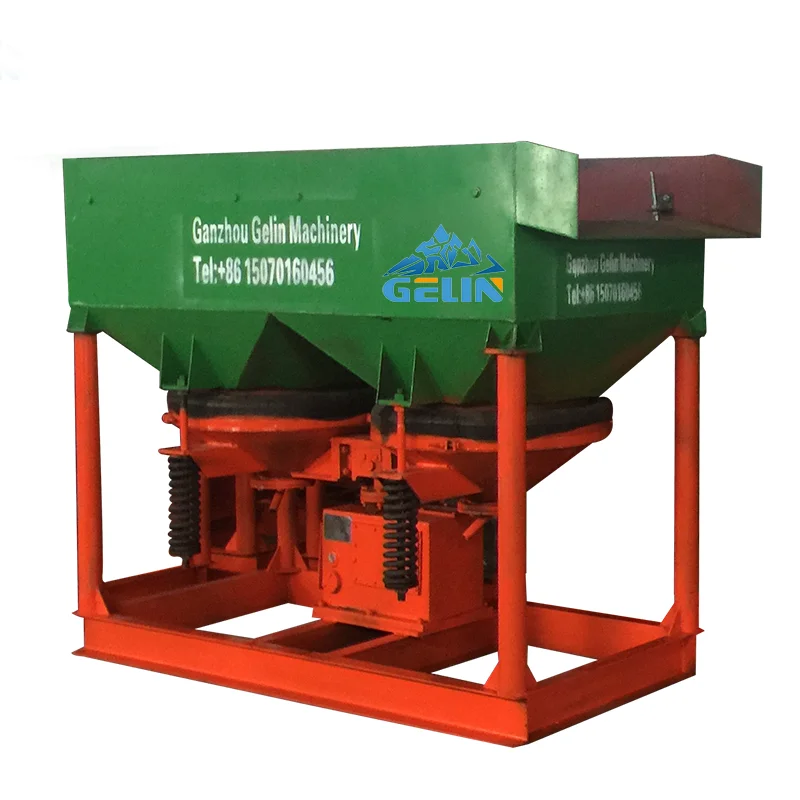

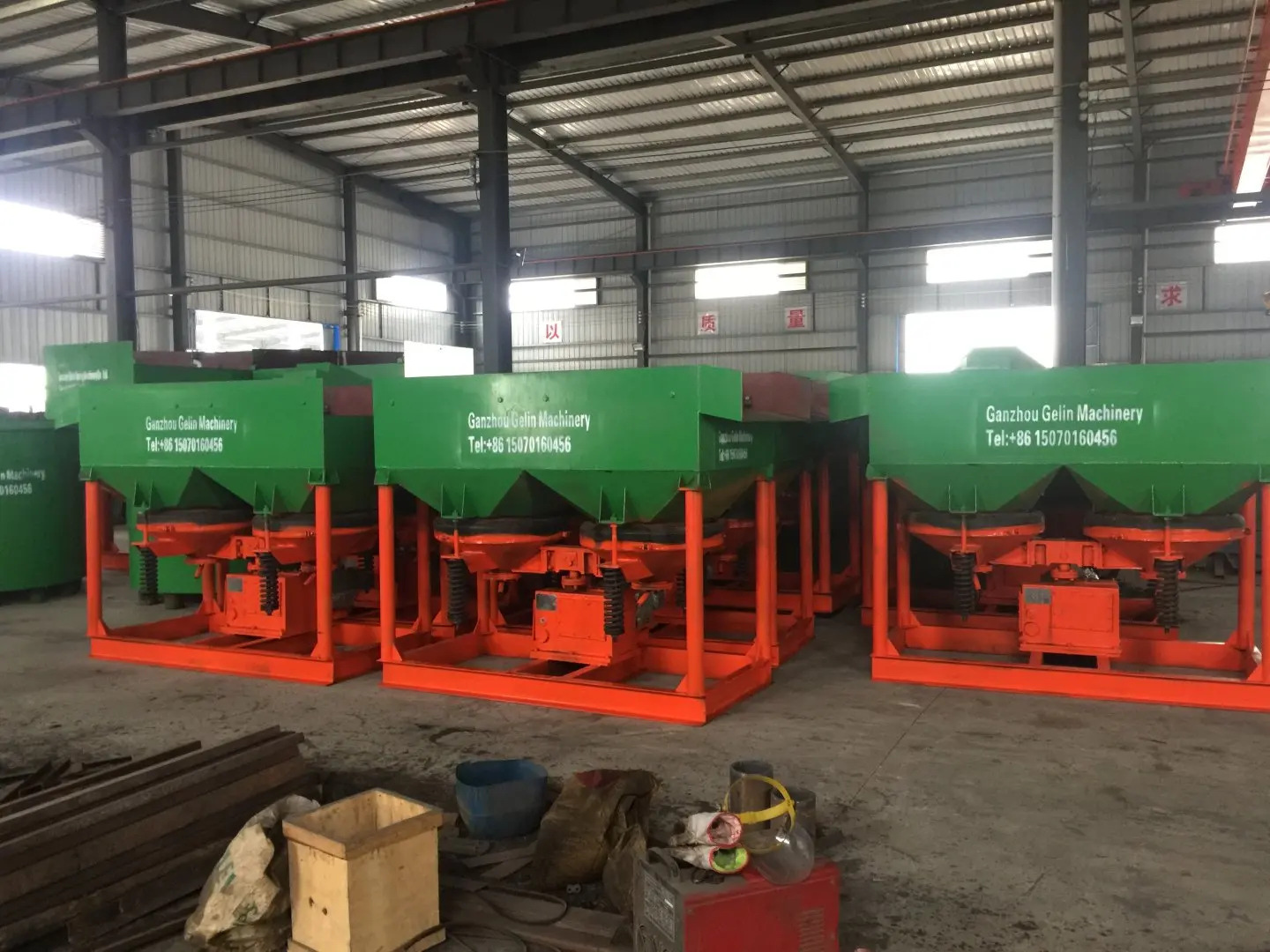

Jig Machine
Our factory produces both saw-tooth wave jigger and hydraulic radial jigger, different sizes for different process capacity from 1 ton per hour to 300 tons per hour.
Hydraulic radial jigger has been widely used as roughing separation equipment to select ore such as alluvial gold, tin, diamond, tungsten, manganese and hematite. It is developed from circular jig.composed of two parts: drive and tank. The drive is mechanical hydraulic type, the power is provided by motor through the transmission mechanism let the output shaft of the gear reducer drives the cam rotation, the cam pushes the piston of each master cylinder make periodic reciprocating motion, which converts electrical energy into mechanical energy and then into hydraulic energy. Through hydraulic pipes and all kinds of valves let the moving cylinder drives the cone of jigger up and down fluctuation.
Hydraulic radial jigger adopts electromagnetic speed regulating asynchronous motor to realize the frequency adjustment, it's a step-less adjustment and the adjustable range of jig frequency is 0-90 times per minute.
Saw-tooth wave jigger is mainly consist of three parts: Main frame, driving set and jigging chamber.The device is suitable for sorting ferrous and nonferrous metals, chemicals, construction and metallurgical aspects of experimental research.
Hydraulic radial jigger has been widely used as roughing separation equipment to select ore such as alluvial gold, tin, diamond, tungsten, manganese and hematite. It is developed from circular jig.composed of two parts: drive and tank. The drive is mechanical hydraulic type, the power is provided by motor through the transmission mechanism let the output shaft of the gear reducer drives the cam rotation, the cam pushes the piston of each master cylinder make periodic reciprocating motion, which converts electrical energy into mechanical energy and then into hydraulic energy. Through hydraulic pipes and all kinds of valves let the moving cylinder drives the cone of jigger up and down fluctuation.
Hydraulic radial jigger adopts electromagnetic speed regulating asynchronous motor to realize the frequency adjustment, it's a step-less adjustment and the adjustable range of jig frequency is 0-90 times per minute.
Features:
1.Big capacity, less land occupation, wide recover range on size
2.High concentrating ratio and high recovery
3.Easy to install, operate and maintain
4.The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling
5.Saving water 60-70% and saving power 55% than the ordinary jig
6.The pulsation speed very easily adjusted by the regulator
7.Can achieve a good result in processing such as placer gold, tungsten, tin, hematite, manganese, barite, and gemstone etc.
Working Principle:
Jigs a kind of energy saving gravity equipment development and improved on the basis of traditional jigs according to the the oretic layering law of jig beds. Their jigging pulsation curves take the shape of saw-tooth waveform which gets the ascending water to travel more rapidly than the descending water. The ascending time is short while the descending time is long. The problem that the ascending descending water flow and action time produced by sine wave and pulsation wave are the same is solved. The looseness of bed is strengthened and suction function is alleviated so that the heavy ore grains in the minerals are able to precipitate fully and the sorting ratio ability and recovery rate of equipment are largely improved.
Technical Data For Saw-Tooth Wave Jigger:
Charmber | Feeding Size | Adding Water Yield Under Screen | Water Pressure | Handling Capacity | Motor | Dimension | Weight | |||
Shape | Area (㎡) | mm | m³/t | MPa | t/h | kw | mm | kg | ||
JT0.57-1 | Ladder | 0.57 | 6 | 1-3 | ≧0.05 | 1-2.5 | 1.5 | 1550x780x1530 | 610 | |
JT1-1 | Ladder | 1.04 | 10 | 1-3 | 2-4 | 2.2 | 2270x1110x1890 | 900 | ||
JT1.5-2 | Rectangle | 1.53 | 10 | 1-2 | 3-8 | 3 | 3200x1550x2050 | 1520 | ||
JT2-2 | Rectangle | 2.28 | 10 | 1-3 | 4-8 | 3 | 3225x1550x2050 | 1640 | ||
JT3-1 | Ladder | 3.3 | 10 | 1-3 | 6-10 | 5.5 | 3180x2000x2600 | 3260 | ||
JT4-2 | Rectangle | 4.33 | 30 | 1-3 | 10-15 | 7.5 | 3600x1850x2600 | 4600 | ||
JT5-2 | Ladder | 4.86 | 10 | 1-3 | 10-15 | 7.5 | 3600x2000x2600 | 4500 | ||
JT1.5-2S | Rectangle | 1.53 | 30 | 1-3 | 3-8 | 1.5x2 | 3200x1550x2050 | 1590 | ||
JT2-2S | Rectangle | 2.28 | 30 | 1-3 | 4-8 | 3x2 | 3225x1550x2050 | 1700 | ||
JT3-2S | Rectangle | 3 | 30 | 1-3 | 6-15 | 5.5x2 | 3560x2030x2600 | 3260 | ||
JT4-2S | Rectangle | 4.33 | 30 | 1-3 | 10-20 | 4x2 | 3600x1850x2600 | 4660 | ||
JT5-2S | Ladder | 4.86 | 30 | 1-3 | 10-20 | 5.5x2 | 3600x2000x2600 | 4700 | ||
JT6-3S | Rectangle | 6 | 30 | 1-3 | 15-30 | 7.5x2 | 4600x2000x2600 | 5900 | ||
Technical Data For Hydraulic Radial Jigger
Chamber | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | ||||||||
Jigging area | 9.9 | 13.2 | 16.5 | 19.8 | 23.1 | 26.4 | 29.7 | 3.3 | 36.3 | ||||||||
(m3) | |||||||||||||||||
Stroke | 20. 25. 30 | ||||||||||||||||
(mm) | |||||||||||||||||
Frequency of stroke | 50-85 | ||||||||||||||||
(r/min) | |||||||||||||||||
Feeding size | 0-25 | ||||||||||||||||
(mm) | |||||||||||||||||
Make-up water | 1-3m³/ton of ore | ||||||||||||||||
(m3/t) | |||||||||||||||||
Make-up water pressure | ≥0.10 | ≥0.10 | |||||||||||||||
(MPa) | |||||||||||||||||
Capacity | 50-75 | 66-100 | 78-125 | 116-175 | 132-197 | 150-200 | 166-245 | 182-270 | 200-300 | ||||||||
(t/h) | |||||||||||||||||
Driving motor | 5.5 | 7.5 | 7.5 | 7.5 | 11 | 11 | 11 | 15 | 15 | ||||||||
(Kw) | |||||||||||||||||
hydraulic power unit | 0.55 | ||||||||||||||||
(Kw) | |||||||||||||||||
Weight | 6000 | 6000 | 10000 | 12500 | 14200 | 15800 | 17500 | 18000 | 19200 | ||||||||
(kg) | |||||||||||||||||

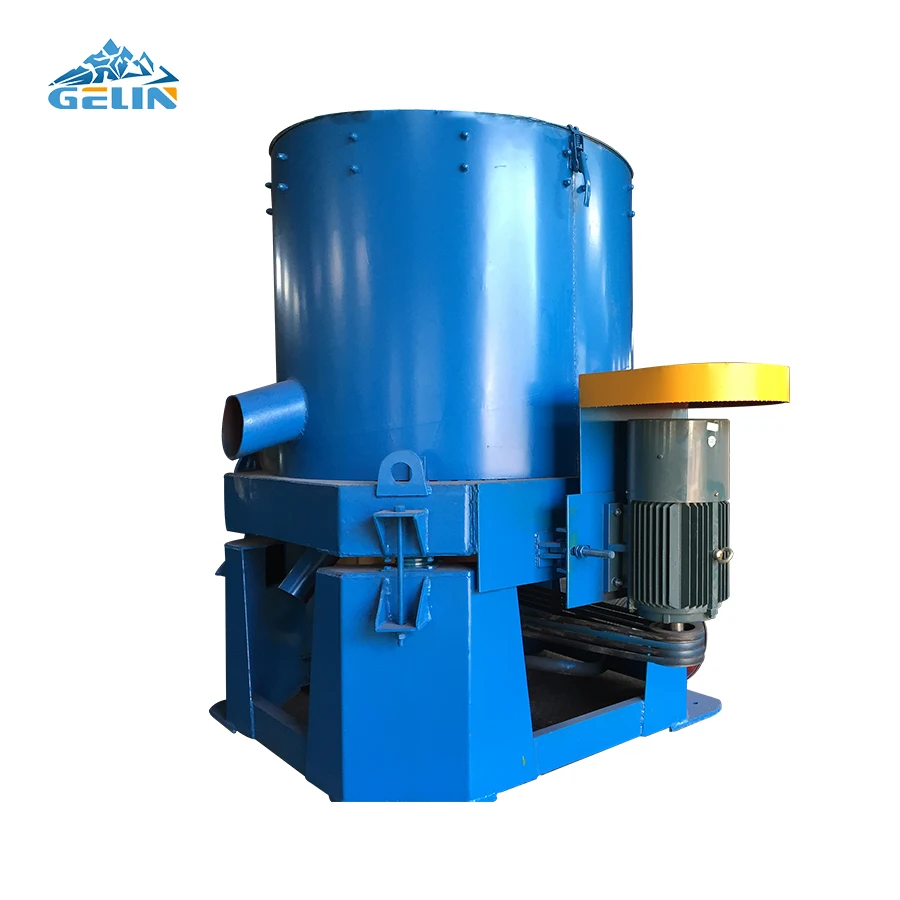

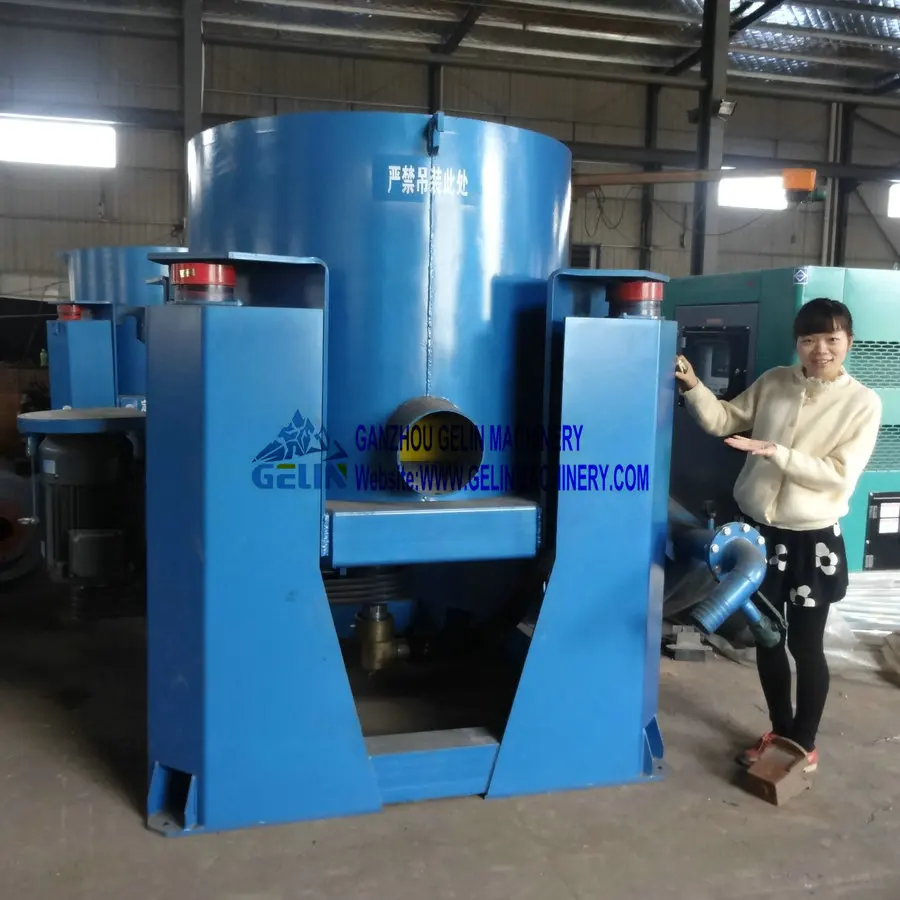

The Gold Concentration Separator,also called centrifugal concentrator,is a new type of gravity concentration equipment for concentrating gold and other high density minerals.It is usually used for roughing separation during the gold separation flowchart to recover most of the useful minerals and get rid of most of the barren rocks.
Features:
1.High recovery rate: For placer gold,it will be 98% or more; for rock gold, it could reach 97% when the feeding size is
below 0.04mm.
below 0.04mm.
2.Large capacity and high efficiency.
3.Easy to install and adjust,the machine has Characteristics of integrity and simpleness utility,which makes it convinient to operate and change spare parts.
4.Eco-Friendly and low noise and no chemical agent involved.
5.Small occupied area benifits to be a part of ore benificiation plant.
Working Principle:
During operation the lighter material flows upward over the grooves and heavy mineral particles (usually of economic value) become trapped within them.Pressurized water is injected through a series of tangential water inlets along the perimeter of each groove to maintain a fluidized bed of particles in which heavy mineral particles can be efficiently concentrated.
Technical Data:
Model | STLB20 | STLB30 | STLB60 | STLB80 | STLB100 | STLB120 | ||||
Feeding Capacity(t/h) | 0-0.6 | 2-3 | 8-12 | 35-45(solids) | 50-80 | 70-100 | ||||
Fluidization water Required(m³ /h) | 2-3 | 3-5 | 7-10 | 30-36 | 55-80 | 70-100 | ||||
Slurry Water Required (m³ /h) | 1.5-4 | 5-7 | 8-12 | 35-50 | 70-100 | 80-120 | ||||
Feeding Density(%) | 0-50 | 0-50 | 0-50 | 0-50 | 0-50 | 0-50 | ||||
Feeding size(mm) | 0-3 | 0-3 | 0-5 | 0-5 | 0-5 | 0-6 | ||||
Concentration Cleaning Up Cycle | Vein gold 1-3 Hours Placer gold " 2-6 Hours | |||||||||
Concentrate weight(kg) | 2 | 10-20 | 30-40 | 60-70 | 80-90 | 100-150 | ||||
Power Requirements(Kw) | 0.75 | 1.5 | 4 | 11 | 22 | 30 | ||||
Approximate shipping weight(Kg) | 200 | 460 | 1400 | 2000 | 2500 | 3500 | ||||
Approximate created shipping Dimensions (mm) | 790*785*790 | 1180*1140*1250 | 1970*1670*1750 | 2300*1800*2200 | 2300*2000*2000 | 2400*2300*2200 | ||||

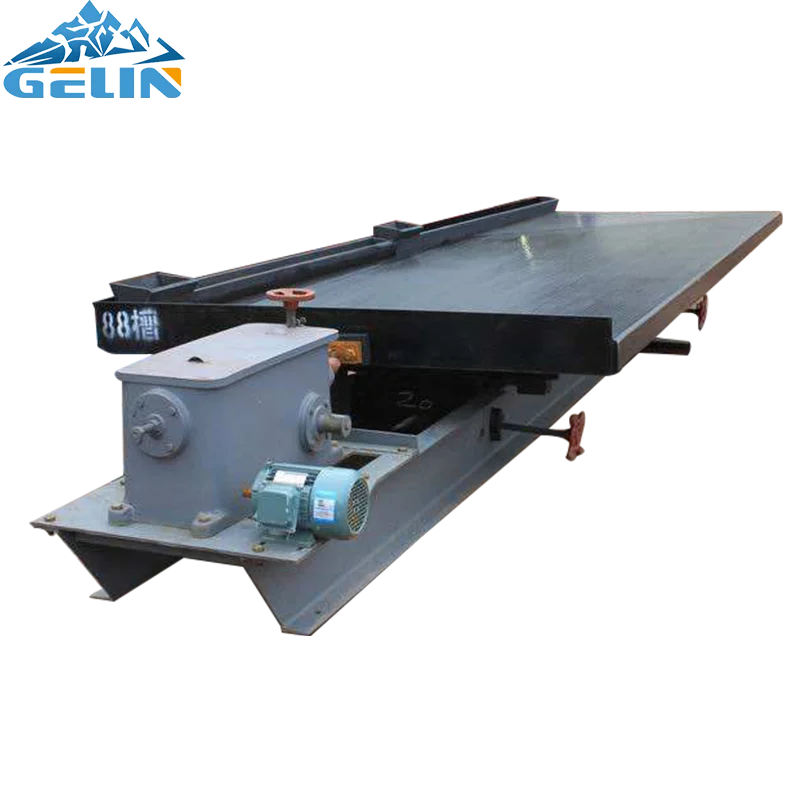

Shaking Table
GELIN Shaking Table is one of the main equipments of gravity concentration. It is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore.
It is also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaking effective recycling granularity scope is 2-0.22 millimeters.
It is also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaking effective recycling granularity scope is 2-0.22 millimeters.
Features:
1.The large range of transverse slope adjustment(0 -10°) and adjustable stroke available (be stably operation when
change them).
change them).
2.The deck surface is smooth with good corrosion resistance, strong and durable, not easy to deform, and is
convenient for local repair.
convenient for local repair.
3.Spring is installed in the case with compact structure.
4.The head of the deck is reliable. with less wear parts and no oil-leakage.
5.Without reagents consumption, little electricity consumption.
Working Principle:
It's to allow loose layering of ores on the bed surface and fan-shaped zoning by combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove),Then different products is produced.
Technical Data:
Model | 6s -7.6 | 6s- 7.6 | 6s- 7.6 | 6s- 4.08 | 6s- 1.95 | 6s- 0.5 | |||||||
Deck Type | Coarse Ore Deck | Fine Sand Deck | Slurry/Slime Deck | Three Deck Types Available | |||||||||
Beneficiation Area ㎡ | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 | |||||||
Deck Size(mm) | Length (mm) | 4450 | 4450 | 4450 | 3000 | 2100 | 1100 | ||||||
transmission end width (mm) | 1855 | 1855 | 1855 | 1320 | 1050 | 500 | |||||||
Concentrate end width (mm) | 1546 | 1546 | 1546 | 1100 | 850 | 430 | |||||||
Maximum Feeding Size (mm) | 2 | 0.5 | 0.15 | Sand--2 Slime--0.1 | Sand--2 Slime--0.074 | Sand--2 Slime--0.074 | |||||||
Feeding Capacity (ton/hour) | 0.8-1.5 | 0.8-1.5 | 0.8-1.5 | 0.4-1.5 | 0.3-0.8 | 0.05-0.2 | |||||||
Feeding Density (%) | 25-30 | 20-25 | 15-25 | 10-30 | |||||||||
Stroke (mm) | 16-22 | 11-16 | 8-16 | 6-30 | 12-28 | 9-17 | |||||||
Frequency (t/s) | 45-48 | 18-53 | 50-57 | 210-320 | 250-450 | 280-460 | |||||||
Water added (t/h) | 1-3 | 1-3 | 1-3 | 0.4-2 | 0.2-1 | 0.1-0.5 | |||||||
Transverse Slope of Deck (°) | 2.3°-4. 3° | 1.3°-3.3° | 1° -2° | 0 -10° | 0 -8° | 0 -10° | |||||||
Longitudinal Slope of Deck (°) | 1.4 | 0.92 | / | / | / | / | |||||||
Cross-Section Shape of Deck | rectangle | Saw-Tooth/Indention | Triangle | Rectangle, Saw Tooth, Triangle Available | |||||||||
Motor Power (KW) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 0.55 | |||||||
Transimission Mechanism | Eccentric Linkage Type | ||||||||||||
Related Products
- Gold Shaking Table
It is a mine separation device for fine minerals working by gravity.
- Jig Machine
This machine is designed for processing alluvial gold mine, river and sand gold, placer gold, ect.
- Gold Centrifugal Concentrator
It is a relatively new type of gravity concentration apparatus.

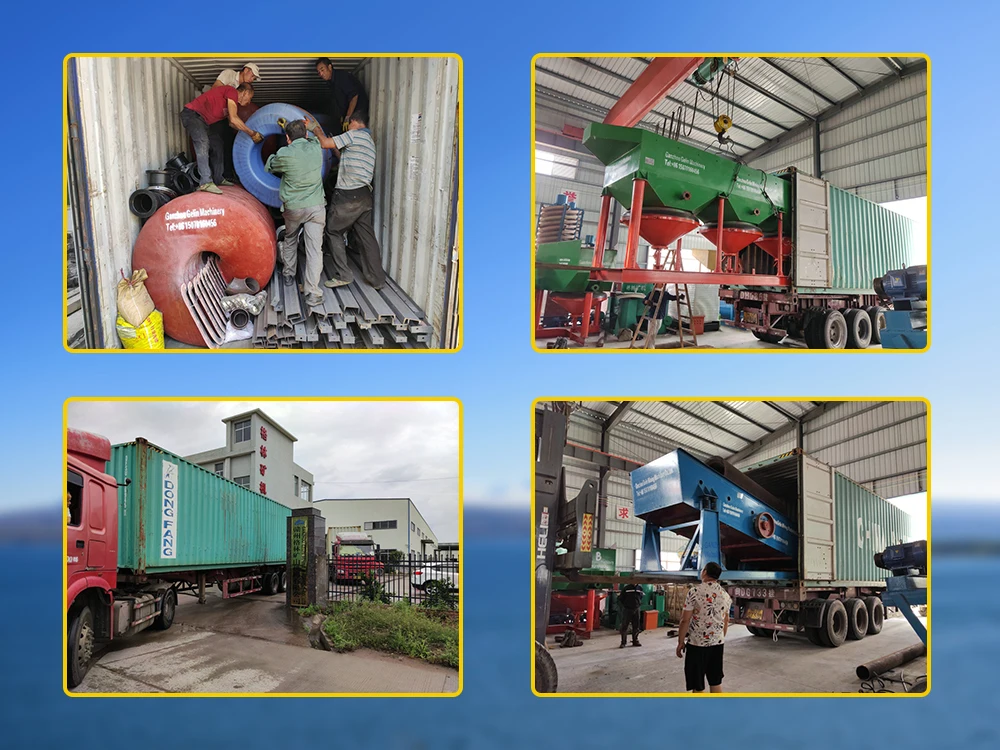

Packing & Delivery
Packing
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below:
1. Nude packing. Used to pack some equipments that not easy to be disassembled.
2. Bundle packing. Used for the goods which are small, large quantities and wear resistant.
3. Grass rope packing. Used for easily damaged equipments like bearings etc.
4. Water proof packing. Suitable for electric motors, electric control panels etc.
5. Wooden pallets packing. Used for goods with large quantities, easily apart and rolling such as the frames and support rollers of belt conveyor.
6.Wooden box packing. Normally used for small goods like spare parts,laboratory equipments, tools etc.
Delivery
Usually the equipments are delivered aboard by tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below:
1.40HQ container: used for goods without overlength, overheight and overweight;
2.FR(Flat Rack) container:suitable for large equipments with overlength,overheight like ball mill,excavator,etc.
3.Bulk cargo shipment (LCL): used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below:
1. Nude packing. Used to pack some equipments that not easy to be disassembled.
2. Bundle packing. Used for the goods which are small, large quantities and wear resistant.
3. Grass rope packing. Used for easily damaged equipments like bearings etc.
4. Water proof packing. Suitable for electric motors, electric control panels etc.
5. Wooden pallets packing. Used for goods with large quantities, easily apart and rolling such as the frames and support rollers of belt conveyor.
6.Wooden box packing. Normally used for small goods like spare parts,laboratory equipments, tools etc.
Delivery
Usually the equipments are delivered aboard by tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below:
1.40HQ container: used for goods without overlength, overheight and overweight;
2.FR(Flat Rack) container:suitable for large equipments with overlength,overheight like ball mill,excavator,etc.
3.Bulk cargo shipment (LCL): used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.
About Company
Ganzhou Gelin Mining Machinery Co., Ltd is an professional manufacturer of mining machines and mining engineering service provider in China.Located in Guzhang Industrial Zone, Shicheng county, Jiangxi province,covering an area of more than 30,000 square meters.Gelin has a strong production capacity and the products cover full range of equipments for beneficiation engineering such as feeding&conveying,crushing,screening,grinding,flotation,separation etc. It has more than 30 sets of heavy processing equipment and with an annual output of more than 2000 sets of mining machinery.Gelin also have a strong R&D team and can provide complete and perfect technical support for mining engineering and construction. Gelin have a complete service system which can provide customer full service in mining field and after sales service.By now, Gelin’s equipments and services are exported to over 60 countries,include America,Russia,India,Africa,Brazil,Chile etc. Sincerely welcome customers to visit our factory.
Successful Cases & Client Distribution
Our Services
One Stop solution for beneficiation plant:
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.
2.Arrange mineral beneficiation experiment after received the material sample and beneficiation test report will be done after test.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection,project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
4.Manufacturing the necessary equipments and arrange the shipment. 3.Complete services for Installation and commissioning and technical training(operating training,common problem solving training).
After-sale Service
Regularly visit customers to provide after- sale technical supports and to solve problems of beneficiation plant. For equipments supplied,we could provide one-year warranty and provide spare parts with preferential price in the long term and be responsible for any problems with the them.
2.Arrange mineral beneficiation experiment after received the material sample and beneficiation test report will be done after test.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection,project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
4.Manufacturing the necessary equipments and arrange the shipment. 3.Complete services for Installation and commissioning and technical training(operating training,common problem solving training).
After-sale Service
Regularly visit customers to provide after- sale technical supports and to solve problems of beneficiation plant. For equipments supplied,we could provide one-year warranty and provide spare parts with preferential price in the long term and be responsible for any problems with the them.
FAQ
For accurate equipment selection and quotation, better learn below info:
Q: 1). What type is the mining? what materials you want to process?
2). What is particle size(mm) of the material?
3). How about the handling capacity(T/H) you want?
Q: Is it possible to provide sample for your factory to do ore-dressing experiment?
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.
Q: How long is the guarantee period of your products?
Q: How long is the guarantee period of your products?
A: The guarantee period of Gelin equipments is 1-2 years, pls ask staff for more details, And we will supply the spare parts for you for life-long time at lowest cost.
Q: If I need the complete mineral processing line, will you be able to help me build it?
Q: If I need the complete mineral processing line, will you be able to help me build it?
A: Yes, we have strong and skilled R&D team,we can provide even mineral beneficiation experiment, engineering design,scheme of plant construction an working drawings,necessary equipment delivery,installation and commissioning until the full mineral processing line completed.You can believe our quality and service.
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
