crumb silicone particles rubber plastic Colored sand mixer Star Products abs grain Vertical mixer in spain

Product Overview

Description

APPLICATION AND PROPERTIES:

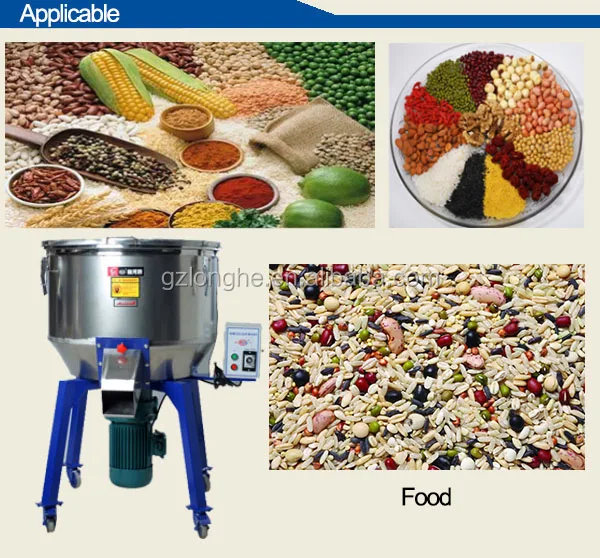

1.Vertical Color Mixer is used for mixing powder and granules and features simple structure easy operation,convenient maintenance and cleaning,high speed and excellent mixing effect.



2.It is mainly used for mixing plastic or widely applied for plastic,power,metallurgy and ceramic industries as the ideal mixing equipment.



3.The material tank and paddle are made of stainless steel with polishing treatment and features high luster,easy cleaning and no pollution.



4.Quickly and evenly mix the materials with low energy consumption and high efficiency.



5.Safe protective device,motor overload automatic protective device.



6.High performance time adjustment with accurate control,quality electric parts feature stable performance.



TECHNICAL PARAMETERS:

Model	Power(kw)	Mixing Volume(kg)	Mechanical Dimension(mm)	Weight(kg)
VM-25	0.75	25	750x700x920	85
VM-50	1.5	50	900x880x1020	100
VM-100	3	100	1010x1000x1260	175
VM-150	5.5	150	1230x1200x1320	233
VM-200	5.5-7.5	200	1350x1300x1420	255
VM-300	7.5-11	300	1550x1400x1720	385
