roller shutter mechanism

Product Overview

Description

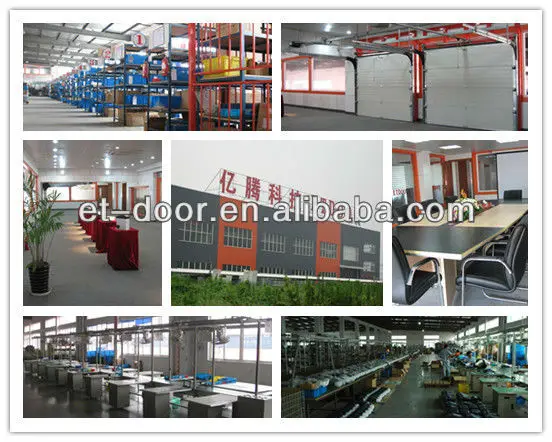

ABOUT US

Operating since 2003,we ETDOOR,are a fast growing company specialized in the production of door openers,door components and full set of sectional doors.We have exported our products to over 30 different countries,mainly in EU market.All of our products are in compliance with CE standards.

With more than 20 years' experience and our enthusiastic,industrious work teams,we are now able to provide a wide range of products and solutions to make home-access more convenient along with security.

Description:

24VDC battery operated,electric roller shutter motor,garage door operator/opener,roller shutter mechanism, electric motor



Design Features:

1.Metal base-for added strength and durability.with a galvanized steel plate of 2mm thickness.

2.Internal Interface-for ease of adding accessories

3.LED Light-Maximum illumination,longevity and low energy consumption

4.Internal fuse-providing even more safe to the garage door opener



Functions:

- Auto close                                              - Wall mount remote

- Electronic limit switchs                            - Photocell safety(optional)

- Automatic safety reverse                        - Backup battery(optional)

- 3 minutes light delay                               - Wall switch(optional)

- Manual release in case of power failure  - Pass-door protection(optional)

- LED courtesty light                                  - Warning light(optional)

- Remote control                                        - With CE certificate.



Technical specifications:
Feature	ET-600E	ET-800E	ET-1000E
Pulling	600N	800N	1000N
Motor	24V DC 80W	24V DC 80W	24V DC 100W
Controller	24V DC 100W	24V DC 120W	24V DC 120W
Input power	200--240V AC 50-60Hz	200--240V AC 50-60Hz	200--240V AC 50-60Hz
Rated power	150W	185W	220W
Force Sensing	Yes(reverse on obstacle)	Yes(reverse on obstacle)	Yes(reverse on obstacle)
Soft-Star/Soft-Stop	Yes	Yes	Yes
Rail	Aluminum/Steel	Aluminum/Steel	Aluminum/Steel
Drive	Chain/Belt	Chain/Belt	Chain/Belt
Radio frequency	433.92MHz Rolling Code	433.92MHz Rolling Code	433.92MHz Rolling Code
Receive type	ASK	ASK	ASK
Protection	3 Amp internal fuse	3 Amp internal fuse	3 Amp internal fuse
Rated door area	10m2	12m2	14m2







Test Equipments:

Other Styles Of Door Openers:



CE Certificates:
