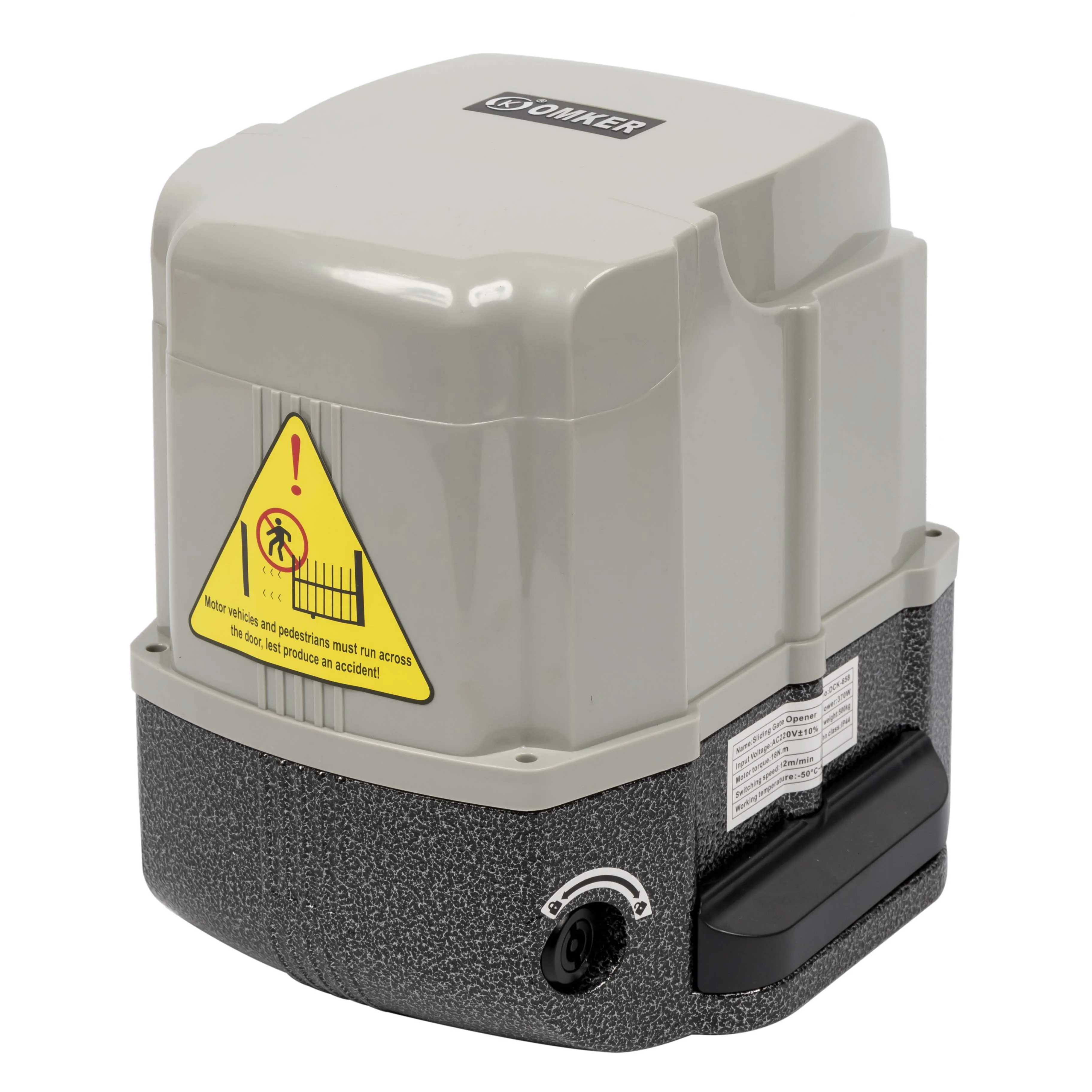

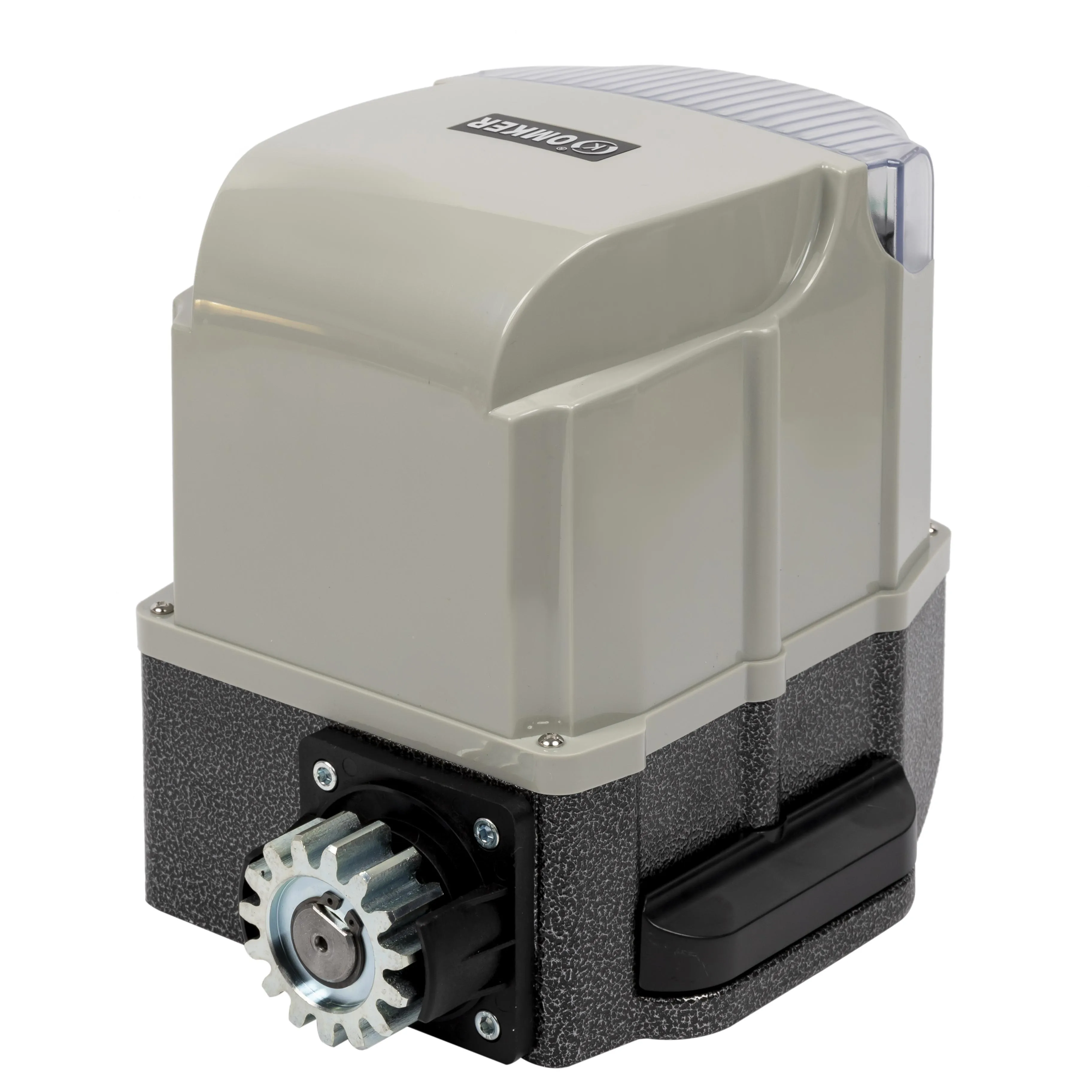

Durable 800KG Magnets Limit Remote Control Electric Sliding Gate Operator
|Durable 800KG Magnets Limit Remote Control Eletric Sliding Gate Operator
|120V/220V~240V AC Single-phase
|Max. Gate Weight (KG)
Function And Features:
1. Anti-collision design: when the door body travel is completed, only after press reverse key, the motor can
be activated so that the over-travel can be avoided.
2. Power-off lock preserve function: when use remote controller to set the manual keyboard, only the remote
controller can unlock, power-off is also.
3. Motor time protection: the default value is 90s in order to avoid motor continuously working when travel is out
of order for long time.
4. Auto close: adjust time from 1-120 seconds.
5. Motor force adjustment: the working force of motor is adjustable.
6. Motor resistance adjustment: the resistance of motor is adjustable.
7. Motor max starting torque: the starting torque is adjustable.
8. Soft starting: motor can slowly start and stop, stable working and no inertia.
9.Adjust slow speed for push force:adjust the force for slow stop and start.
10.Single and four keys: Interchange of single and four keys.
11.High security: OMKER-33 model with remote control function, control sensitively,control long distance,
strong anti-interference. Using the most advanced jump codec technology, have one million password groups
and can not be deciphered, is more safe and secretive than the traditional remote controller (6561 password groups)
in the market.
12. Anti-clamping function: when some barrier blocks the infrared rays, the door stops travel and moves reversely
in case clamp some people and object.
13. LED fault display: it is easy to carry out maintenance and use through LED screen.
1= Single key circulation 5=Torque adjustment
Adjust the motor resistance,it will go back automatically when come into barriers.
The travel torque is adjustable to avoid clamping when the door run into resistance.
Adjust the starting torque for motor's slow start, to keep safe.
