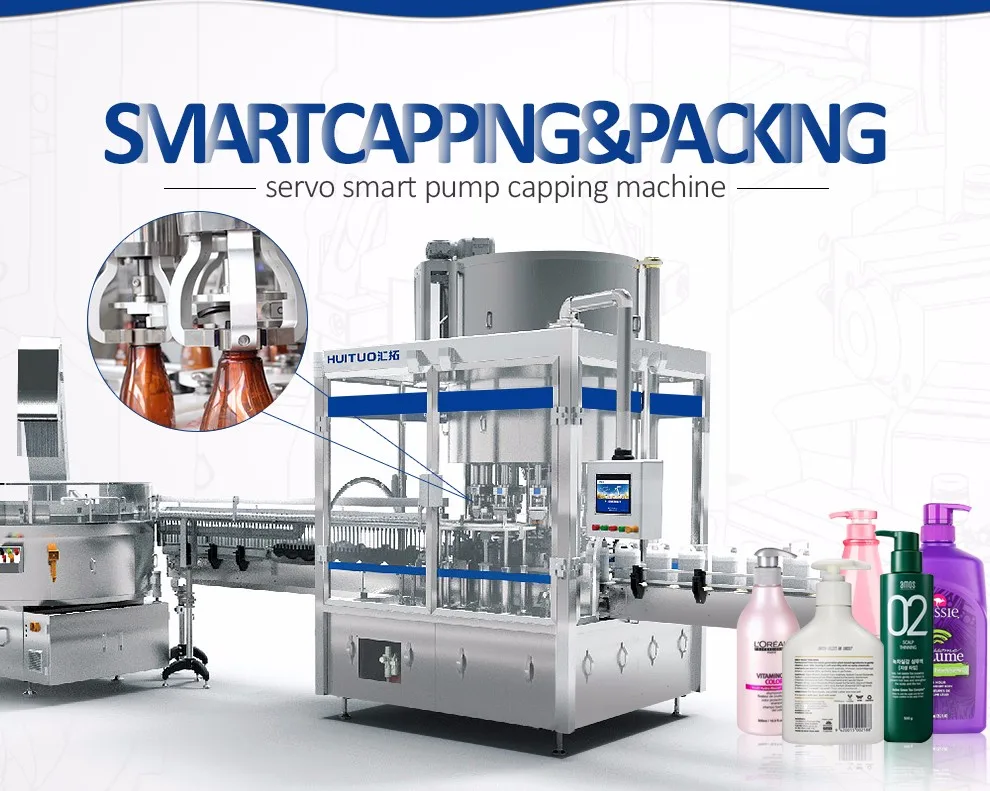

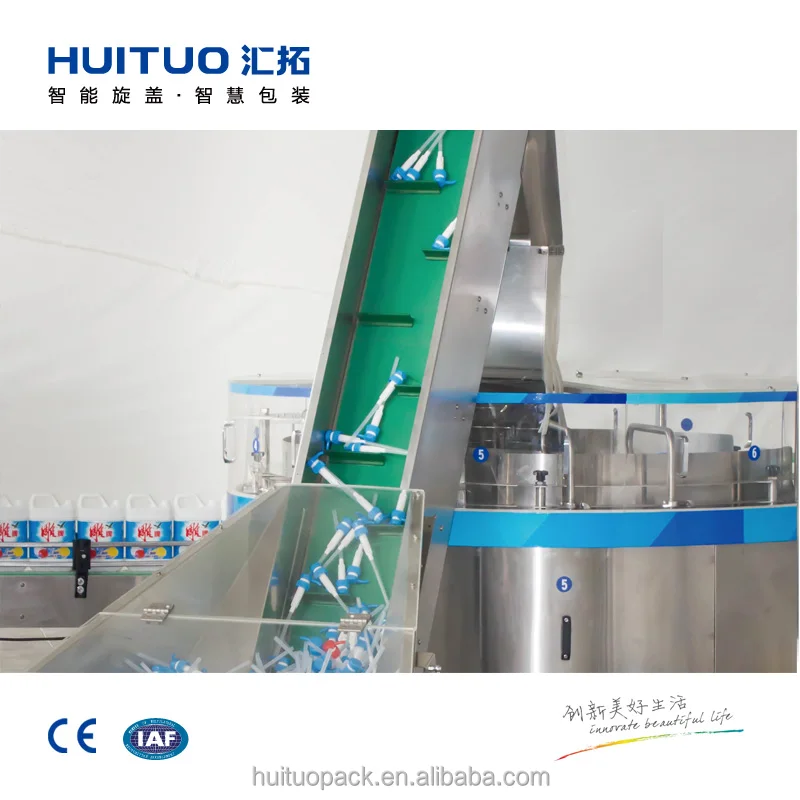

Wholesale china automatic pump screw bottle rotary capping machine for skin care and shampoo

Product Overview

Description



  SP Daily Chemical Series

PUMP CAPS CAPPING MACHINERY



Major Technical Parameters:
Machine Dimension(L*W*H): 2m*1.3m*2.6m	Air operated source: 0.6Mpa clean and stable compressed air
Suitable caps : can be customized	Diameter of pump cap: can be customized
Power suply: AC 380V, 50Hz	Number of capping heads:4/8/12
Length of pump cap: shorter than 250mm	Weight: 4500Kg
Machine power:4Kw(8 capping heads)	Torque control: around 0.3 Nm





Model	Num. of heads	production capacity
SP-4	4	About 2000 BPH

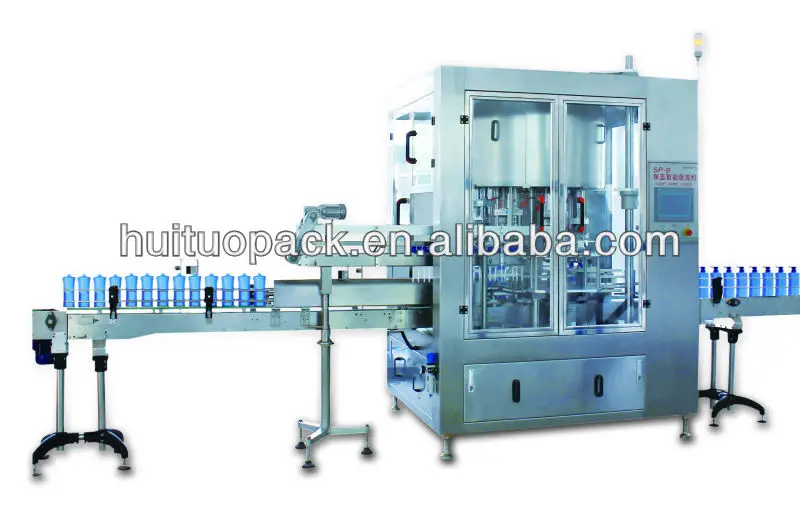

SP-8	8	About 5000 BPH
SP-12	12	About 7200 BPH









Major Characteristics:

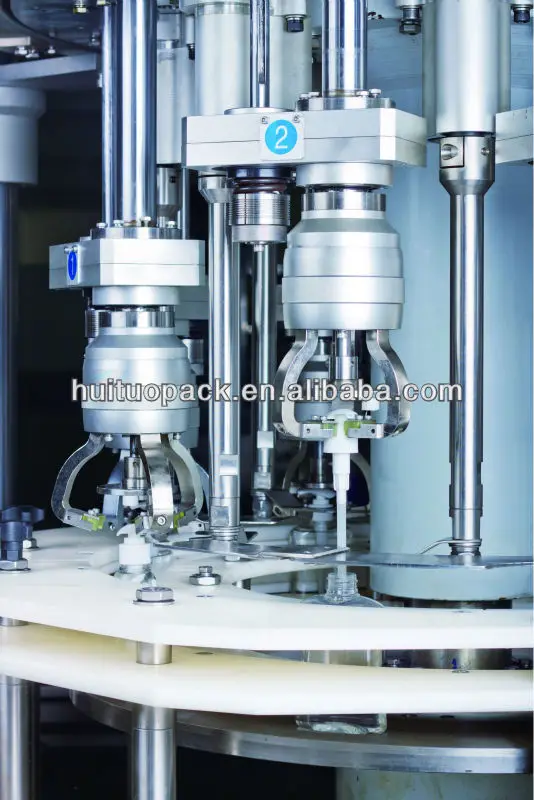

     - Three claws structure, obtained many patent on technology, suitable for pump caps, trigger caps,caps with   tube.

     - PLC controlled , integrated cap sending ,grasping ,capping ( can affiliate with automatic cap sorting machine)

     - Automatic inlet cap and bottle position-setting and orientation, adjustable torque control.

     - Gentle manipulation, no scratch and injury to caps and containers

     - Easy changeovers, one line capable of several products

     - Connected with filling machine and labeling machine easily

     -Module structure, manipulate on the touch screen, easy maintenances

     - Suitable for containers made of PET/PP/PE/HDPE and so on

     - Production capacity can achieve 4000-8000b/h, higher speed can be customized
