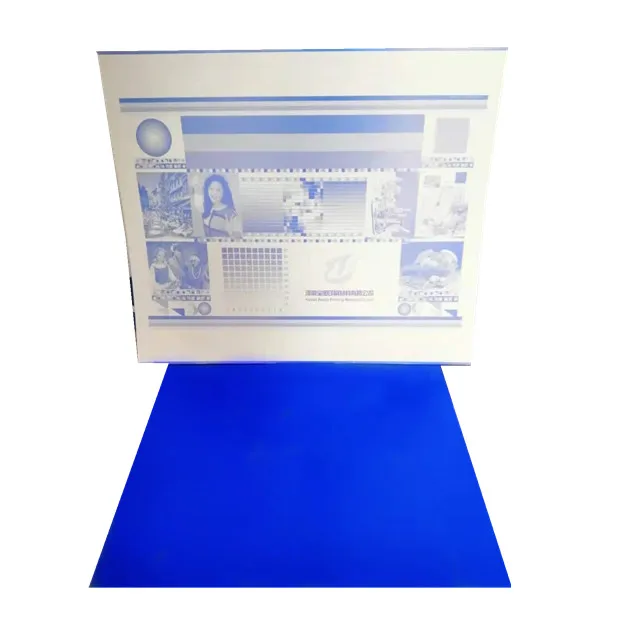

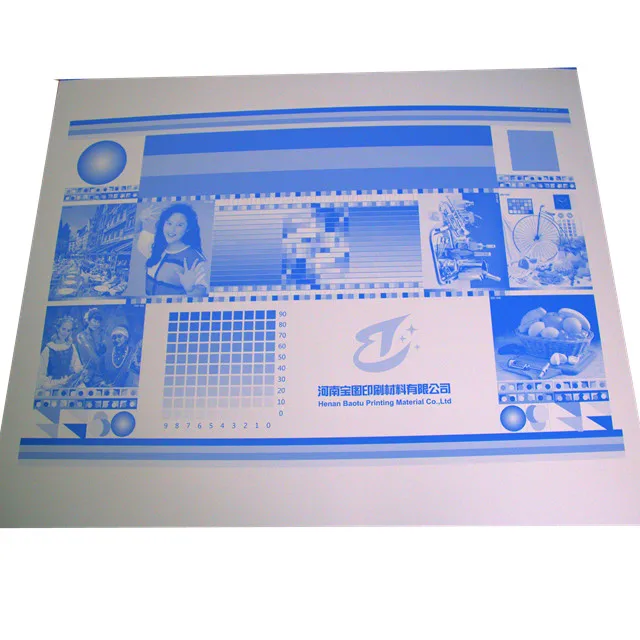

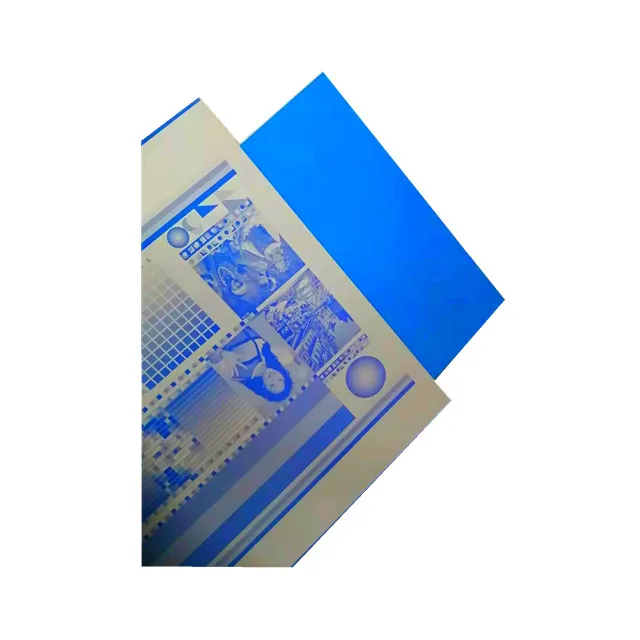

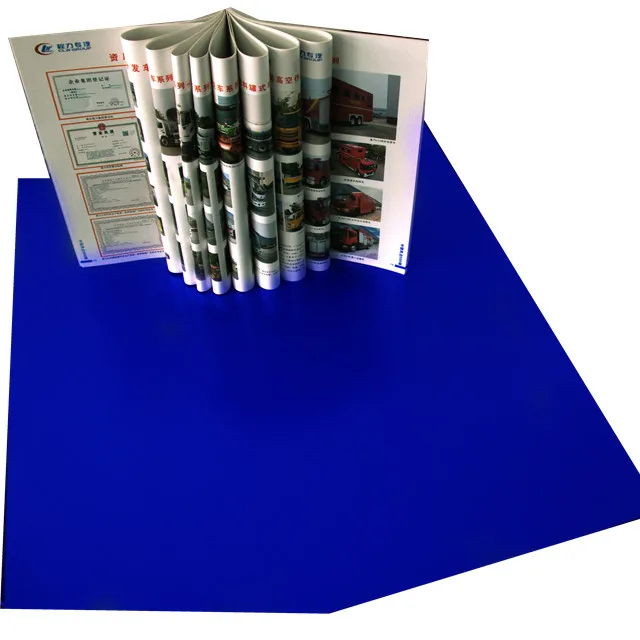

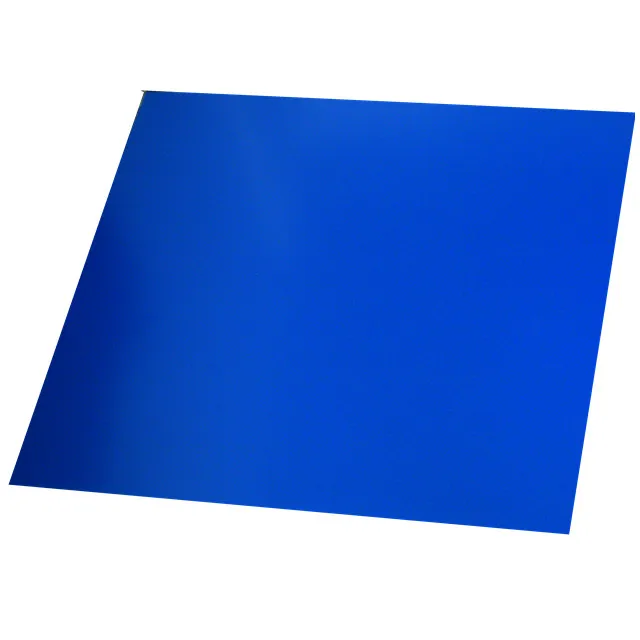

Positive ctcp printing plate UVCTP plate

Product Overview

Description

Product: positive ctcp aluminum printing plate

Application: Newspaper and Commercial offset printing

Spectral sensitivity: 360-450nm UV light and 405-410nm(405) UV laser

Sensitivity :50-60mJ/cm2

Resolution :2%-98% at 200 lpi

Platesetters:Luscher X-Pose 160,Basys print UV-Setter 710,Cron UVP-46,Amsky and so on

Developer: common developer for positive PS plate

Run length: 50,000---100,000

Coating: Green

Working environment: Yellow light

Run length is always dependent on exposure, processing and press conditions



Properties:



1) High sensitivity :
High sensitivity coated material reduces exposure time and increases the efficiency of plate-making procedure
2) High resolution :
Special ingredients, together with the optimally distributed formula weight of binding polymers, in the coating material offer fine dots with sharp edges
and reproduce images with rich tone, and make the dots of image to be reproduced maximumly
3) Excellent hydrophilicity
Multi-grains and Hydrophilic Treatment provide excellent water retaining
capability at the non-image area, and thus keep ink-water balance optimally
4) Available sizes:
 <1> Thickness: 0.15 - 0.30mm
<2> Other sizes available on requests
