Good Quality Double Layer Thermal CTP NO White Spot on the Surface Can use by any brand ctp plate processor

Good Quality Double Layer Thermal CTP NO White Spot on the Surface Can use by any brand ctp plate processor

Category: Printing Plates >>>
Supplier: Henan,Huida,Print-All,Technology,Co.,Ltd.

Price:$1.65 - $1.69

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

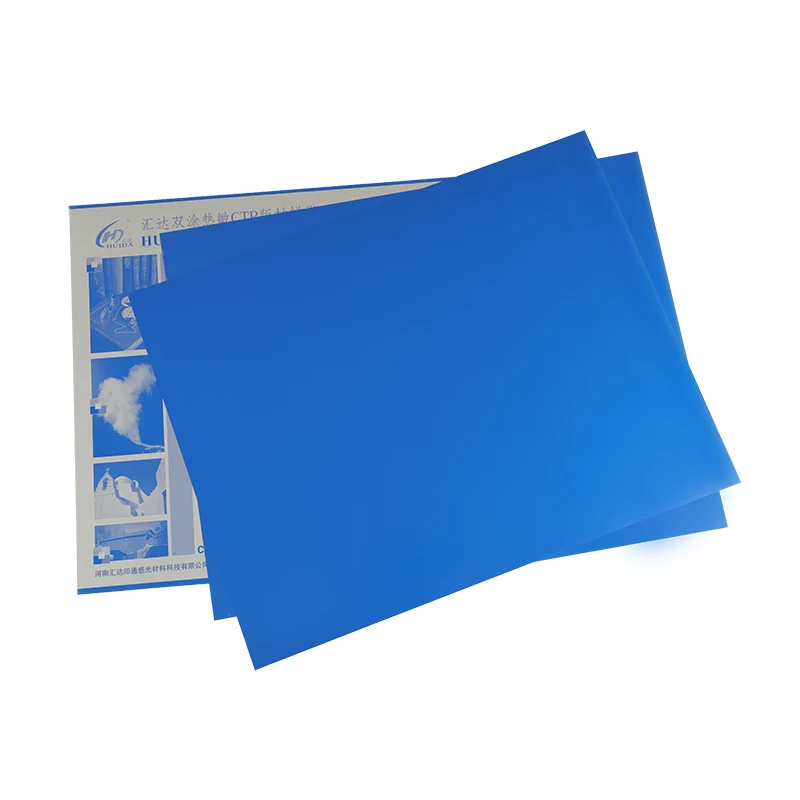

Positive Double Layer Thermal CTP Plate

HUIDA CTP-4-1 double layer thermal CTP with the latest unique deep blue photosensitive formula and the advanced thermal plate technology, which is specifically designed for Long Run Length UV INK printing, with high-performance press quality. The widest developing tolerance and adaptability, the easiest use for end-users, no machine adjustment, no any ash or dot loss.

Product Type	Positive Double Layer Thermal CTP Plate
Application Type	Commercial Printing, Newspaper Printing and Light Printing
Plate Features	1.Easy-to-use. 2.Compatible with all the common thermal plate setters. 3.High sensitivity, Large developing latitude, Excellent Dot Reproduction, Super Long run Length. 4.Excellent Hydrophilicity- keep ink-water balance optimally 5.Can be used by any brand ctp plate processor 6.Steady Quality and Extensive Adaptability
Compatible Plate setter	Compatible with all the common thermal plate setter
Aluminium Coil width	Aluminium Group Alloy 1050/1060 CTP aluminium coil
Plate Thickness	0.15mm ,0.20mm,0.25mm,0.30mm,0.40mm
Maximum Coil Width	1350mm
Spectral Sensitivity	830nm
Exposure Energy	80-90mj/C㎡
Developing Temperature	20-30℃
Developing Time	17-30 Sec
Safe-light	2 hours under white light
Resolution	1-99% at 200lpi
Run-Length	Normal lnk:150000 to 200000 and UV lnk:60000 to100000 copies (Actual run length may vary according machine,ink,paper conditions)
Shelf Life	18 Months
Storage Conditions	18 months, store plates flat in their packaging, 10-25℃,with RH 40%--60%, stock height less 1.5m. Away from excessive heat, high humidity, Anti-acid &alkali

1.Easy-to-use.
2.Compatible with all the common thermal plate setters.
3.High sensitivity, Large developing latitude, Excellent Dot Reproduction, Super Long run Length.
4.Excellent Hydrophilicity- keep ink-water balance optimally 6.Steady Quality and Extensive Adaptability

Exposing
Plate setters	Kodak:Trendsetter/Lotem/Magnus Fuji:Javelin T9000HS, Heidelberg:Top setter/ Supra setter Luscher: Xpose Plate setter Screen :PT-R Creo :Scitex
Exposure energy	80-90mJ/cm²
Spectral Sensitivity	830nm -Peaks
Resolution	1-99% at 200 LPI
FM capability	20 um
Image color	Blue

Developing
Processor	All the kind Brands
Developer	Kodak Gold Star or our own developer
Processing temperature	20-30℃
Developing time	17-30 sec

Company advantage

About Us

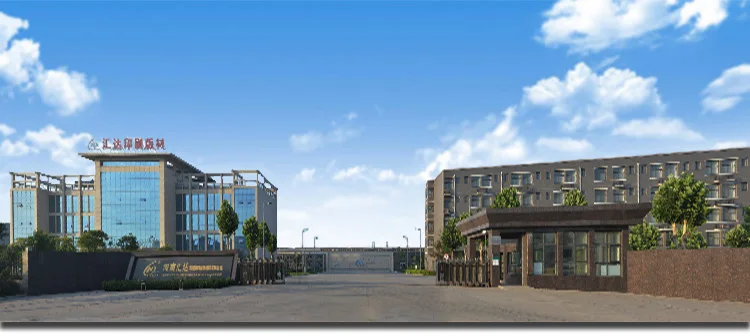

Henan Huida Print-all Digital Material Technology Co., Ltd., established in 2003, covers an area of 70 thousand squaremeters , an investment scale of 170 million CNY, 210 production staff, 21 senior technical researchers, 35 patent certifications, our products are all In line with international standards, exported to Eastern Europe, ASEAN, the Middle East, South America, Africa and so on more than 10 countries. With 3,000 tons of raw materials reserves, 2 million square meters of finished products storage, 30 million square meters of annual production, to ensure timely supply of products. 13 years experience in CTP / CTCP / PS plates production, introduction of the United States Kodak thermal plate making machine, Japanese Screen thermal plate making machine, Corn CTCP plate making machine, Taiwan Grafmac developing machine, Denmark Glunz& Jensen developing machine and so on full set of plate making, developing, testing equipments, triple testing, man-machine combination, to ensure that each piece of plate’s quality. Our one-to-one customer service system, to provide you with one-stop service.

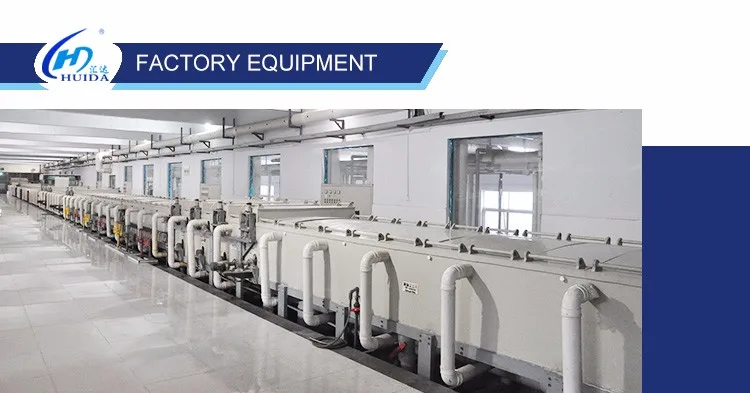

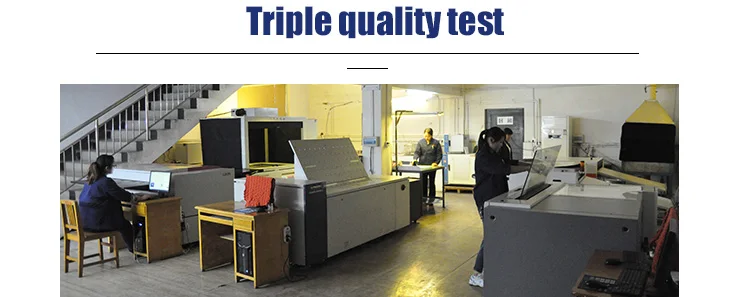

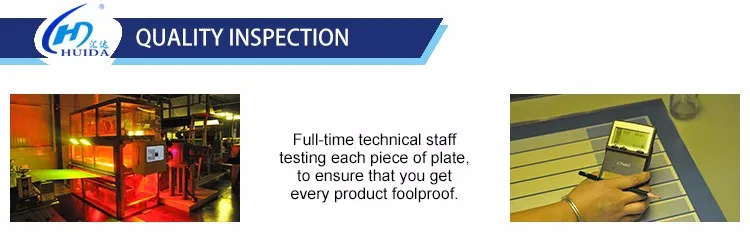

More than 3 million CNY of scientific research quality testing input: the United States Kodak thermal plate making machine, Japanese Screen thermal plate making machine, Corn CTCP plate making machine, Taiwan Grafmac developing machine, Denmark Glunz& Jensen developing machine and so on full set of plate making, developing, testing equipments. 21 high-tech research and development quality testing personnel, to ensure that our product quality foolproof, to ensure our products continue to innovate!

Gain national "HG / T26 94-95" standard, ISO 9001 quality system certification, product testing by SGS, in line with EU standards.

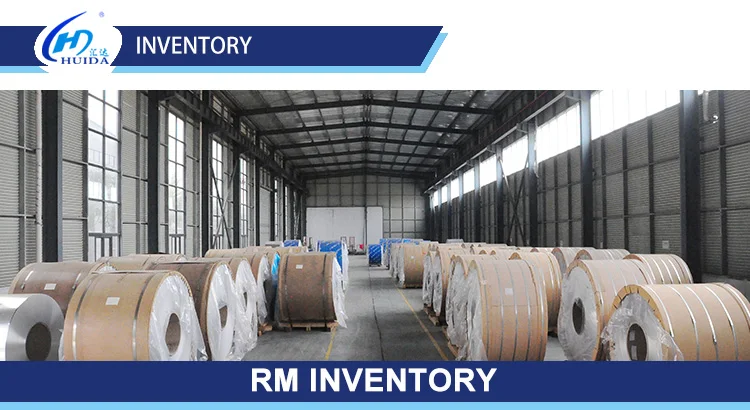

3,000 tons of raw materials reserves, adequate raw material guarantee, to ensure the continued stability of our product supply. 2 million square meters of finished product storage, a variety of conventional storage sizes for customer, ready to ship any time.

After strict quality testing of products, then use impervious waterproof kraft paper packaging, with wode reinforcement into the carton, stick well lable, according to the requirements of height stacking, outer packing a layer of waterproof moisture-proof plastic wrap and reinforcement package, shipped away.

Exhibition

FAQ

Q:When can I get the price?
A:We will reply you within 24 hours after we get your inquiry. Or you can directly call us if you are
very urgent.

Q.Can we get samples for testing?
A: We can provide you with free samples, you only need to bear the freight. If your first purchase quantity meets our requirements, we can apply for you more favorable price.

Q.How long is the production time of the goods?
A: Our warehouse has sufficient regular sizes stocking, ready to delivery. And we have a lot of raw materials storage, customer specifications can be arranged in a timely manner production, delivery can be made within 7-10 days.

Q.How to do the problems of product in the printing process?
A: We have a professional technical team, will be online to solve the use of the process encountered various problems. If can not be resolved online, technical staff will arrange timely home visits.
