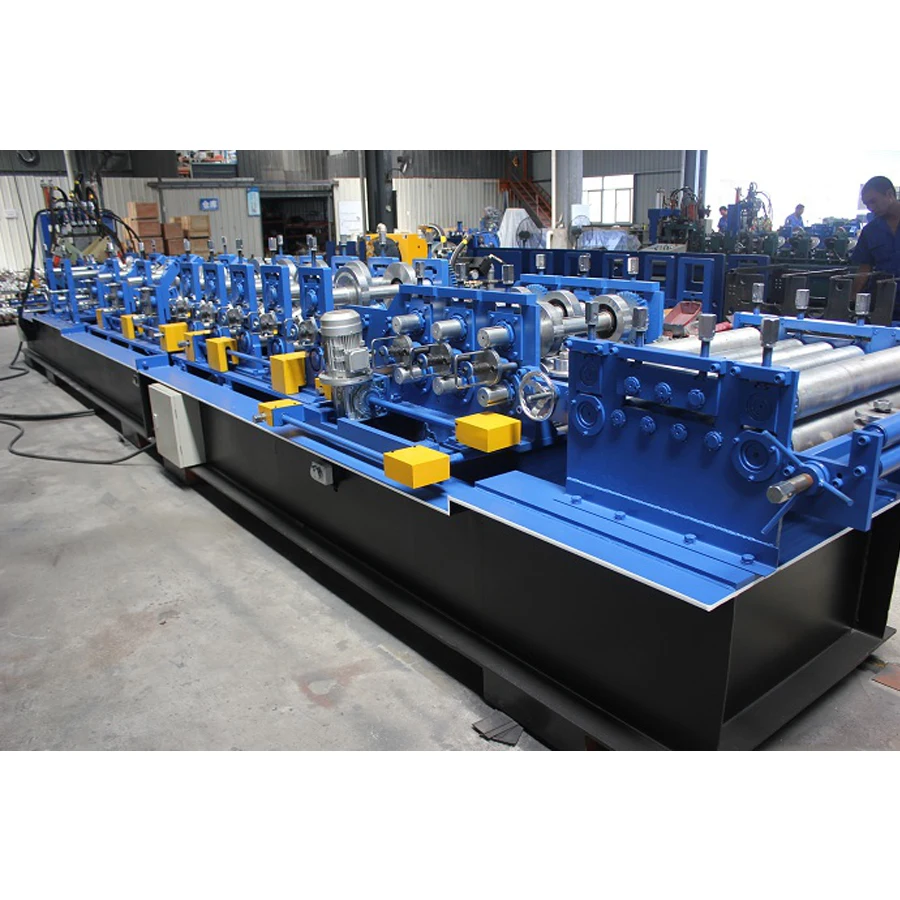

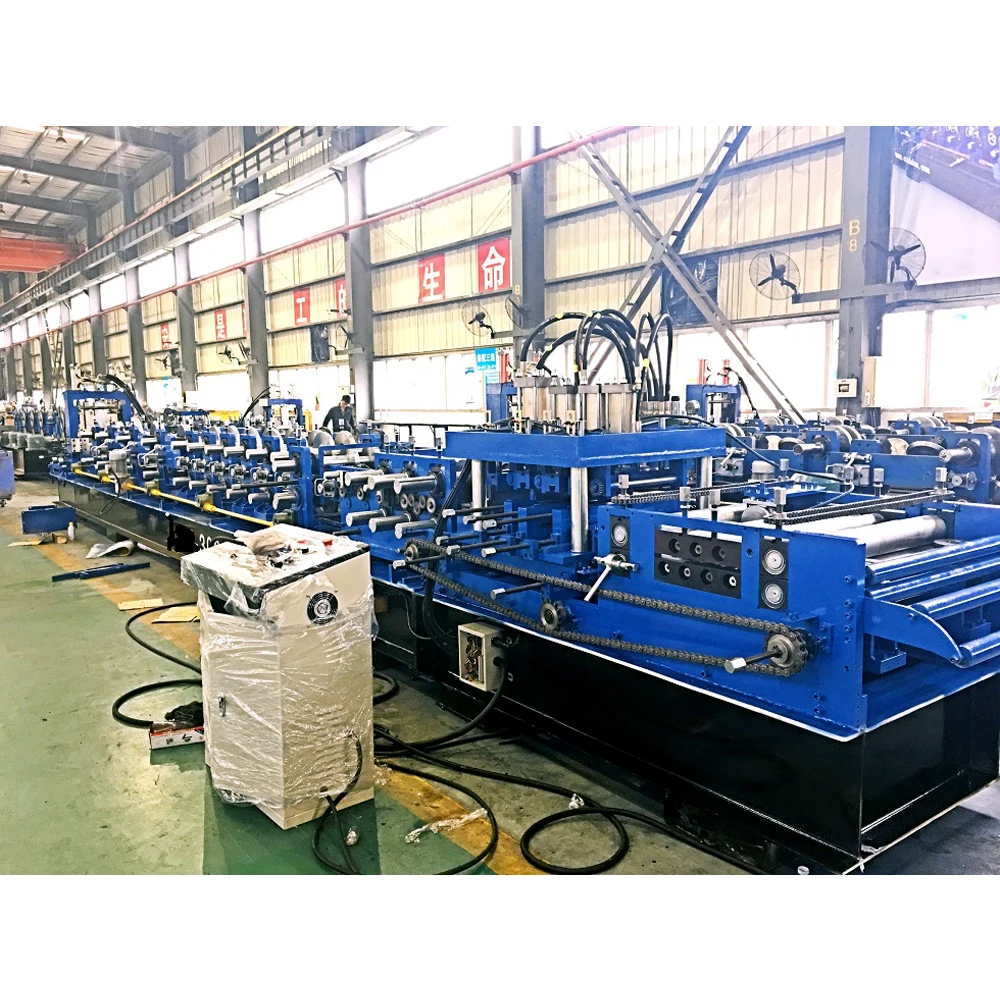

Full-automatic fast speed C and Z purlin forming machine galvanized steel SX300
Specification
Item
parameters
Three-phase asynchronous moto
Hydraulic moto
Thickness of material
1.5-3.5mm
Main moto power
22KW
30KW
Hydraulic pressure
16Mpa
Control system
PLC control panel
Shaft material
40Cr
Roller material
Cr12 Vacuum heat treatment
Forming speed
25-30m/min Hight speed without punching and cutting
Cutting blade material
Cr 12 High Grade Steel

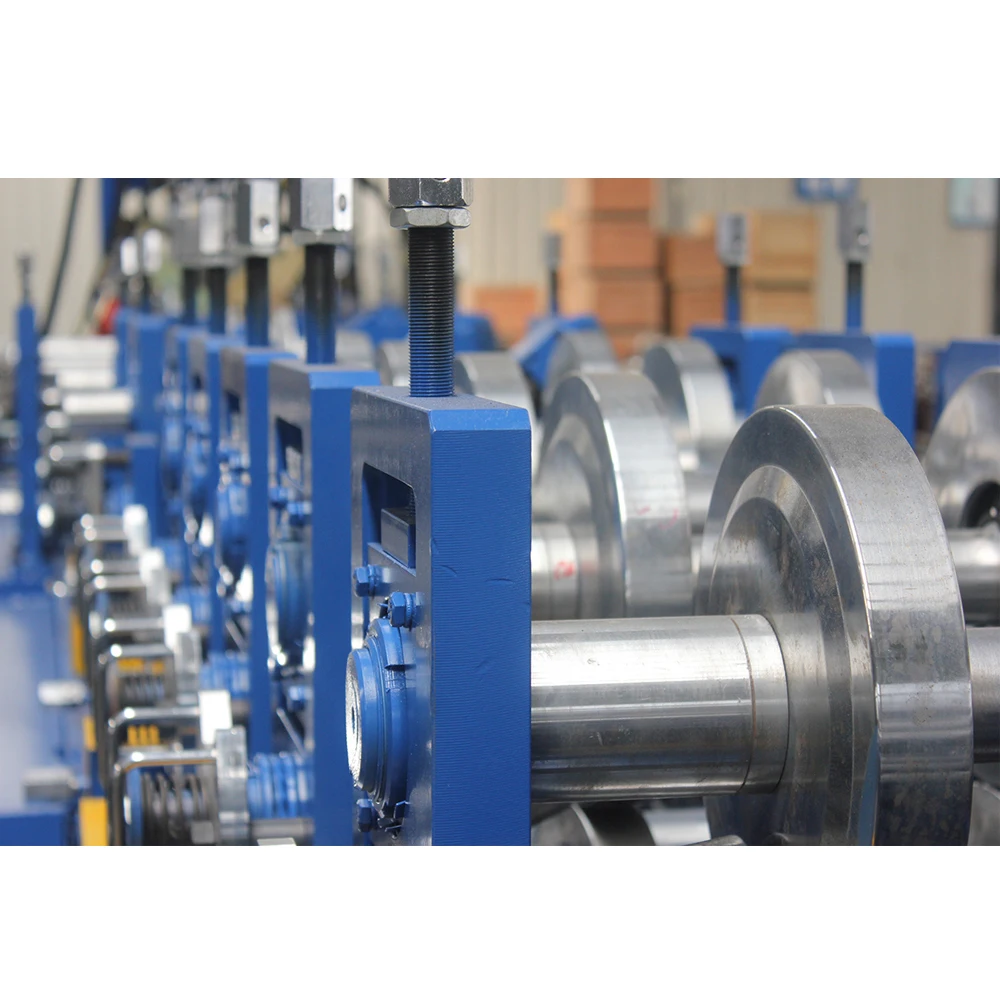

Roller station
19 Stations
Size of machine
12m*1.3m*1.5m
C and Z purlin specification
Decoiler Feeding and Leveling Main Roll Forming Hydraulic Punching and Cutting Product Support Frame
More information about our equipment
Our company is a manufacturer of c/z purlin roll forming machines with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in various industries.

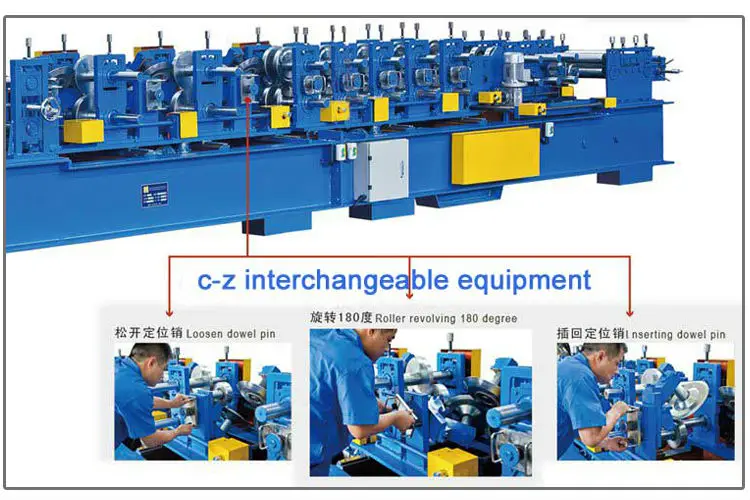

1.With C-Z interchangeable equipment, our machine is able to change purlin specification within 5-10 minutes.

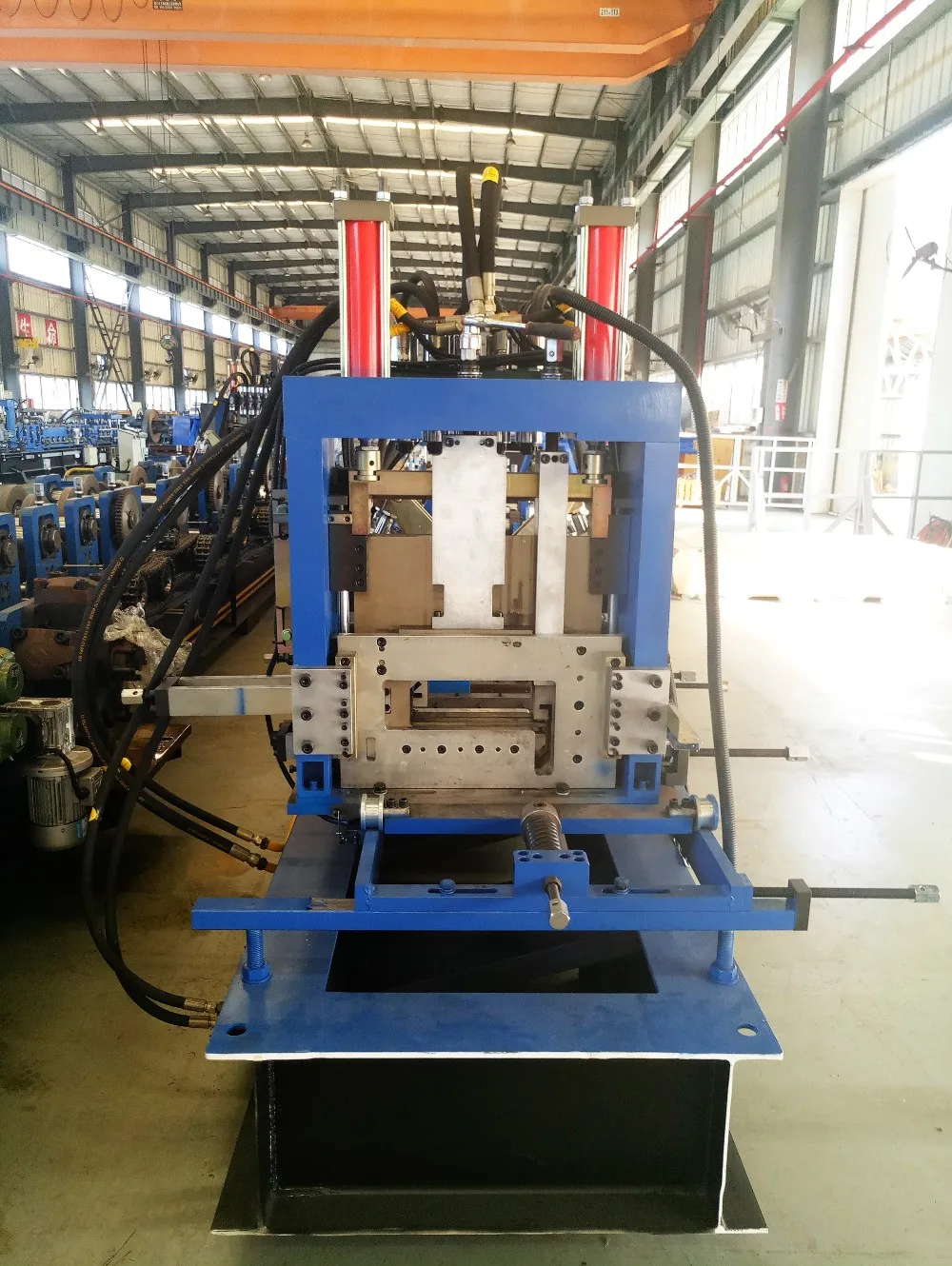

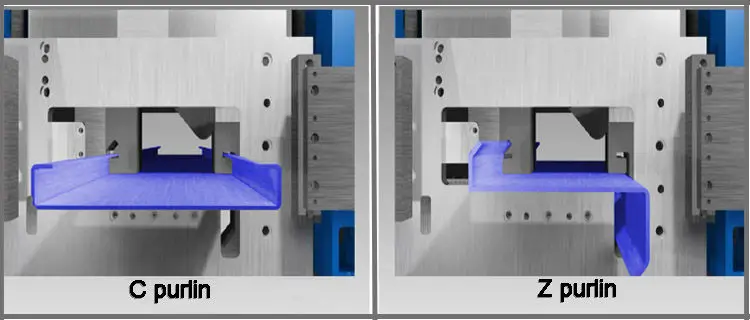

2.In addition, all of our machines are equipped with Fourth generation C/Z quickly cutting and punching system, purlin in any size can be made without changing cutting mold. It's different from traditional cutting device.
Traditional cutting device need to change cutting mold frenquently, it wastes much time to exchange cutting mold, also occupy lots of spaces.
After 4 years' development, we have solved the problem.Fourth generation C/Z quickly cutting and punching system is a new cutting system, only need to input the purlin's parameter on the PLC control pannel, the blade will move around to match purlin's size.
