0.05mm / 0.5mm/ 0.03mm thermal graphite for led

Product Overview

Description

0.05mm / 0.5mm/ 0.03mm thermal graphite for led





Features:



-High thermal performance

-Eliminate hot spots area design

-Flexible enough to comfort to kinds of surfaces

Typical applications:

-LED lighting/Heat sink

-LCD-TV/DVD



Configuration:



-Laminated with metal/plastic to meet mechanical and electrical demands.

-Adhesive-backed available

-Pre-cut parts or sheets form



Properties:



Typical Properties of LD8G15
Property	Unit	Metric Value	Test Method
Material		Graphite
Thickness	Mm	0.03-1.5	ASTM D374
Hardness	Shore A	80	ASTM D2240
Specific Gravity	g/cc	1.5	ASTM D792
Tensil Strength	4900kpa	715PS	ASTM F-152
Continuous use Temp	°C	-40~+400	EN344
Electrically
Volume Resistivity	ohm.cm	3.0x1013	ASTM D257
Flame Rating		V-0	UL 94
Thermal
Thermal Conductivity (vertical direction)	w/m-k	15	ASTM D5470
Thermal Conductivity   (horizontal direction)	w/m-k	400-600	ASTM D5470





Product Pictures















Our Working Environment

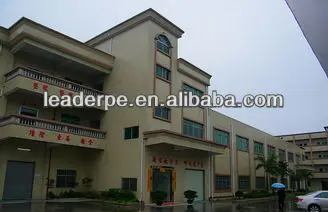

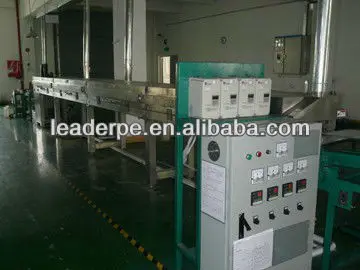

Plant Pictures







Packing Information
