FEIHU yarn expansion machine

Product Overview

Description

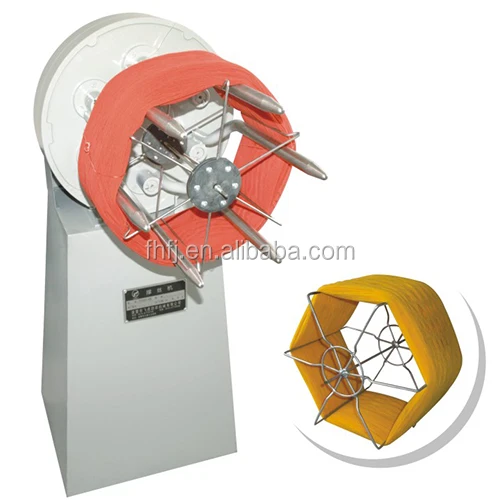

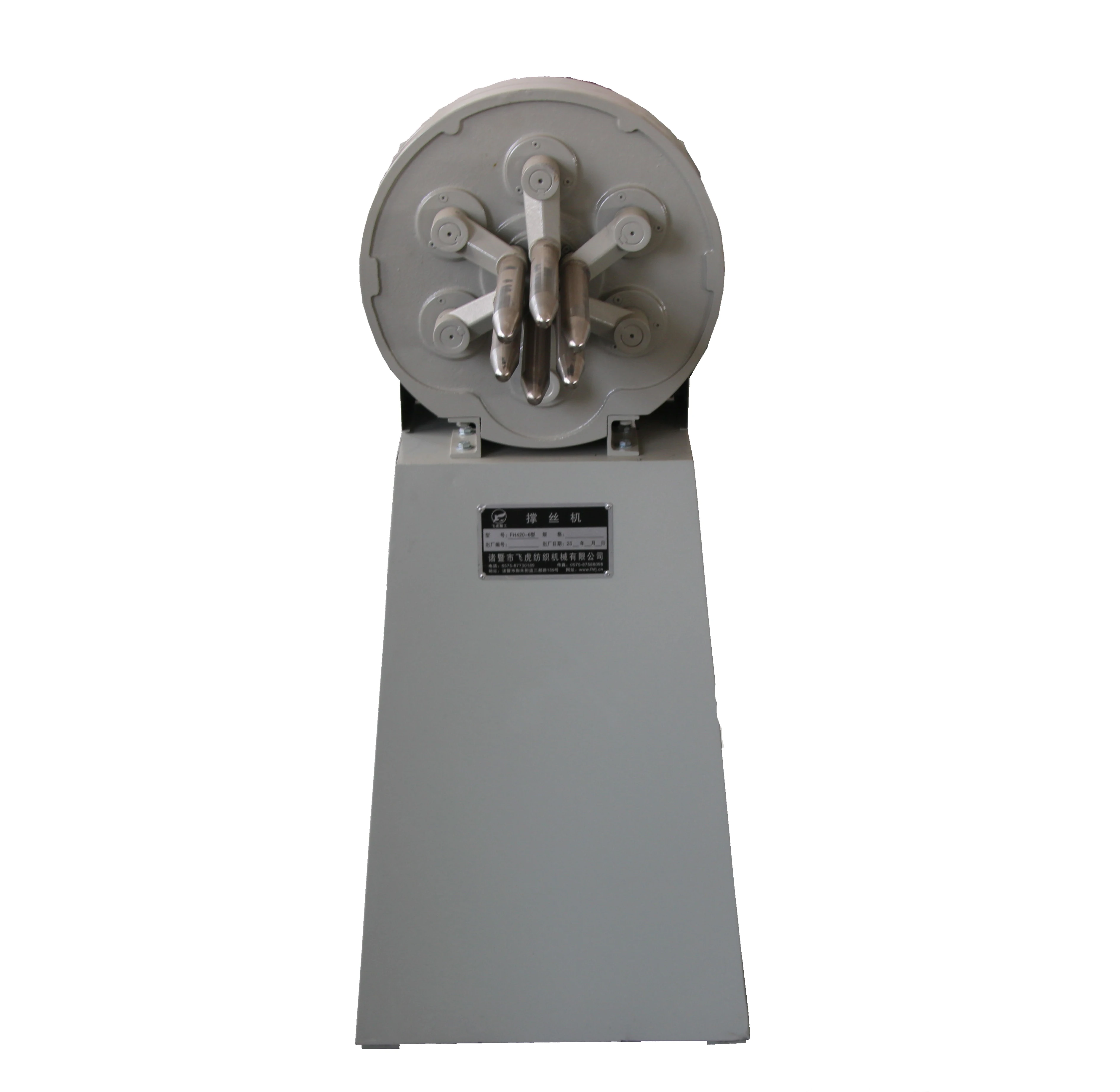

FH420-6 Yarn expansion machine(Vertical or horizontal)

The biggest advantage: Ensure that no yarn is pulled, ensure the quality of yarn, in the shortest possible time to turn elastic yarn to the on screen box, in the use of hank to cone.

Machine is reeling yarn winding road before forming essential equipment. The machine can aperture smaller twisted elastic yarn, yarn, thread, and so on to power after the big artificial transferred to a shed on a yarn rack, for use by all types of winding of winding machine winding, lab our saving and efficient.

The machine which is motor direct drives. Power increase. Suitable for large diameter yarn use.



Machine model	FH420-6 Yarn expansion machine(Vertical or horizontal)
Product name	Yarn expansion machine
Machine color	White
Motor	750w
Min. close diameter	80mm
Max. expansion diameter	420mm
Effective length	220mm
Dimensions	L900mm x W450mm x H1100mm
Speed	10 seconds/ cutter
Weight	180kg
