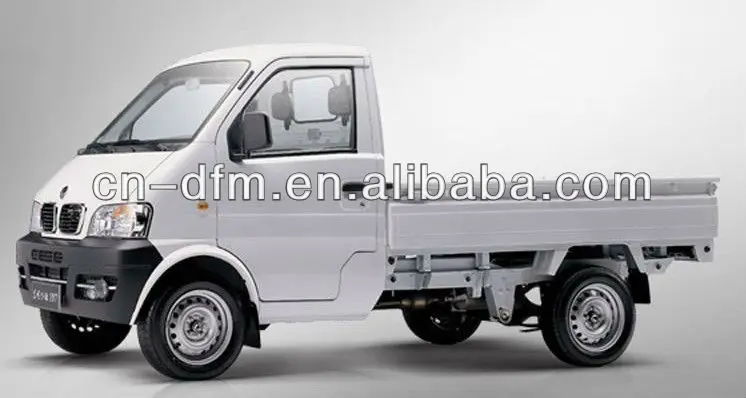

Best selling Dongfeng Mini Truck, Cargo truck K02 from China

Product Overview

Description

1.Introduction

Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd was founded in South Africa in 2003, Dongfeng Group, specializes in vehicles and machinery export business critical enterprise. Our main business covers Dongfeng commercial vehicle, passenger car products, automobile equipment and auto parts export. Our products are exported to Southeast Asia, Middle East, South America, Eastern Europe and many other countries.



We export commercial vehicles cover all series of Dongfeng Brand.

Dump Truck Series

Cargo Truck Series

Tractor Series

Special Purpose Vehicles

Military Vehicle Series

Passenger Vehicles Series



2.Feature

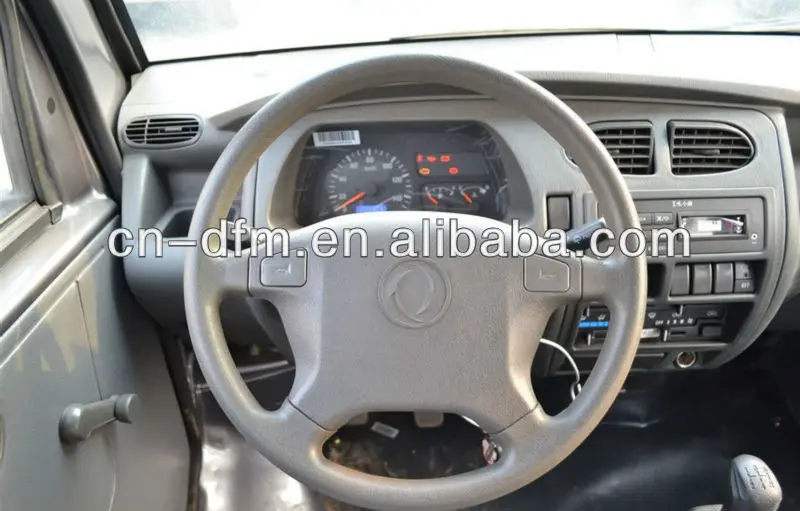

l The cab: Dongfeng tractor adopt luxurious D310 cab with the comfortable shock-free driving seat, the electric controlled glass and the central lock device, this guarantee the driving comfortability; At the same time, the knee shield guard improve the security of the driver and the passengers. This cab also bring down the drag coefficient to reduce the fuel consumption.

l The engine: The tractors used Cummins engine which provide excellent gradeability, strong horsepower and bring down the oil consumption, reduce the operating cost for client.

l The chassis: The Dongfeng chassis make the tractors have big ground clearance and excellent trafficability and adaptability to various vile roads.

l The gearbox: The Fast Brand gearbox adopt serration processing technology to lower the noise and vibration and increase the reliability.



3.Specification

                    Dimension and mass

Overall

dimensionL×W×H(mm)              4410×1560×1860

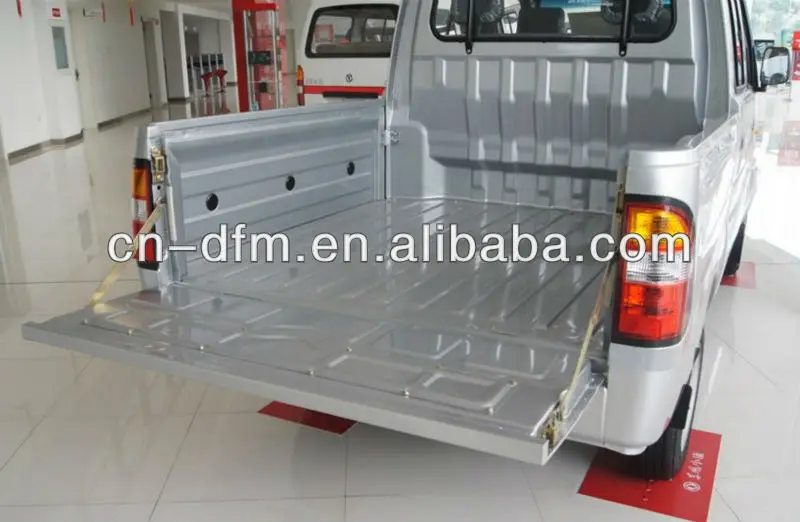

Carriage dimension(mm)           2000×1440×340(2m)

Wheel base(mm)                        2760

Tread(F/R)(mm)                         1310

Curb weight(kg)                          910/900

G.V.W(kg)                                   1780/1860

Min.turning diameter(m)             ≤9.8

Max.gradeability(%)                   ≥30



                       Engine

Model        EQ474i-30

Place         Middle

Type          4-cylinder in line, 4-stroke, water cooling, overhead cam,petrol engine with electronic                             control fuel injection

Displacement(ml)     1310

Max.power(kw)          60.5

Max.torque(N.m)       102

Volume of oil tank      40

Fuel consumption under limited condition(L/100Km)    ≤5.8

Type of gearbox      5 gears/Manual

Max.speed(km/h)       100



                 Brake,suspension,drive mode

Brake system         Double circuit hydraulic brake

Drive mode             Rear drive

Suspension(F/R)     Front suspension is independent of Macpherson struts type and rear suspension                                   is  non-independent of leaf spring type.
