Chaoda Latest Hot Air Solar Collector

Product Overview

Description

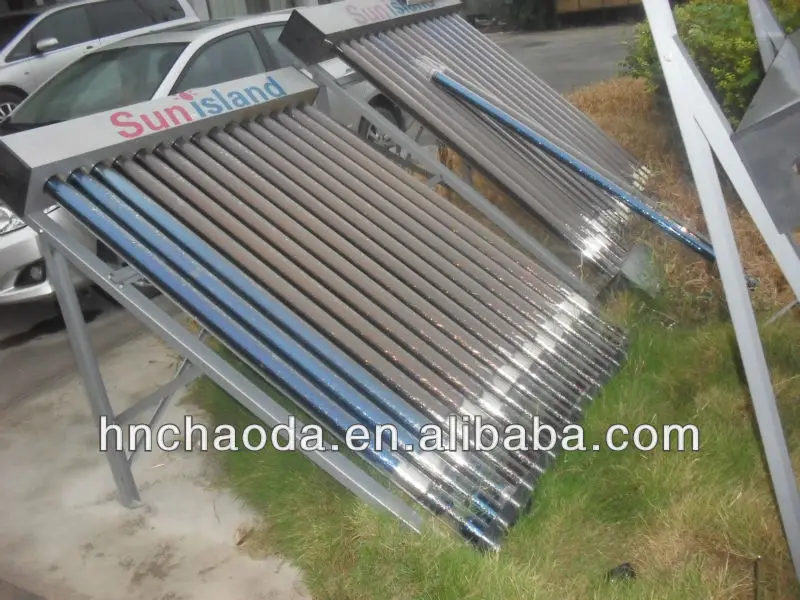

  Hot Air Solar Collector

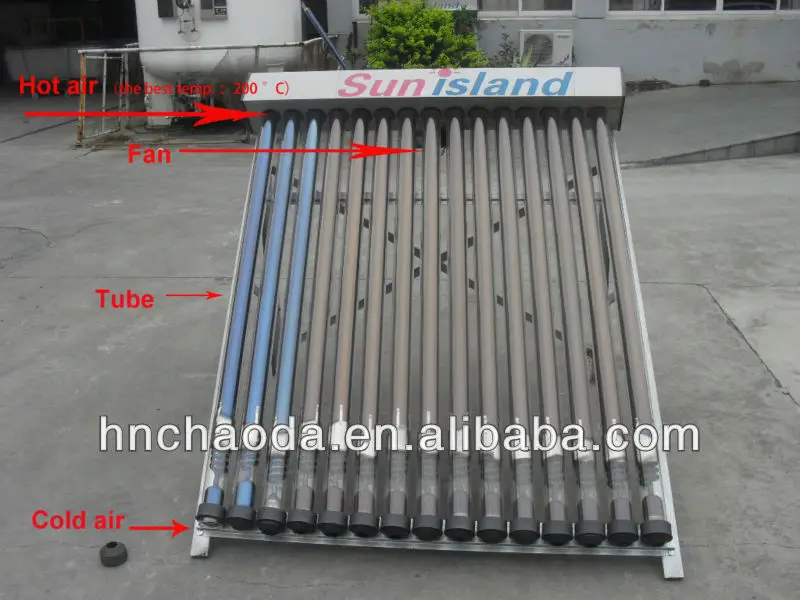

This system consists of manifold and both side open spiral tubes. It can be used to heat the air and transfer the hot air into the room or vegetable warm house. The hot air can also be pumped to dry food or in other industrial use .



 Features:



Comparing with air-conditioner and solar air conditioner, Solar Air Collector System has more advantages as following:

A. More energy-saving.

B. More environmental protection.

C. More healthful and safe.

D. more low cost.



Specifications:

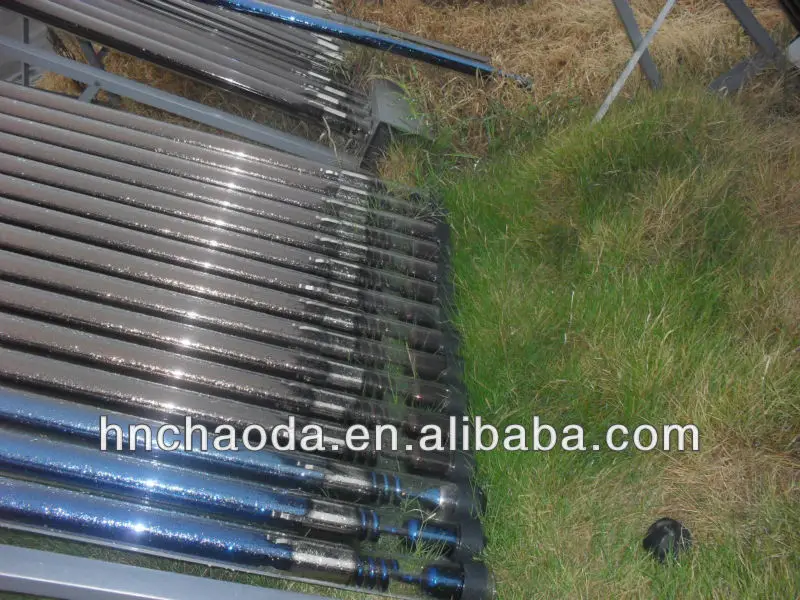

Vacuum tube:

Tube structure: All glass double tube with thread type

Tube size: Ø70mm*1700mm

Thickness: 2.0mm

Tube quantities: 15 pcs

Specific absorption: as=0.93~0.96(AM1.5)

Absorbing coating:  AL/N/AL/SS-C/Cu coating

Pressure-Endure Ability: 0.6Mpa

Hail resistance : Ø40mm



Manifold tank:

Inner manifold material: SUS 304-B thickness 0.5 mm

Outer manifold material: SUS 304-B thickness 0.5 mm

Insulation layer: 30mm high pressure Polyurethane foam



Frame:

Material: Aluminum alloy / stainless steel

Thickness: 1.2mm

Angel: 0°~75°



Heat production:

Hot air output: 150m3/ h

Hot air Temp.: about 45°C



Technical Parameters:



Vacuum tube				Area		Manifold tank
Material	Dia.	Length	Qty	Aperture	Install	Exterior	Interior
High borosilicate glass 3.3	(mm)		Pcs	(SQM)	(M)	Aluminum alloy/Stainless steel	SUS304-2B stainless steel
	Φ 70*1700		20	2.77	1.9x1.7	Insulation layer	Frame
			40 (20x2sides)	5.44	3.8x1.7
			50 (25x2sides)	6.8	3.8x2.1	Integral polyurethane foam	Aluminum alloy/Stainless steel





Function:



A. Using our newest researched solar collector tube to heat the air. Converting the light energy into the hot air energy. Transporting the hot air to your room, improving the indoor temperature. B. Its power consumption is just one twentieth of air-conditioner, and one in eight of Solar air conditioner.

C. Output stationary temperature and good air humidity.

D. No Freon heating. And no pollution effect.

E. Healthy life, have the children grow healthily.



Market:



Europe: the Netherlands, Belgium,  Germany, France, Britain, Switzerland, Lithuania, Denmark, Romania, Norway, Sweden, Finland, Poland, Estonia, Latvia, Austria, Czech Republic, Russian, Ukraine, and etc.

North America: Canada, America.

Sourth America: Argentina, Chile, and etc.
