Primary Main Beam, Main Runner, Main Tee for Ceiling Suspension System / Exposed Grid System metal accessory

Product Overview

Description

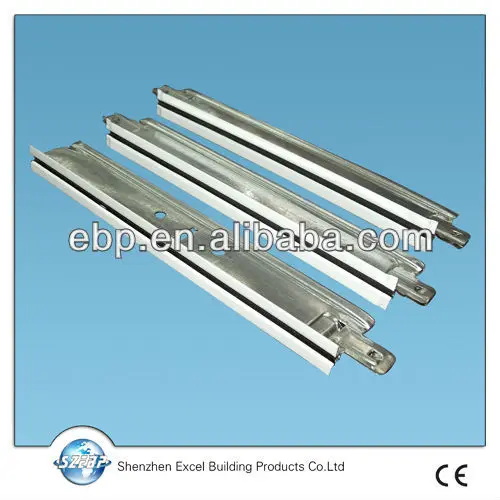

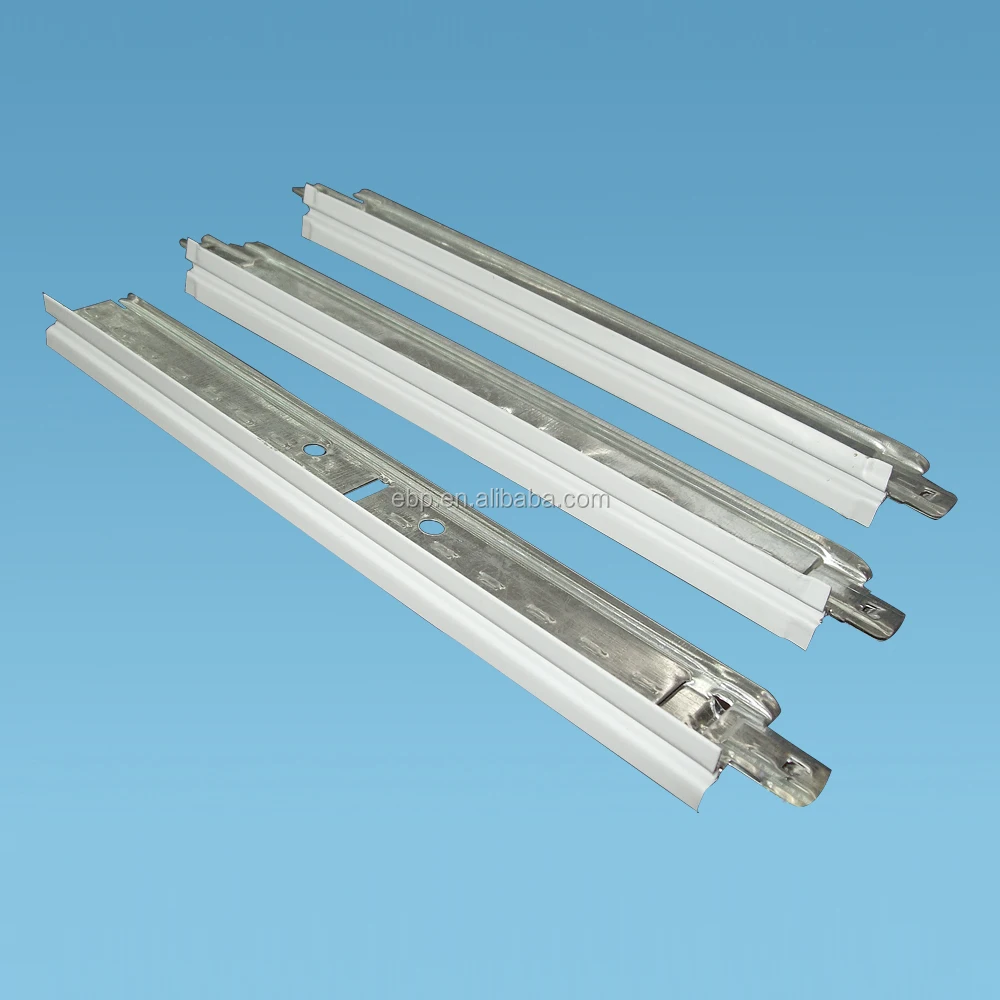

 Exposed ceiling grid



(also named ceiling T grid,ceiling T bar,ceiling suspension system) include main tee, cross tee and wall angle.

 24*32,24*38 gI channel for false ceiling work  is the indispensible building decoration material used in the ceiling suspension system. It is applied for the installation of various ceiling panels like metal ceiling,miner fiber board, gypsum board, PVC gypsum board and so on.

Detailed products information:

1,Materials:High quality galvanized steel and pre-painted steel.

2,Pattern:Metric system,British impiral system and customized system.



Specifications:



1.Main tee

a.23x32x3,000/3,600mm

b.23x29x3,000/3,600mm



2.Cross tee

a.23x32x1,200mm

b.23x29x1,200mm

c.23x32x600mm

d.23x29x600mm



3.Wall angle

a.24x24x3,000/3,600mm

b.24x22x3,000/3,600mm



4.The thickness can be 0.23~0.40mm.
5.The length can be produced in accordance with customers' requirements.
6.Advantages: Fireproof, humidity resistance, ametabolic.
7.Have passed CE-Certificate and ISO9001 International quality system certificate.

Customized ceiling grid order acceptable.

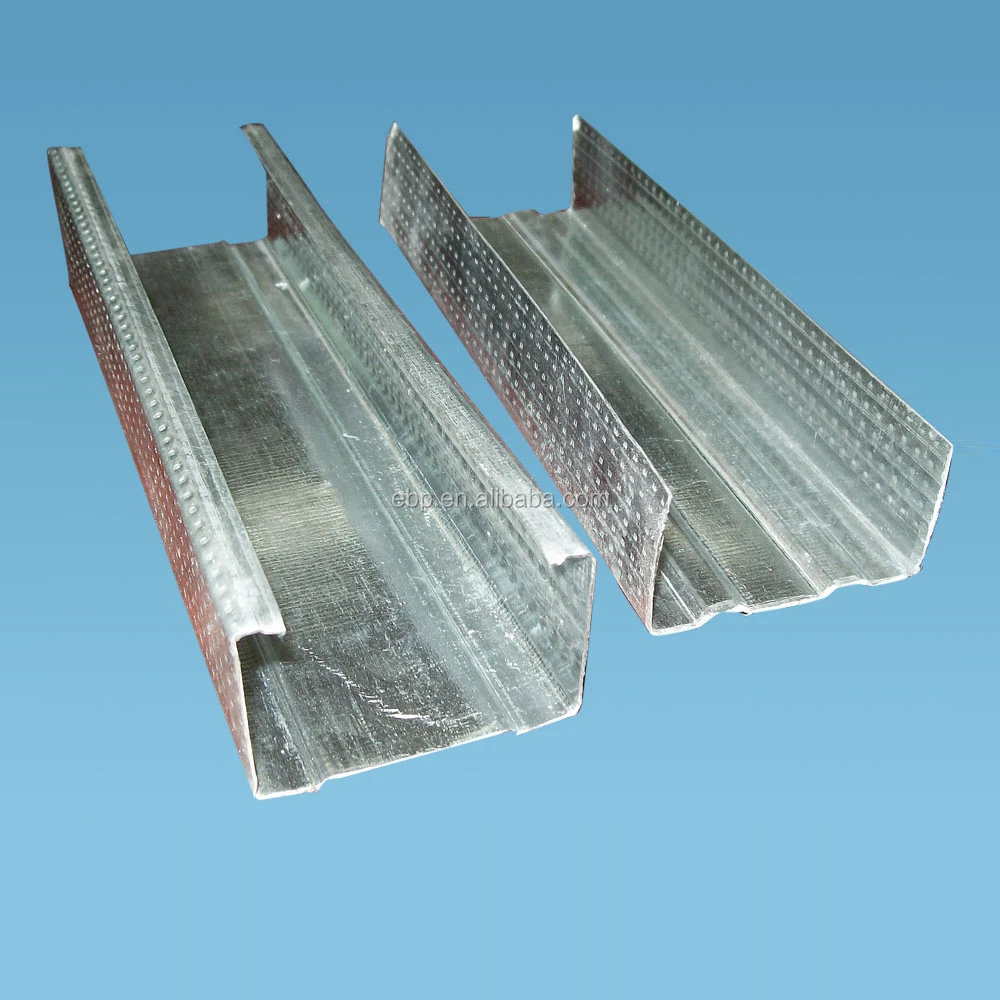

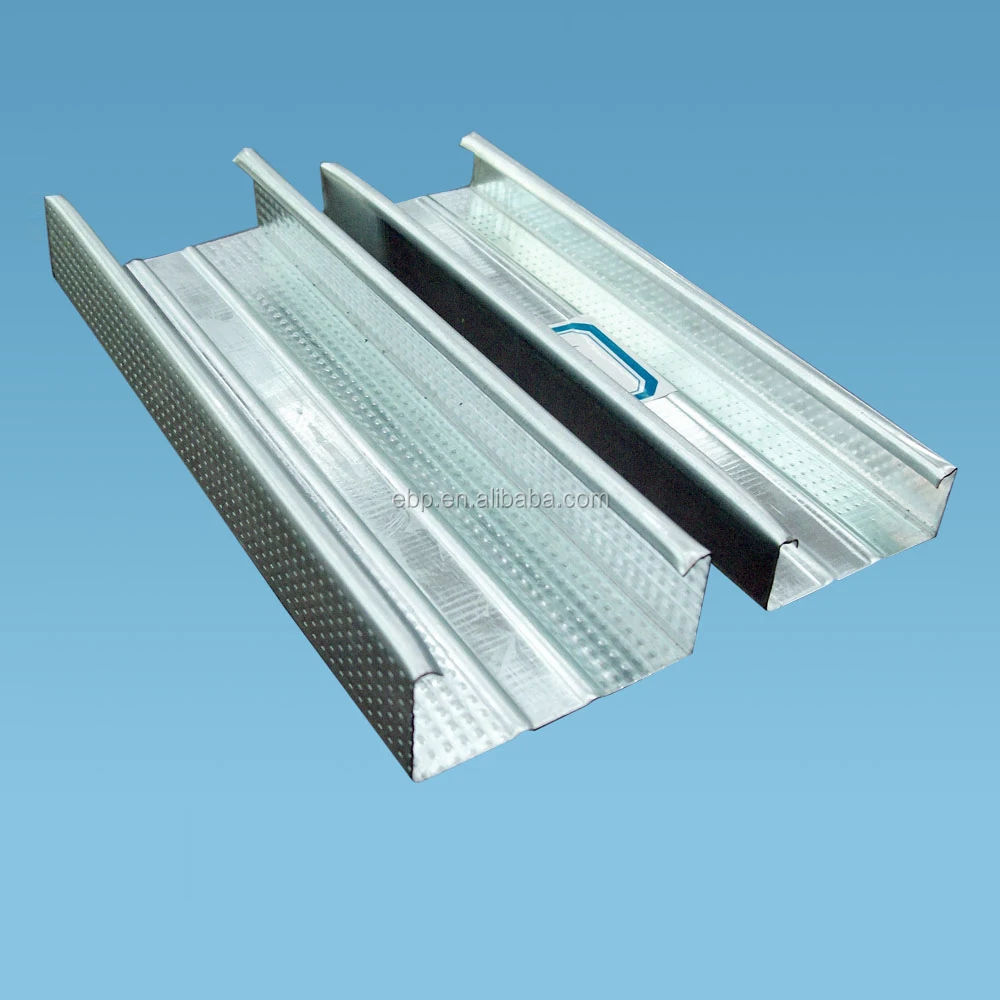

STANDARD SIZE FOR CD50 SUSPENSION SYSTEM PRODUCTS

Item	Description	Width (mm)	Hight 1(mm)	Hight 2 (mm)	Thickness (mm)	Length
1	CD50 CHANNEL	45 , 48 ,50	12	12	0.40~ 1.50mm	up to 11.85 meters
			16	16	0.40~ 1.50mm	up to 11.85 meters
			17	17	0.40~ 1.50mm	up to 11.85 meters
			18	18	0.40~ 1.50mm	up to 11.85 meters
			19	19	0.40~ 1.50mm	up to 11.85 meters

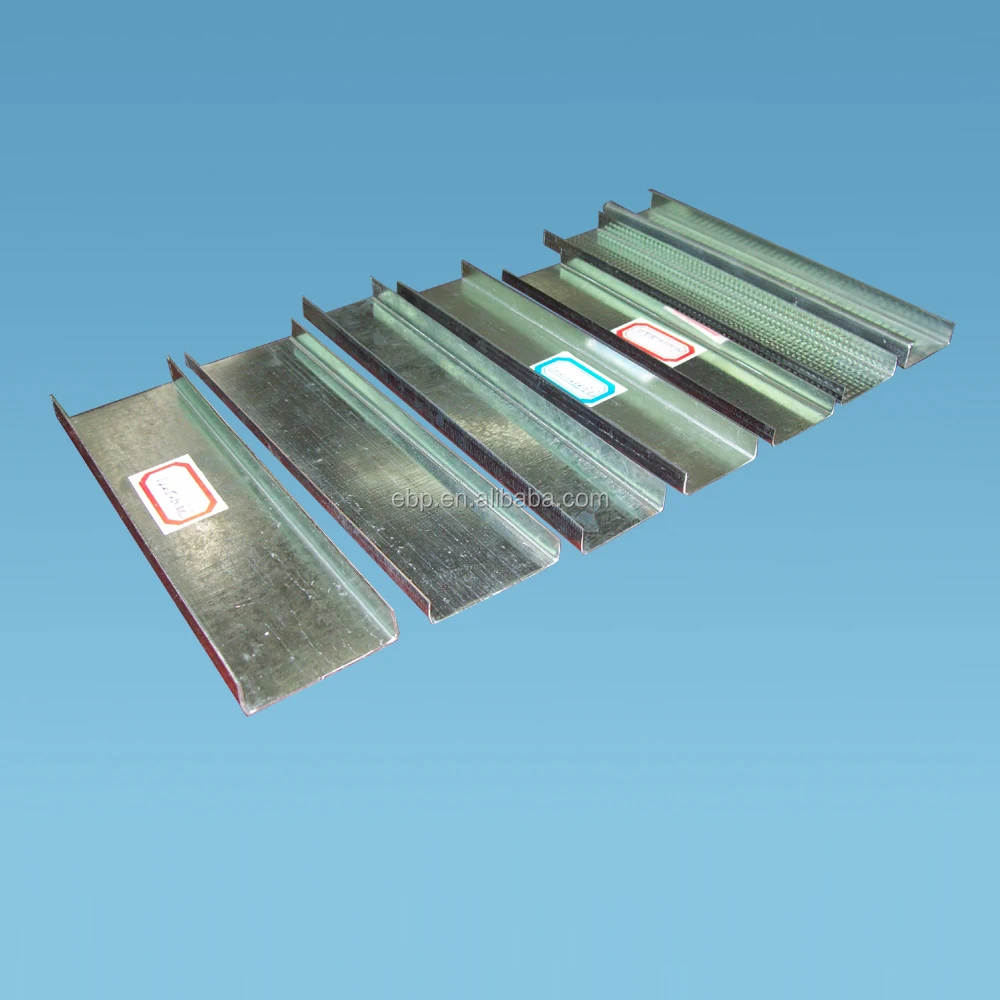

STANDARD SIZE FOR C CHANNEL SUSPENSION SYSTEM PRODUCTS

Item	Description	Width (mm)	Hight 1(mm)	Hight 2 (mm)	Thickness (mm)	Length
1	C CHANNEL	38 , 50 ,60	9	9	0.40~ 1.50mm	up to 11.85 meters
			12	12	0.40~ 1.50mm	up to 11.85 meters
			15	15	0.40~ 1.50mm	up to 11.85 meters
			20	20	0.40~ 1.50mm	up to 11.85 meters
			27	27	0.40~ 1.50mm	up to 11.85 meters







Tips



If you have any special requirement, please advise us the length, width, height and the thickness, also the quantity. Thanks.



Picture	Product	Item	Size 1	Size2	Packing (pcs/carton)	Color
	Plain T-GRID	Main tee	24*38*3000	24*32*3000	25	white/black
		Cross tee	24*26*1200	24*24*1200	50	white/black
		Cross tee	24*26*600	24*24*600	75	white/black
		Wall angle	22*22*3000	24*24*3000	50	white/black
	Slotted   T-GRID	Main tee	15*42*3000	15*32*3000	25	white/black
		Cross tee	15*42*1200	15*32*3,000	50	white/black
		Cross tee	15*42*600	15*32*600	50	white/black
		Wall angle	22*22*3000	22*22*3000	50	white/black
	Grooved   T-GRID	Main tee	15*32*3000	23*29*3000	25	white/black
		Cross tee	15*32*1200	23*29*1200	50	white/black
		Cross tee	15*32*600	23*29*600	50	white/black
		Wall angle	22*22*3000	24*24*3000	50	white/black
