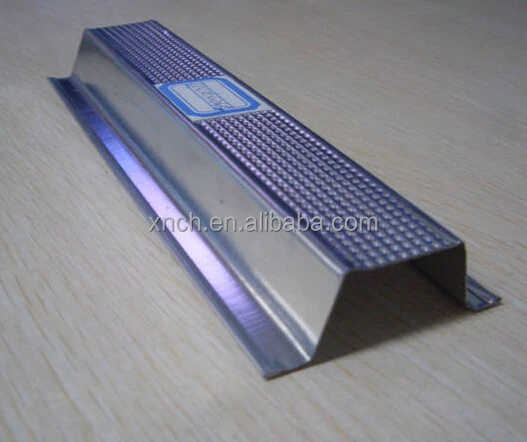

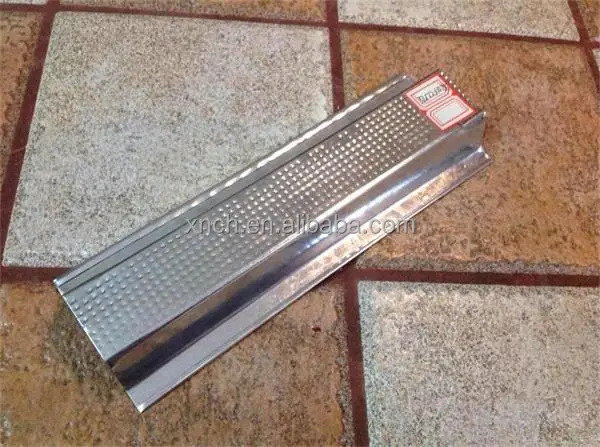

Hat furring channel for suspension ceiling system

Product Overview

Description

            Hat furring channel for suspension ceiling system



Raw materials

1.Hot-dipped galvanized steel strip, Q195  Q235,

2.Zinc content: 60-225g/sq.m. rustproof, moistureproof, fireproo

3.Recyclable, friendly environmental



Specification

Product	spec (mm)	Thickness(mm)	Length
furring channel	68*35*22	0.4-1.2	customized
	65*35*22
	30*15*7





Main products of our factory



Commodity	Specification	Package	Weight
		pcs/bundle	g/pc
MAIN CHANNEL	38 X 10 X 0.45	20	590
	38 X 10 X 0.50	20	656
	38 X 10 X 0.60	20	787
	38 X 10 X 0.70	20	918
	38 X 10 X 0.80	20	1050
	38 X 10 X 1.0	20	1312
FURRING CHANNEL	35 X 22 X 68 X 0.40	25	977
	35 X 22 X 68 X 0.45	25	1098
	35 X 22 X 68 X 0.50	25	1224
	35 X 22 X 68 X 0.55	25	1346
	35 X 22 X 68 X 0.60	25	1470
STUD	40 X 34.5 X 0.40	10	1078
	40 X 34.5 X 0.45	10	1213
	40 X 34.5 X 0.50	10	1347
TRACK	42 X 25 X 0.40	10	843
	42 X 25 X 0.45	10	949
	42 X 25 X 0.50	10	1054
STUD	50 X 34.5X0.40	10	1162
	50 X 34.5X0.45	10	1308
	50 X 34.5X0.50	10	1453
TRACK	52 X 25 X 0.40	10	937
	52 X 25 X 0.45	10	1054
	52 X 25 X 0.50	10	1171
STUD	70 X 34.5 X 0.45	10	1540
	70 X 34.5 X 0.50	10	1711
	70 X 34.5 X 0.60	10	2055
TRACK	72 X 25 X 0.45	10	1265
	72 X 25 X 0.50	10	1406
	72X25X0.60	10	1688
STUD	75X34.5X0.45	10	1586
	75X34.5X0.50	10	1766
	75X34.5X0.60	10	2120
	75X34.5X0.70	10	2475
TRACK	75X25X0.45	10	1306
	75X25X0.50	10	1458.00
	75X25X0.60	10	1749.000
	75X25X0.70	10	2042
G.I.ANGLE	25X25X0.40	10	451
	25X25X0.45	10	506
	25X25X0.50	10	562
STUD	100*35*32*0.50	10	2081
TRACK	100*25*0.50	10	1751
CD	60X27X0.35	12	978
	60X27X0.40	12	1119
	60X27X0.45	12	1260
UD	28*27*0.35	20	598
	28*27*0.40	20	684
	28X27X0.45	20	770
50	50X19X0.35	20	793
	50X19X0.40	20	905
	50X19X0.45	20	1023
	50X19X0.50	20	1136
32	32*10*0.30	100	424
30	30*10*0.35	100	475
STUD	48*22*0.33	20	555
STUD	41*22*0.3	20	470
PERFORATED ANGLE	25*25*0.35	25	365





 Features:

(1)No cracks occur during ceiling installation.





(2)Unique joint design, make the installation easy, time- saving and firm.





(3)High-quality steel: its surface is fill with dot and it hard to distortion.





(4)New-type earth-friendly products: galvanized steel-no radiation, not hazardous



material.





Ceiling system install

1.Draw line and define the position of suspension acccording to the designing picture and indoor conditions.



2.Put the spanker or expended bolt at the suspension point, and all the steel suspender should be fixed with space of 900~1200mm, Installing of steel suspender such as plaster should be fixed by expansion bolt.



3.Length of suspender should be defined according to hte requirement and steel welded with screw thread, main suspender should be provided on screw thread steel.



4.Main channel should be provided on main suspension parts, with space of 900~1200mm.



5.Suspension parts should be provided on main channel with space of 400~600mm(or defined by furring channel position)



6.Furring channel should be provided on suspension parts, with space of 400~600mm.



7.When installing paper plaster, one side of suspension ceiling should be installed by self tapping screw as rows and left should be fixed at the end.
