Falcon Knelson Gold Concentrator, Gold Centrifugal Concentrator

Product Overview

Description

Falcon Knelson Gold Concentrator, Gold Centrifugal Concentrator



    This Gold Centrifugal Concentrator works with the same principle to Falcon or Knelson Gold Concentrator, but half or 1 in 10 price of them. Gold Centrifugal Concentrator can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation and to recover gold from the tailings.

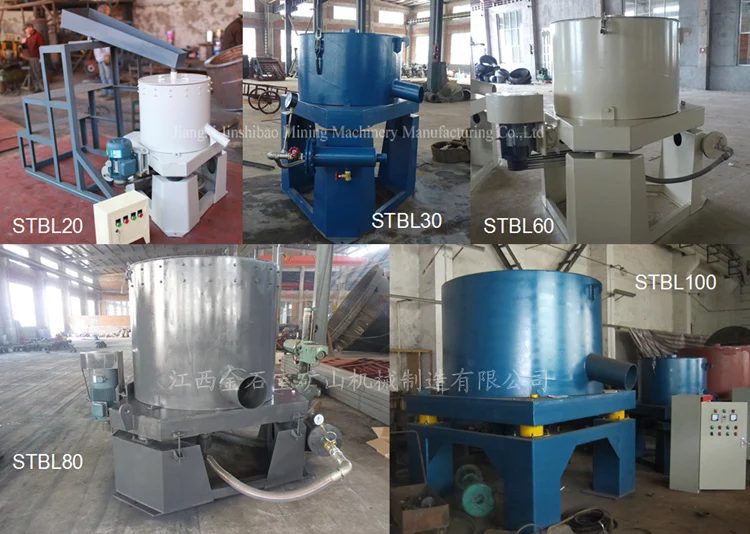

Gold Centrifugal Concentrator products show:



Picture	Notes
	STBL30  Knelson Gold Centrifugal Concentrator Capacity 2-3t/h(pulp) Weight: 600kg Dimension: 1200*1250*1250mm
	STBL60 Knelson Gold Centrifugal Concentrator Capacity 10-20t/h(pulp) Weight: 1400kg Dimension: 1850*1750*1600mm
	STBL80 Knelson Gold Centrifugal Concentrator Capacity: 30-40t/h (pulp)  Weight: 2200kg Dimension: 2000*1800*1900mm
	STBL100 Knelson Gold Centrifugal Concentrator Capacity: 50-80t/h(pulp) Weight: 3700kg Dimension: 2300*2000*2300mm











Features of Gold Centrifugal Concentrator

• High concentrating ratio and high recovery


• Total process automation, steady recovery performance


• Center dischange design for fast,secure concentrate removal


• Environmentally friendly(requires no chemical additives or reagents)


• Low water and electricity requirements


• Low production costs, durable wear parts, minimal maintennance requirements


• Compact design requiring less space, easy merged into the existing mining processing


• Quick payback on investment, typically lass than half year





Technical Specifications of Gold Centrifugal Concentrator



Model		STLB20	STLB30	STLB60	STLB80	STLB100
Feeding Capacity	t/h	1-2	2-3	10-20	30-40	50-80
Feeding Density	%	10-50	10-50	10-50	10-50	10-50
Feeding Size	mm	0-4	0-4	0-5	0-6	0-6
Power Requirements	Kw	0.75	1.5	4	11	18.5
Shipping Weight	Kg	400	600	1400	2200	3700
Shipping Dimensions	mm	940×700×1000	1200×1250×1250	1850×1750×1600	2000×1800×1900	2300×2000×2300







Our Gold Centrifugal Concentrator:

•  Concentrates discharging of our concentrator is full automatic. Furthermore, the discharging time requires only 2-5 minutes.


• Our concentrator can be configured with frequency convertor; The water pump could be connected to the frequency convertor, too.


• The fluidization water feeding, concentrates discharging, flushing water feeding, machine start and stop all can be fully automated through controlling the convertor.

Others' Gold Centrifugal Concentrator:

1. Some suppliers's concentrator need to discharge the gold concentrates manually.


2. Even if there are some concentrators are automatic discharging, the discharging time requires at least 20-30 minutes.


3. Some suppliers' concentrator can not be configured with frequency convertor.


4. Some suppliers' concentrator can be equipped with convertor, but it can not realize full-automatic operation.

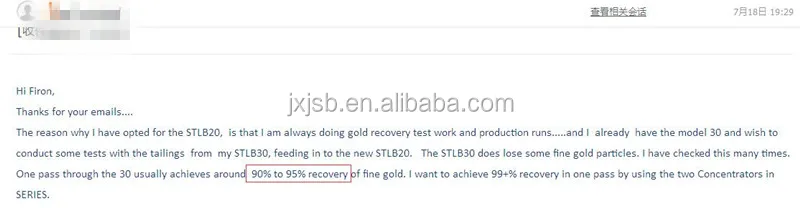

Feedback from Customer:

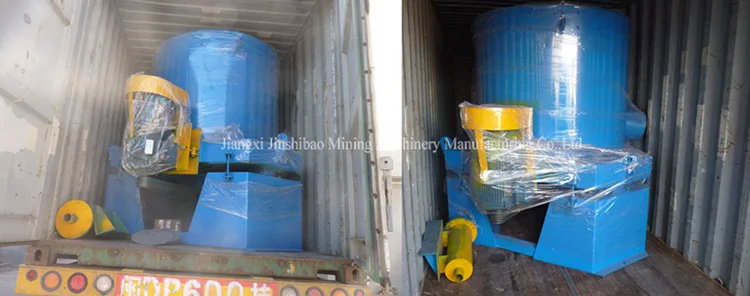

FCL for Gold Centrifugal Concentrator





LCL for Gold Centrifugal Concentrator
