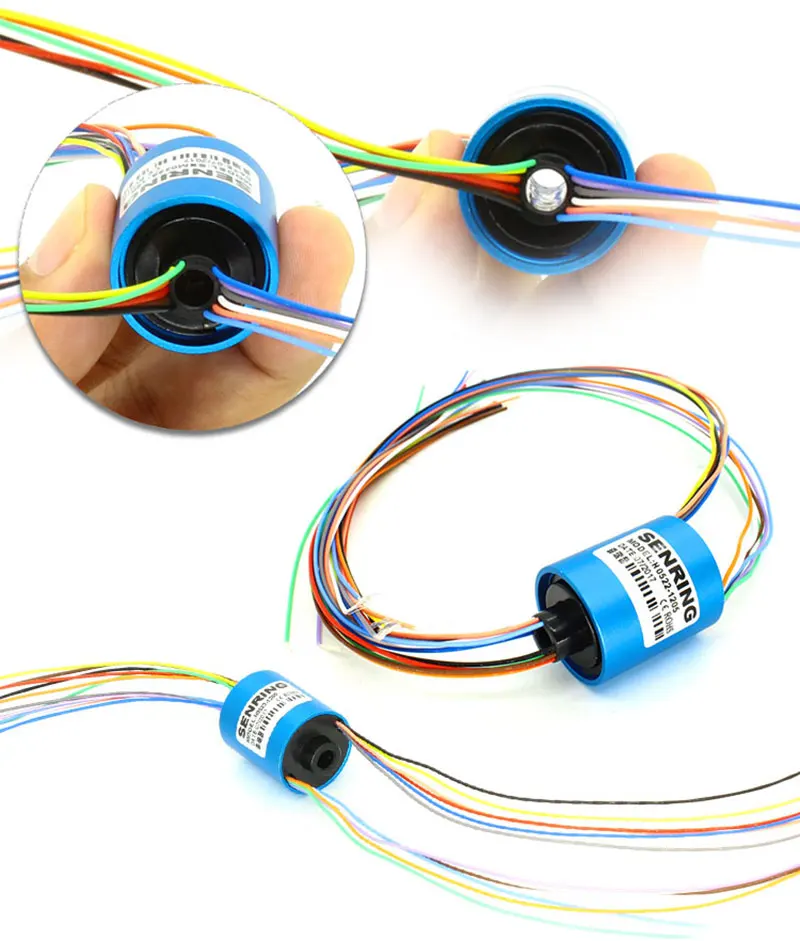

Through bore slip ring 12 circuits/wires contact with mini hole size 5mm with flange U type
Through bore slip ring 12 circuits/wires contact with mini hole size 5mm with flange U type

Through bore slip ring 12 circuits/wires contact with mini hole size 5mm with flange U type

Share on (1459537996):


Price:

Quantity:


Product Overview

Description


The SNH005, with 5mm through bore size and compact 22mm outside diameter, uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.

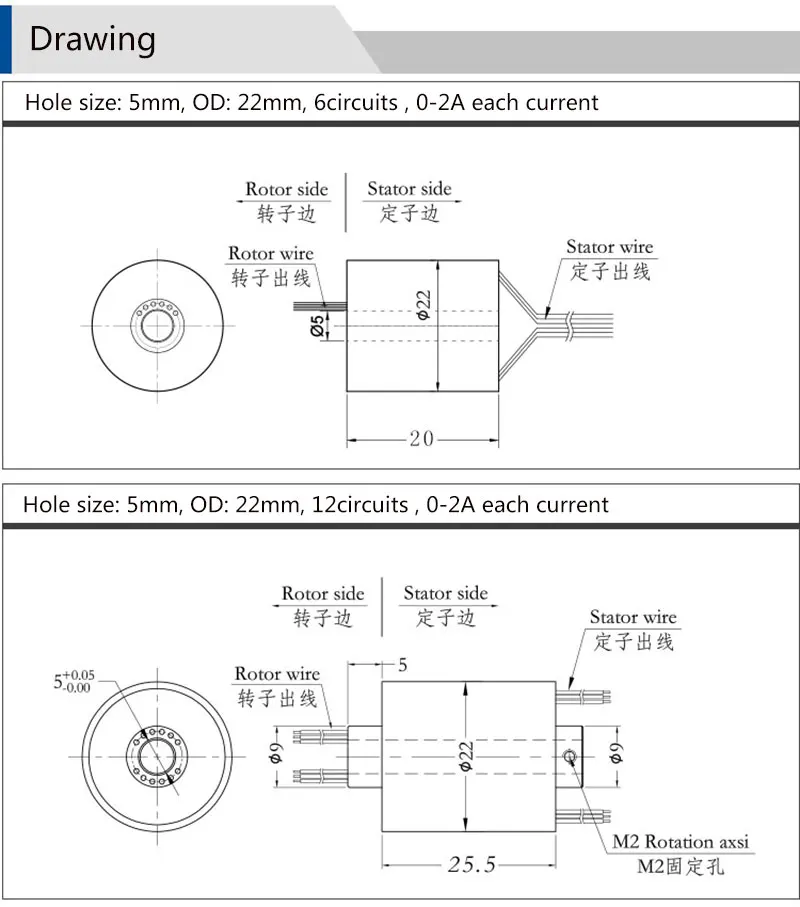

SNH005(Standard) Dimensions

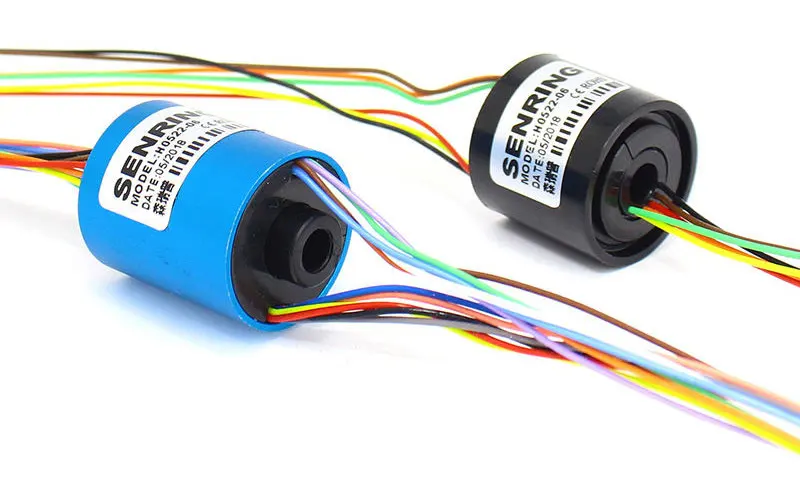

H0522 XIANGQING.jpg





SNH005 Specifications(Standard)

  • Contact Material

    Precious metal brush,Silver plated rings

  • Current Rating

    2A/per circuit

  • Number of Circuits

    12

  • Operating Speed

    0-300 rpm* continuous

  • Lead Wire

    UL Teflon® Awg28(200 mm)

  • Voltage

    Up to 1500VAC

  • Operating Temp.

    -40°C to 80°C

  • Working Humidity

    60%RH or higher

  • Torque

    Approx. ≤8.25 g·m (for reference )

  • Dielectric Strength

    ≥500V@50Hz between each circuit

  • Insulation Resistance

    1000MΩ@ 500VDC

  • Noise

    Less than 10 mΩ @ 6 VDC, 50 mA, 5 rpm

  • Housing Material

    Engineering Plastics

  • Protection

    IP54
