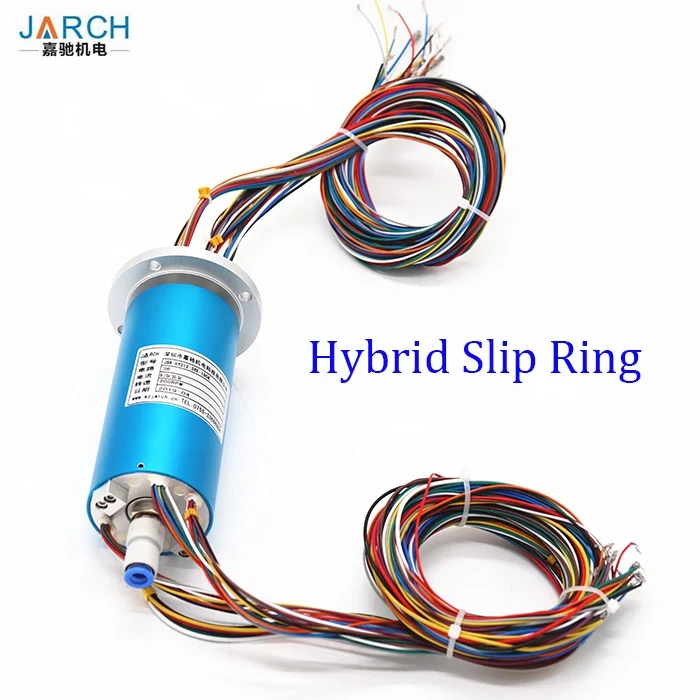

Пневматическое гибридное скользящее кольцо, Электрический Роторный шарнир для электромеханической системы, прецизионные шарикоподшипники

 36 Circiuts Signal  1 Passage Pneumatic  Electric Rotary Union For Welding Robots

Feature:

****36 Circuits 2A/15A SignalARCH

****1 passages air,tube size:8mmJARCH

****ID/OD:25/155mm, bore size:25mmARCH

****Precision ball bearings for long life

****Rugged anodized aluminum construction

****Custom modifications to our stock products significantly reducing lead times and costs

Model Explanation----JSR-HY025-18S-1G

Electrical Specifications:

Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

JARCH HY Series Pneumatic  Electrical Rotary Union  Support 2-24 passage way Pneumatic/Hydraulic, it can combine with power,signal,Ethernet,USB,Devicenet,Control Net,Canbus on request. It also could be mounted by shaft or optional flange mounting.Passage media types can use Air/Gas, Chemical, DI / Tap Water, Oil, Water/Glycol.

The JSR-HY025-18S-1G provide 2 - 8mm compressed air passage, 1 - 8 mm Nitrogen protection gas rotary union , combine 18 circiuts 2A signal  electrical slip ring.The slip ring provide a rotary flange can be install on a rotary table.

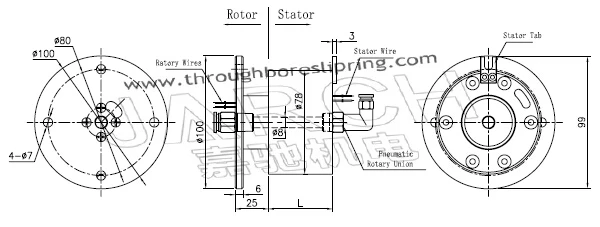

Dimensions:

Dimension L To Be Advised When Ring And  Current Details Are Options . Please Contact JARCH Technical Department


Benefits:

***Unique signal handling performance with minimal electrical circuit noise
***Tight packaging to fit in the most demanding space constraints
***Fully compatible with both analog and TTL control level signals
***Precision ball bearings for long life
***Sealed units available,IP67 optional
***Rugged anodized aluminum construction
***Low Cost ,Preferential prices

***Small size
***Rapid delivery

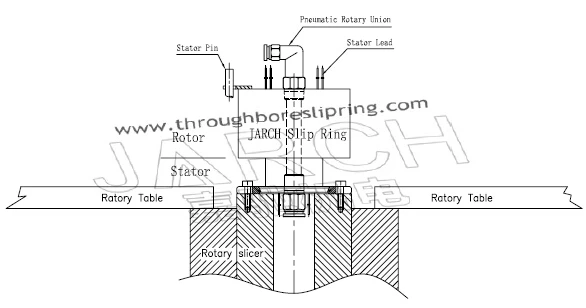

Installation Instructions--Flange mounted:

Applications:


•


  • Exhibit/display equipment




  • Packaging / wrapping machinery




  • Semiconductor handling systems




  • Industrial machinery




  • rotary index tables




  • Process control equipment
