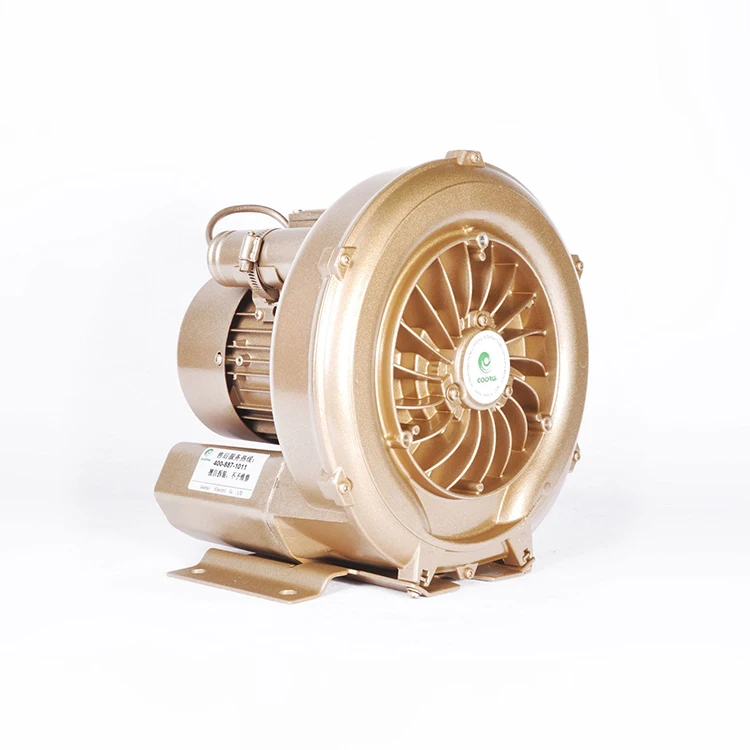

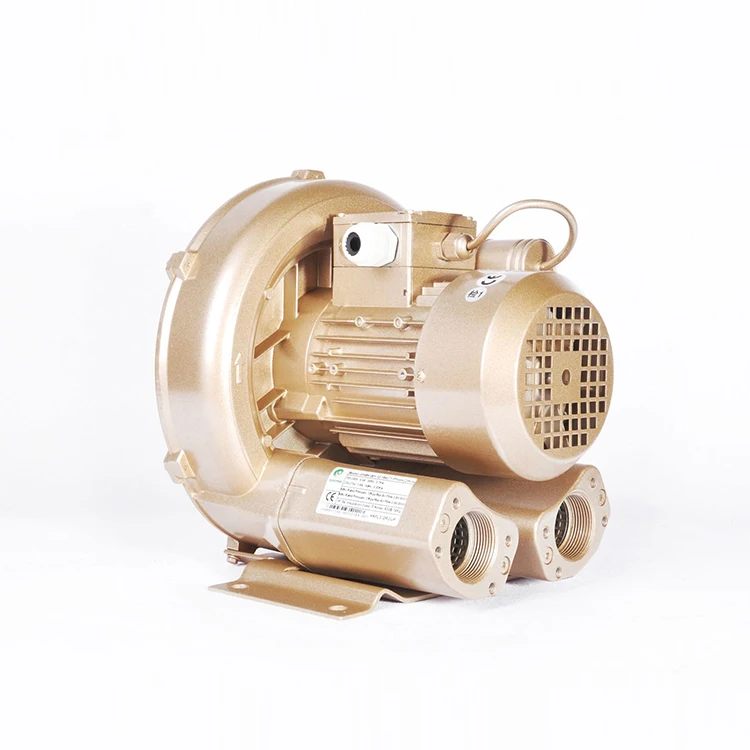

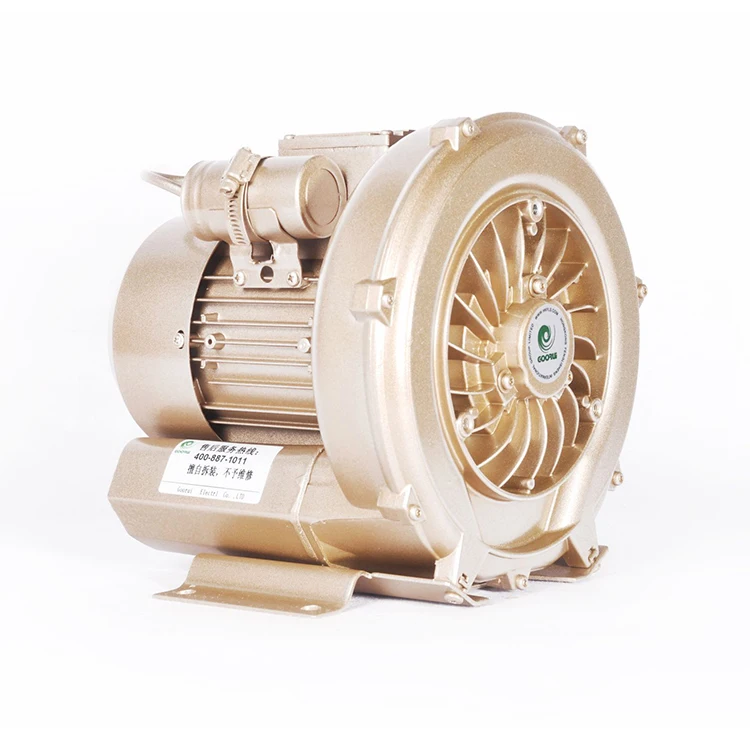

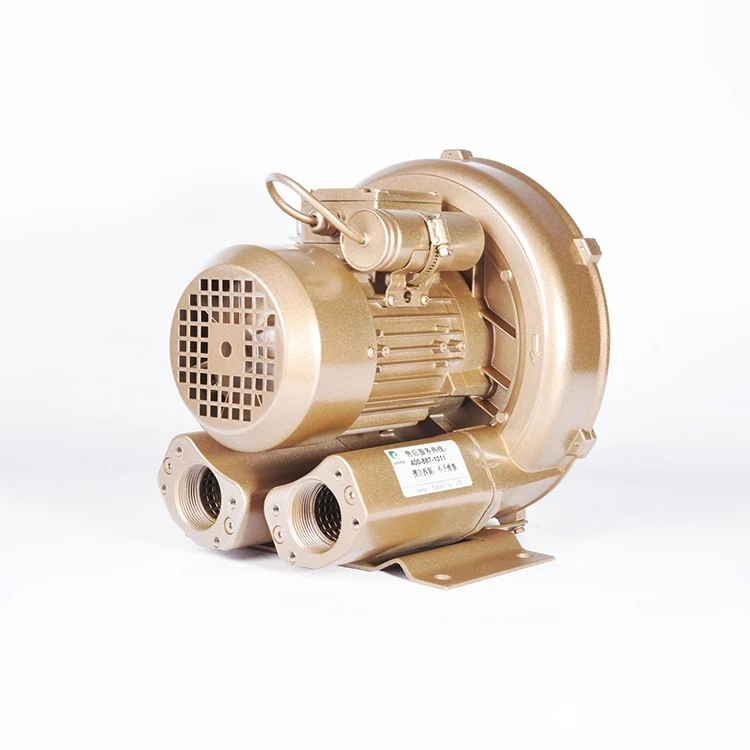

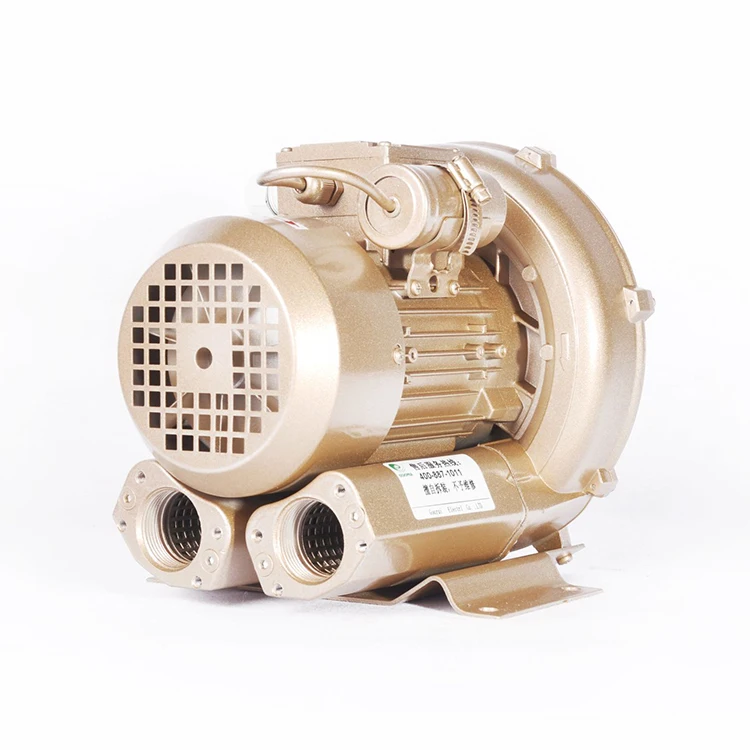

1hp small regenerative air pump ring blower for fish tank aerations
- Category: Blowers >>>
- Supplier: Dongguan Foersheng Intelligent M&E Co. Ltd.
Share on (1461845897):
Product Overview
Description
Product Paramenters
Product Name | 1hp small regenerative air pump ring blower for fish tank aerations | ||||||
Features | 100% Copper Wire Motor, High Quality Bearings, Low Noise, Energy-saving, Big Airflow, More Durable, More Safety. | ||||||
Model | GHBH 001 12 1R3 | Frequency | 50Hz | ||||
Stage | single | Phase | single | ||||
Rated Power | 0.7kW | Rated Voltage | 200-240V | ||||
Rated Current | 4.8A | Max Airflow | 100m³/h | ||||
Max Vacuum | -150mbar | Max Pressure | 150mbar | ||||
Sound | 55db(A) | Weight | 14kg | ||||
Products Description
High efficiency motor； IP55 & Insulation class H； Built-in Thermal Protector(PTC)； High Temperature-Resistance bearing； Special customized blower and OEM available； 24 months warranty and long-term technical support； CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved. | ||||||||
GOORUI Side channel blowers are maintenance-free:
·External, permanently lubricated bearings ·Contactless rotating impellers
·Fan-cooled motors
·Fan-cooled motors
GOORUI Side channel blowers are user-friendly:
·Weight-optimised design through aluminum pressure casting parts
·Possibility for a vertical or horizontal installation
·Suitability for converter operation
·Possibility for a vertical or horizontal installation
·Suitability for converter operation
GOORUI Side channel blowers are environmentally friendly:
·Oil-free operation ·Low energy requirement ·Low noise emission
GOORUI Side channel blowers can be used world-wide:
·50/60Hz voltage range motors of the Iso class F
·Protection type IP55 with an integrated thermal protection switch (standard)
·CE, TUV, RoHS, CCC and ISO9001 certifications
·Protection type IP55 with an integrated thermal protection switch (standard)
·CE, TUV, RoHS, CCC and ISO9001 certifications
Our advantages:
·A large selection of sizes ·Extensive accessoires
·100% check prior to delivery ·Spare parts are in stock
·Service in our facilities or on site ·Fast and reliable delivery
·100% check prior to delivery ·Spare parts are in stock
·Service in our facilities or on site ·Fast and reliable delivery
INSTRUCTIONS
1. It should be placed in a relatively stable place, and the surrounding environment should be clean, dry and ventilated.
2. The direction of rotation of the impeller must be consistent with the direction of the pointed tip marked on the fan cover.
3. When working, the working pressure should not be greater than 8 kPa, so as to avoid excessive heat generation of the air pump and damage to the air pump caused by motor overcurrent.
4. It is strictly forbidden for solid, liquid and corrosive gas to enter the pump body.
5. The filters and silencers at both ends of the air inlet and outlet should be cleaned in time according to the situation to avoid clogging and affecting use.
6. The external connection of the air inlet and outlet must be connected by a hose (rubber tube, plastic spring tube).
PRECAUTIONS
1. Flat washers and spring washers must be used to tighten the screws.
2. It is best to use rubber buffer rubber to bear the weight of the vortex air pump, especially the high-power vortex air pump, which is indispensable.
3. For some occasions that require noise, a silencer can be installed to reduce the noise (generally down, about 5 dB), the silencer is installed at the end of the inlet duct or outlet duct.
4. For some occasions with high requirements for noise, you can add a layer of silencer cotton according to the conditions of the machine itself to meet the noise requirements on site. For details, please consult our customer service.
5. When using silencing cotton to silence the sound, pay attention to the distance between the vortex air pump and the box, pay attention to the ventilation and heat dissipation of the vortex air pump, and pay attention to using rubber cushioning to bear the weight of the vortex air pump. According to the picture, you need to consult customer service.
6. The air inlet and outlet of the vortex air pump For pipe connection, hose connection should be used to isolate vibration.
1. It should be placed in a relatively stable place, and the surrounding environment should be clean, dry and ventilated.
2. The direction of rotation of the impeller must be consistent with the direction of the pointed tip marked on the fan cover.
3. When working, the working pressure should not be greater than 8 kPa, so as to avoid excessive heat generation of the air pump and damage to the air pump caused by motor overcurrent.
4. It is strictly forbidden for solid, liquid and corrosive gas to enter the pump body.
5. The filters and silencers at both ends of the air inlet and outlet should be cleaned in time according to the situation to avoid clogging and affecting use.
6. The external connection of the air inlet and outlet must be connected by a hose (rubber tube, plastic spring tube).
PRECAUTIONS
1. Flat washers and spring washers must be used to tighten the screws.
2. It is best to use rubber buffer rubber to bear the weight of the vortex air pump, especially the high-power vortex air pump, which is indispensable.
3. For some occasions that require noise, a silencer can be installed to reduce the noise (generally down, about 5 dB), the silencer is installed at the end of the inlet duct or outlet duct.
4. For some occasions with high requirements for noise, you can add a layer of silencer cotton according to the conditions of the machine itself to meet the noise requirements on site. For details, please consult our customer service.
5. When using silencing cotton to silence the sound, pay attention to the distance between the vortex air pump and the box, pay attention to the ventilation and heat dissipation of the vortex air pump, and pay attention to using rubber cushioning to bear the weight of the vortex air pump. According to the picture, you need to consult customer service.
6. The air inlet and outlet of the vortex air pump For pipe connection, hose connection should be used to isolate vibration.
Optional Accessories:
We also have some parts for your application, if you need, welcome to tell me.
Air filter: Filter the dust particles, apply to a bad environment.
Pressure relief valve: Control gas pressure, prevent excessive pressure, damage the machine.
Silencer: reduce blower noise 5-10db, apply to a quiet environment.
Air filter: Filter the dust particles, apply to a bad environment.
Pressure relief valve: Control gas pressure, prevent excessive pressure, damage the machine.
Silencer: reduce blower noise 5-10db, apply to a quiet environment.
Air Filter
Silencer
Pressure Relief Valve
Packaging & Shipping
Power≤3KW, we will pack it in high quality and high strength cartons.
Shipping way: By sea or By air or By your agent in China.
Company Profile
GOORUI is now becoming a world-class manufacturer of premium side channel blowers and accessories. Our programme of continuous investment and innovation places us at the forefront of blowers manufacture. Goorui's philosophy is to create a partnership with our clients. We are committed to providing you with all the resources you may require with regard to your systems. Our advantages come from our efficient size: we provide the units at a very competitive price.

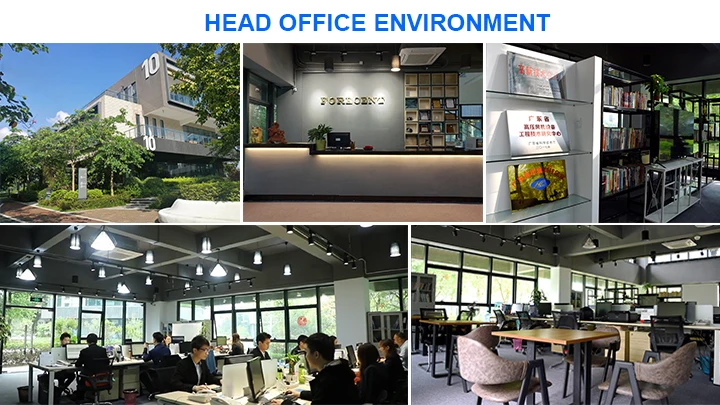

Enterprise Scene
Dongguan Foersheng Electric&Mechanic Co.Ltd. World leading supplier of vacuum equipment with designing.producing and marketing experienee for 18 years.Which is subordinate to Hong kong Fenglisheng Group Company Limited,located in the most famous world manufacture city.Dongguan City.to be an industrial manufacture enterprise with its own proprietary intellectual property rights.

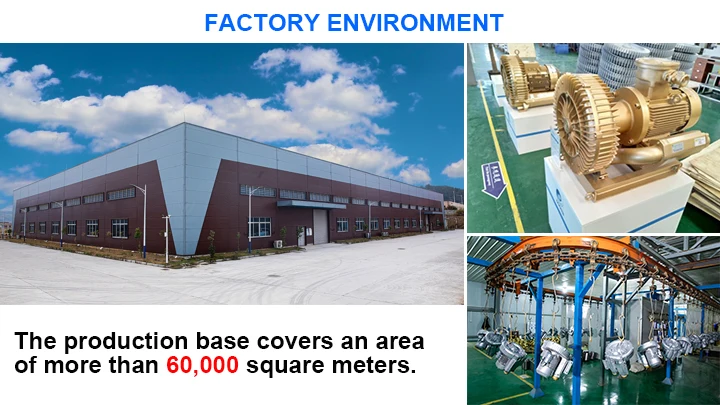

Production Workshop
Test certificate include ISO9001 ,CE,RHOS,"Chinese trademark certificate","German trademark certificate","Dongguan city Energy saving Company","Dongguan city patent foster company ","Dongguan city high tech no logy privatization company","Guangdong provice high technology privatization company".
Goorui regenerative,once come to Chinese market.deriverted from German,precise to the max,with quiet,stable performanee and long working life.
In 2006.the first double stage side channel blower borned in China largely improved its air flow and pressure.
Branch office in mainland China:Beijing,Shanghai,Shandong,Sichuan.Net-work in the world
Goorui regenerative,once come to Chinese market.deriverted from German,precise to the max,with quiet,stable performanee and long working life.
In 2006.the first double stage side channel blower borned in China largely improved its air flow and pressure.
Branch office in mainland China:Beijing,Shanghai,Shandong,Sichuan.Net-work in the world
wide,European,Middle est,merica,products are exported to 100 different countries andaeras.
Fullfill responsiblities of enterprise,archive worldwide brand,FLS with strategic objestive "archive world wide leading vacuum brand".
Fullfill responsiblities of enterprise,archive worldwide brand,FLS with strategic objestive "archive world wide leading vacuum brand".
