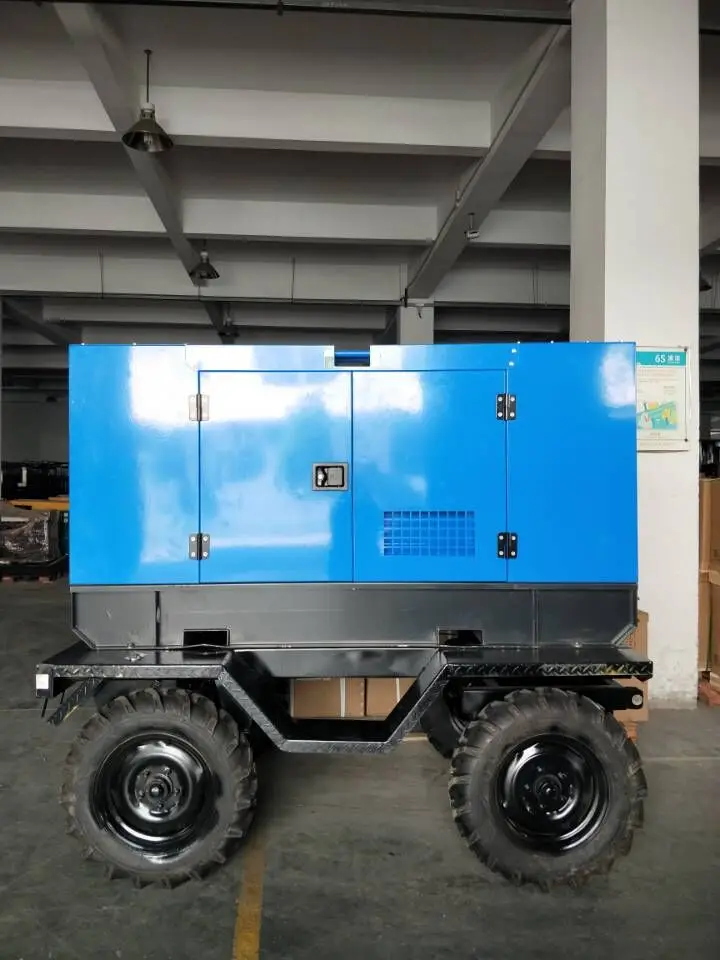

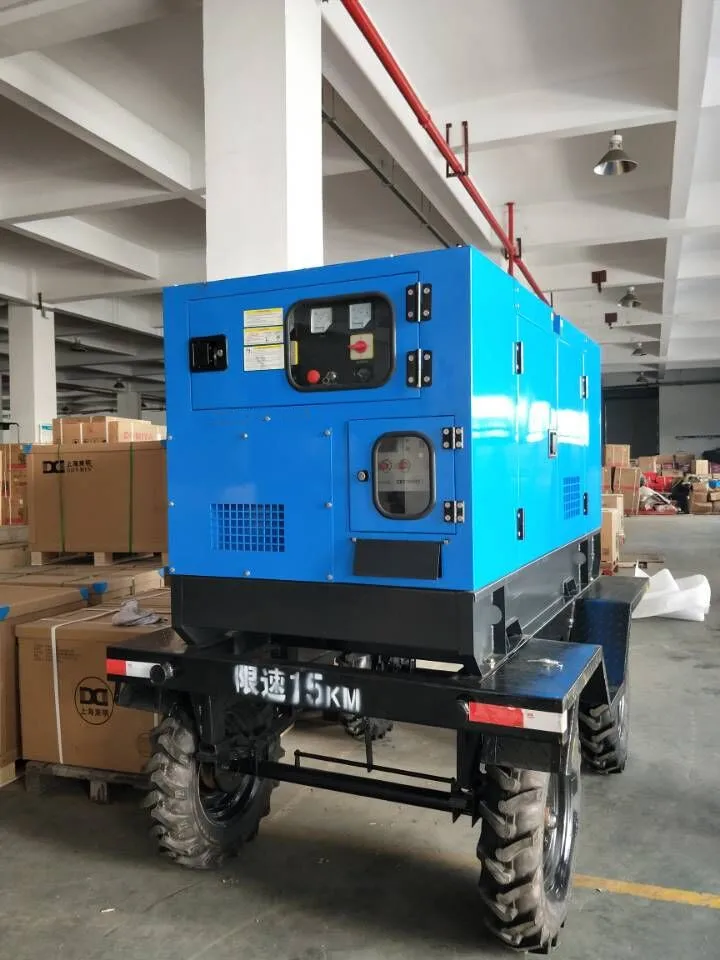

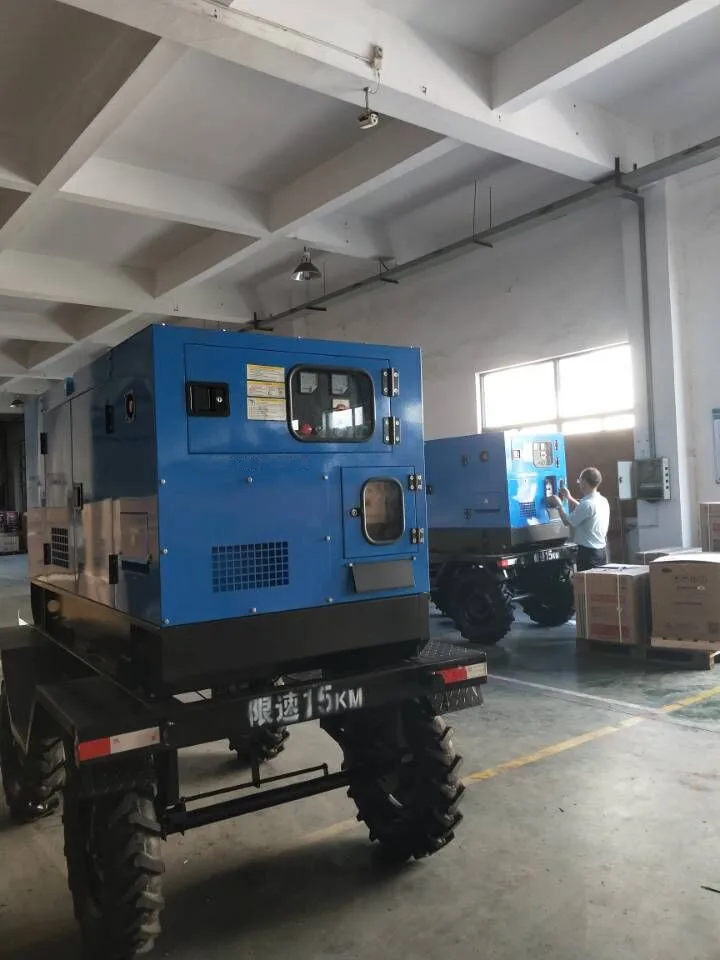

HF 500E generator welding generator set

Product Overview

Description

HF- Power Generation and Welding Integrated Machine
1.Rated Frquency(Hz):50/60
2.No.of Phase;3
3.12 hours of continuous work



 HF-500E Power Generation and Welding Integrated data sheet



Project                                          Model			HF500E
Welding	Nominal power:	kW	15
	Rated current	A	500
	Current adjustment	A	0~500
	Voltage:	V	28-33
	Load rate	%	60
	Welding rod	mm	2.0~8.0
Generator	Nominal power:	KVA	20
	Max  power :	KVA	25
	Voltage:	V	400/230
	Frequency:	Hz	50
	Power factor:	Cosfi	0.8
	Noise level	dB	75
	Fuel tank capacity/Continuos working time	L/hr.	60/12
	Voltage system regulation:		AVR
	Structure type		Low noise
Engine	Model:		K4100DS
	Engine type		Four cylinder,4-stroke,Water cooling ,diesel engine
	Max.outpur(1500rpm)	KW	30.1
	Alimentation:		Self suction
	Cooling system:		Water cooling
	Starting system:		Electric start
	Rpm::	rpm	1500
	Oil capacity:	L	13
	Fuel type		0# in summer,-10# in winter,diesel oil
Dimensions	Packing size(L×W×H)	mm	2500×1550×1600
	Net/Gross weight	kg	1100/1150
