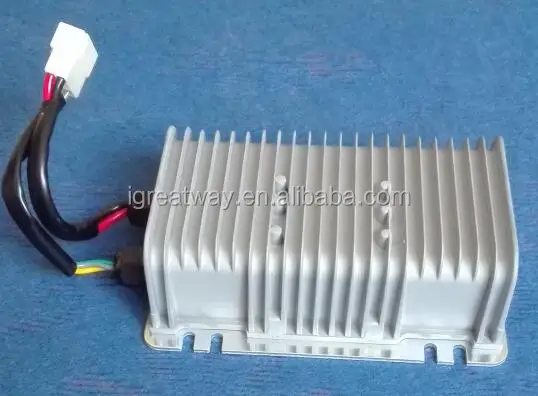

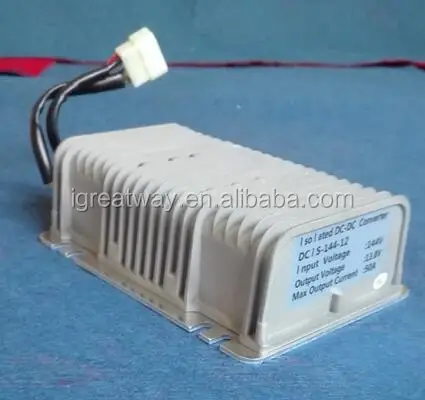

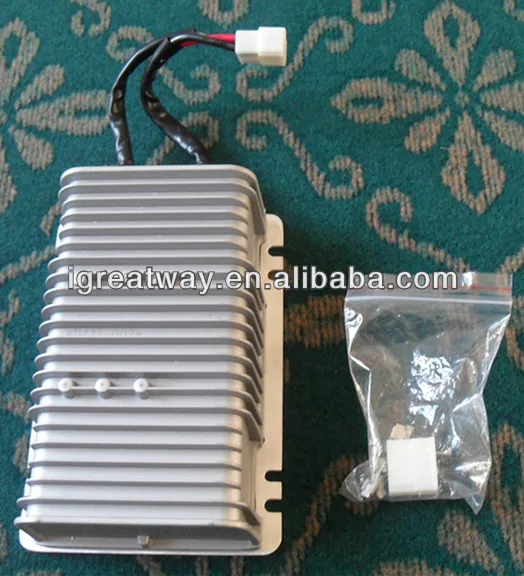

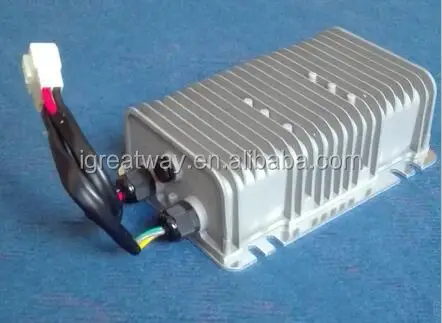

144v to 13.8V 50A DC DC converter electric transformer / voltage regulator

Product Overview

Description



















 Description
DCIS series isolated DC-DC converter adopt advanced high frequency power conversion technology and designed to transfer power battery voltage to 12V/24V voltage to supply vehicle mounted devices such as lamps and audio systems. Its features include small size, high efficiency, stabilized output voltage, complete protection function and so on.

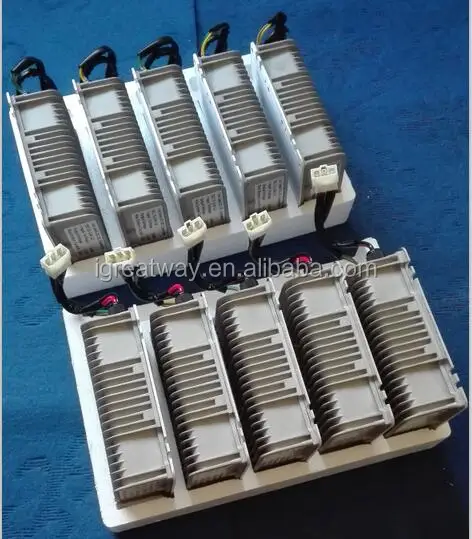

DCIS series isolated DC-DC converter is completely electrical isolated from input to output to ensure safety use; Stabilized output voltage can charge 12V batteries; Multi DC-DC converters can be used in parallel directly to increase output current.

 Specifications
 Input Voltage:     48V/60V/64V/72V/80V/84V96V/108V/120V/144V
Output Voltage:             12V/24V
Max Output Current:         50A
Maximum Efficiency:        ≥88%
Environmental Enclosure:     IP65
Operating Temperature:       -20℃-+60℃

Protections
 Water and Vibration Proofed: All sealed by silica glue to get water and vibration proof, which is suitable for all kinds of condition.

Water & vibration Proofed:  All sealed by silica glue to get water  and vibration proofed, which is suitable for all kinds of environment.
Key Switch Control:       The convert can be controlled by a key switch control wire instead of a input relay. (Option)
Over Heat Protection:      Auto reduce output current if the temperature is over 65°C, but it doesn’t shut down toensure the continuous power for your car.
Short Circuit Protection:    Shut down and auto-reset with little pulse current, ensure the wire safety.
Under Voltage Protection:   Shut down when the voltage of  power battery is too low to avoid  over-discharge of the battery.
