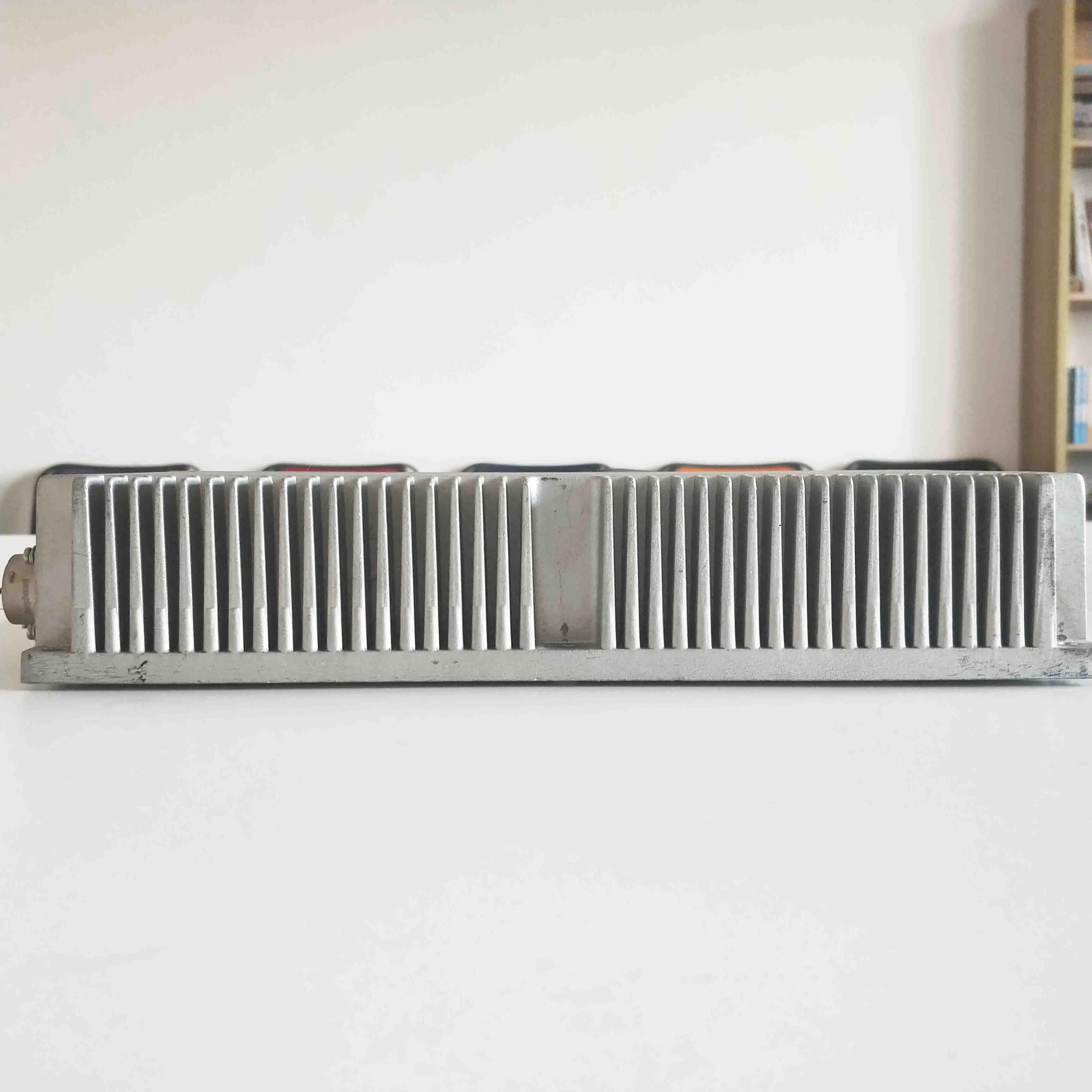

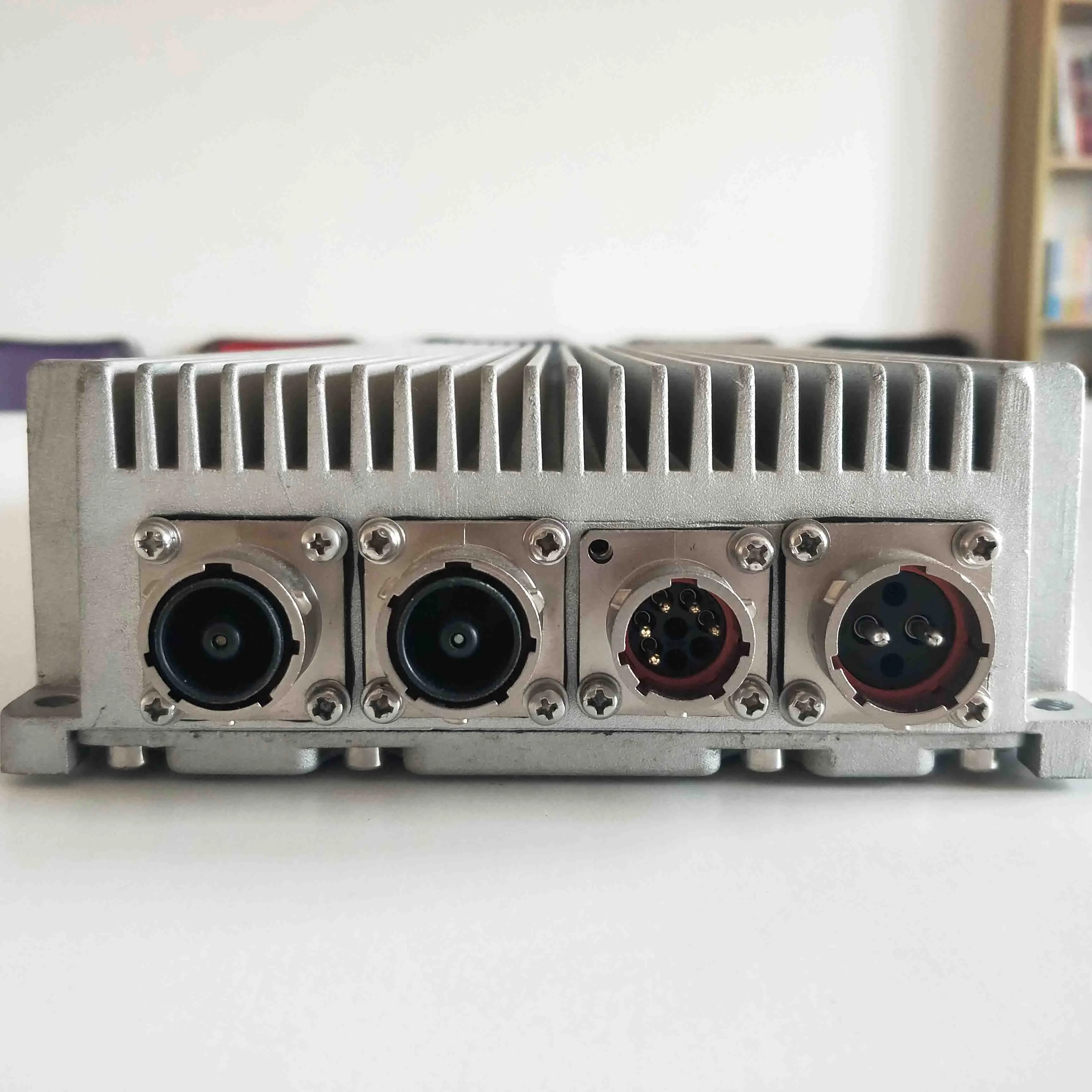

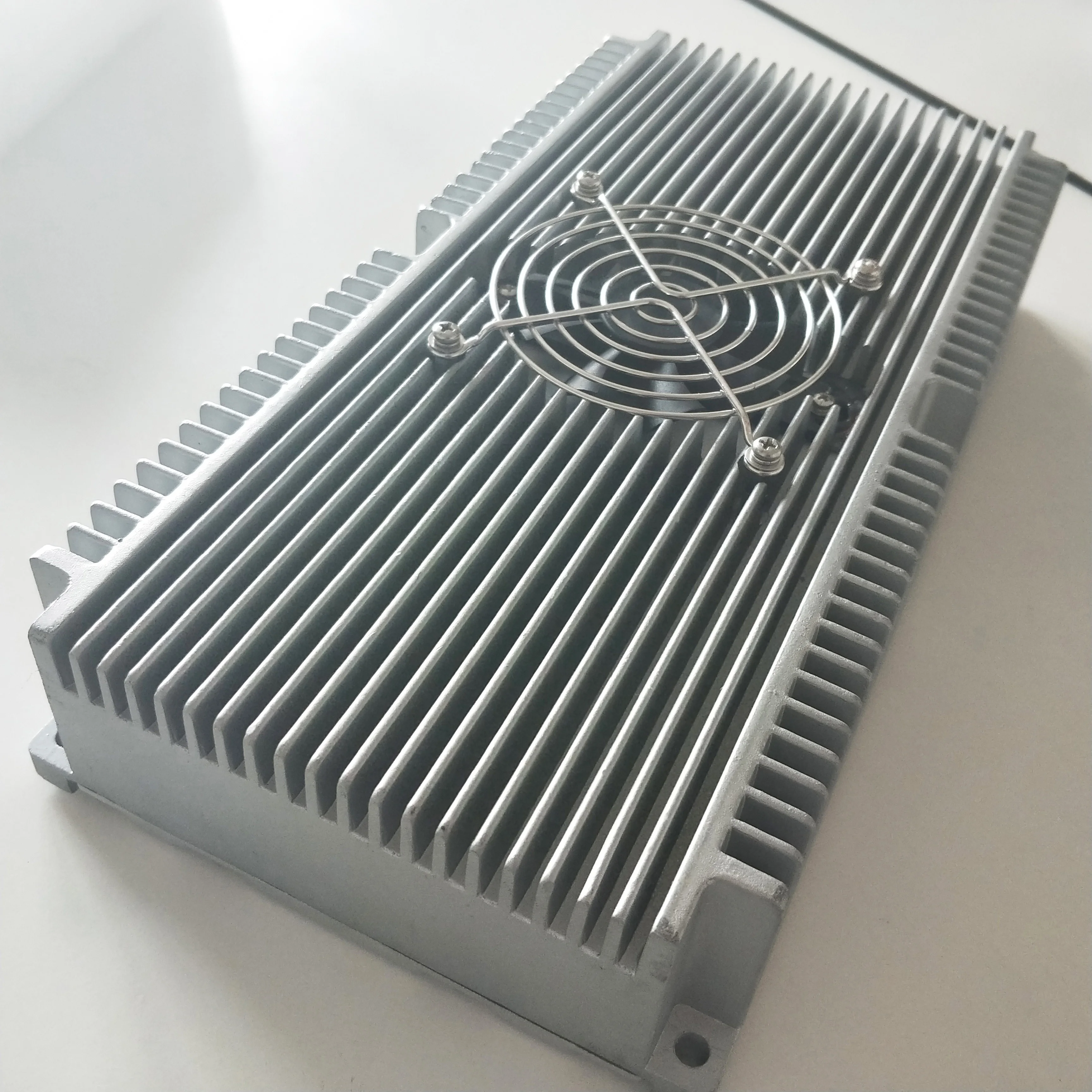

1500W air-cooled converter 96v dc to 28v dc DC converter
US $300.00-$850.00
1500W air cooled converter 96v dc to 28v dc DC converter
- Category: DC\/DC Converters >>>
- Supplier: Shijiazhuang Dilong Technology Co. Ltd.
Share on (62079475466):
Product Overview
Description
1500W air-cooled converter 96v dc to 14v dc DC converter
more products
Product Description
Place of Origin: Hebei, China (Mainland)
Brand name: Dilong
Model Number: DE1500S9GF-96S28RC
Specification
DE1500S9GF-96S28RC is a highly integrated and highly integrated company specially designed for electric vehicles.
Intelligentized digital DC/DC converter that can be integrated with motor controller.self-actualization
The constant current constant current automatic conversion is suitable for the application design of pure electric vehicle energy conversion.
DE1500S9GF-96S28RC | |||
Mains Input | Rated output voltage | V | 14V±1% |
Voltage Range | Vac | Min:400Vdc TYP:540Vdc MAX:680Vdc | |
Efficiency | % | ≥95 (Not including auxiliary power supply) | |
Power Factor |
| ≥0.99@220Vac,rated power | |
Current | A | 53 | |
Mains output | Rated output voltage | Vdc | 540 |
Max current | A | ||
Constant power output | W | 1000(MAX) | |
Constant voltage output range | Vdc | 100~200 | |
Output voltage accuracy | V | ≤±1%Vo input 175Vac-265Vac,output 10%-100% load | |
Line regulation | % | ≤±1Vo input 175Vac-265Vac,output 100% load | |
Load regulation | % | ≤±1Vo input 220Vac,output 10%-100% load | |
Ripple and noise | mV | ≤±3%Vo 20M oscilloscope,Twisted-pair cable test. | |
Auxiliary supply | Rated output voltage | Vdc | 28 |
Rated output power | W | 2 (For BMS awakening signal) | |
Property | Input over-voltage protection | Vac | >275 CAN directive warning protection |
Input under-voltage protection | Vac | <85 CAN directive warning protection | |
Output Over-current protection | A | ≥110%Io CAN directive warning protection | |
Output under-voltage protection | Vdc | < 90 CAN directive warning protection | |
Output over-voltage protection | Vdc | >205 CAN directive warning protection | |
Over-temperature protection | ℃ | 85±5 CAN directive warning protection | |
Output short circuit protection |
| Yes (CPU Intelligent monitoring ) | |
Reverse polarity protection |
| yes (CPU Intelligent monitoring ) | |
Dynamic response | us | ≤200 | |
CAN communication |
| Communication interrupt, timeout of 20 seconds intelligent shutdown, communication normal recovery. | |
Work environment | Operating temperature |
| -40℃~+70℃(Intelligent derating shell temperature above 70 ℃) |
Storage temperature |
| -45℃~+95℃ | |
Operating humidity | %RH | 20-90(No condensation) | |
Storage humidity | %RH | 10-95(No condensation) | |
Vibration |
| QC/T413-2002(Other parts required) | |

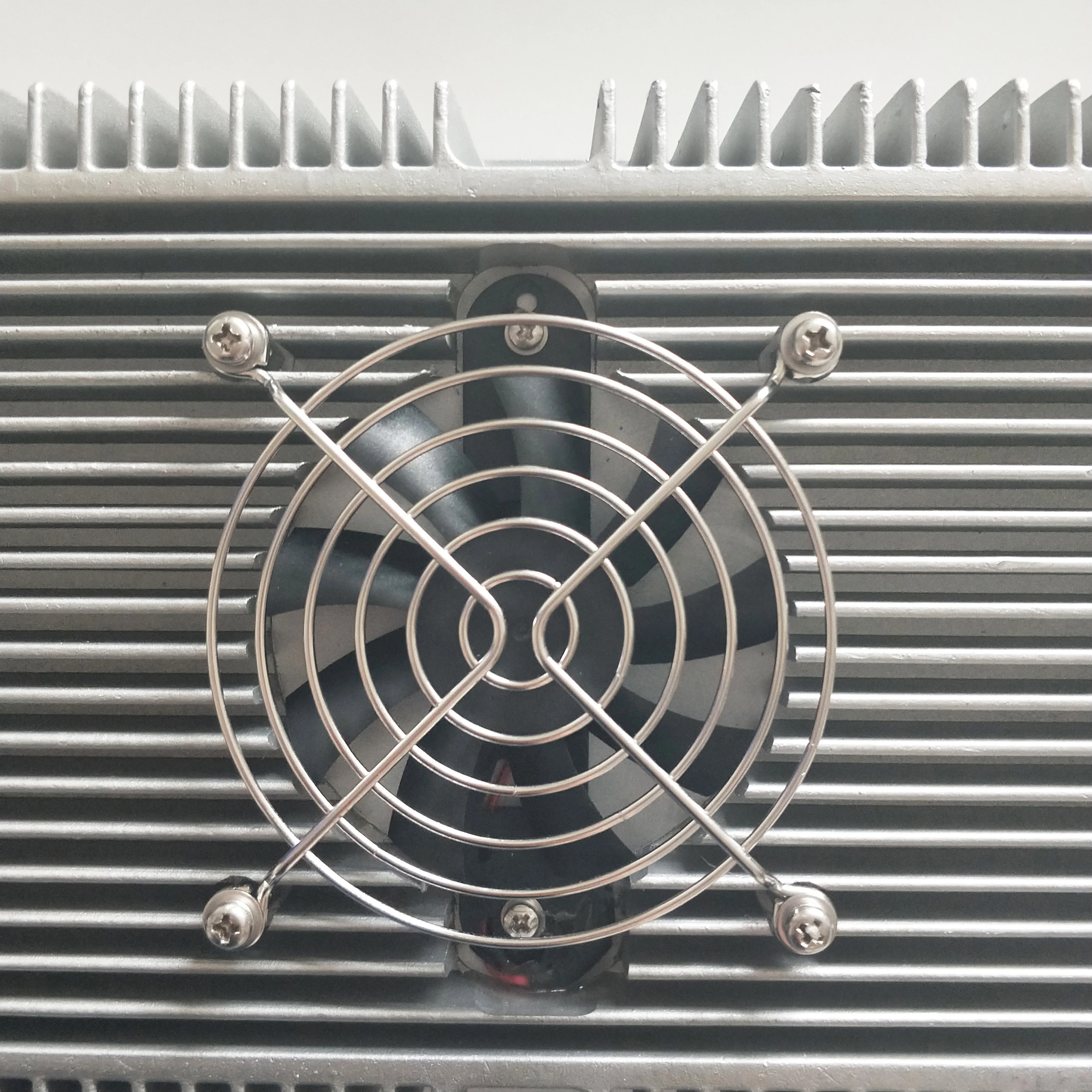

Type of cooling |
| Air-Cooled | |
Safeguard | Isolation Voltage |
| shell←input→output:2.8KVdc; Main Output→shell:2.8KVdc; Auxiliary Output→shell:700Vdc |
Insulation resistance | MΩ | input—output—shell>10 (25℃,70%RH) | |
Structure | weight | Kg | ≤4.5Kg |

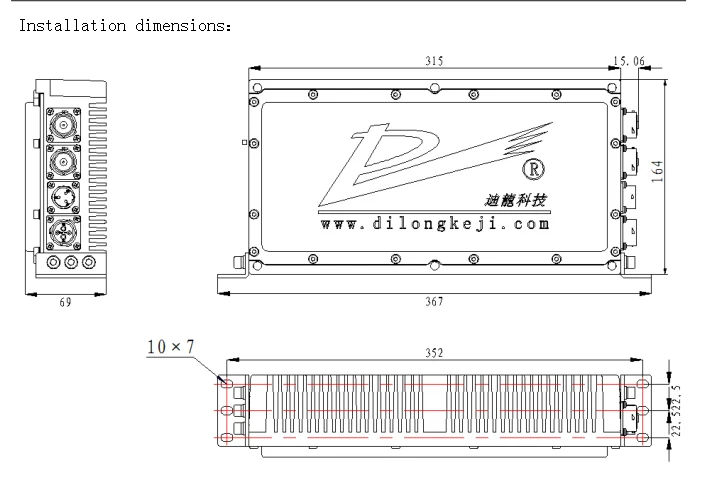

Dimensions | mm | 315*164*60 mm | |
Factory
Company Information
As a manufacturer of Military power supply, industrial power supply and EV electronic control, we offer solutions for EV power supply, with the strong ability of R&D, manufacturing and sales.
Shijiazhuang Dilong Technology was established in 2002, with the area of more than 100000 squre meter. Our mainly customers include BYD, BAIC BJEV, FAW-Volkswagen, Hyundai, Huanghai bus, Yutong EV bus, about more than 170 automotive companies. The military power supply products has ever been offerd to match with Shenzhou 4 and Shenzhou 6.
Our vision is to be the leading supplier of power supply products home and abroad.
Shijiazhuang Dilong Technology Co., Ltd.

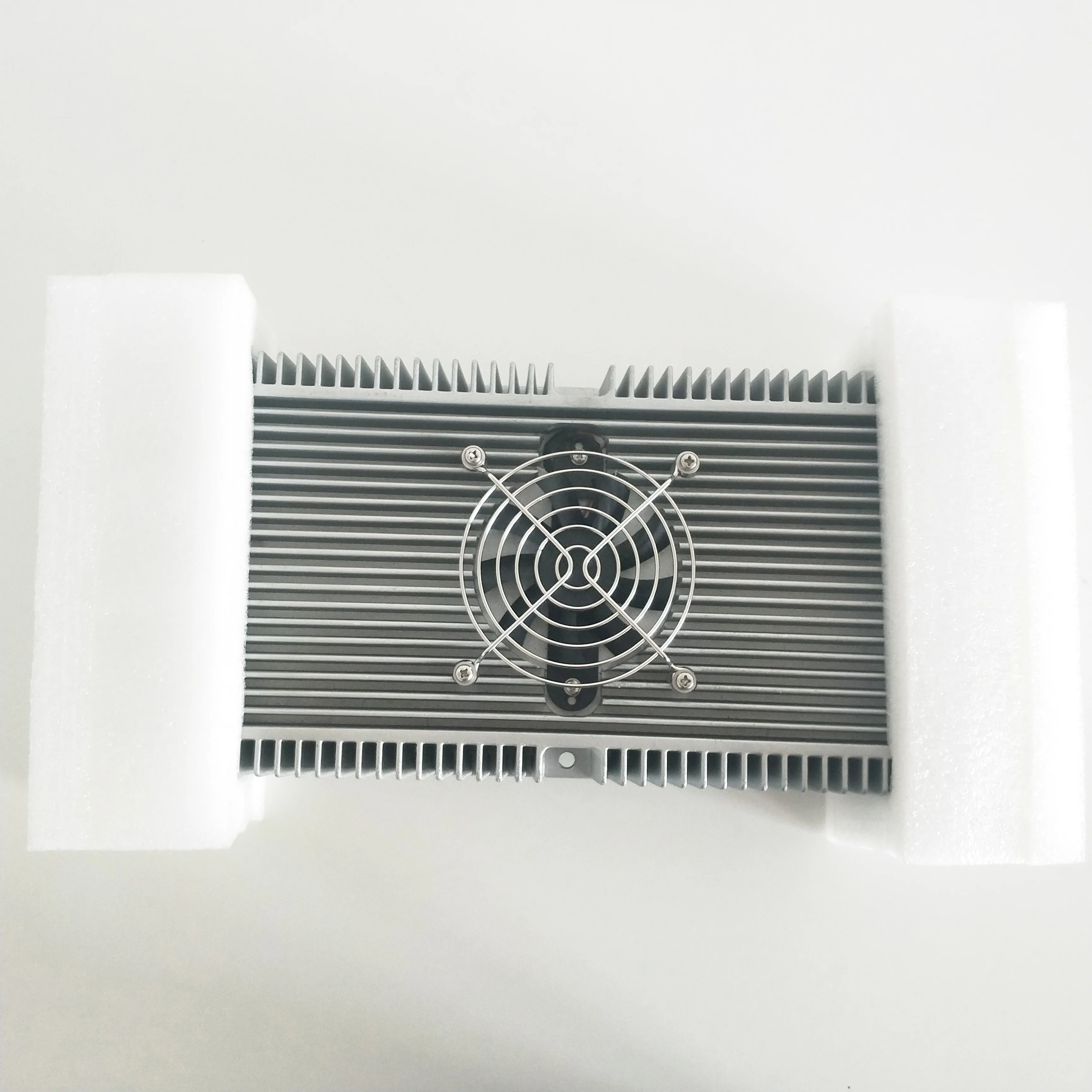

Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
7-30 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are manufacturer.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q3: What is the key technical advantage of your products?
A: We adopt the digital control technology, which is convenient for remote upgrade and full automatic production.
Q4: What is your Engineering Testing and Validation capabilities?
A:We will response you within 2 hours and solve the problem within 24 hours.
Q5: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
