EN12975 Solar Vacuum Tube Collector with Heat Pipe SCM30 58/1800 02

Product Overview

Description



EN12975 Solar Vacuum Tube Collector with Heat Pipe SCM30-58/1800-02



Solar Super Heat Pipe Collector, Vacuum Tube Collector, Heat Pipe Collector, Solar Collector, Solar Collectors, vacuum tube solar collectors, Solar thermal Collector



Latest solar keymark list:



SCM12-58/1800-02

SCM15-58/1800-02

SCM20-58/1800-02

SCM25-58/1800-02

SCM30-58/1800-02



better efficiceny,better price



Solar keymark certificate types:

SCM12-58/1800

SCM15-58/1800

SCM20-58/1800

*************

New Solar Keymark certificate types:

SR10-58/1800

SR15-58/1800

SR20-58/1800

SR30-58/1800



SRCC certificate types:

SR10-58/1800

SR15-58/1800

SR20-58/1800

SR30-58/1800

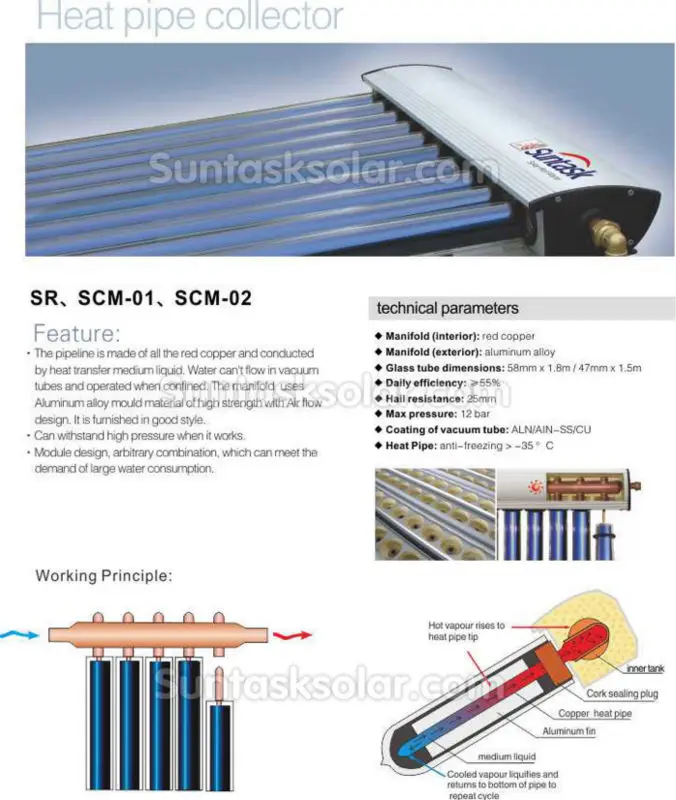

The pipeline is made of all the red copper and conducted By heat transfer medium liquid. Water can't flow in vacuum Tubes and operated when confined. The manifold uses Aluminum alloy mould material of high strength with Air flow design. It is furnished in good style.
Can withstand high pressure when it works.
Module design, arbitrary combination, which can meet the demand of large water consumption.





Model name	SCM12-58/1800-02	SCM15-58/1800-02	SCM20-58/1800-02	SCM30-58/1800-02
number of tubes	12	15	20	30
manifold packing mm	1*2000*200*160	1*2000*200*160	1*2000*200*160	1*2480*200*160
tubes packing mm	1*1940*280*270	1*1940*350*270	2*1940*350*180	3*1940*350*180
working pressure	6  bar
Max testing pressure	12 bar
Max working temperature	280°C
efficiency n°	0.795

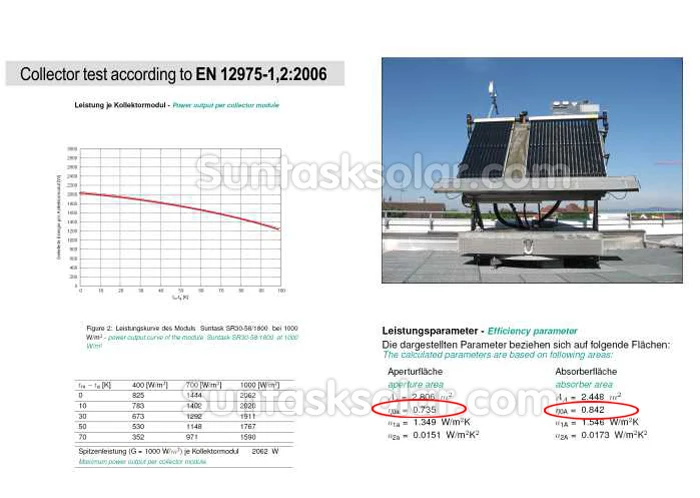

certificate	EN12975-1,2 SOLAR KEYMARK
Material
vacuum tube	high borosilicate glass
size	58*1800mm
coating	SS-CU-AIN/ALN
heat pipe material	TU1 copper
heat pipe length	1790mm
heat pipe diameter	condenser dia14mm, body dia 8mm
manifold header pipe	TP2 copper dia 35mm
manifold casing	anodized aluminum alloy
insulation	glass fiber
bracket	galvanized steel
inlet/outlet connection	22mm
Heat transfer medium	pure water/glycol
tube holder	UV stabilized nylon
seals	silicon seal
contact sheets	aluminum fin
