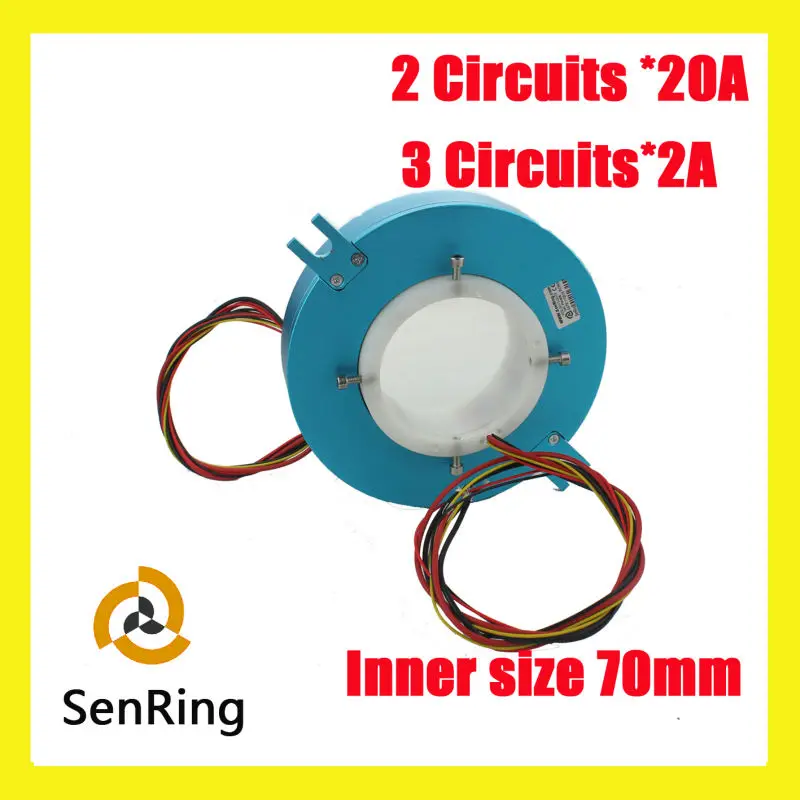

Pancake slip ring thickness 30mm with 2 circuits 20A and 3 circuits signal

Product Overview

Description

As another form of though hole slip rings, pancake slip rings are designed for somewhere vertical space is limited

while horizontal space is less restrictive. Special high vacuum sealing technology & precious metal brush ensure the high reliability

 transmitting and rotating performance of slip ring. With many advantages such as low torque ,low friction, low electrical noise

and long life, pancake slip rings are mainly applied to transmit precise signal together with power, also could be mixed with

fluid media transmitting(such as hydraulic or pneumatic

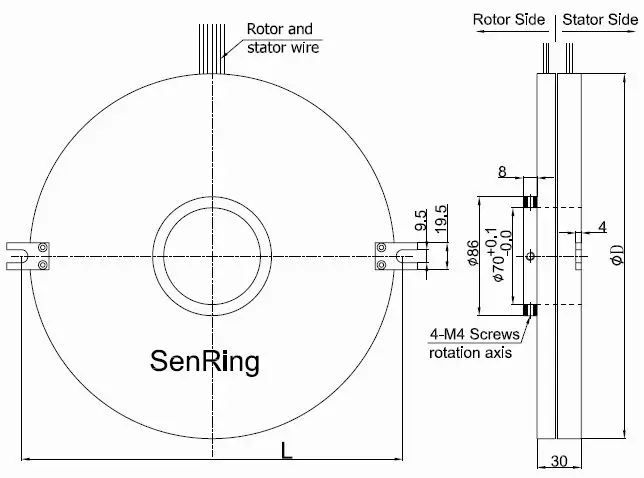

SNK070 Dimensions



SNK070 Specifications(Standard)

• Contact Material


  Precious metal brush,Silver plated rings





• Current Rating


  2A,20A/per circuit





• Number of Circuits


  5





• Operating Speed


  150 rpm* continuous





• Lead Wire


  UL Teflon® Awg28,Awg22,Awg16,Awg10 (150 mm)





• Voltage


  300 V





• Operating Temp.


  -40°C to 80°C





• Working Humidity


  60%RH





• Torque


  Approx. ≤16.95 g·m (for reference )





• Dielectric Strength


  ≥1000V@50Hz between each circuit





• Insulation Resistance


  800MΩ@ 300VDC





• Noise


  Less than 75 mΩ @ 6 VDC, 50 mA, 5 rpm





• Housing Material


  Aluminum Alloy





• Protection


  IP54





•

  Options




  • Longer lead lengths available


  • Power and signal combinations


  • Rotor and stator lead exits


  • gold alloy brush,Gold plated rings


  • IP65,IP68 are optional


  • More thickness availabl


  •



    Type Application



































    Industrial machinery	Filling equipment
    Exhibit / display equipment	Medical equipment
    machining centerse	rotary index tables
    Mechanical arm	Surgery lamp
    heavy equipment turrets or cable reels	Revolving door
    Packaging machine	Coiling machine
    test equipment	packaging machines
