rubber three roll calender machine fabric calendering equipment
US $1000-$20000

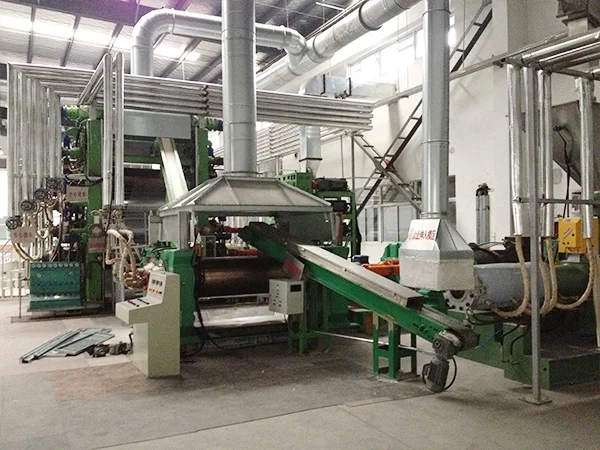

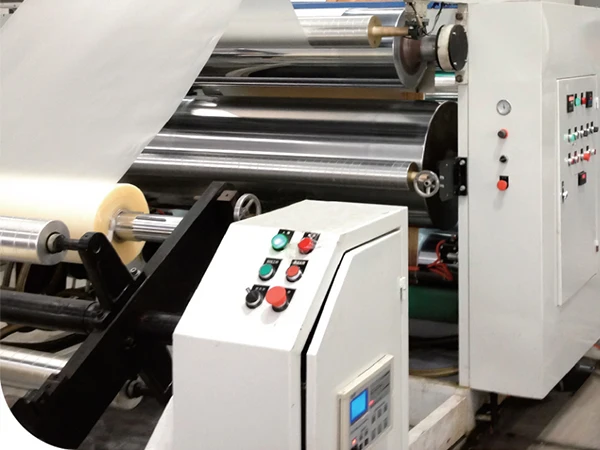

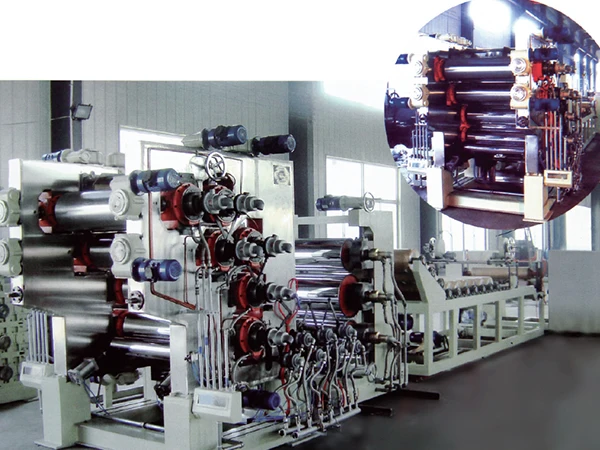

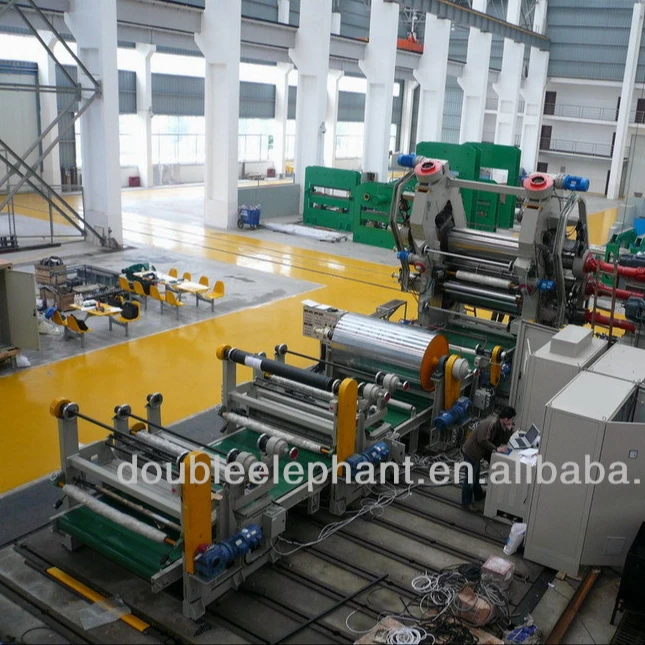

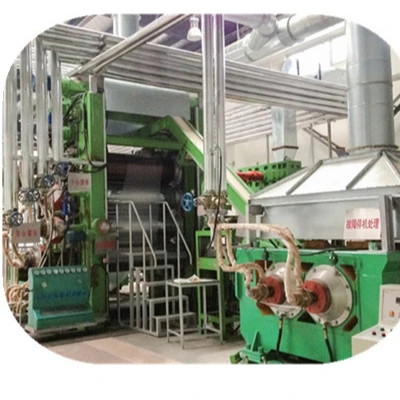

rubber calendering machine for calendering rubber sheeting 2020
- Category: Rubber Calenders >>>
- Supplier: Wuxi Double Elephant Rubber & Plastic Machinery Co. Ltd.
Share on (1494150352):
Product Overview
Description
Features of calender, rubber calender, rubber calenders:
1) Roll-extrusion for rubber-sheet.
2) Sticking and friction rubber of fabrics.
Rubber calender technical data:
| Rubber calender Techinical Data | |||||
| Specification | Roller | Mid-roller liner | Thickness for | calendering | Motor |
| Type | dia.×length(mm) | Speed (m/min) | calendering(mm) | width | power(KW) |
| XY-3I1120 | 360×1120 | 22.5 | ≥0.20mm | 900 | 18.3/44 |
| XY-3I1400 | 400×1400 | 8.8~26.39 | ≥0.20mm | 1200 | 18.3/55 |
| XY-4F1120 | 360×1120 | 7~21 | ≥0.20mm | 900 | 18.3/55 |
| XY-4F1400 | 400×1400 | 8.8×26.39 | ≥0.20mm | 1200 | 25/75 |
| XY-3L1120 | 360×1120 | 2~20 | ≥0.20mm | 900 | 37 |
| XY-5T635 | 240×635 | 9 | ≥0.20mm | 550 | 7.5 |
| XY-5T700 | 230×700 | 1.5~13 | ≥0.20mm | 600 | 7.5 |
| XY-4 1730 | 610×1730 | 5.4~54 | ≥0.20mm | 1500 | 160 |
| XY-4S1730 | 610×1730 | 5~50 | ≥0.20mm | 1600 | 75×4 |
| XY-4S1800 | 710×1800 | 5~50 | ≥0.20mm | 1600 | 110×2 132×2 |
| XY-4T1450 | 510×1450 | 4.5~45 | ≥0.20mm | 1250 | 45×2 55×2 |
