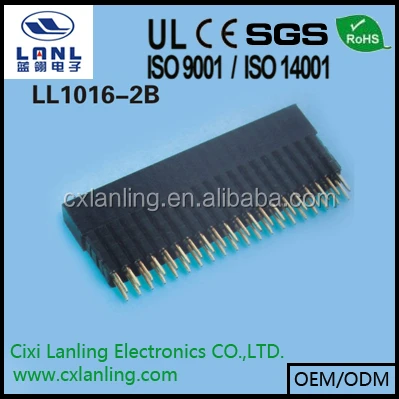

2.54mm pitch Elevated female header 2 3 4 5 6 7 8 10 12 14 16 20 30 40 50 60 70 80 pin CE ROHS LL1016 2B

Product Overview

Description





Elevated female header



We are manufacture of:



Pin header,female header,terminal blocks,box header(DC3),

shrouded header  (DC2),zif socket,edge card connector, sip ic socket,dip strip adapter,strip connector,LED display signal pin,

ic socket,dip ic socket,machine pin header ic,idc socket,dip plug connector,s-lot,din type,mini jumper,scsi connector,d-sub connector,centronic connector, grey flat cable,multi colour flat cable,dip switch,PLCC,dust  cover,

micro jack connector,pcb jack,bread board,digital pantel meter enclosure,etc.









No. of Contacts:1 Row:1*2P……1*40P
                          2 Row:2*2P……2*40P



Elevated female header
Material:
Housing:	30%Glass filled PBT UL94V-0.
Contacts:	Brass or Phosphor Bronze.
Plating:	Selective gold plated:gold plated on mating area and nickel plated on wire cutting area.
	Gold plated:2U'' over 50U'' nickel.
	Tin plated:100U'' over 50U'' nickel.
Electrical Characteristics:
Current Rating:	1 AMP.
Insulator Resistance:	5000MΩmin,at DC 500V.
Contact Resistance:	20MΩmax,at DC 110mA.
Operating Temperature:	-55°C~+105°C.
Features:
Available in straight and right angle.
Turning fork contacts offer lower cost for competitive market.
Mates with:501 502 503
