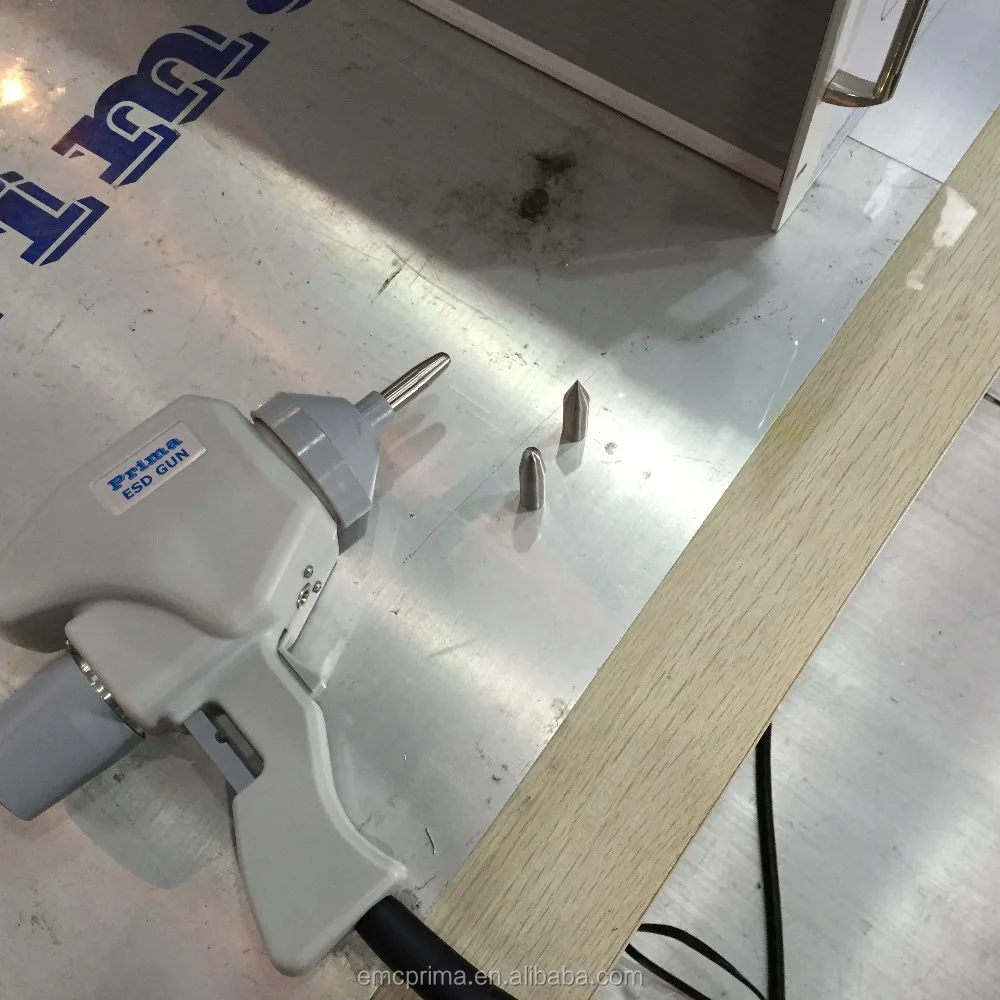

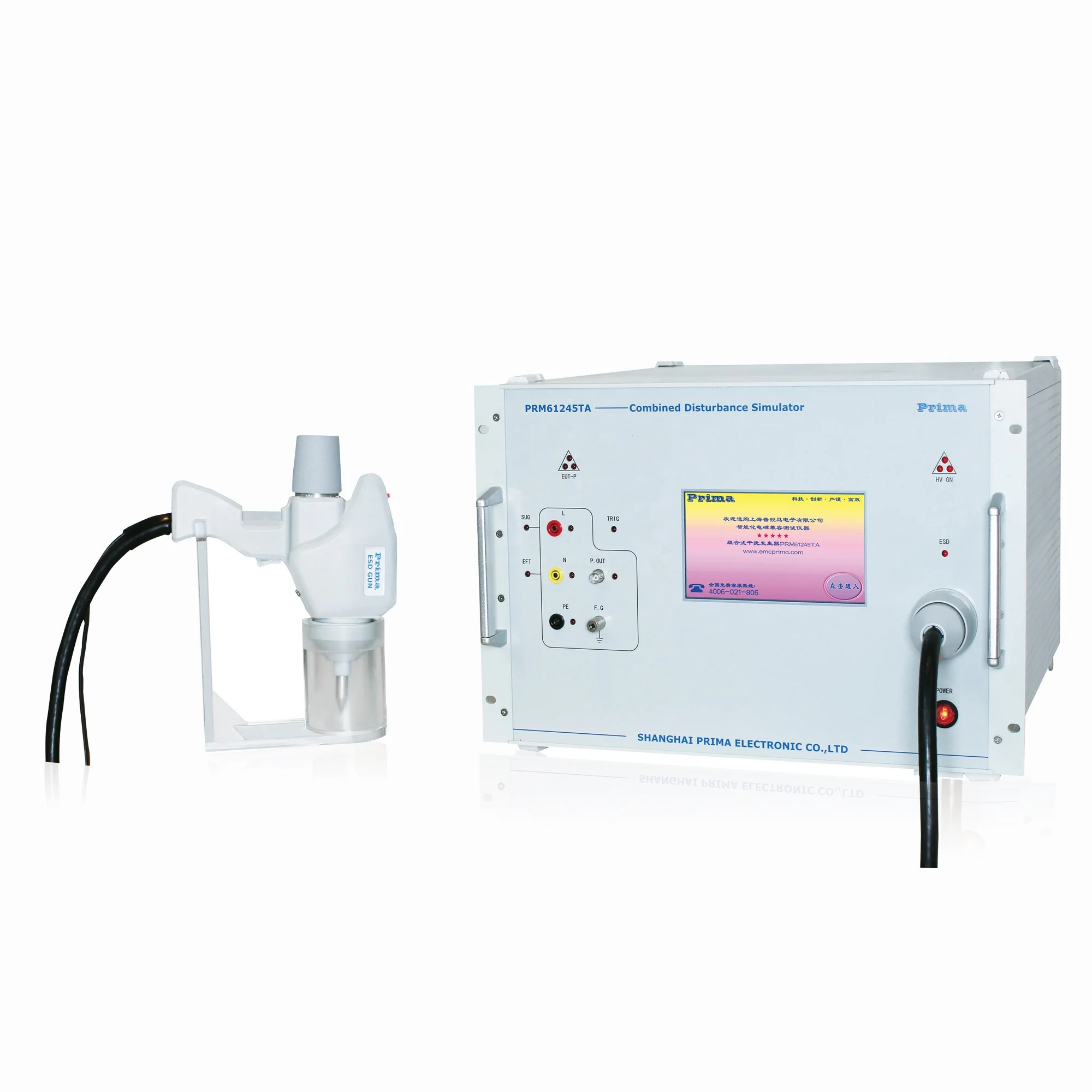

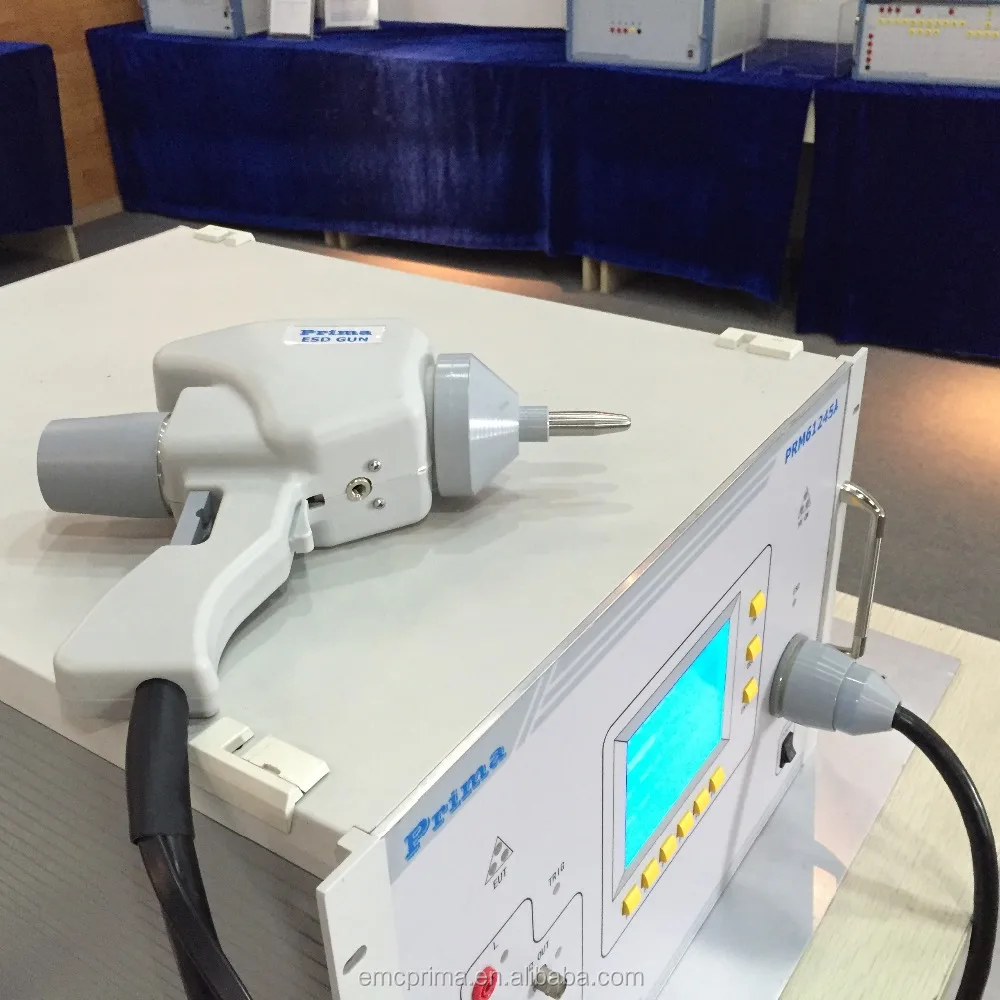

ISO10605 Automotive electronics electrostatic discharge generator

Model

                                                       ESD61002TC

Output voltage

0.2-- ± 30kV ± 5%

Output voltage polarity

Positive / Negative/ Switchable

Discharge capacitor

150pF/330pF

Discharge resistor

2000 Ω

Current rise time

0.7 ~ 1ns

Working form

Discharge interval 0.05 ~ 99.99s ,Testing form20PPS discharge;setting less than0.05s,be called single discharge

Testing functions

Contact discharge

Air discharge

Trigger mode

1.Automatic 2.Manual 3.automatic voltage rises

Discharge times

Presetting times 1-9999 or infinite times

Working power supply

AC220V ± 10%,50 Hz

Ambient temperature

15 °C -35 °C

Outline dimensions and weight

350×360×175 mm 10kg
