KC Underground Mining Granby Car/mining car

Product Overview

Description

Product Introduction

side dump mine cars are suitable for surface and underground mining metal mine or other mine, to transport the ore, waste rocks and other matenals along the underground tunnels and the surface working site   zmwm01

1. Usage: It used to load coal, rock, metal rock, ore, material, other equipments, etc.
2. The one side dumping mine cars parameters:
1). Loading Capacity: 0.5-70tons
2). Gauge: 600mm, 762mm, 900mm, and etc.
3). Made by high-quality steel
4). With MA certificate
5). Mining car manufacturer
6). Wheel diameter: 300mm, 350mm, 400mm, and etc.
7). Types: Fixed mine car, dumping mining car, bucket dumping mine car, mateiral mining car, flat bed mine car.
8). Thickness of the body: 4mm-24mm is ok.
9). We also can manufacture the mining cars accordding to your drawing.
10). Usage: Used in mine fields, metallurgy fields, to loading the ore, coal, rock, gold ore, iron ore, and etc.
3. There are also mining wagon working vedios, pictures.
4. We exported the mine cars to many countries, such as Canada, Peru, Algeria, etc.

Main Parameter

Model		Volume (m³)	Load (T)	Gauge (mm)	Wheel Base (mm)	Wheel Diameter (mm)	Traction (KN)	Traction Height        (mm)	Overall Size (LxWxH)
KC1.2-6		1.2	3	600	600	300	60	320	2100*1050*1200
KC1.6-6A		1.6	4	600	800	350	60	360	2500*1200*1300
KC2-6A		2	5	600	1000	400	60	385	3000*1250*1300
KC2.5-6A		2.5	6.25	600	1100	400	60	385	3500*1250*1300
KC3-6		3		600	1400	350	60	420	3600*1350*1335

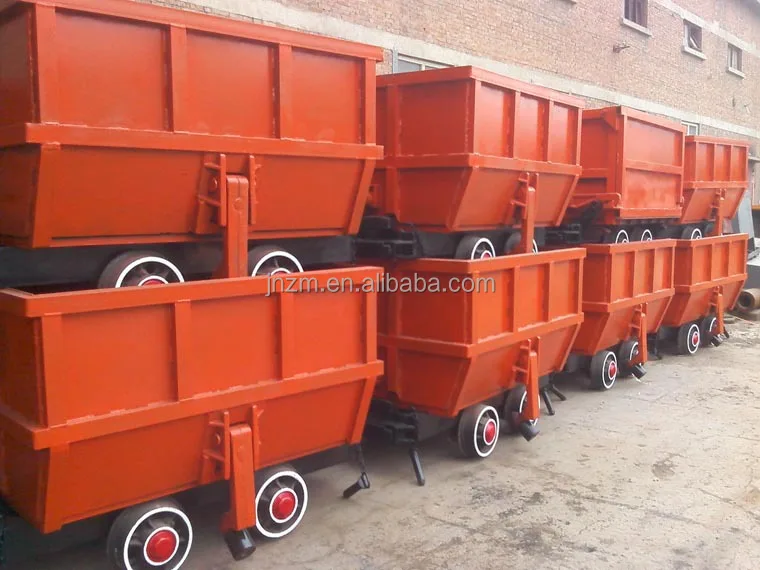

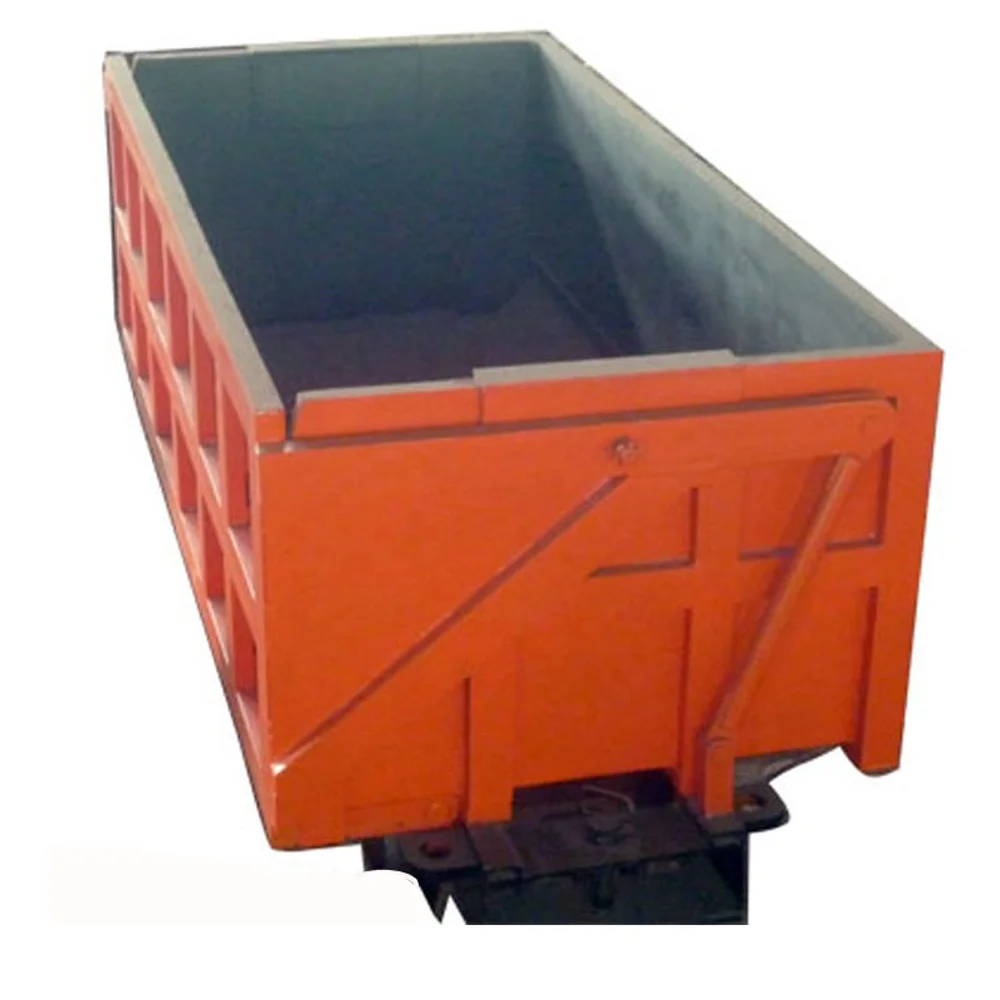

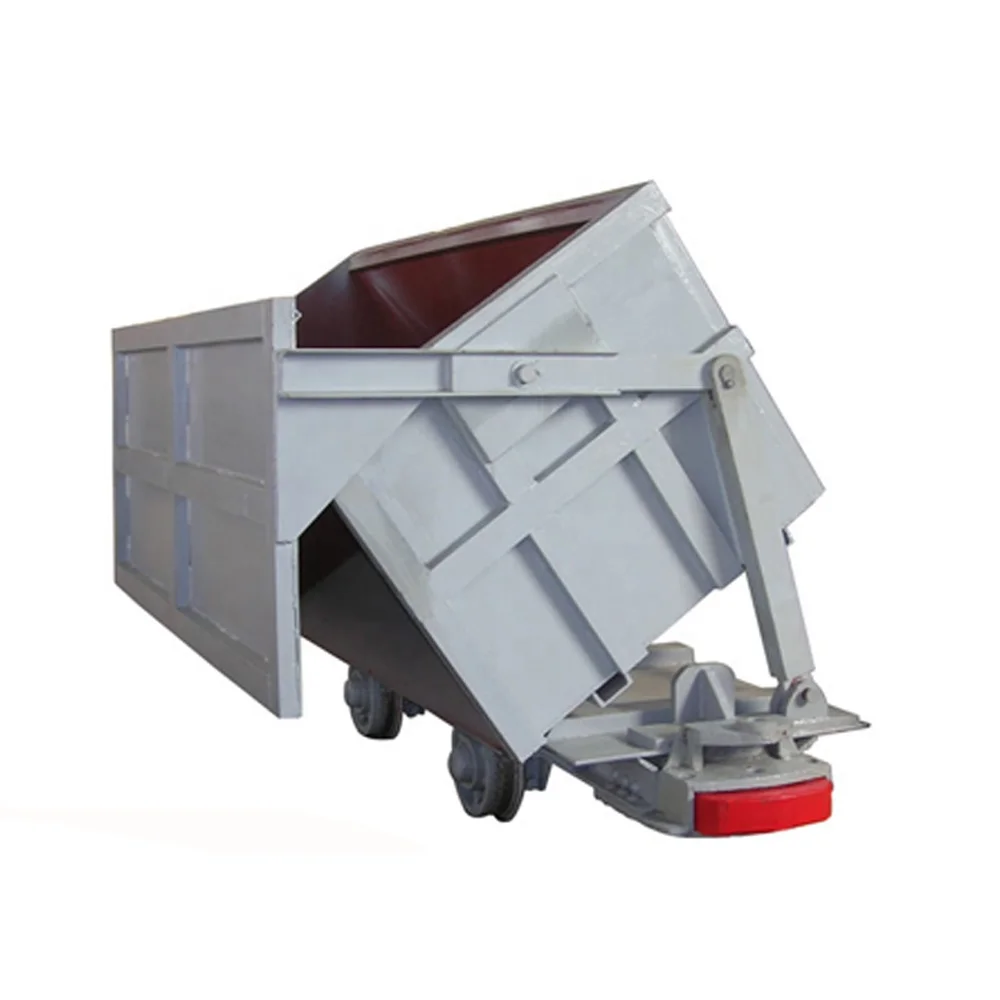

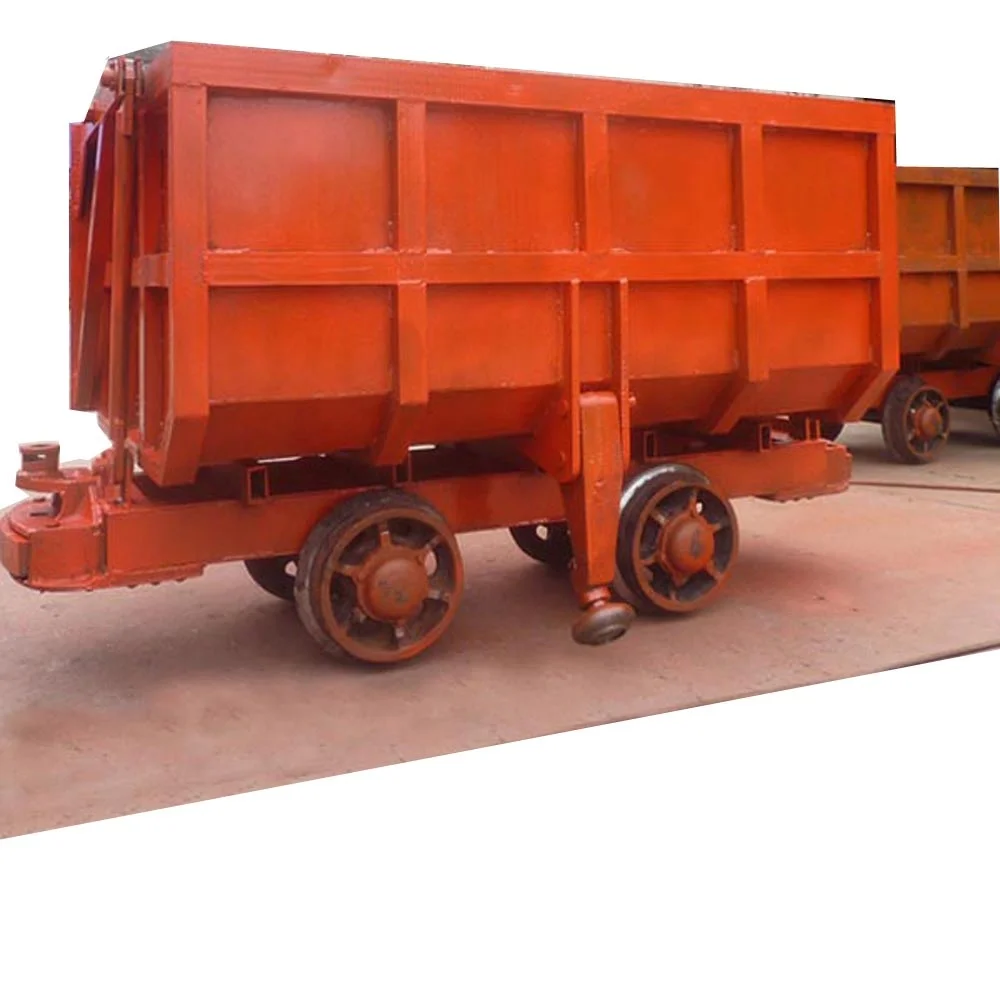

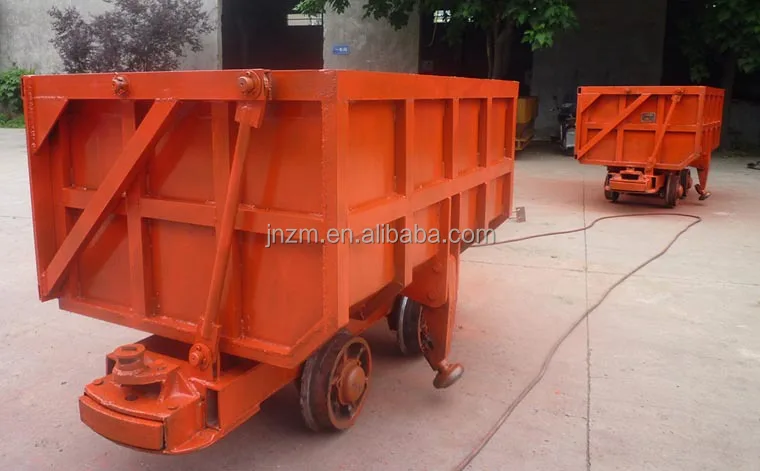

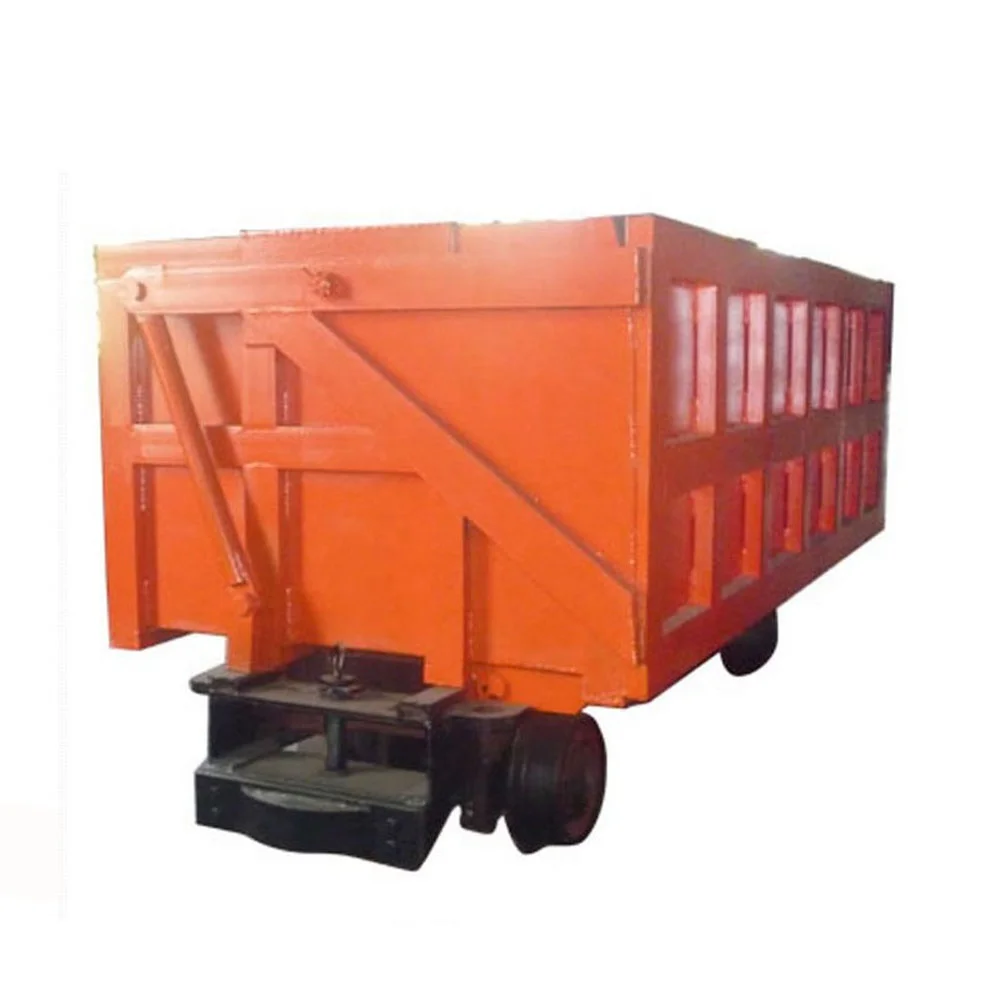

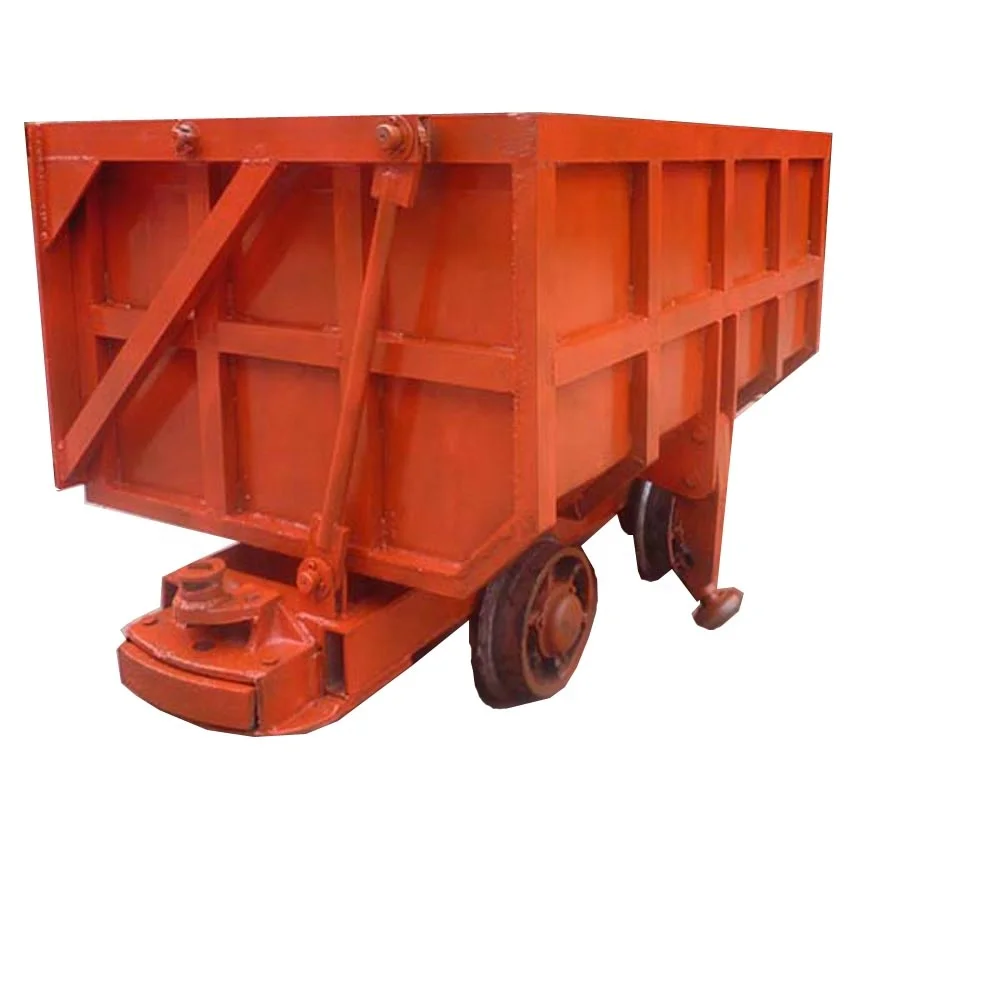

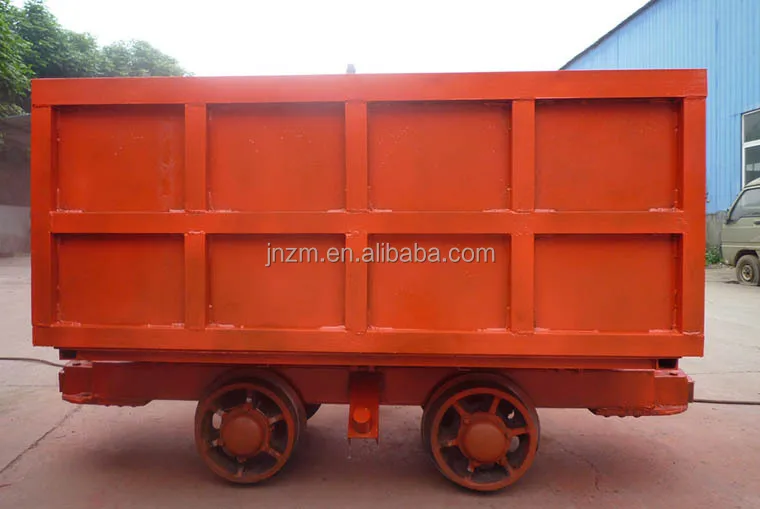

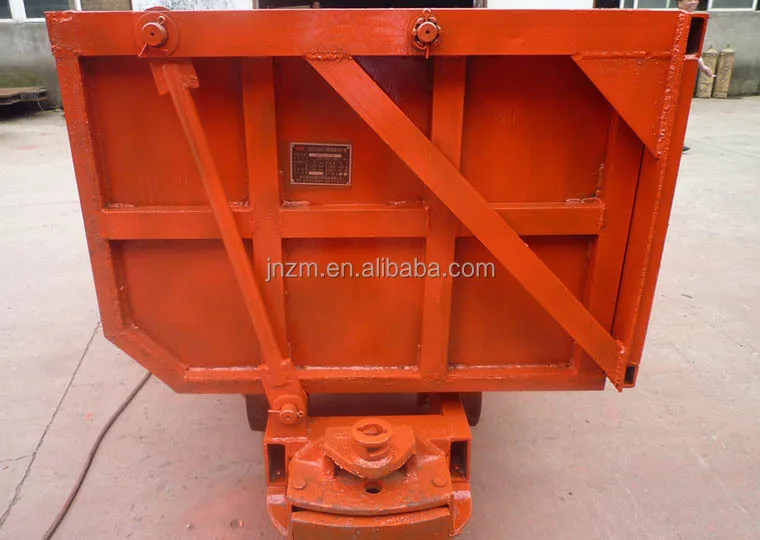

Figure Photos
