Product Overview
Description
Combined EMC testing interference generator PRM61045TB is a multi-functional EMC tester which contains EFT and Lightning surge two functions,product complies with the latest standards IEC61000-4-4 and IEC61000-4-5
Product characteristic:
EFT and SURGE two functions combined into a single, more cost-effective
Built-in international standards level parameters and user models parameters,very convenient
LCD display, Intelligent control,Use the imported high-voltage power supply, Reliable performance
Built-in intelligent couping/decoupling network. Testing safely
Built-in the RS232 interface ,Remote operated by the optional control software.
Technical parameters:
Model | PRM61045TB | ||||

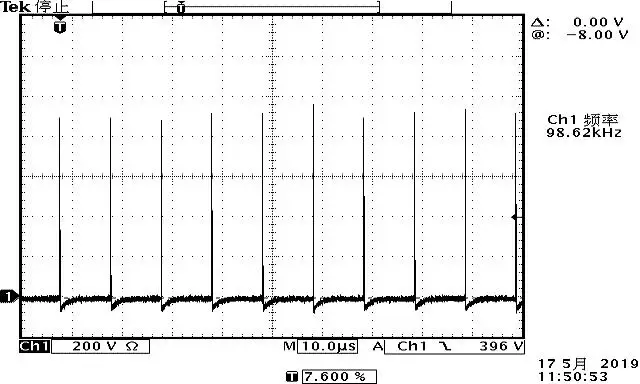

EFT | Output voltage | 0.2~± 4800V Positive/Negative//Switchable | |||
Pulse frequency | 1kHz~1200kHz ± 10%, adjustable | ||||
Resistor | 50 Ω± 20% | ||||
Rise time | 5ns ± 30% | ||||
Impulse duration | 50 Ω load | 50ns ± 30% | |||
1k Ω load | 35 ns~150 ns | ||||
Number of burst | 1~255 | ||||
Burst period | 300mS ( 0.15~9.99 S adjustable,step 0.01S ) | ||||
EUT coupling path | three phase five line CDN AC220V,50/60Hz,max 16A | ||||

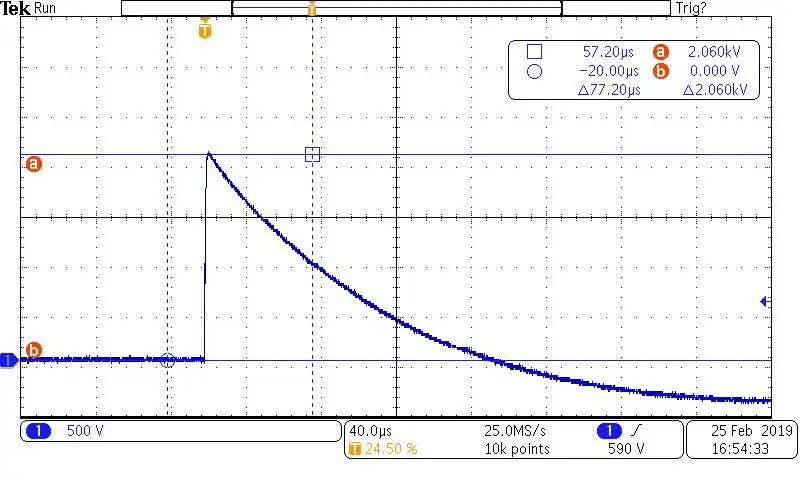

SUG | Open -circuit t voltage/short-circuit current | Waveform parameters parameters of Open -circuit t voltage: 1.2/50 μ s , 0.2~ 6kV | |||
Surge polarity | Positive / Negative/Switchable | ||||
Phase | Synchronism 0 °~ 360 °selectable/Asynchronism | ||||
Output impedance | Complex impedance: 2 Ω | ||||
Coupling path | three phase five line CDN AC220V,50/60Hz,max 16A | ||||
Surge count | 1~9999 | ||||
Surge interval | 10~9999s | ||||
Working power supply | AC220V 50/60Hz | ||||
TUV&CE certification
Customers visit our company
Manufacturing shop

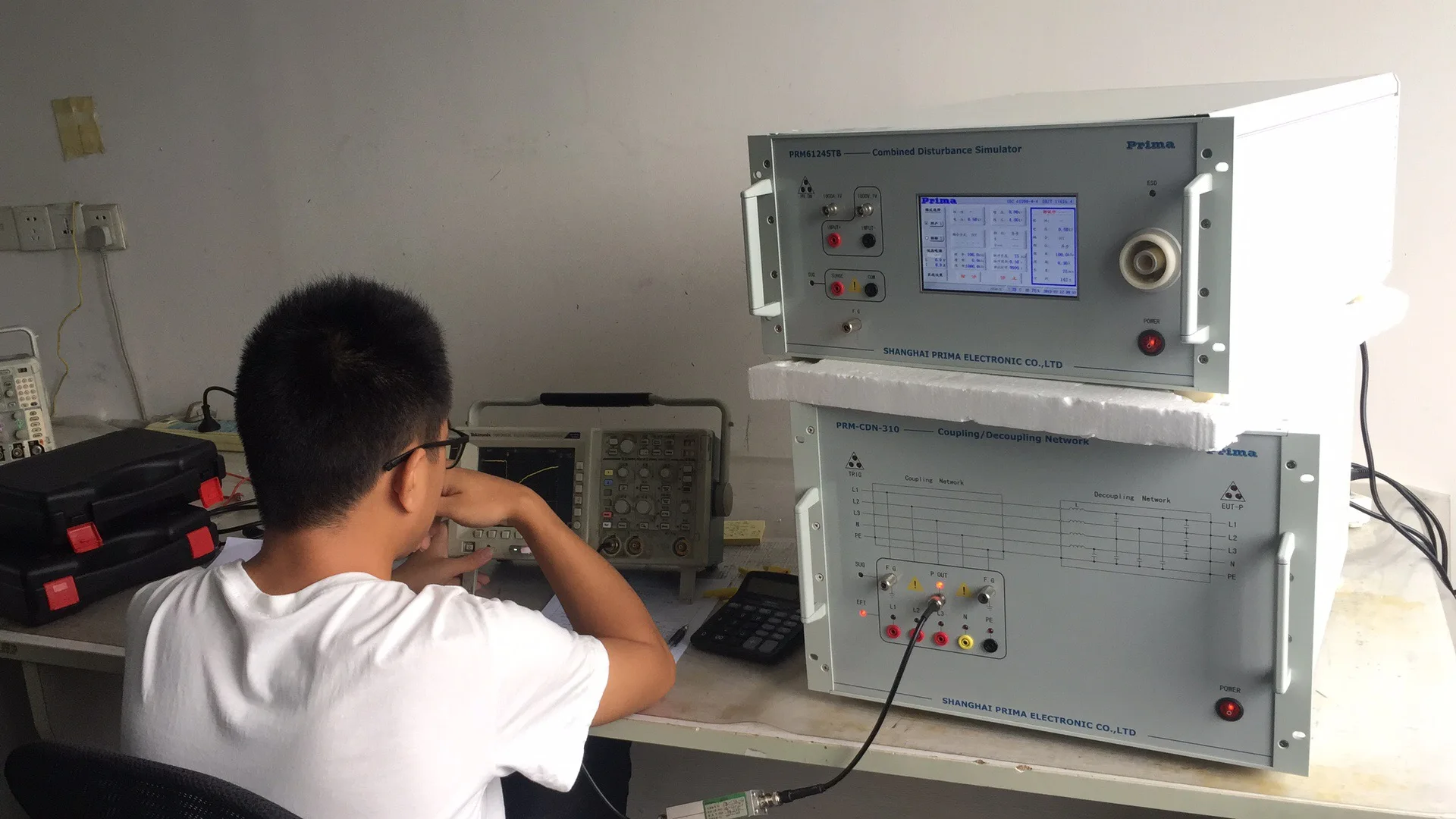

On-sit trainning
