Product Overview
Description

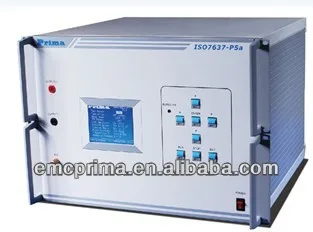

EMC test equipment ISO 7637 simulator is designed for automotive electronics equipment immunity test
This test is a simulation of transients due to supply disconnection from inductive loads. It is applicable to DUTs ,which as used in the vehicle, remain connected directly in parallel with an inductive load. Pulse 2a simulates transients due to sudden interruption of currents in a device connected in parallel with the DUT due to the inductance of the wiring harness. Full compliant with the latest standards of ISO7637-2
Customers visit our company
Product characteristic:
Full compliant with the latest standards: ISO7637-2
LCD display, Intelligent control,reliable performance
System can be efficient and flexible combined, can be alone operated, also can be Unified control through the microcomputer control operation.
Use the Programmable imported high-voltage power supply, Reliable performance
Built-in international standards level parameters and user model parameters,
Positive and negative polarity are automatically switched, easy to operate.
Built-in the RS232 interface ,Remote operated by the optional control software.
Technical parameters:

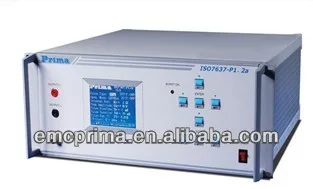

Parameters | P1a | P1b | P2a |
EUT power supply capability | 12v,20A | 24V,20A | 12V/24V, 20A |
Pulse amplitude | 0~-660V | 0~+660V | |
Rise time | 1us (with Ri 10 Ω ) | 3us ( with Ri 50 Ω ) | 1us ( with Ri 2Ω ) |
Pulse interval time | 0.3~99.99s | 0.3~99.99s | 0.5~99.99s |
Test times | 1~9999 | 1~9999 | 1~9999 |
Source resistance | 2 Ω ,4 Ω 10 Ω ,30 Ω ,50 Ω | ||
Pulse duration | 50us,200us,300us,500us,1ms,2ms | ||
Working power supply | AC220V ± 10% 50/60Hz | ||
P2b Parameters | 12V System | 24V System |
Stable voltage UA | 13.5V±0.5V | 27V±1V |
Pulse amplitude Us | 10V | 20V |
Source resistance Ri | 0 Ω~0.05 Ω | |
Voltage dips timeT1 | 1ms±0.5ms | |
Voltage delay timeT2 | 1ms±0.5ms | |
Pulse rise timeT3 | 1ms±0.5ms | |
Pulse durationTd | 0.2s~ 2s | |
Pulse interval timeT | 0.5s~5s | |
Test times N | 1~99 | |
Working power supply | AC220V ± 10% 50/60Hz | |

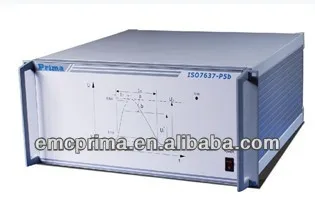

P4 Parameters | 12V System | 24V System | |
Stable voltage UB | 12V±0.2V | 24V±0.4V | |
First drop amplitude Us | -5V ~-8V | -10V~-20V | |
Second drop amplitude Ua | -2V ~ 66.3V Ua ≤ Us | -4V~-13V Ua ≤ Us | |
Source resistance | 0 Ω~0.02 Ω | ||
First stable timeT7 | 10ms~ 45ms | 50ms~ 100ms | |
Rise time | ≤ 50ms | ||
Second stable timeT9 | 0.5s ~20s | ||
First decrease time T10 | 5ms | 10 ms | |
First stable time T11 | 5ms~100 ms | ||
DUT load capacity | 54A | ||
Test times N | 1 ~ 99 | ||
Working power supply | AC220V ± 10% 50/60Hz | ||

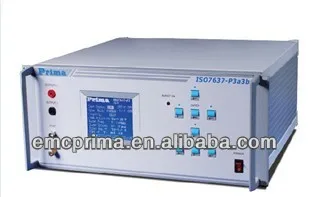

Parameters | ISO7637-P3a,3b |
Test voltage | 0-±1000V(1V/step) |
polarity | Positive or Negative |
Source resistance | 50Ω |
Pulse duration Td | 150ns±50ns |
Pulse rise time Tr | 5±1.5ns |
Pulse frequency | 0.5kHZ~100kHZ(0.5kHZ) 0.5kHZ;standard frequency :10kHz |
T1 | 100μs |
T4 | 1ms~100ms 1ms/step;standard time:10ms |
T5 | 90ms~99.99s,10ms/step |
Output mode | TEST output/POUT output |
CDN | 25A CDN built in |
Working power supply | AC220V±10% 50/60Hz |
