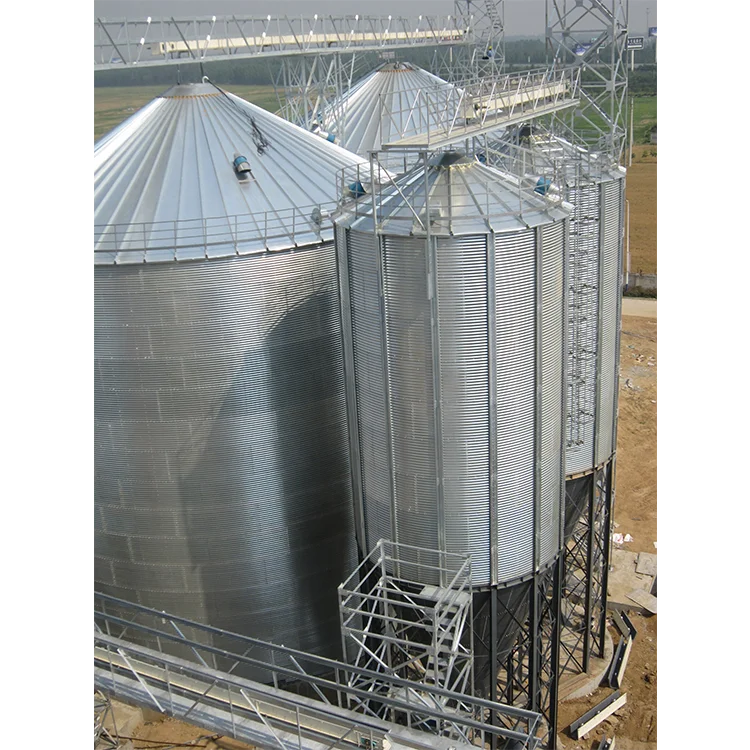

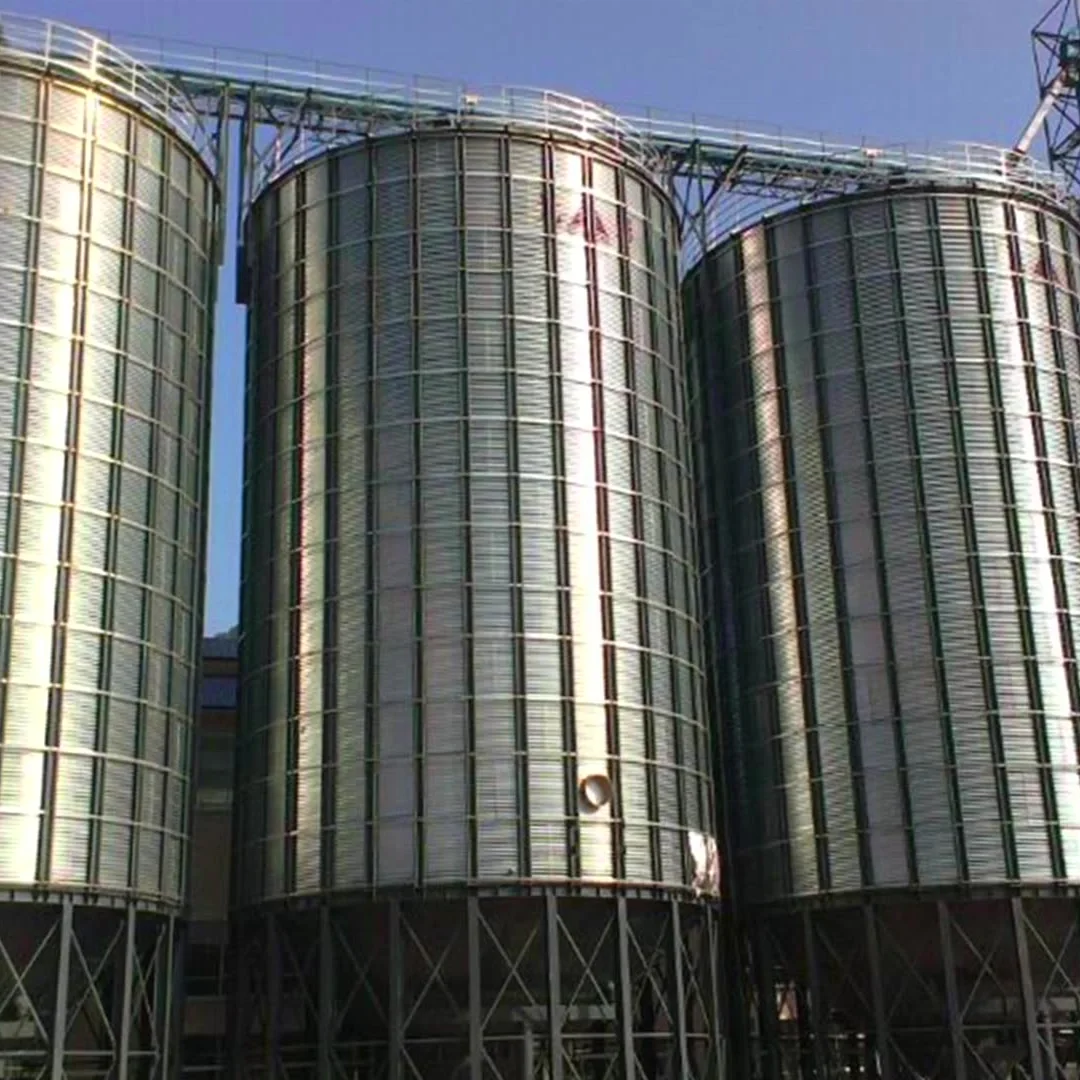

Grain storage silo corn silos hopper bottom

Product Overview

Description

GUANGCAI real estate for sale



 GUANGCAI Company File:



Guangcai Steel Silo is  professional team in R&D,design, production, installation, process design, automation control and steel silo, conveyor, cleaning, dust removal equipment manufacturing, installation and commissioning, and training of personnel to provide one-stop service for customers, 5-1000t cone bottom steel silo and 10-15000t flat bottom silo. Electronic thermometer, ventilation, induced draft, dust removal, analog display can be configured as well as the design and manufacture of a variety of non-standard products.

Our products are widely used in feed industry, rice industry, oil industry, flour indutry, port, beer industry, starch industry, alchol industry, etc.





Features:



1. Large capacity



One single silo capacity is up to 18000 tons, with loading & unloading system, ventilation system, temperature control system can meet customers’ different requirements.



2. High accuracy



Completely computerized production equipment for automatic assembly line and technology to effectively ensure assembly accuracy, reduce damage to galvanized layer and extend the silo service life.



3. Less residues



External stiffeners contribute to less grain residues on silo walls; the automatic unloading equipment is available.



4. Detachable and movable



With standardized and modularized production, components and parts have a high standardization and good interchangeability, thus can be partially replaced or completely transferred.



5. Less investment



30%-50% less costs over steel bar concrete silos, greatly saving investments.



6. High automation



The steel silo can be highly mechanic and automatic and the control system adopts PLC or imitation screen, highly production efficiency, thus save labor and maintenance costs.



GUANGCAI SILO TECHNICAL PARAMETER:



SN	Model	Dia (m) x Layer	Volume(m³)	Capacity(T)	Height at Eave (m)	Total   Height (m)	Zinc layer   thickness(g/m2)
1	JSZZ01202	1.22m X 2c	3.03	1.9695	2.295	3.608	275/350/450
2	JSZZ01203	1.22m X 3c	4.34	2.821	3.415	4.728	275/350/450
3	JSZZ01204	1.22m X 4c	5.65	3.6725	4.535	5.848	275/350/450
4	JSZZ01205	1.22m X 5c	6.96	4.524	5.655	6.968	275/350/450
1	JSZZ01802	1.80m X 2c	7.3	4.745	2.295	4.056	275/350/450
2	JSZZ01803	1.80m X 3c	10.2	6.63	3.415	5.176	275/350/450
3	JSZZ01804	1.80m X 4c	13.1	8.515	4.535	6.296	275/350/450
4	JSZZ01805	1.80m X 5c	16	10.4	5.655	7.416	275/350/450
1	JSZZ02702	2.7m X 2c	17.6	11.44	2.295	4.729	275/350/450
2	JSZZ02703	2.7m X 3c	24.3	15.795	3.415	5.849	275/350/450
3	JSZZ02704	2.7m X 4c	31	20.15	4.535	6.969	275/350/450
4	JSZZ02705	2.7m X 5c	37.7	24.505	5.655	8.089	275/350/450
1	JSZZ03602	3.6m X 2c	33.8	21.97	2.295	5.4	275/350/450
2	JSZZ03603	3.6m X 3c	45.6	29.64	3.415	6.52	275/350/450
3	JSZZ03604	3.6m X 4c	57.4	37.31	4.535	7.64	275/350/450
4	JSZZ03605	3.6m X 5c	69.2	44.98	5.655	8.76	275/350/450
5	JSZZ03606	3.6m X 6c	81	52.65	6.775	9.88	275/350/450
6	JSZZ03607	3.6m X 7c	92.8	60.32	7.895	11	275/350/450

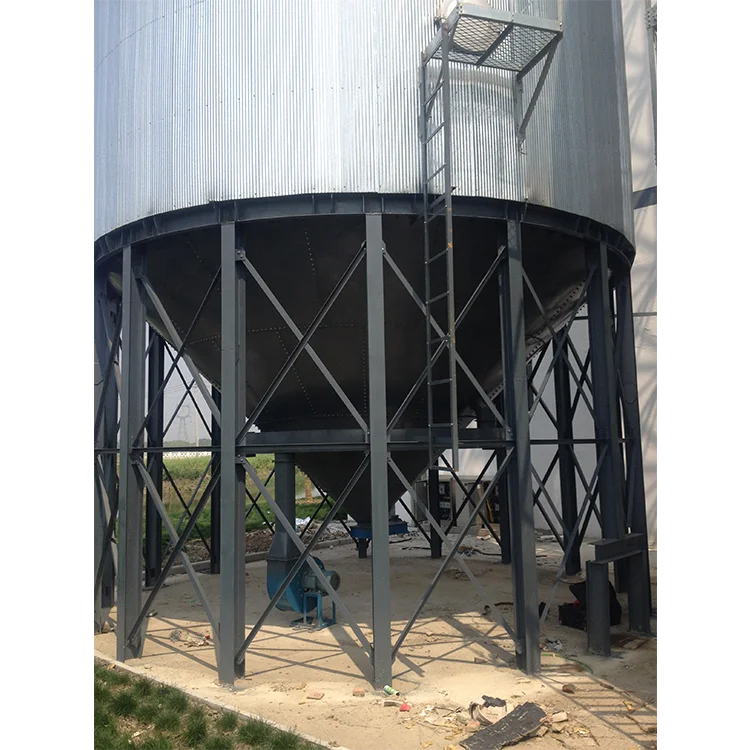

Remarks:1: Bulk density 0.65 t/m3 2: Hopper Angle:45° 3 Outlet Height=500mm





Bolte silo capacity from 872~1855 m³



33feet(φ10084mm)
Silo   Type	Capacity(m ³)	Rings	Height(m)		Bulk density (T)
			Eave   height	Peak height	maize	paddy	wheat	soybean
					0.72	0.55	0.75	0.7
JSZP10009	872	11	10.135	12.485	627.84	479.6	654	610.4
JSZP10010	961.4		11.255	13.605	692.208	528.77	721.05	672.98
JSZP10011	1050.8		12.375	14.725	756.576	577.94	788.1	735.56
JSZP10012	1140.2		13.495	15.845	820.944	627.11	855.15	798.14
JSZP10013	1229.6		14.615	16.965	885.312	676.28	922.2	860.72
JSZP10014	1319		15.735	18.085	949.68	725.45	989.25	923.3
JSZP10015	1408.4		16.855	19.205	1014.048	774.62	1056.3	985.88
JSZP10016	1497.8		17.975	20.325	1078.416	823.79	1123.35	1048.46
JSZP10017	1587.2		19.095	21.445	1142.784	872.96	1190.4	1111.04
JSZP10018	1676.6		20.215	22.565	1207.152	922.13	1257.45	1173.62
JSZP10019	1766		21.335	23.685	1271.52	971.3	1324.5	1236.2
JSZP10020	1855.4		22.455	24.805	1335.888	1020.47	1391.55	1298.78



main   grains physical properties
grain name	gravity density	mass density	internal   friction angle	friction coefficient
	kN/m3	kN/m3	°	concrete	steel   sheet
paddy	6	550	35	0.5	0.35
rice	8.5	790	30	0.42	0.3
maize	7.8	720	28	0.42	0.32
wheat	8	750	25	0.4	0.3
soybean	7.5	700	25	0.4	0.3
flour	6	600	40	0.4	0.3
sunflower seed	5.5		30	0.4	0.3
barley	6.5		27	0.4	0.4
bran	4		40	0.3	0.3





GUANGCAI Competitive strength

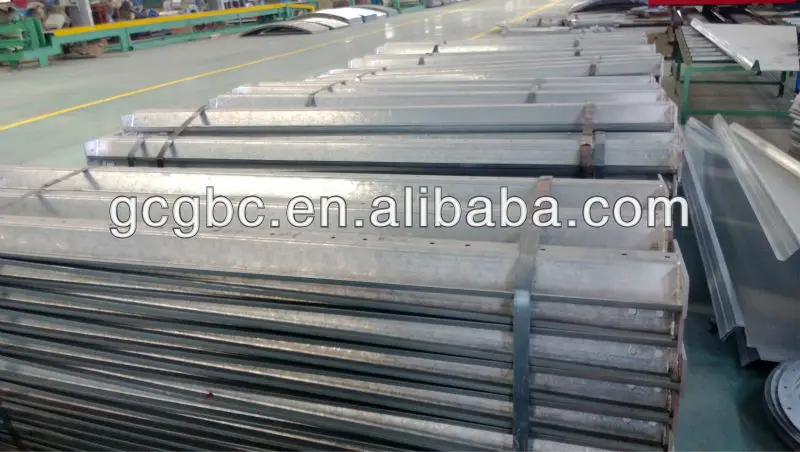

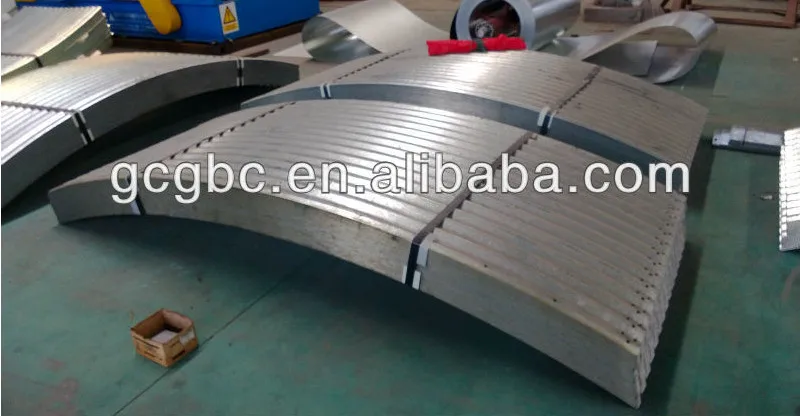

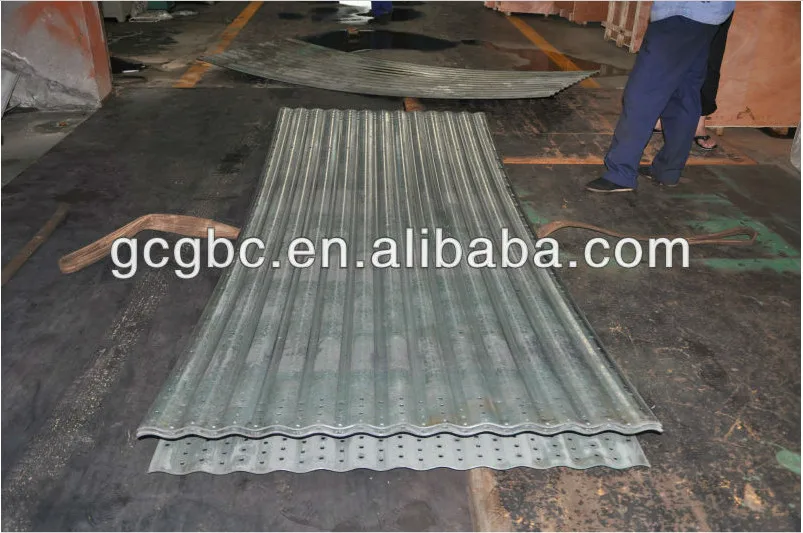

1.Adoption of high standard double side galvanized steel plate, i.e. structural SGH340/44 high strength steel plate. Galvanizing degree is optional for 275g/m²,350g/m²,450g/m² hot galvanized rolled steel, which ensure the silo life ensurance >30 years

.

2.Capital advantage: a good master of raw material market scenario,improvement on Management System of suppliers which benefits us to have more competitive pricing and quality of raw material and machinery.



3.Advanced process technology domestically: expertise of key technology on silo processing, possession of patents on processing and engineering, with high utilization efficiency of the steel plate.

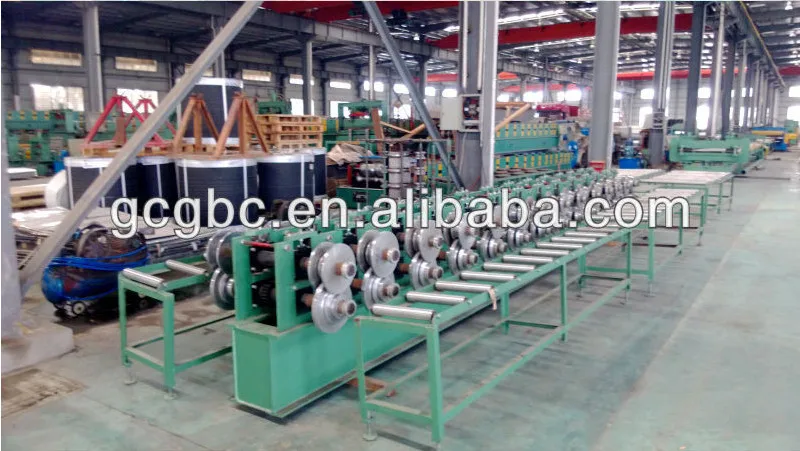

4.he largest processing capability:3 processing manufacturing centers, with complete set of production line of silo steel plate forming and molding.



5.Professional technical sales team, first rate expert design team, and user friendly after-sales team.

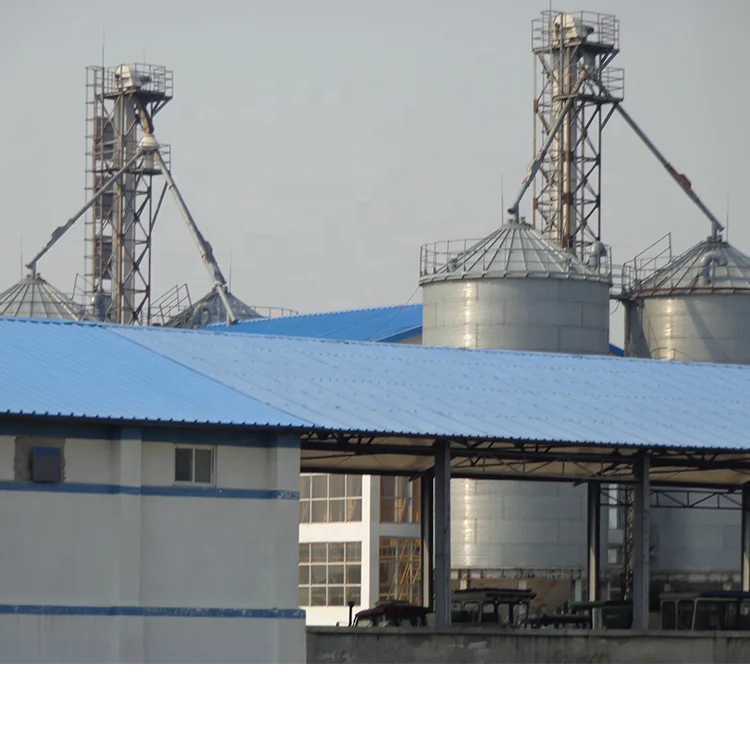

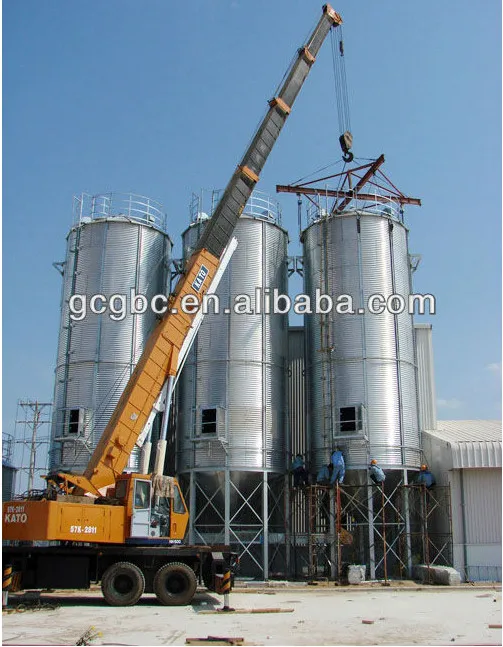

SHOWCASE PROJECT
