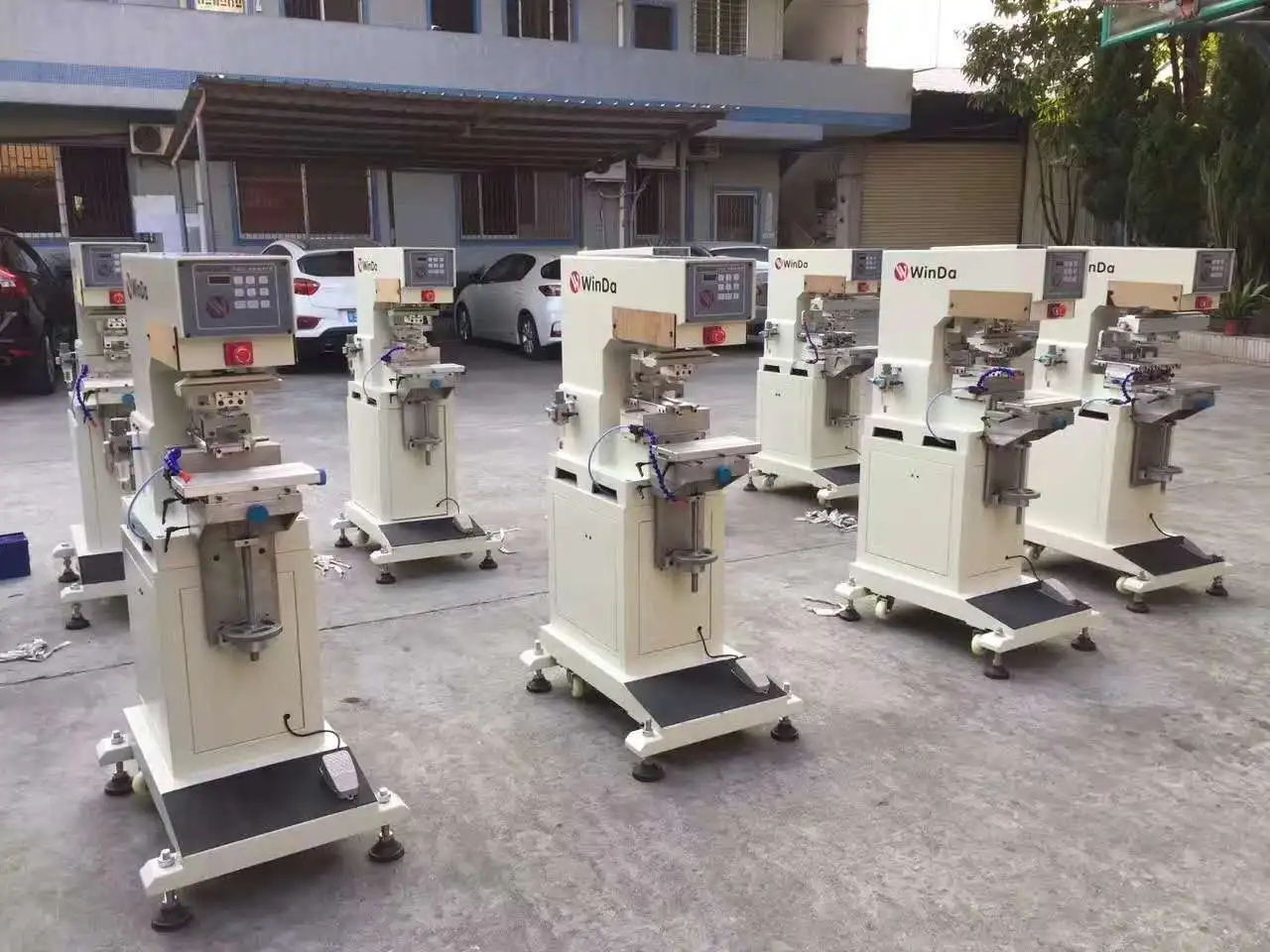

HP 125BY Hengjin automatic 2 color bottle cap pad printer with ink cup

Product Overview

Description

HP-125BY Hengjin automatic 2 color bottle cap pad printer,

1.CE approval
2.Alloy cast aluminum body
3.Germany FESTO cylinder
4.Parts in CNC process

5.Ink cup dia60mm



pad printer Application:

This item special for big target products printing. Which is a regular size. Can comprehensive apply for necessities, toys, electrons, electrical equipment, plastics, leather, metal, glass, light industry and food packages ETC.



pad printer Feature:

1 Per time printing 2 colors;

2 There are two cylinders in the worktable which both together exchange controll the position, then Fixing position is precise and stable;

3 This is machine is Semi-automatic, having automatic counter for 4 digits;

4 The machine can do your any printing requested, and per location is adjustable, such as, left/ right, up/ down, delay printing, dip ink etc;

5 The cylinder of Machine is Imported Germany FESTO. The thickness of the screw we used 8.75 Degree. Which have more usage about 20 years;

6 The body is Alloy Cast Aluminium, then it is lighter and durable. The color of body is dusting, which is precise and more nice;

7 The machine is running agile, steady and low voice.



pad printer Parameter:

Major Technical Specification
Color	2
Max. Steel Plate Size (mm)	100*100 (4inches X4inches)
Printing Area (mm)	45*45 or dia50
Max. printing Capacity (pcs/hr)	1800
Max height of product (mm)	180
Ink Mode	sealed cup dia60mm
measurement(L*W*H)mm:	590*560*1250
Net Weight(kg):	78
Power	110V or 220V 50/60Hz
HP-125BY (Two color ink cup pad printing machine) ink cup size Dia60mm



pad printer advantage:

1 Machine material: Cast Alloy Aluminum which is lighter and more stable.

2 PLC control panel or server motor can design as your requested.

3 printing result accuracy can reach to +-0.03mm.

4 The screw on the machine which hardness is 12.9 grade more durable.

5 Parts process by CNC or worker. Then accuracy.

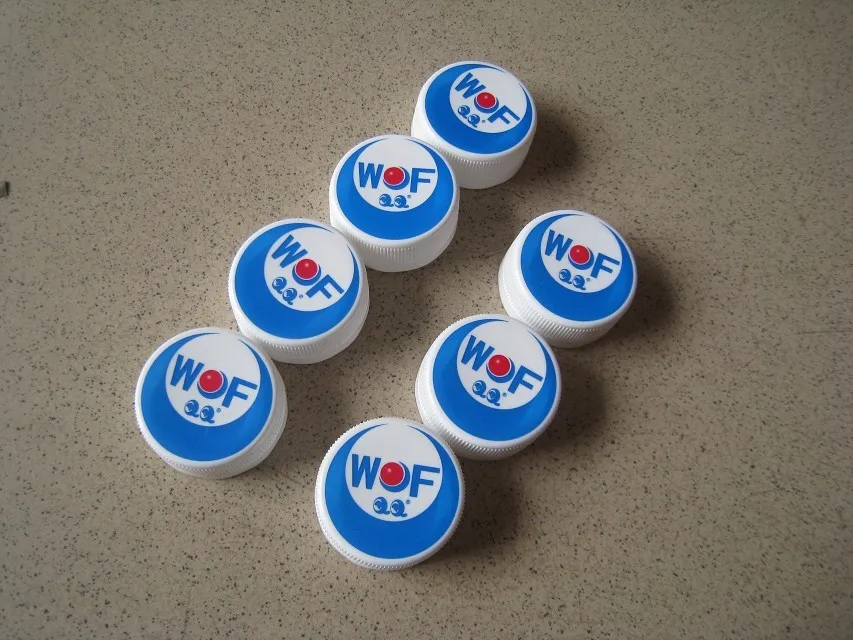

Sample pictures of pad printer:

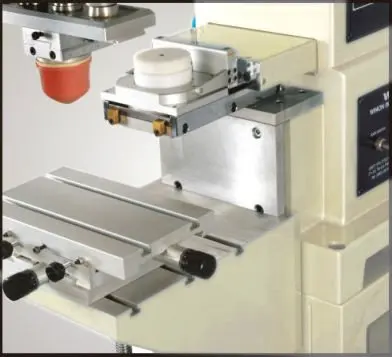

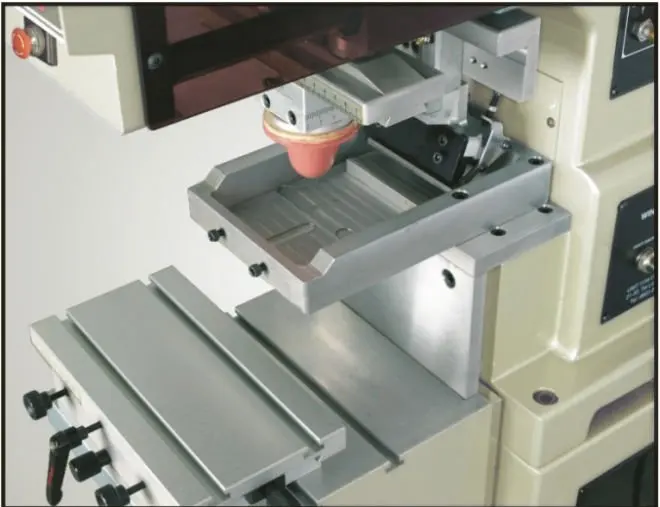

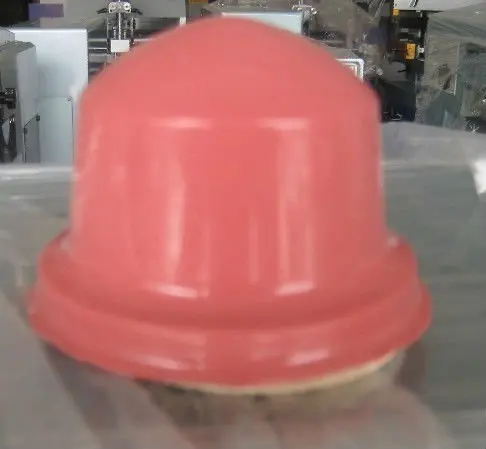

Components of pad printer:
