Product Overview

Description

 positive offset ps plate China

Feature

Unique Air Eduction Layer - Perfect Dot Reproduction
With tiny air eduction grain on the Baotu PS plate surface, the vacuuming time during exposure can be greatly decreased, as well as preventing image halation.

Unique Photosensitive Coating - High Sensitivity
Baotu's unique photosensitive coating consists of world’s first class photographic emulsion and resin, which offers outstanding alkaline resistance, superior stability, high sensitivity and increased adjusting flexibility. Baotu's unique photosensitive coating ensures Baotu PS plate of unmatched resolving ability.

Excellent Hydrophilic Layer - Sustainable Ink-water Equilibrium
Excellent water reception capability speeds up the ink-water equilibrium procedure and helps to reduce water absorption during printing process. Baotu's superior water retaining capability do effectively prevents non-image areas of the plate from scum and avoids paper distortion.

Outstanding Multi Grain Layer - Excellent Performance in Developing
Baotu's multi grain layer polishes up the hydrophilic substances of the non-image areas on the plate. This increases the ink-water adjusting flexibility and enhances the developing performance of the tiny dots. This also strengthens the dots’ ability to adsorb the coating layer, which consequently extends the run length of the plate.

Durable Anodic-oxidized Layer - Extraordinary Run Length
The durable and strong oxidized surface formed after the anodic oxidation process on the aluminum material prolongs the run-length of Ronsein plate. Anodic-oxidized layer also resists the corrosion of the retouching medium.

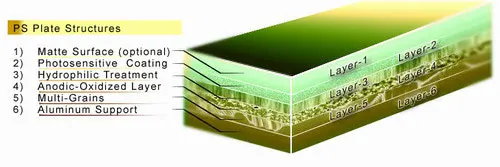

structur







Technical Specification



Technical Data	Brand	Baotu
	Thickness	0.15 - 0.40mm
	Coating	Green face
	Spectral Sensitivity	320-450nm
	Exposure Energy	120 - 140 mj/cm2
	Resolution	2% - 98% at 200 lpi
	Degree of surface roughness	0.60-0.80um
	Oxide layer of mass per unit area	2.5-3.50g/m2
	The photosensitive layer mass per unit area	2.0-2.50g/m2
	Run Length	80,000 - 100,000 actual run length may vary according to press, ink and paper condition.
Plate Developing Condition	Recommended Developer	Baotu developer or any other type of positive PS plate developer
	Protection Gum	suitable for any PS plate protection gum
	Developing Temperature	21 - 25 degree Celsius
	Developing Time	25 - 35s
	Developer Concentration	powder to liquid = 1:6 (automatic) powder to liquid = 1:7 (manual)
Plate Baking Condition	Baking Temperature	220 - 250 degree Celsius
	Baking Time	5 - 8 minutes
	Run Length after Baking	300,000 - 500,000
Storage Information	Safe Light	yellow
	Shelf Life	18 months under recommended storage conditions (10 - 30 degree Celsius, relative humidity: 40% - 70%, stacking height less than 1.5 meter)
	Package	0.15mm, 100 sheets per carton 0.30mm, 50 sheets per carton







For Clients' Information



♦ All the size can produced as your requirement with the thickness from 0.15mm-0.40mm in short delivery time.



♦ With two internationally advanced prduction line,our output can reach 500,000 square meters per month.



♦ All the plates are used first-grade aluminum substrate.



♦ Factory direct export,the price is more competitive.
