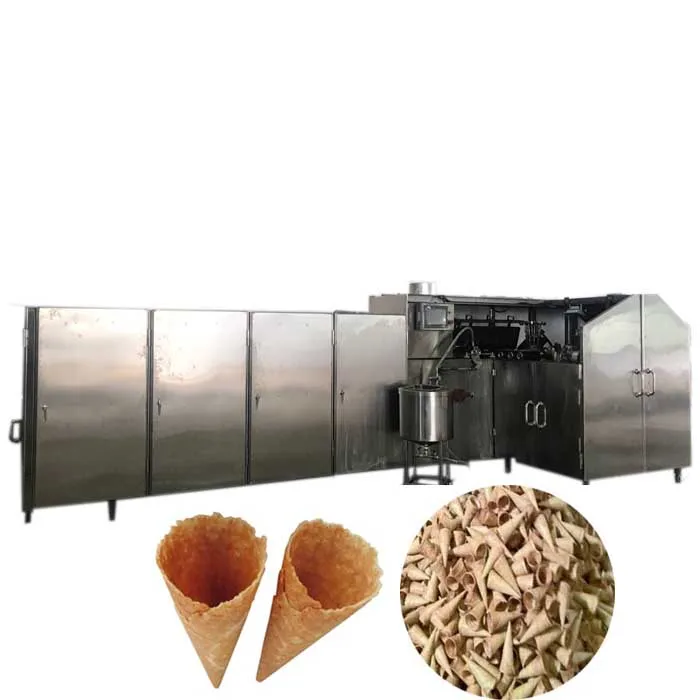

Fully Automatic Large Capacity Ice Cream Rolled Sugar Cone Making Machine
- Category: Food & Beverage Machinery >>>
- Supplier: Luohe Orange Mechanical Equipment Co. Ltd.
Share on (1541117403):
Product Overview
Description
Product Description
Fully Automatic Large Capacity Ice Cream Rolled Sugar Cone Making Machine
We produce many kinds of Automatic Ice Cream Cone Making Machine ,such as semi-automatic cone machine,automatic cone machines and ice cream cone production line. We also have the wafer ice cream cone machines,such as for different popular shapes in china and all over the worlds. Welcome to contact us with your cone pictures,design,size and capacity then we can talk more and suggest you the suitable ice cream cone machines.
Performance characteristics:
The machine is suitable for making flat mouth sugar cone length less than 120mm. Cone degree, weight, thickness and pattern spacing customized according to customer demand. The machine is consist of 280*240mm baking plates, plates material is high-qualified ductile cast iron, each plates can make two cone sheets. The machine is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric ignition, oven temperature electronic display. The producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.
Product Paramenters
Model | Input power | Machine dimension (M) | The weight of the ( kg） | Liquefied petroleum gas(LPG) the biggest consumption （kg/h） | Baking plate quantity/machine | Product size (mm) | Output/hour (pcs/h) |
SD80-37x2 | 3.37 kw | 7.6x2.1x1.8 | 4500 | 6 | 37 | Below125 | 3500-4000 |
SD80-37A | 3.37 kw | 7.6x2.1x1.8 | 4500 | 6 | 37 | Below165 | 2000-2500 |
SD80-45x2 | 3.37 kw | 8.7x2.1x1.8 | 5000 | 7 | 45 | Below125 | 4000-5000 |
SD80-45A | 3.37 kw | 8.7x2.1x1.8 | 5000 | 7 | 45 | Below165 | 2500-3000 |
SD80-53x2 | 3.37 kw | 9.8x2.1x1.8 | 5500 | 8 | 53 | Below125 | 5000-6000 |
SD80-53A | 3.37 kw | 9.8x2.1x1.8 | 5500 | 8 | 53 | Below165 | 3000-3500 |
SD80-61x2 | 4.07 kw | 11x2.1x1.8 | 6500 | 10 | 61 | Below125 | 6000-7000 |
SD80-61A | 4.07 kw | 11x2.1x1.8 | 6500 | 10 | 61 | Below165 | 3500-4000 |
SD80-69x2 | 4.37 kw | 12.5x2.1x1.8 | 7300 | 11 | 69 | Below125 | 7000-7500 |
SD80-69A | 4.37 kw | 12.5x2.1x1.8 | 7300 | 11 | 69 | Below165 | 4000-4500 |

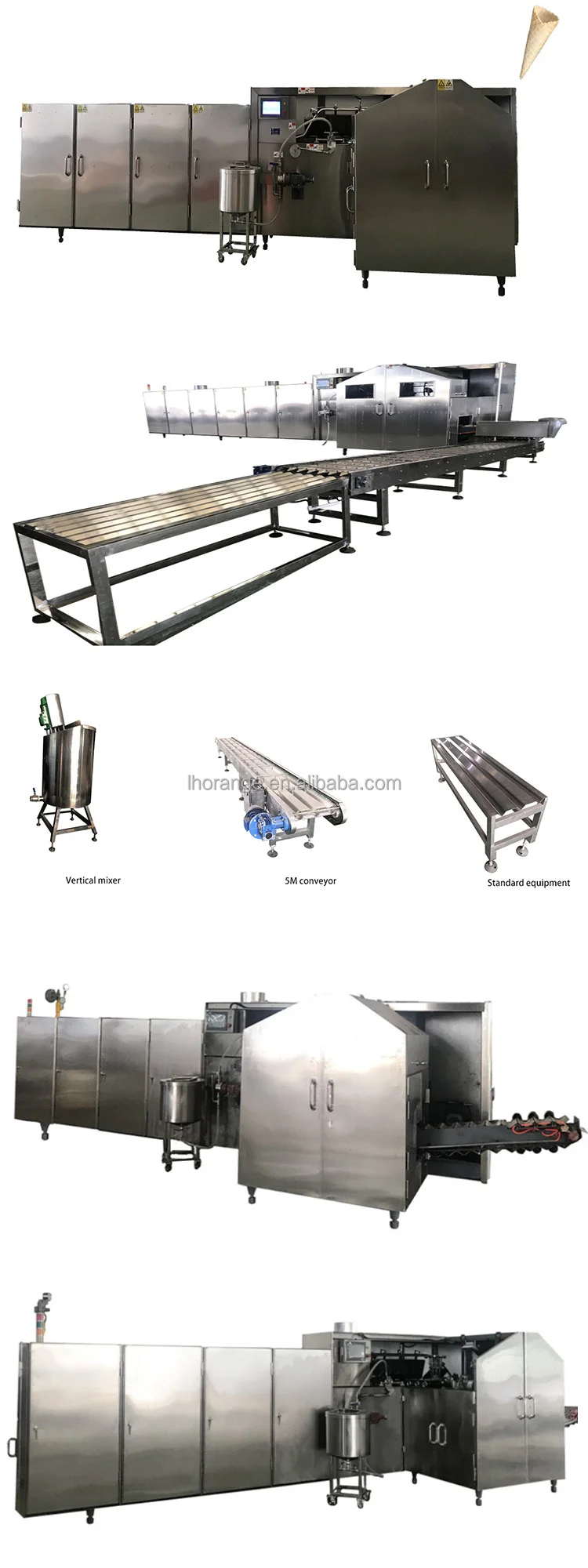

Detailed Images
Related Products
Packing&Shipping
1.We can load container at:qingdao,shanghai ,ningbo,tianjin,guangzhou etc.
2.Orange provide shipping method:Courier service,Air transport,Sea Transport
3.Can accept oder:Full container cargo load,Less container load
4.Our service:EXW,FOB,CIF,CNF,Door to Door etc.
5.We always choose the most economical and reliable shipping company to make sure you receive the goods in time.
6.The tracking number will be provided to you once the consignment is shipped.
After Sales Service
1.All the products have one year guarantee.
2.Providing professional installation instructions and video of troubleshoot.
3.We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.
4.When some problems can’t be solved by customers, our engineer can go to door to support.
Company Introduction
FAQ
Q1: What are the payment terms?
A: We usually accept payment by T/T, L/C, Western Union or Escrow.
Q2 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to customize for you.
Q3: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are alibaba legitimate certification company (VIP), and we support payment terms like L/C, Escrow, to ensure your safety.
Q4: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
Q6 : Where will the orders be shipped from?
A: It will ship from the main ports China. And We will find the shipping company which will offer the best and most economical freight for our customers.
