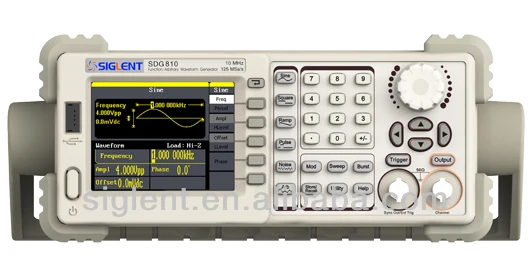

Product Description



SDG800 Series Economy Function/Arbitrary Waveform Generator is equipped with maximum output frequency of 5 MHZ, 10 MHZ, 30 MHZ, and 125 MSa/s sampling rate. With the new innovated EasyPulse technology, SDG800 can generate pulse of low jitter, quick rising/falling edge regardless of frequency effect, while the duty cycle, edge and pulse width could be widely and accurately adjusted. SDG800 is much superior in performance to similar DDS signal generator.



Features and Benefits:

• DDS technology, Single-channel output
• 125MSa/s sample rate, 14bit vertical resolution
• 5 types of standard output waveform, built-in 46 arbitrary waveforms (include DC)
• Complete set of modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst
• Abundant input/output: waveform output, Synchronous signal output , external trigger input
• Standard interfaces: USB Device, USB Host
• Supplied with powerful arbitrary editing software
• Support remote control

Design Features:

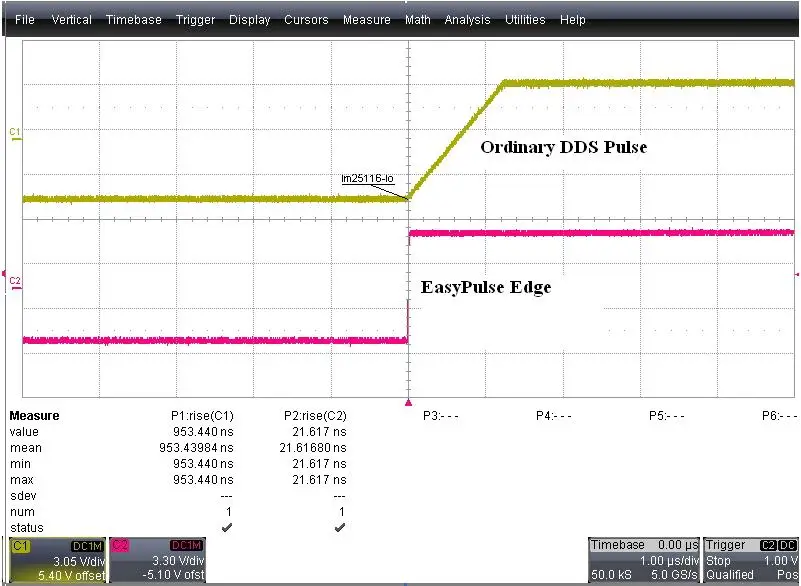

Figure 1Comparison of  edge under 1KHz pulse signal



As shown in figure 1, under 1KHz frequency, EasyPulse can keep quick rising/falling edge (20ns) while the edge of ordinary DDS is very slow.

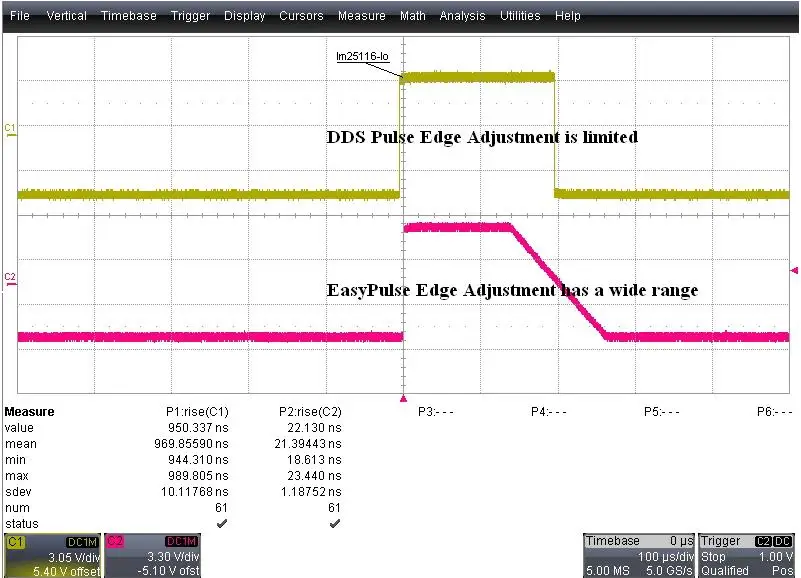

Figure 2Comparison of edge adjusting range under 1KHz pulse signal



As shown in figure 2, EasyPulse edge adjustment has a wide range, while ordinary DDS pulse edge adjustment is limited.

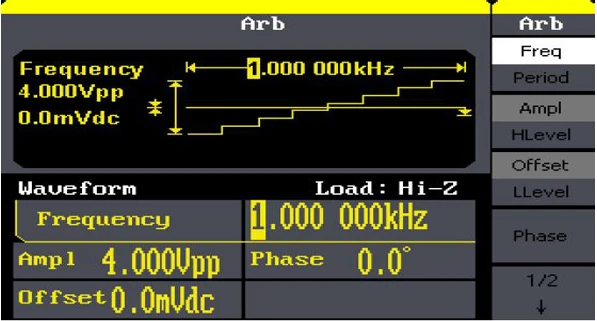

Figure 3Built-in 46 kinds of arbitrary waveforms (including DC)



As shown in figure 3, SDG800 Series can output 5 kinds of standard waveforms and 46 kinds of commonly used waveforms, including common waveforms, mathematical functions, application functions, window functions and trigonometric functions.

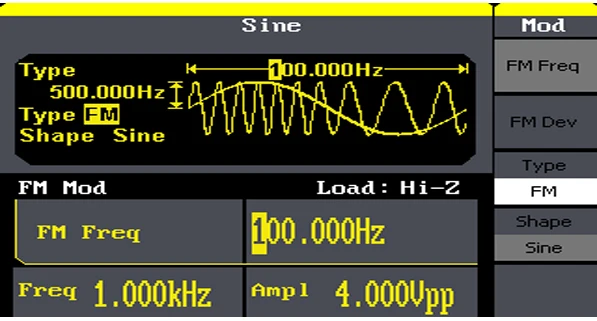

Figure 4Multiple modulation function



As shown in figure 4, SDG800 Series support multiple modulation function: AM, DSB - AM, FM, PM, FSK, ASK, PWM, linear/logarithmic sweep and burst.

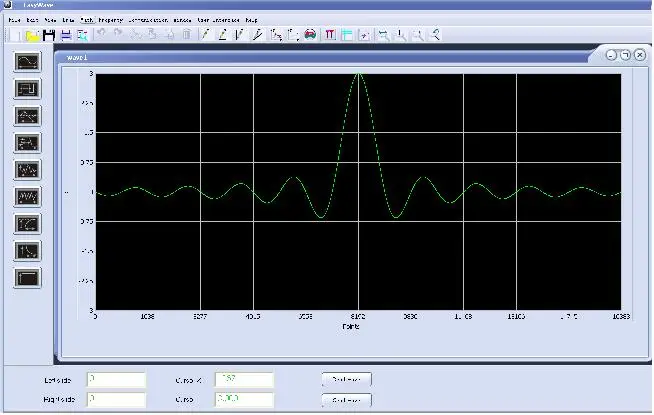

Figure 5Support PC editing software EasyWave



As shown in figure 5, SDG800 Series support powerful PC editing software EasyWave, which can outputarbitrary waveform featured 14bit vertical resolution and 16Kpts wave length. EasyWave provides 9 standard waveforms: Sine, Square, Ramp, Pulse, ExRise, ExpFall, Sinc, Noise and DC, which meet all engineers’ basic needs. In addition, it provides a variety of draw modes like manual drawing, straightline drawing(including horizontal straightline, vertical straightline, point-to-point straightline), coordinate drawing and equation drawing, making it easy to create complex waveforms. Multiple Document Interface management makes simultaneous multiple-waveform editing. SDG800 Series provides 10 nonvolatilestorage spaces for arbitrary waveforms, and you can also edit and store more waveforms through EasyWave software.





Specifications:



Model	SDG805	SDG810	SDG830
Maximum output frequency	5MHz	10MHz	30MHz
Output channels	1
Sampliing rate	125 MSa/s
Wave length	16 kpts
Frequency resolution	1 μHz
Vertical resolution	14 bits
Waveform	Sine, Square, Ramp, Pulse, Gaussian white noise, Arbitrary waveform, 46 types of built-in arbitrary waveforms
Sine wave	1μHz ~ 5MHz	1μHz ~ 10MHz	1μHz ~30MHz
Square wave	1μHz ~ 5MHz	1μHz ~ 10MHz	1μHz ~10MHz
Pulse	500μHz ~ 5MHz	500μHz ~ 5MHz	500μHz ~5MHz
Ramp/Triangular	1μHz ~ 300KHz	1μHz ~ 300KHz	1μHz ~ 300KHz
Gaussian white noise	>5MHz	>10MHz bandwidth(-3dB)	>30MHz
	bandwidth(-3dB)		bandwidth(-3dB)
Arbitrary waveform	1μHz ~ 5MHz	1μHz ~ 5MHz	1μHz ~ 5MHz
Modulation function	AM, FM, PM, DSB-AM, FSK, ASK, PWM, Sweep, Burst
Standard configuration	USB Host & USB Device
Amplitude range	2mVpp~10Vpp(50Ω), 4mVpp~20Vpp(High resistance)
Output Specification
Vertical accuracy(100 kHz sine)		± (1mVpp+0.3dB of setting value)
Amplitude flatness		±0.3dB(compared to 1KHz Sine, 5Vpp)
Protection		short-circuit protection
DC Offset
Range(DC)		±5V (50Ω), ±10V (High-Z
Offset accuracy		±(|setting offset value|*1%+3mV)
AM Modulation
Carrier		Sine, Square, Ramp, Arbitrary(except DC)
Modulation waveform		Sine, Square, Ramp, Noise, Arbitrary (2mHz ~ 20kHz)
Modulation depth		0% ~ 120%
DSB-AM Modulation
Carrier		Sine, Square,Ramp, Arbitrary(except DC)
Modulation waveform		Sine, Square, Ramp, Noise, Arbitrary (2mHz ~20kHz)
Modulation depth		0% ~ 120%
FM Modulation
Carrier		Sine, Square, Ramp, Arbitrary(except DC)
Modulation waveform		Sine, Square, Ramp, Noise,Arbitrary(2mHz~20kHz)
Frequency deviation		0~0.5*bandwidth 1mHz resolution
PM Modulation
Carrier		Sine, Square, Ramp, Arbitrary(except DC)
Modulation waveform		Sine, Square, Ramp, Noise, Arbitrary(2mHz~20kHz)
Phase Deviation		0~360° , 0.1°Resolution
FSK Modulation
Carrier		Sine, Square, Ramp, Arbitrary(except DC)
Modulation waveform		50% duty-cycle square waveform(2mHz~50kHz)
ASK Modulation
Carrier		Sine, Square, Ramp, Arbitrary(except DC)
Modulation waveform		50% duty-cycle square waveform(2mHz~50kHz)
PWM Modulation
Frequency		500μHz~20kHz
Modulation waveform		Sine, Square, Ramp, Arbitrary(except DC)
Sweep
Carrier		Sine, Square, Ramp, Arbitrary(except DC)
Type		linear/logarithmic
Direction		Up/down
Sweep time		1ms~500s
Trigger source		Manual, external, internal
Burst
Waveform		Sine,Square, Ramp, Pulse, Arbitrary(except DC)
Type		Count(1~50,000 periods),infinite, Gated
Start/Stop phrase		0°~360°
Internal period		1μs~500s
Gated source		External trigger
Trigger source		Manual, External or Internal
Trigger Input
Input Level		TTL compatible
Slope		Up or down
Pulse Width		>100 ns
Input impedance		>5kΩ, DC coupling
SYNC Output
Voltage level		TTL compatible
Pulse Width		>50 ns
Output impedance		50Ω(typical)
Max. frequency		2MHz
General Specification
Display type		3.5 inch’ TFT-LCD
Dimensions		Width: 229mm, Height: 105mm, Depth: 281mm
Weight		N.W: 2.6Kg, G.W: 3.4K
