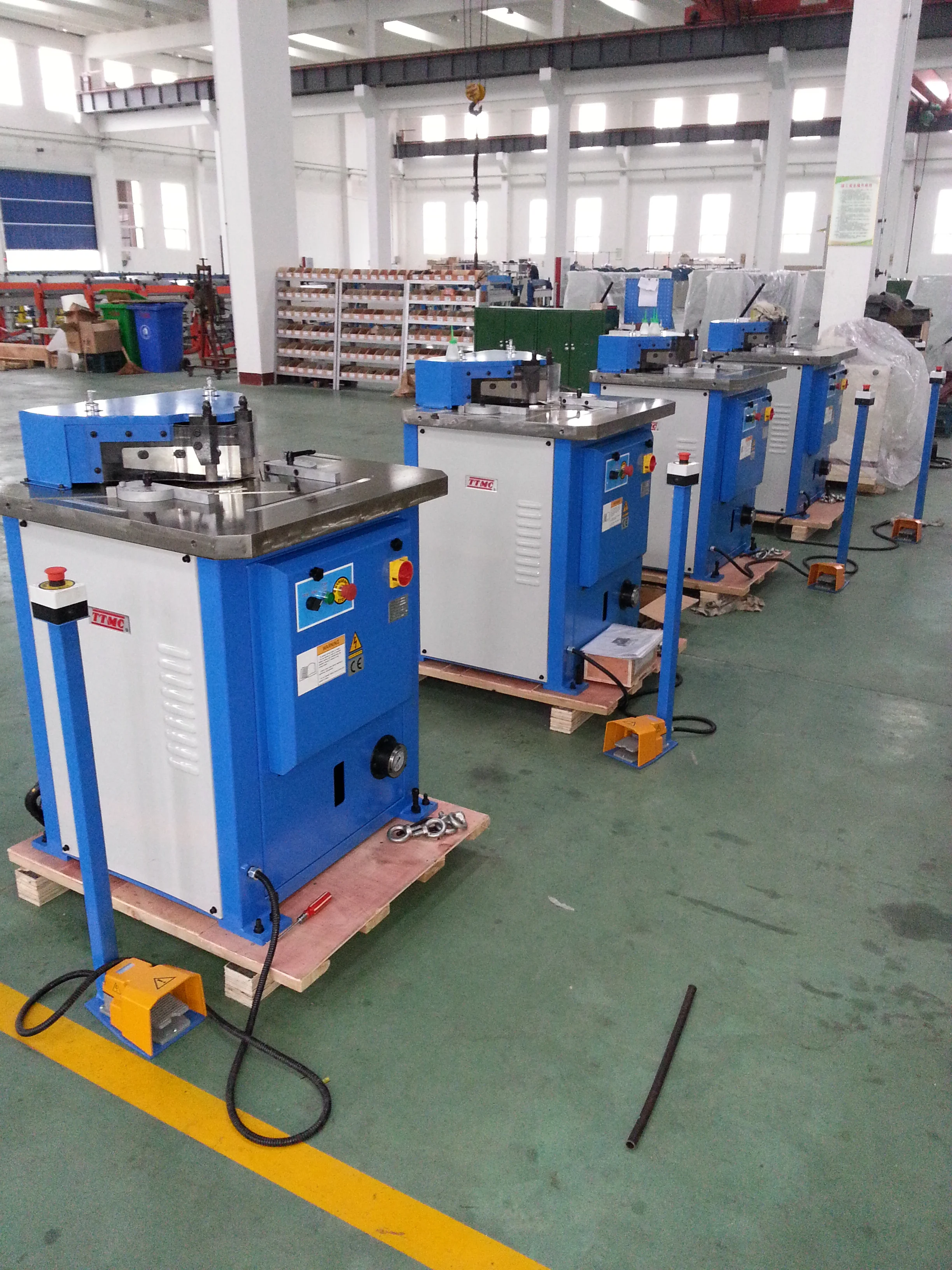

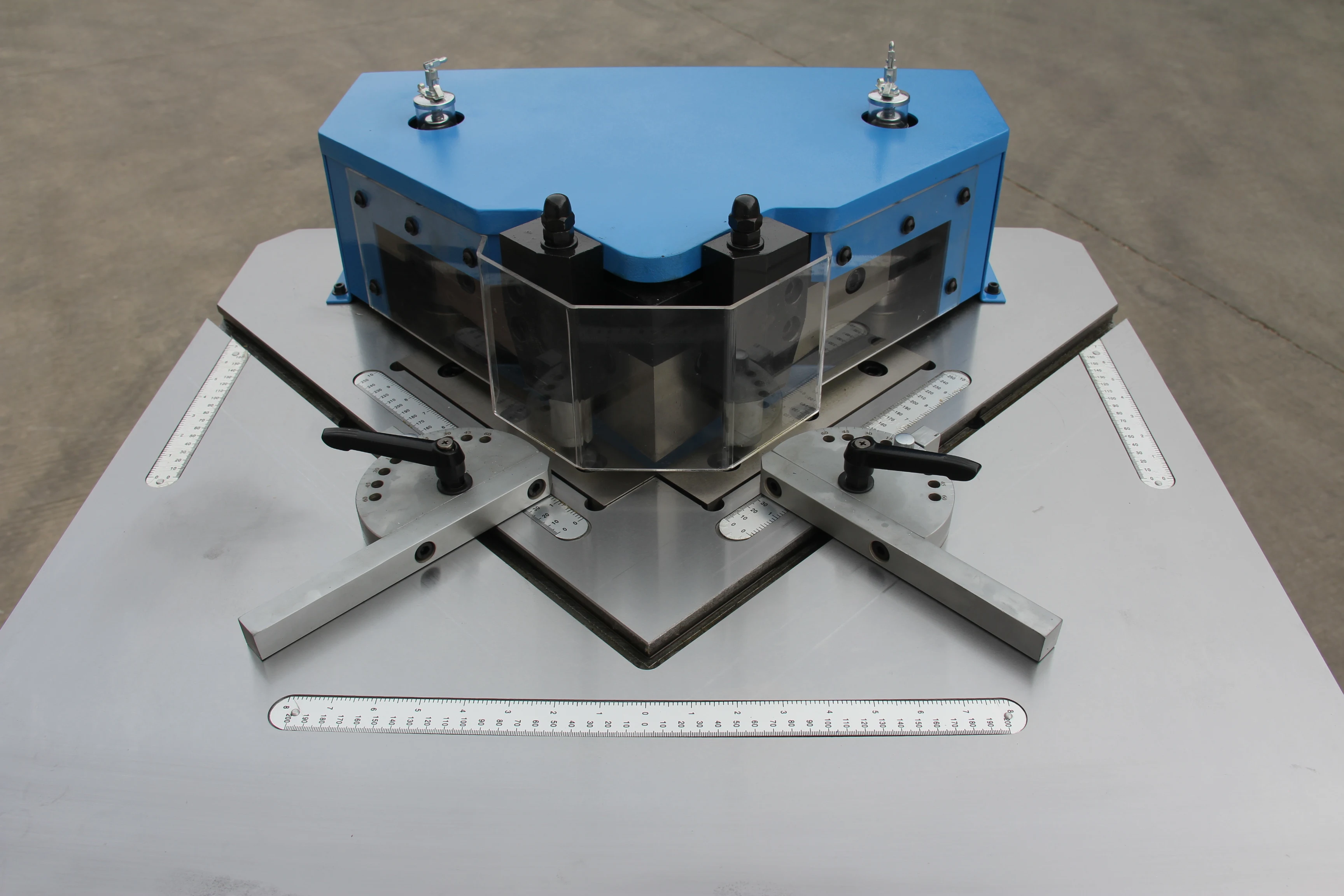

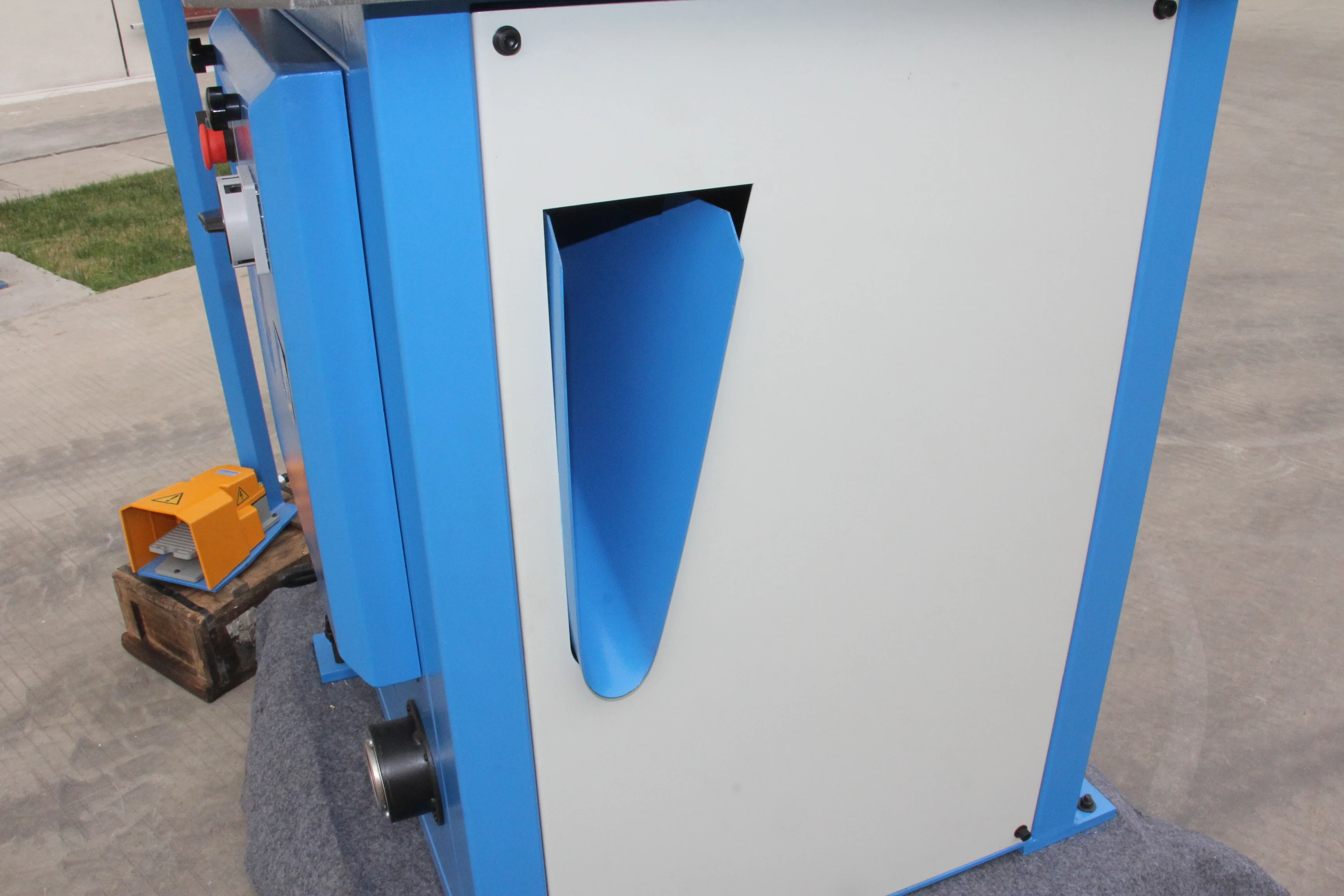

HNM 6 TTMC гидравлический фиксированный угол ножа
- Category: Notching Machine >>>
- Supplier: Tengzhou Tri-Union Machinery Co. Ltd.
Share on (1547238449):
Product Overview
Description
Product Description
Fixed angle nothcer @90 degrees
Cutting up to 6.5mm thickness
Compact structure save working space
Automatic blade gap adjustment
Item NO. | 372410 |
Model | HNM-6 |
Cutting Angle | 90° |
Cutting Thickness | 6.5mm |
Cutting Width | 250x250mm |
No. of stoke | 24 time/min |
Table size | 810x750 mm |
Motor Power | 4 KW |
Working Pressure | 12MPA |
Packing size | 101x85x137cm |
N.W./G.W. | 630/675 |
Size Information
Hydraulic Angle Notcher (fixed angle & variable angle)
Item No. | 372410 | 372411 |
Model | HNM-6 | |
Cutting Angle | 90° | 30°-140° |
Cutting Thickness (mm) | 6.5mm | 6 |
Cutting Width (mm) | 250x250mm | 200x200mm |
Motor Power | 4kw | 4 kW |
Pressure | 12MPA | 18 MPA |
Packing size (cm) | 101x85x137 | 120x105x142 |
N.W./G.W. (kg) | 630/675 | 1020/1100 |
