Шлифовальный станок, режущий уголок, гидравлический шлифовальный станок для листового металла, распродажа

Product Overview

Description

Notcher Lathe Cutting Corner Hydraulic Sheet Metal Angle Notching Machine for Sale

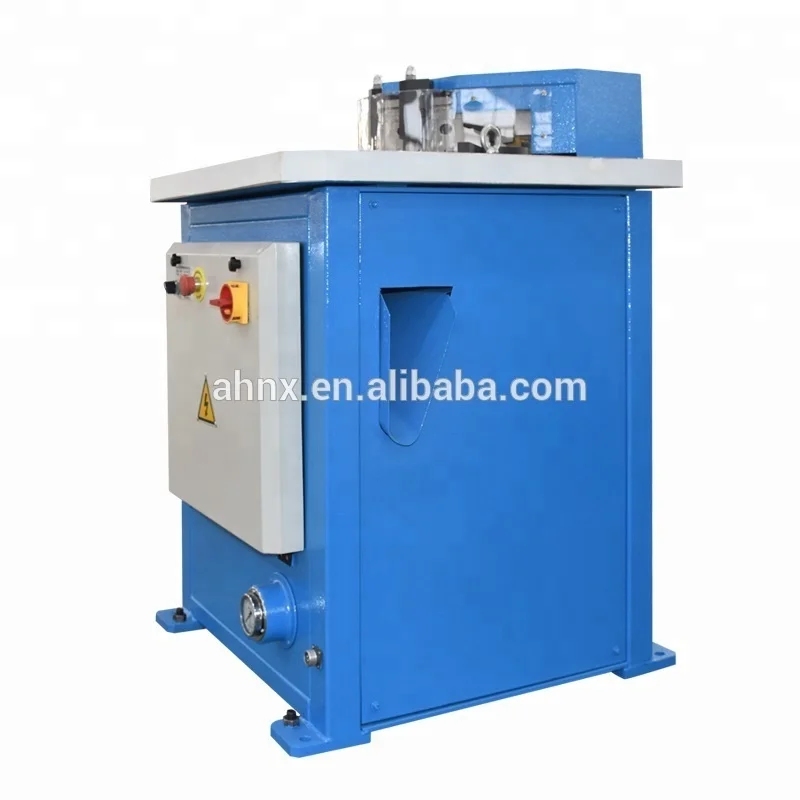

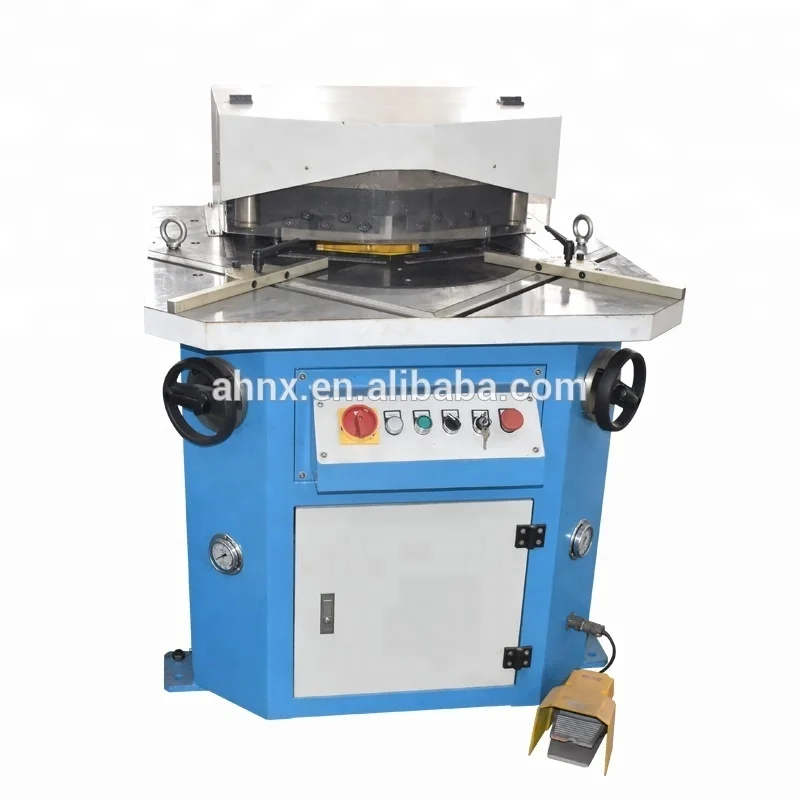

Angle Notching Machine ( Mode l:  Fixed Angle )

v Hydraulic under move style

v Angle 90 Degree

v It can adjust the blade clearance according to the plate thickness

v Single-step or Multi-steps

v Lubrication all together

v Affordable price and high efficiency

v Big amount and stock

Model	Cutting Thickness		Cutting Length	Angle	Stroke	Table Height	Motor	Overall Size	N.W.
	mm		mm		N/min	mm	kw	mm	kgs
3*200	0.5-3.0	0.5-1.5	200	90	≥ 40	820	3	810*720*980	590
4*250	0.5-4.0	0.5-2.0	250	90	≥ 35	850	4	910*760*1050	680
6*250	0.5-6.0	0.5-3.0	250	90	≥ 35	850	4	910*810*1050	710
8*300	1.0-8.0	1.0-4.0	300	90	≥ 30	900	5.5	950*820*1150	850
10*300	1.0-10	1.0-5.0	300	90	≥ 25	900	5.5	1020*910*1190	1120

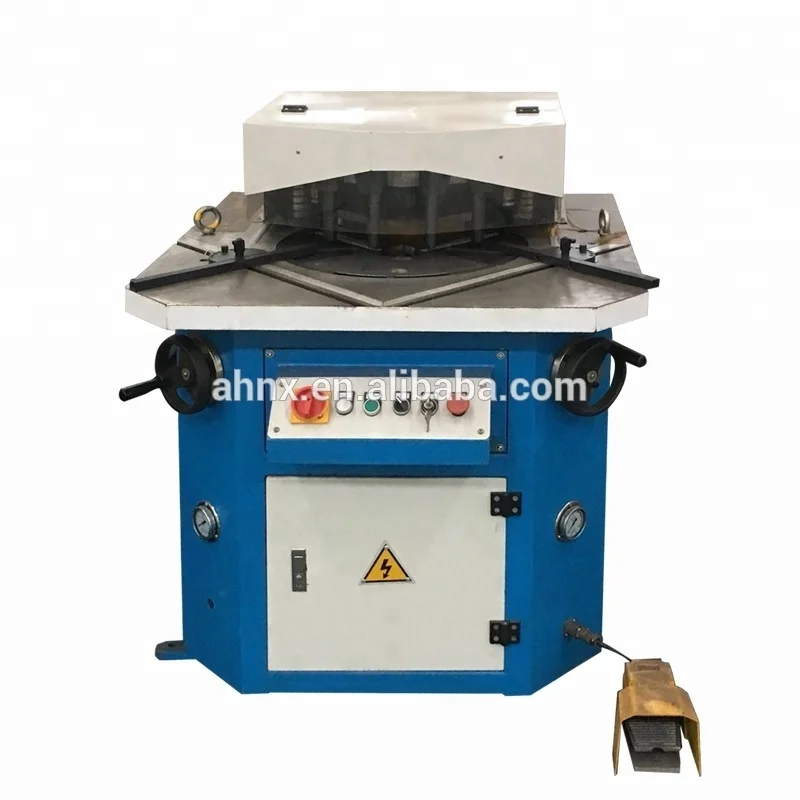

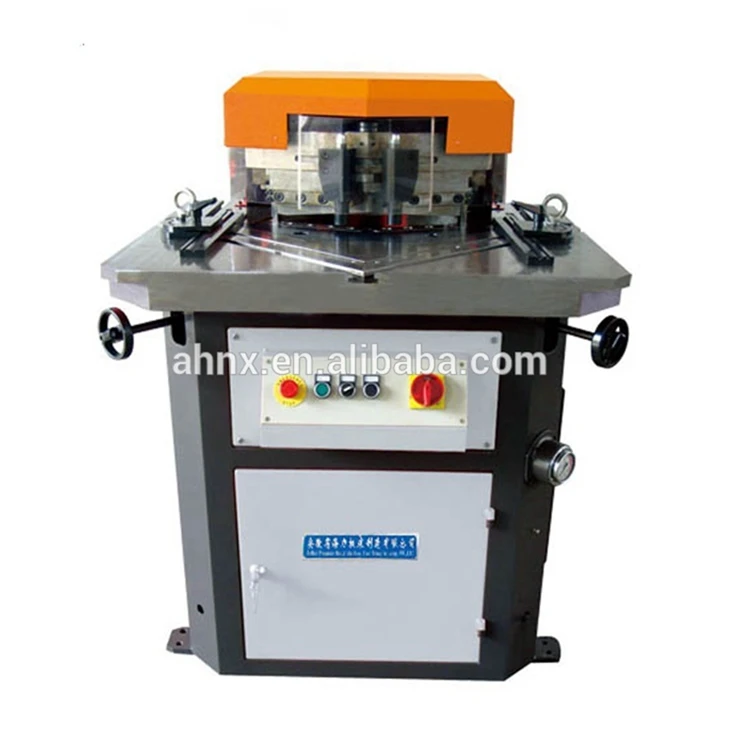

Angle Notching Machine ( Mode 2:  Adjustable Angle )

v Hydraulic under move style

v Adjustable Angle From 30 to 140

v It can adjust the blade clearance according to the plate thickness

v Single-step or Multi-steps

v Lubrication all together

v The angle is adjustable in chain.

v Affordable price and high efficiency

v Big amount and stock

Model	Cutting Thickness		Cutting Length	Angle	Stroke	Table Height	Motor	Overall Size	N.W.
	mm		mm		N/min	mm	kw	mm	kgs
4*200	0.5-4.0	0.5-2.0	200	40-135	≥ 35	850	3	890*870*1080	860
6*220	0.5-6.0	0.5-3.0	220	45-135	≥ 30	850	4	950*920*1150	970

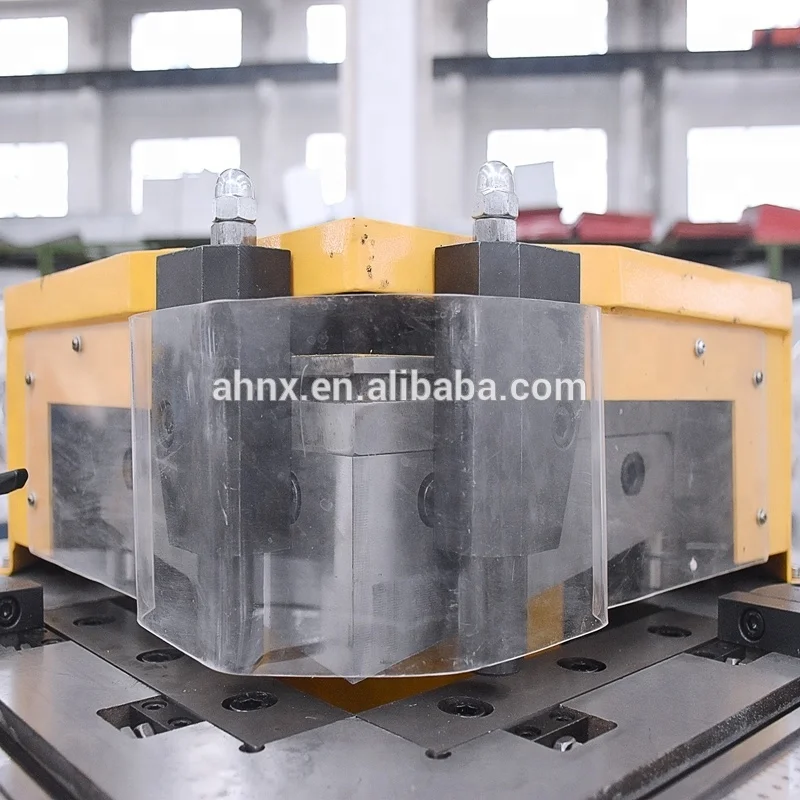

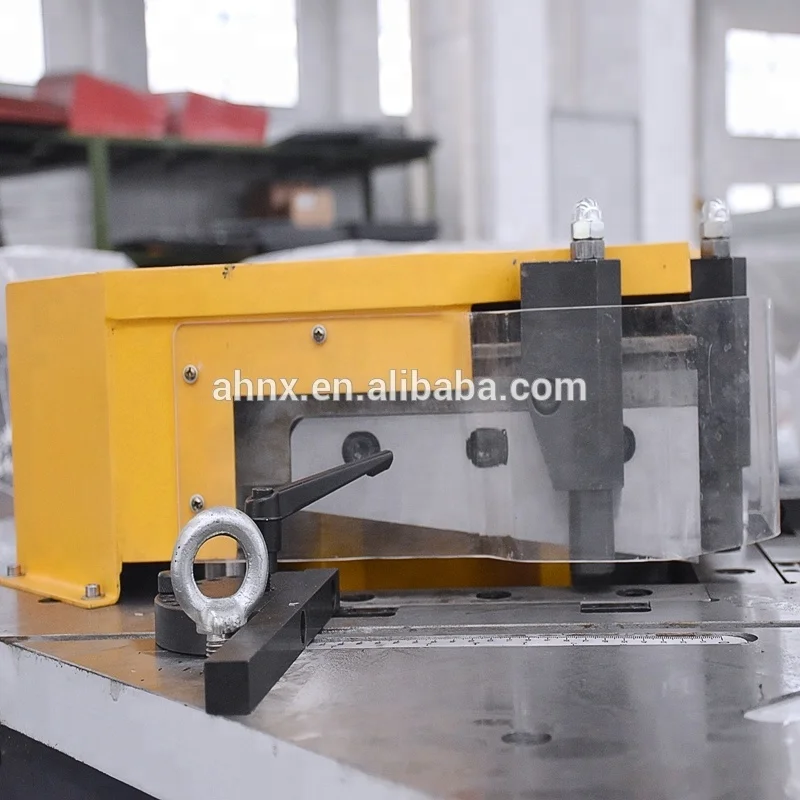

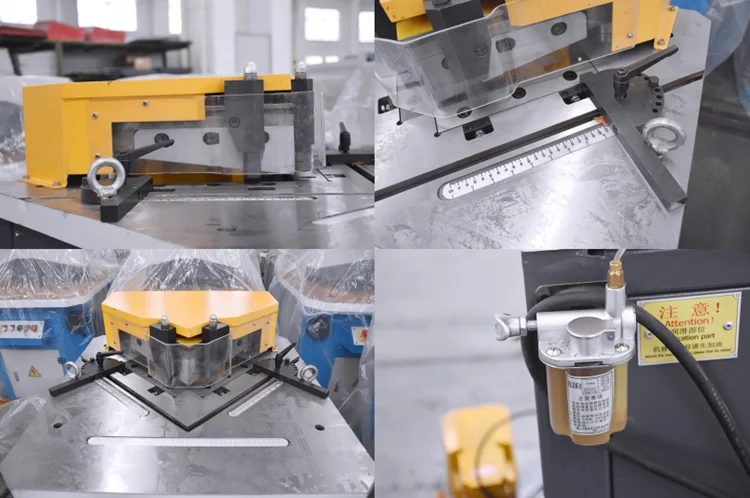

Details of Angle Notching Machine ( Mode l:  Fixed Angle )

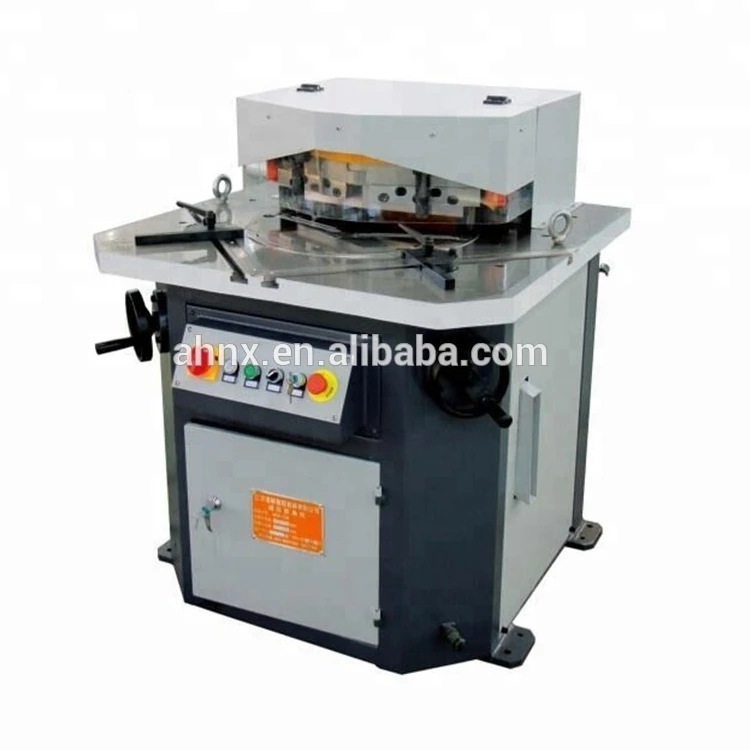

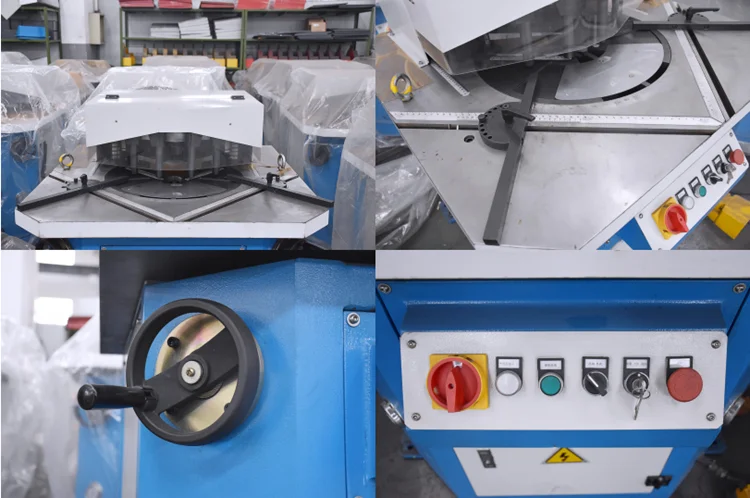

Details of Angle Notching Machine ( Mode 2:  Adjustable Angle )

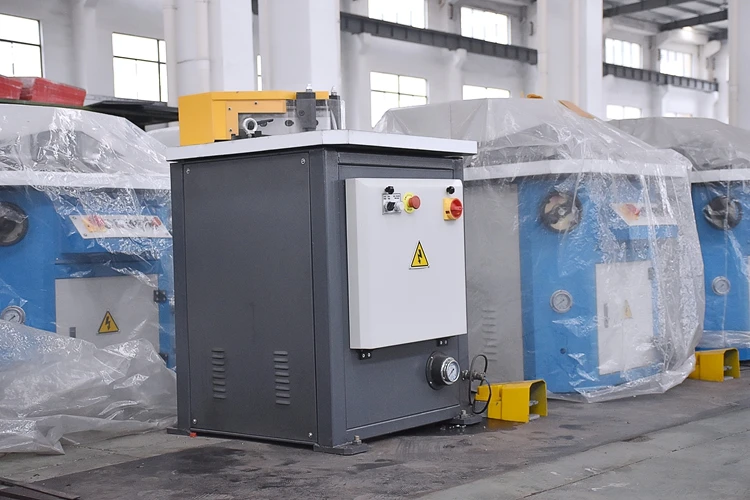

Stock Of Angle Notching Machine

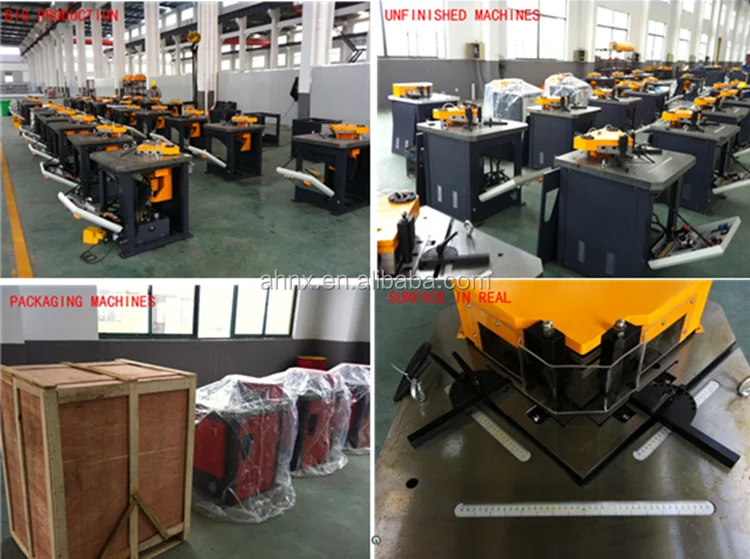

The Capacity & Package of The Angle Notching Machine

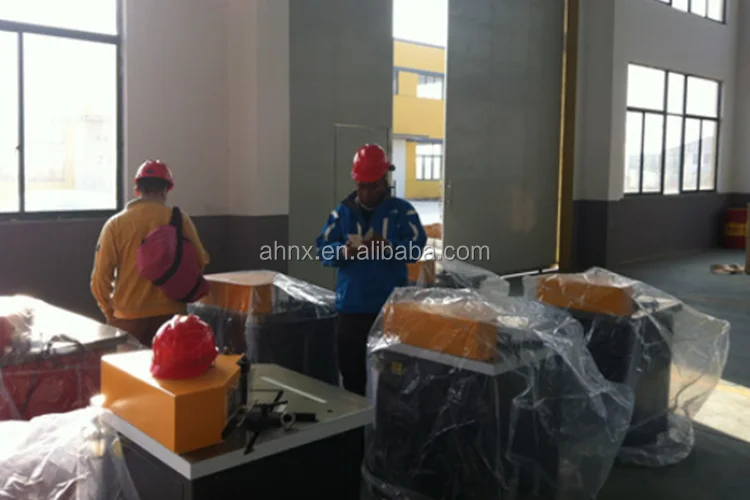

Inspection:
